ID: 1125423
Product code: MG09ACA16TE
In stock 4 units
Warranty: 3 years

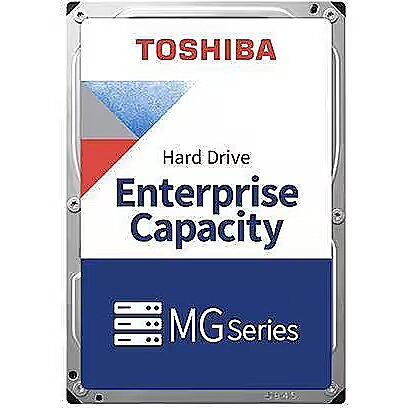

Toshiba 16TB, 7200rpm, 256MB, SATA III, MG09, 512e
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Unisend parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Capacity: 16 TB
- Data Interface: SATA III
- Spindle rotation speed: 7200 rpm
- Data buffer: 256 MB
Description
Dateks offers to buy the Toshiba hard disc with 16 TB data capacity, SATA III connection, 7200 rpm rotation speed and 256 MB cache memory.
This hard disc has SATAIII connection. SATAIII, or SATA 6GB/s is the latest generation data transmission connection found in the most modern computers for ensuring sufficient SSD discs data flow exceeding the SATAII possibilities. The speed of the cache memory of hard discs can sometimes exceed also the SATAII passage possibilities because in essence this cache memory is a small size SDD disc (~64 Mb). Therefore, when the relevant port is available on the motherboard it is advisable to select the SATAIII disc.
Thanks to the 7200 rpm rotation speed of magnetic discs this hard disc provides the optimum fast operation in the data search and transmission. 7200 rpm is the classic standard for the universal application both for the maintenance of the operating system and applications and the data archiving.
This hard disc has SATAIII connection. SATAIII, or SATA 6GB/s is the latest generation data transmission connection found in the most modern computers for ensuring sufficient SSD discs data flow exceeding the SATAII possibilities. The speed of the cache memory of hard discs can sometimes exceed also the SATAII passage possibilities because in essence this cache memory is a small size SDD disc (~64 Mb). Therefore, when the relevant port is available on the motherboard it is advisable to select the SATAIII disc.
Thanks to the 7200 rpm rotation speed of magnetic discs this hard disc provides the optimum fast operation in the data search and transmission. 7200 rpm is the classic standard for the universal application both for the maintenance of the operating system and applications and the data archiving.
All parameters
Capacity
16 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Use
: Server
Data Interface
SATA III
The connection of the HDD to the computer. The current industry standard is SATA connection. IDE connection is available with older computers. Prior to buying the HDD you should verify whether the motherboard has a free connection slot and the support for the chosen disc capacity.
Spindle rotation speed
7200 rpm
The HDD rotations. The HDDs of most desktop computers have 7200rpm and this has already become the industry standard. If you want to achieve a higher speed you should buy the HDD of 10000rpm. The operation noise, temperature and power consumption of 10000rpm HDDs are much higher than these of the 7200rpm HDDs parameters, therefore, prior to buying a 10000rpm HDD you should verify the compliance of the enclosure, power supply unit and the cooling with the technical requirements of this HDD.
Data buffer
256 MB
Data buffer is a high-speed memory built-in the HDD and allowing the disc to receive data at a smooth speed irrespective of the level of loading the physical memory of the disc at the particular time. If you work with a high number of small volume files (documents, photos, etc.) we recommend to buy an HDD with 8Mb or higher data buffer.
More detailed specification
24/7 operation Features - Yes
Advanced Format (AF) Features - Yes
ARTIKEL1 - ENTERPRISE CAPACITY HDD 16TB
ARTIKEL2 - 3.5IN SATA 7200RPM 256MB 512E
Breite - 0.16
Category 1 - Festplatten
Category 2 - Interne Festplatten
Category Code - HES
Category_1 - Hard Drives and Pendrives
Category_2 - Internal Hard Drives - SATA - 3.5 inch
Component for Features - NAS
Description - Rethink Your Data Storage Toshiba Enterprise HDDs The MG09 Series features Toshiba’s third-generation, 9-disk Helium-sealed design to advance Conventional Magnetic Recording (CMR) density to 2 TB per disk, achieving a total capacity up to 18TB. The industry-standard 3.5-inch form-factor provides 7200rpm performance, and integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions. The massive 18 TB CMR capacity is delivered using Toshiba’s innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR) technology. These advances help the MG09 Series to achieve optimum storage capacity and application compatibility, with unsurpassed data reliability. Available with either a SATA 6.0 Gbit/s or a 12.0 Gbit/s SAS interface, the MG09 Series models integrate easily into standard 3.5-inch drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, File and Object storage systems, and business critical servers and storage systems.
Up to 18TB capacityConventional Magnetic Recording (CMR) for broad compatibilityToshiba Flux Control Microwave-assisted Magnetic Recording (FC-MAMR) TechnologyIndustry-leading 9-disk helium-sealed design for superior storage densityIndustry Standard 3.5-inch 26.1mm height Form Factor7200rpm PerformanceChoice of SATA 6.0 Gbit/s and 12.0 Gbit/s SAS InterfacesLower operational power profile, providing excellent power efficiency (W/TB) for better TCO550 Total TB Transferred per Year Workload Rating512e or 4Kn Advanced Format Sector Technology; (512e Model) Includes Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss EventsSustained transfer rate and power efficiency improvements vs. prior MG Series generationsSanitize Instant Erase (SIE) option model and Self Encrypting Drive (SED) option modelCloud-scale Sever and Storage InfrastructureSoftware-defined data center infrastructureFile- and Object-based storage infrastructureTiered Storage Infrastructure SolutionsWorkloads and Use-Cases that Benefit from High Capacity per Spindle disk drivesCapacity-Optimized Cloud-scale and Rack-Scale Storage SystemsCompliance Data Archives and Data Life-Cycle Management Storage SystemsData Center Data-Protection and Data Back-up Infrastructure
EAN - 4260557513019
EANCode - 4260557513019
EAN kods - 4260557513019
EAN_code - 4260557513019
External Data Bit Rate - 6 gigabits sekundē
Formas faktors - 3.5"
Gabali iepakojumā - 1
Garantija Produkti atgriežami - Jā
Garantijas apstiprināšanas kritēriji - Sērijas numurs
Garantijas termiņš (mēnesis) - 60 mēnesis(-i)
Gewicht - 0.8
Gross Weight Kg - 1
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Hard Drive Sata
HDD capacity Features - 16 TB
HDD interface transfer rate Features - 6 Gbit/s
HDD size Features - 3.5"
HDD speed Features - 7200 RPM
HDD sustained transfer rate Features - 268 MiB/s
HERSTELLER - TOSHIBA
Hoehe - 0.05
Hot-swap Features - No
HSTNUMMER - MG09ACA16TE
Iepakojuma augstums (mm) - 102 milimetrs
Iepakojuma garums (mm) - 147 milimetrs
Iepakojuma platums (mm) - 27 milimetrs
Iepakojuma svars Brutto (kg) - 0.73 kilograms
Iepakojuma svars Netto (kg) - 0.72 kilograms
Iepakojuma tips - OEM
Iepakojums kastē - 20
Ierīces atrašanās vieta - Internal
Installed Cache Memory Storage Capacity - 512 megabaits
Interface Features - Serial ATA III
Internal Data Bit Rate - 268 megabits sekundē
Kastes augstums (mm) - 500 milimetrs
Kastes garums (mm) - 228 milimetrs
Kastes platums (mm) - 310 milimetrs
Kastes svars Brutto (kg) - 16.8 kilograms
Laenge - 0.21
Manufacturer - Toshiba
Manufacturer - Toshiba Storage
Manufacturer Code - MG09ACA16TE
Manufacturer Name - Toshiba
Manufacturer_code - MG09ACA16TE
Maximum Power Consumption - 4.16 Vats
Mazumtirdzniecības iepakojuma neto svars Plastmasa - 0.01 kilograms
Mazumtirdzniecības iepakojums Neto svars Kartona kārba - 0 kilograms
Mean Time Between Failures - 2500000 stunda
Mean time to failure (MTTF) Features - 2500000 h
MPN - MG09ACA16TE
Name - 16TB Toshiba MG09 Series MG09ACA16TE 7200RPM 512MB
Name - Toshiba MG09 16TB (SATA 6Gb/s, 3.5"")
Noise level (idle) Features - 20 dB
Nominālais svars - 0.72 kg
Non-operating altitude Operational conditions - -305 - 12192 m
Non-operating shock Operational conditions - 250 G
Non-operating vibration Operational conditions - 3 G
Operating altitude Operational conditions - -305 - 3048 m
Operating relative humidity (H-H) Operational conditions - 5 - 90%
Operating shock Operational conditions - 70 G
Operating temperature (T-T) Operational conditions - 5 - 55 °C
Operating vibration Operational conditions - 0.75 G
Operating voltage Power - 5 / 12 V
Power consumption (idle) Power - 4.16 W
Power consumption (typical) Power - 8.35 W
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=240604063809174189&THEME=asbis&LANG=lv
ProductCategory - Cietie diski
ProductCode - MG09ACA16TE
ProductDescription - HDD Server TOSHIBA MG09 16TB CMR 512e, 3.5'', 512MB, 7200RPM, SATA, SKU: HDEPZ11GEA51F
Product Net Weight - 0.68 kg
ProductType - HDD Server
Quantity per pack Packaging data - 1 pc(s)
Rotational Speed - 72000 apgriezieni minūtē
Short description - HD3.5" SATA3-Raid 16TB Toshiba MG09ACA16TE/7.2k/512e
Start/stop cycles Features - 600000
Stck_Kart - 20
Stck_Pal - 380
Storage Capacity - 16 terabaits
Storage relative humidity (H-H) Operational conditions - 5 - 95%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Storno - Y
Summary - Toshiba MG09. HDD capacity: 16 TB, HDD speed: 7200 RPM, HDD size: 3.5", Interface: Serial ATA III
Supports Data Channel - SATA III-600
Type Features - HDD
Uncorrectable Bit Error Rate (UBER) Features - < 1 per 10^10 bits read
Unit Box Height - 0.04
Unit Box Length - 0.19
Unit Box Width - 0.135
Unit Calculated Volume - 0.001026 cubm
Unit Calculated Weight - 0.69 kg
Units per Shipping Box - 1
Vendor - TOSHIBA
Vendor Homepage - https://storage.toshiba.com/enterprise-hdd/cloud-scale-capacity/mg09-series
Warranty - 60L months
Weight - 0,70
Weight - 0.72
Workload rate limit Features - 550 TB/year
Advanced Format (AF) Features - Yes
ARTIKEL1 - ENTERPRISE CAPACITY HDD 16TB
ARTIKEL2 - 3.5IN SATA 7200RPM 256MB 512E
Breite - 0.16
Category 1 - Festplatten
Category 2 - Interne Festplatten
Category Code - HES
Category_1 - Hard Drives and Pendrives
Category_2 - Internal Hard Drives - SATA - 3.5 inch
Component for Features - NAS
Description - Rethink Your Data Storage Toshiba Enterprise HDDs The MG09 Series features Toshiba’s third-generation, 9-disk Helium-sealed design to advance Conventional Magnetic Recording (CMR) density to 2 TB per disk, achieving a total capacity up to 18TB. The industry-standard 3.5-inch form-factor provides 7200rpm performance, and integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions. The massive 18 TB CMR capacity is delivered using Toshiba’s innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR) technology. These advances help the MG09 Series to achieve optimum storage capacity and application compatibility, with unsurpassed data reliability. Available with either a SATA 6.0 Gbit/s or a 12.0 Gbit/s SAS interface, the MG09 Series models integrate easily into standard 3.5-inch drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, File and Object storage systems, and business critical servers and storage systems.
Up to 18TB capacityConventional Magnetic Recording (CMR) for broad compatibilityToshiba Flux Control Microwave-assisted Magnetic Recording (FC-MAMR) TechnologyIndustry-leading 9-disk helium-sealed design for superior storage densityIndustry Standard 3.5-inch 26.1mm height Form Factor7200rpm PerformanceChoice of SATA 6.0 Gbit/s and 12.0 Gbit/s SAS InterfacesLower operational power profile, providing excellent power efficiency (W/TB) for better TCO550 Total TB Transferred per Year Workload Rating512e or 4Kn Advanced Format Sector Technology; (512e Model) Includes Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss EventsSustained transfer rate and power efficiency improvements vs. prior MG Series generationsSanitize Instant Erase (SIE) option model and Self Encrypting Drive (SED) option modelCloud-scale Sever and Storage InfrastructureSoftware-defined data center infrastructureFile- and Object-based storage infrastructureTiered Storage Infrastructure SolutionsWorkloads and Use-Cases that Benefit from High Capacity per Spindle disk drivesCapacity-Optimized Cloud-scale and Rack-Scale Storage SystemsCompliance Data Archives and Data Life-Cycle Management Storage SystemsData Center Data-Protection and Data Back-up Infrastructure
EAN - 4260557513019
EANCode - 4260557513019
EAN kods - 4260557513019
EAN_code - 4260557513019
External Data Bit Rate - 6 gigabits sekundē
Formas faktors - 3.5"
Gabali iepakojumā - 1
Garantija Produkti atgriežami - Jā
Garantijas apstiprināšanas kritēriji - Sērijas numurs
Garantijas termiņš (mēnesis) - 60 mēnesis(-i)
Gewicht - 0.8
Gross Weight Kg - 1
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Hard Drive Sata
HDD capacity Features - 16 TB
HDD interface transfer rate Features - 6 Gbit/s
HDD size Features - 3.5"
HDD speed Features - 7200 RPM
HDD sustained transfer rate Features - 268 MiB/s
HERSTELLER - TOSHIBA
Hoehe - 0.05
Hot-swap Features - No
HSTNUMMER - MG09ACA16TE
Iepakojuma augstums (mm) - 102 milimetrs
Iepakojuma garums (mm) - 147 milimetrs
Iepakojuma platums (mm) - 27 milimetrs
Iepakojuma svars Brutto (kg) - 0.73 kilograms
Iepakojuma svars Netto (kg) - 0.72 kilograms
Iepakojuma tips - OEM
Iepakojums kastē - 20
Ierīces atrašanās vieta - Internal
Installed Cache Memory Storage Capacity - 512 megabaits
Interface Features - Serial ATA III
Internal Data Bit Rate - 268 megabits sekundē
Kastes augstums (mm) - 500 milimetrs
Kastes garums (mm) - 228 milimetrs
Kastes platums (mm) - 310 milimetrs
Kastes svars Brutto (kg) - 16.8 kilograms
Laenge - 0.21
Manufacturer - Toshiba
Manufacturer - Toshiba Storage
Manufacturer Code - MG09ACA16TE
Manufacturer Name - Toshiba
Manufacturer_code - MG09ACA16TE
Maximum Power Consumption - 4.16 Vats
Mazumtirdzniecības iepakojuma neto svars Plastmasa - 0.01 kilograms
Mazumtirdzniecības iepakojums Neto svars Kartona kārba - 0 kilograms
Mean Time Between Failures - 2500000 stunda
Mean time to failure (MTTF) Features - 2500000 h
MPN - MG09ACA16TE
Name - 16TB Toshiba MG09 Series MG09ACA16TE 7200RPM 512MB
Name - Toshiba MG09 16TB (SATA 6Gb/s, 3.5"")
Noise level (idle) Features - 20 dB
Nominālais svars - 0.72 kg
Non-operating altitude Operational conditions - -305 - 12192 m
Non-operating shock Operational conditions - 250 G
Non-operating vibration Operational conditions - 3 G
Operating altitude Operational conditions - -305 - 3048 m
Operating relative humidity (H-H) Operational conditions - 5 - 90%
Operating shock Operational conditions - 70 G
Operating temperature (T-T) Operational conditions - 5 - 55 °C
Operating vibration Operational conditions - 0.75 G
Operating voltage Power - 5 / 12 V
Power consumption (idle) Power - 4.16 W
Power consumption (typical) Power - 8.35 W
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=240604063809174189&THEME=asbis&LANG=lv
ProductCategory - Cietie diski
ProductCode - MG09ACA16TE
ProductDescription - HDD Server TOSHIBA MG09 16TB CMR 512e, 3.5'', 512MB, 7200RPM, SATA, SKU: HDEPZ11GEA51F
Product Net Weight - 0.68 kg
ProductType - HDD Server
Quantity per pack Packaging data - 1 pc(s)
Rotational Speed - 72000 apgriezieni minūtē
Short description - HD3.5" SATA3-Raid 16TB Toshiba MG09ACA16TE/7.2k/512e
Start/stop cycles Features - 600000
Stck_Kart - 20
Stck_Pal - 380
Storage Capacity - 16 terabaits
Storage relative humidity (H-H) Operational conditions - 5 - 95%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Storno - Y
Summary - Toshiba MG09. HDD capacity: 16 TB, HDD speed: 7200 RPM, HDD size: 3.5", Interface: Serial ATA III
Supports Data Channel - SATA III-600
Type Features - HDD
Uncorrectable Bit Error Rate (UBER) Features - < 1 per 10^10 bits read
Unit Box Height - 0.04
Unit Box Length - 0.19
Unit Box Width - 0.135
Unit Calculated Volume - 0.001026 cubm
Unit Calculated Weight - 0.69 kg
Units per Shipping Box - 1
Vendor - TOSHIBA
Vendor Homepage - https://storage.toshiba.com/enterprise-hdd/cloud-scale-capacity/mg09-series
Warranty - 60L months
Weight - 0,70
Weight - 0.72
Workload rate limit Features - 550 TB/year
