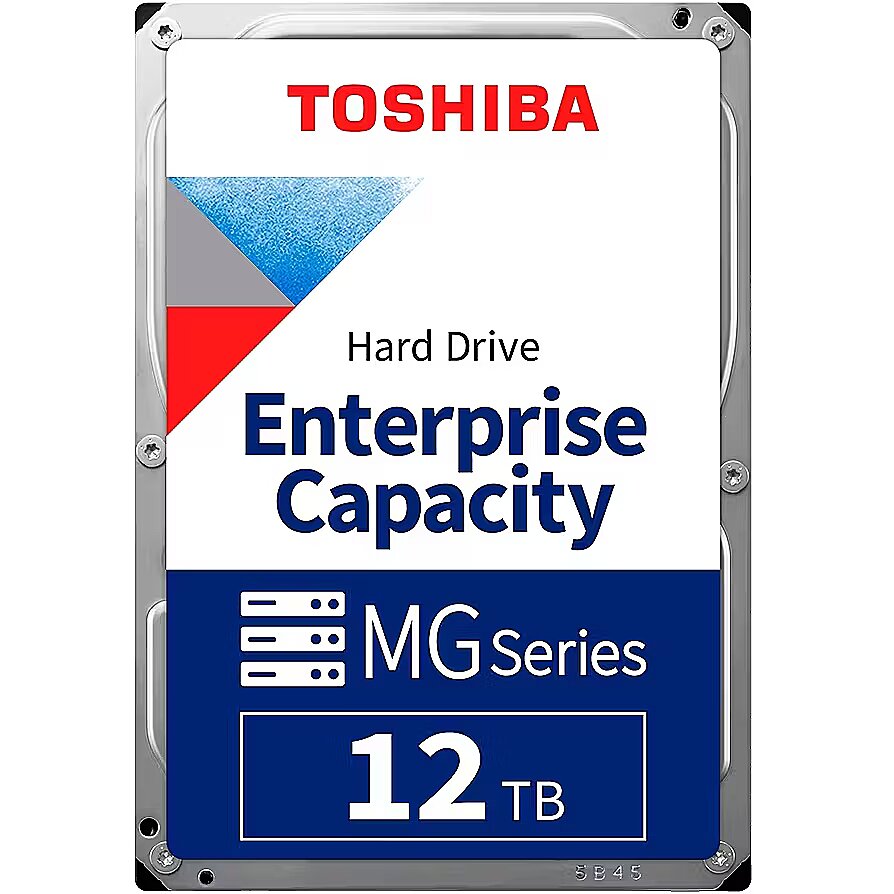

Toshiba 12TB, 7200rpm, 256MB, SATA III, MG09, 512e

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1111350 Product code: MG09ACA12TE
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years
Main product parameters All parameters
  • Capacity: 12 TB
  • Data Interface: SATA III
  • Spindle rotation speed: 7200 rpm
  • Data buffer: 256 MB
Similar Products
This product Toshiba 12TB, 7200rpm, 256MB, SATA III, MG09, 512e
Seagate 16TB, 7200rpm, 256MB, SATAIII, EXOS X18, CMR SED
Seagate 8TB, 7200rpm, 256MB, SATAIII, IronWolf Pro, CMR, Air, WRL550, 2 Pack
Recommended Seagate 2TB, 256MB, SATAIII, SkyHawk, CMR
Recommended Seagate 4TB, 256MB, SATAIII, SkyHawk, CMR
Show similar specs. Hide similar specs.
284.24 €
340.50 €
424.28 €
69.91 €
91.05 €
Capacity 12 TB 16 TB 8 TB 2 TB 4 TB
Use Server Server NAS Surveillance Surveillance
Data Interface SATA III SATA III SATA III SATA III SATA III
Spindle rotation speed 7200 rpm 7200 rpm 7200 rpm Nav informācijas Nav informācijas
Data buffer 256 MB 256 MB 256 MB 256 MB 256 MB
Description
Dateks offers to buy the Toshiba hard disc with 12 TB data capacity, SATA III connection, 7200 rpm rotation speed and 512 MB cache memory.

This hard disc has SATAIII connection. SATAIII, or SATA 6GB/s is the latest generation data transmission connection found in the most modern computers for ensuring sufficient SSD discs data flow exceeding the SATAII possibilities. The speed of the cache memory of hard discs can sometimes exceed also the SATAII passage possibilities because in essence this cache memory is a small size SDD disc (~64 Mb). Therefore, when the relevant port is available on the motherboard it is advisable to select the SATAIII disc.

Thanks to the 7200 rpm rotation speed of magnetic discs this hard disc provides the optimum fast operation in the data search and transmission. 7200 rpm is the classic standard for the universal application both for the maintenance of the operating system and applications and the data archiving.
All parameters
Capacity 12 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Use : Server
Data Interface SATA III
The connection of the HDD to the computer. The current industry standard is SATA connection. IDE connection is available with older computers. Prior to buying the HDD you should verify whether the motherboard has a free connection slot and the support for the chosen disc capacity.
Spindle rotation speed 7200 rpm
The HDD rotations. The HDDs of most desktop computers have 7200rpm and this has already become the industry standard. If you want to achieve a higher speed you should buy the HDD of 10000rpm. The operation noise, temperature and power consumption of 10000rpm HDDs are much higher than these of the 7200rpm HDDs parameters, therefore, prior to buying a 10000rpm HDD you should verify the compliance of the enclosure, power supply unit and the cooling with the technical requirements of this HDD.
Data buffer 256 MB
Data buffer is a high-speed memory built-in the HDD and allowing the disc to receive data at a smooth speed irrespective of the level of loading the physical memory of the disc at the particular time. If you work with a high number of small volume files (documents, photos, etc.) we recommend to buy an HDD with 8Mb or higher data buffer.
More detailed specification
Additional information in manufacturers website Toshiba 12TB, 7200rpm, 256MB, SATA III, MG09, 512e
ARTIKEL1 - ENTERPRISE CAPACITY HDD 12TB
ARTIKEL2 - 3.5IN SATA 7200RPM 256MB 512E
Box Weight Brutto (kg) - 14.5 kg
Breite - 0
Buffer memory size - 512 MB
Category Code - HES
Description - Toshiba MG09 Hard Disk Drive Rethink Your Data Storage Toshiba Enterprise HDDs The MG09 Series features Toshiba’s third-generation, 9-disk Helium-sealed design to advance Conventional Magnetic Recording (CMR) density to 2 TB per disk, achieving a total capacity up to 18TB. The industry-standard 3.5-inch form-factor provides 7200rpm performance, and integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions. The massive 12 TB CMR capacity is delivered using Toshiba’s innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR) technology. These advances help the MG09 Series to achieve optimum storage capacity and application compatibility, with unsurpassed data reliability. Available with either a SATA 6.0 Gbit/s or a 12.0 Gbit/s SAS interface, the MG09 Series models integrate easily into standard 3.5-inch drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, File and Object storage systems, and business critical servers and storage systems. Massive Capacity Up to 18 TB of Conventional Magnetic Recording (CMR) capacity. Available in SATA or SAS models with 512e or 4Kn Advanced Format Sector Technology. Enterprise Grade Reliability Includes Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events (512e models). Industry Leading Mechanical Design 9-disk design for superior storage density. Toshiba Precision Laser Welding Technology Seals helium inside the 9-disk mechanics to reduce aerodynamic drag and deliver a lower operational power profile. Lower Total Cost of Ownership (TCO) Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO.
Device Location - Internal
Dimensions - 101.85 x 26.1 x 147 mm
EAN - 4260557512975
EAN Code - 4260557512975
EANCode - 4260557512975
External Data Bit Rate - 6 Gbps
Form Factor - 3,5"
Form Factor - 3.5"
Gewicht - 0
Gross Weight Kg - 1
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Hard Drive Sata
HDD Capacity - 12TB
HERSTELLER - TOSHIBA
Hoehe - 0
HSTNUMMER - MG09ACA12TE
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/240610160014674051.jpg
Installed Cache Memory Storage Capacity - 512 MB
Internal Data Bit Rate - 268 Mbps
Laenge - 0
Manufacturer Code - MG09ACA12TE
Manufacturer Name - Toshiba
Maximum Power Consumption - 3.3 W
Mean Time Between Failures - 2500000 hr
Model - MG09ACA12TE
Model name - MG09
Nominal Weight - 0.69 kg
Package Type - OEM
Pack Height (mm) - 27 mm
Pack Length (mm) - 102 mm
Packs in Box - 20
Pack Weight Brutto (kg) - 0.7 kg
Pack Weight Netto (kg) - 0.69 kg
Pack Width (mm) - 147 mm
Pieces in pack - 1
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=240604063215803387&THEME=asbis&LANG=lv
ProductCategory - Cietie diski
ProductCode - MG09ACA12TE
ProductDescription - HDD Server TOSHIBA MG09 12TB CMR 512e, 3.5'', 512MB, 7200RPM, SATA, SKU: HDEPZ13GEA51F
Product Net Weight - 0.67 kg
ProductType - HDD Server
Retail Packaging Net Weight Carton - 0 kg
Retail Packaging Net Weight Plastic - 0.01 kg
Rotational Speed - 72000 rpm
Rotation speed - 7200 rpm
SATA Interface - Yes
Short description - HD3.5" SATA3-Raid 12TB Toshiba MG09ACA12TE/7.2k/512e
Stck_Kart - 20
Stck_Pal - 60
Storage Capacity - 12 TB
Storno - Y
Supports Data Channel - SATA III-600
Unit Box Height - 0.04
Unit Box Length - 0.18
Unit Box Width - 0.14
Unit Calculated Volume - 0.001008 cubm
Unit Calculated Weight - 0.675 kg
Units per Shipping Box - 1
Vendor - TOSHIBA
Vendor Homepage - storage.toshiba.com/enterprise-hdd/cloud-scale-capacity/mg09-series
Warranty - 60L months
Warranty Products Returnable - Yes
Warranty Term (month) - 60 mēneši
Warranty validation Criteria - Serial Number
