ID: 1082526
Product code: ST20000NM002H
Can be ordered 26 units Availability: 14 days after order approval
Warranty: 3 years

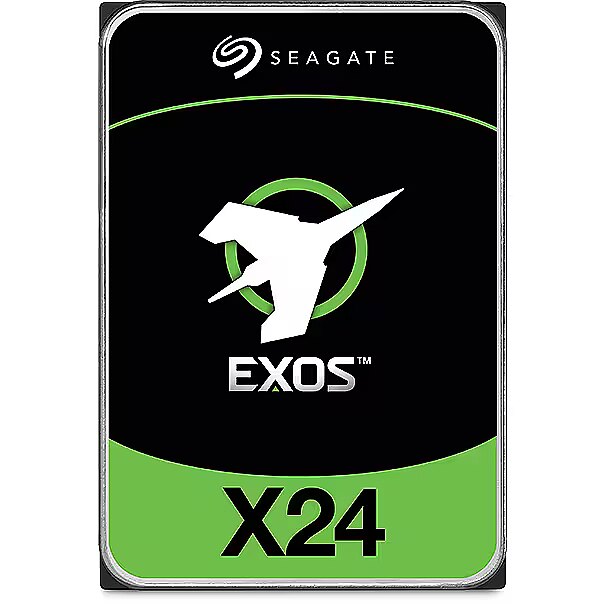

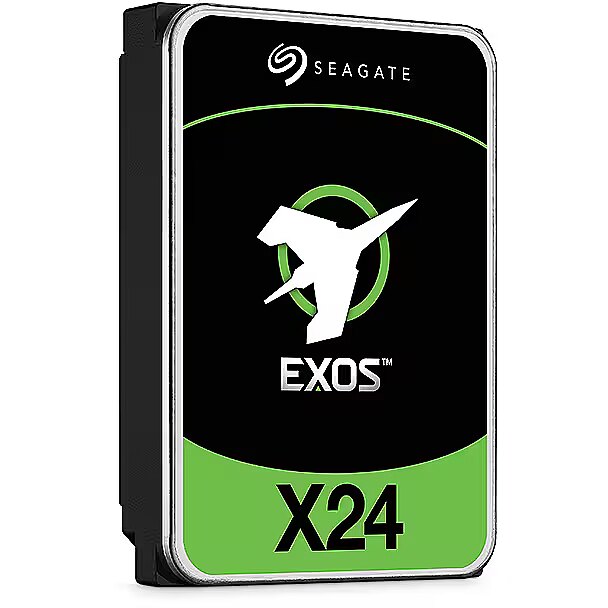

Seagate 20TB, 7200rpm, 512MB, SATAIII, EXOS X24, CMR
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
Itella parcel machineWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Capacity: 20 TB
- Data Interface: SATA III
- Spindle rotation speed: 7200 rpm
- Data buffer: 512 MB
Description
Dateks offers to buy the Seagate hard disc with 20 TB data capacity, SATA III connection, 7200 rpm rotation speed and 512 MB cache memory.
This hard disc has SATAIII connection. SATAIII, or SATA 6GB/s is the latest generation data transmission connection found in the most modern computers for ensuring sufficient SSD discs data flow exceeding the SATAII possibilities. The speed of the cache memory of hard discs can sometimes exceed also the SATAII passage possibilities because in essence this cache memory is a small size SDD disc (~64 Mb). Therefore, when the relevant port is available on the motherboard it is advisable to select the SATAIII disc.
Thanks to the 7200 rpm rotation speed of magnetic discs this hard disc provides the optimum fast operation in the data search and transmission. 7200 rpm is the classic standard for the universal application both for the maintenance of the operating system and applications and the data archiving.
This hard disc has SATAIII connection. SATAIII, or SATA 6GB/s is the latest generation data transmission connection found in the most modern computers for ensuring sufficient SSD discs data flow exceeding the SATAII possibilities. The speed of the cache memory of hard discs can sometimes exceed also the SATAII passage possibilities because in essence this cache memory is a small size SDD disc (~64 Mb). Therefore, when the relevant port is available on the motherboard it is advisable to select the SATAIII disc.
Thanks to the 7200 rpm rotation speed of magnetic discs this hard disc provides the optimum fast operation in the data search and transmission. 7200 rpm is the classic standard for the universal application both for the maintenance of the operating system and applications and the data archiving.
All parameters
Capacity
20 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Use
: Server
Data Interface
SATA III
The connection of the HDD to the computer. The current industry standard is SATA connection. IDE connection is available with older computers. Prior to buying the HDD you should verify whether the motherboard has a free connection slot and the support for the chosen disc capacity.
Spindle rotation speed
7200 rpm
The HDD rotations. The HDDs of most desktop computers have 7200rpm and this has already become the industry standard. If you want to achieve a higher speed you should buy the HDD of 10000rpm. The operation noise, temperature and power consumption of 10000rpm HDDs are much higher than these of the 7200rpm HDDs parameters, therefore, prior to buying a 10000rpm HDD you should verify the compliance of the enclosure, power supply unit and the cooling with the technical requirements of this HDD.
Data buffer
512 MB
Data buffer is a high-speed memory built-in the HDD and allowing the disc to receive data at a smooth speed irrespective of the level of loading the physical memory of the disc at the particular time. If you work with a high number of small volume files (documents, photos, etc.) we recommend to buy an HDD with 8Mb or higher data buffer.
More detailed specification
Additional information in manufacturers website Seagate 20TB, 7200rpm, 512MB, SATAIII, EXOS X24, CMR
Additional part number - ST20000NM002H
ARTIKEL1 - EXOS X24 20TB SATA ISE 3.5IN
ARTIKEL2 - 7200RPM 6GB/S 512E/4KN
Brand - Seagate
BrandPartCode - ST20000NM002H
Breite - 0
Buffer - 512 MB
Category - Internal Hard Drives
Category 1 - Festplatten
Category 2 - Interne Festplatten
Compatible with -
Continuous operation 24/7 - Yes
Depth - 147 mm
Description - Exos X24 Maksymalna pojemność pamięci masowej i najwyższa wydajność wykorzystywanego miejsca na szafach rack. SKALOWALNOŚĆ: możliwość stosowania aplikacji wykorzystujących duże zbiory danych do rozwiązań w hiperskali. EFEKTYWNOŚĆ: spójna wydajność i niska latencja oraz powtarzalne czasy odpowiedzi i udoskonalone buforowanie. DUŻA POJEMNOŚĆ: obsługuje analizę danych oraz inne architektury o dużej gęstości, wykorzystując miejsce na szafie typu rack z maksymalną efektywnością. OPŁACALNOŚĆ: optymalizacja całkowitego kosztu posiadania oraz najniższy koszt w przeliczeniu na terabajt. NIEZAWODNOŚĆ: długotrwała niezawodność potwierdzona przez 2,5 mln godzin średniego czasu bezawaryjnej pracy oraz 5-letnią ograniczoną gwarancję.
Designation - CE+WEEE
dimension depth - 25 mm
dimension height - 145 mm
dimension weight - 680 g
dimension width - 100 mm
Disk type - HDD
Drive type - Internal
ean - 8719706431330
EAN - 8719706431330
EANCode - 0763649175101
Features - Average latency - 4.16 ms
Features - Component for - PC
Features - HDD average transfer rate - 285 MB/s
Features - HDD capacity - 20 TB
Features - HDD interface transfer rate - 6 Gbit/s
Features - HDD size - 3.5"
Features - HDD speed - 7200 RPM
Features - HDD sustained transfer rate - 272 MiB/s
Features - Interface - Serial ATA III
Features - Mean time between failures (MTBF) - 2500000 h
Features - Rotational Vibration (RV) sensors - Yes
Features - Storage drive buffer size - 512 MB
Features - Type - HDD
Features - Uncorrectable Bit Error Rate (UBER) - < 1 per 10^15 bits read
Form factor (width) - 3,5'' (LFF)
Gewicht - 0
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Hard Drive Sata
GTIN - 0496148000000
GTIN - 496148000000
GTIN - 0763649175101
GTIN - 763649175101
GTIN - 8719706431330
guarantee - 60
guarantee_type - normal
HDD capacity - 20 TB
HDD interface - SATA III - 6 Gb/s
Height - 26.1 mm
HERSTELLER - SEAGATE
Hoehe - 0
HSTNUMMER - ST20000NM002H
Laenge - 0
LongDesc - Delivering maximum storage capacity with the highest rack-space efficiency. Scalable. Responsive. InnovativePowerful performance with proven technology—Seagate’s ® Exos® X24 drives are built off the platform that’s shipped millions globally and deployed in leading cloud service provider solutions—making them the most sought-after drives in our datasphere. Designed with the highest rack-space efficiency and protected with Seagate Secure™, Exos X24 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind.Superior ReliabilityEnterprise-class drives with a 550 TB/year workload rating and 2.5M-hr MTBF to meet the most demanding storage requirements.Customisation Power OptionsPowerChoice™ and PowerBalance™ for optimised power consumption when in use and idle — customisable to fit your needs.Amazing PerformanceAdvanced write caching coupled with up to 285 MB/s data transfer rates provides a boost in performance without compromising on capacity.Advanced Data SecuritySeagate Instant Secure Erase for safe, affordable, fast and easy drive retirement.
LongProductName - 20TB, 3.5", 7200RPM, SATA 6Gb/s, Standard Model
LongSummaryDescription - Seagate Exos X24. HDD capacity: 20 TB, HDD speed: 7200 RPM, Storage drive buffer size: 512 MB, HDD size: 3.5", Interface: Serial ATA III
Manufacturer - Seagate
Mean time between failures (MTBF) - 2500000 h
Model - Exos X24
MPN - ST20000NM002H
Name - 20TB Seagate EXOS X24 ST20000NM002H 7200RPM 512MB Ent.
Name - 20TB Seagate EXOS X24 ST20000NM002H 7200RPM 512MB Ent. *Bring-In-Warranty*
name - Hard drive Exos X24 20TB 3,5 inches 512e SATA
Operational conditions - Non-operating shock - 200 G
Operational conditions - Operating shock - 40 G
Operational conditions - Operating temperature (T-T) - 10 - 60 °C
Operational conditions - Operating vibration - 2.27 G
Other features -
Packaging data - Quantity per pack - 1 pc(s)
Power - Operating voltage - 5 / 12 V
Power - Power consumption (idle) - 6.3 W
Power - Power consumption (read) - 8.9 W
Power - Power consumption (write) - 7.1 W
Power consumption - 8.9 W
Power consumption (standby) - 6.3 W
producer - Seagate
ProductName - Exos X24
Random read IOPS (max) - 168 K
Random write IOPS (max) - 550 K
Rotational Speed - 7200 RPM
Sector size - 4Kn
Sector size - 512e
ShortSummaryDescription - Seagate Exos X24, 20 TB, 7200 RPM, 512 MB, 3.5", Serial ATA III
Stck_Kart - 20
Stck_Pal - 80
Storno - Y
Title - Seagate Exos X24 internal hard drive 20 TB 7200 RPM 512 MB 3.5" Serial ATA III
Transfer rate (external) - 272 MB/s
Transfer rate (internal) - 285 MB/s
URL - https://www.seagate.com/gb/en/products/enterprise-drives/exos-x/x24/
vendpn - ST20000NM002H
WarrantyInfo - 5 years
Weight - 0.66
Weight - 0.68
Weight - 0.685 kg
Weight & dimensions - Depth - 147 mm
Weight & dimensions - Height - 26.1 mm
Weight & dimensions - Weight - 685 g
Weight & dimensions - Width - 101.8 mm
Width - 101.85 mm
