10/100M LAN Ports - 1
Accessories included -
Application - Home and small office
brand - MikroTik
category - MikroTik > Komutatori > Cloud Router Switch
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Certificates - CE, EAC, ROHS
Chassis type - Rack
CnCode CnCode - 85176200
Console port - Yes
Console Ports - 1

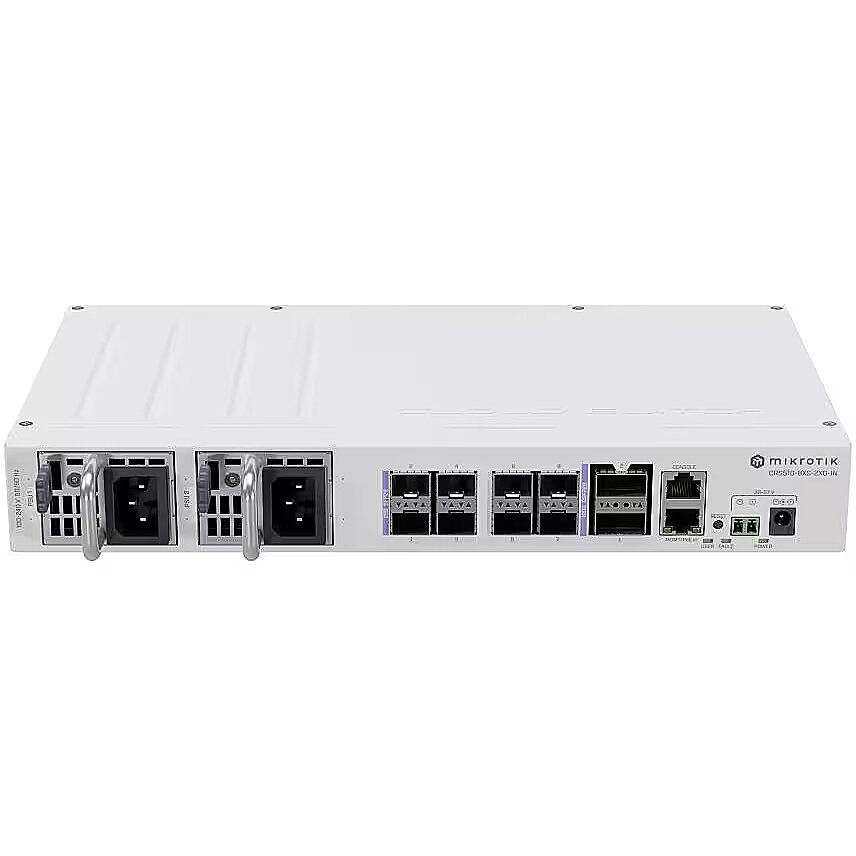

Description - CRS510-8XS-2XQ-IN A versatile 100 Gigabit switch that offers speed, value, and diverse connectivity options. 2x 100 Gigabit QSFP28 ports, 8x 25 Gigabit SFP28 ports, dual hot-swap power supplies.
Description - With 2 100 Gigabit QSFP28 ports and 16 25 Gigabit SFP28 ports, the CRS518-16XS-2XQ is the perfect cost-effective addition to any enterprise network or data center. And with dual-redundant power supplies and hot-swappable fans, you don't have to worry about unnecessary downtime. The 25 Gigabit ports are backwards compatible with 10 Gigabit and 1 Gigabit SFP devices. Two hot-swap power supplies support a high input voltage range: 100-240V. The board itself consumes up to 45W of power, while the total maximum power consumption increases to 77W with all the extras.
Designation - CE+WEEE
dimension depth - 80 mm
dimension height - 380 mm
Dimensions - 320 x 185 x 44 mm
dimension weight - 3000 g
dimension width - 320 mm
ean - 4752224008466
EAN - 4752224008466
Environment requirements -
Fan - Yes
Full Description Line - 10xSFP28|1xConsole|1x10/100M|Included Accessories IEC cord, IEC cord, K-54 kit, Rack ears for CRS510|Dimensions 320 x 185 x 44 mm|Product Net Weight 2 kg
guarantee - 12
guarantee_type - normal
height - 0.1 m
Included Accessories - IEC cord, IEC cord, K-54 kit, Rack ears for CRS510
L2 features -
L3 features -
length - 0.38 m
Management, monitoring, configuration -
Manufacturer - MikroTik
Model - CRS510-8XS-2XQ-IN
mpn - CRS510-8XS-2XQ-IN
MPN - CRS510-8XS-2XQ-IN
Name - 10P Mikrotik CRS510-8XS-2XQ-IN QSFP28 M
name - Switch 8 xSFP28 CRS510-8XS-2XQ-IN
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - 1
Number of QSFP28 ports - 2
Other features -
Other functions -
Power consumption - 51 W
Power supply - 100-240 V
Power supply - External
producer - MikroTik
Product Net Weight - 2 kg
QoS -
Security -
SFP28 ports - 8
SFP28 Ports - 10
Shipping Box Depth Shipping/Package Box Dimensions - 38 cm
Shipping Box Height Shipping/Package Box Dimensions - 8 cm
Shipping Box Weight Shipping/Package Box Dimensions - 2.47 kg
Shipping Box Width Shipping/Package Box Dimensions - 31 cm
Stackability - No
Supported protocols and standards -
Support for Jumbo frames - Yes
Switch class - Managed
Switch layer - L3
title - MikroTik CRS510-8XS-2XQ-IN
Unit Box Height - 0.08
Unit Box Length - 0.38
Unit Box Width - 0.31
Unit Calculated Volume - 0.009424 cubm
Unit Calculated Weight - 2.47 kg
Units per Shipping Box - 1
Vendor Homepage - mikrotik.com/product/crs510_8xs_2xq_in#fndtn-specifications
vendpn - CRS510-8XS-2XQ-IN
VLAN -
Warranty - 12 months
weight - 2.7 kg
Weight - 2.505
width - 0.31 m
