10/100/1000/2500 Mbps ports - None
Accessories included -
Application - Home and small office
Category 1 - Netzwerk
Category 2 - Switching Hubs
Certificates - CE FCC Class A
Chassis type - Desktop
Chassis type - Rack
Console port - No
Data Act - Link
Data transmission - MAC address table - 2000 entries
Data transmission - Packet buffer memory - 0.25 MB
Data transmission - Store-and-forward - Yes

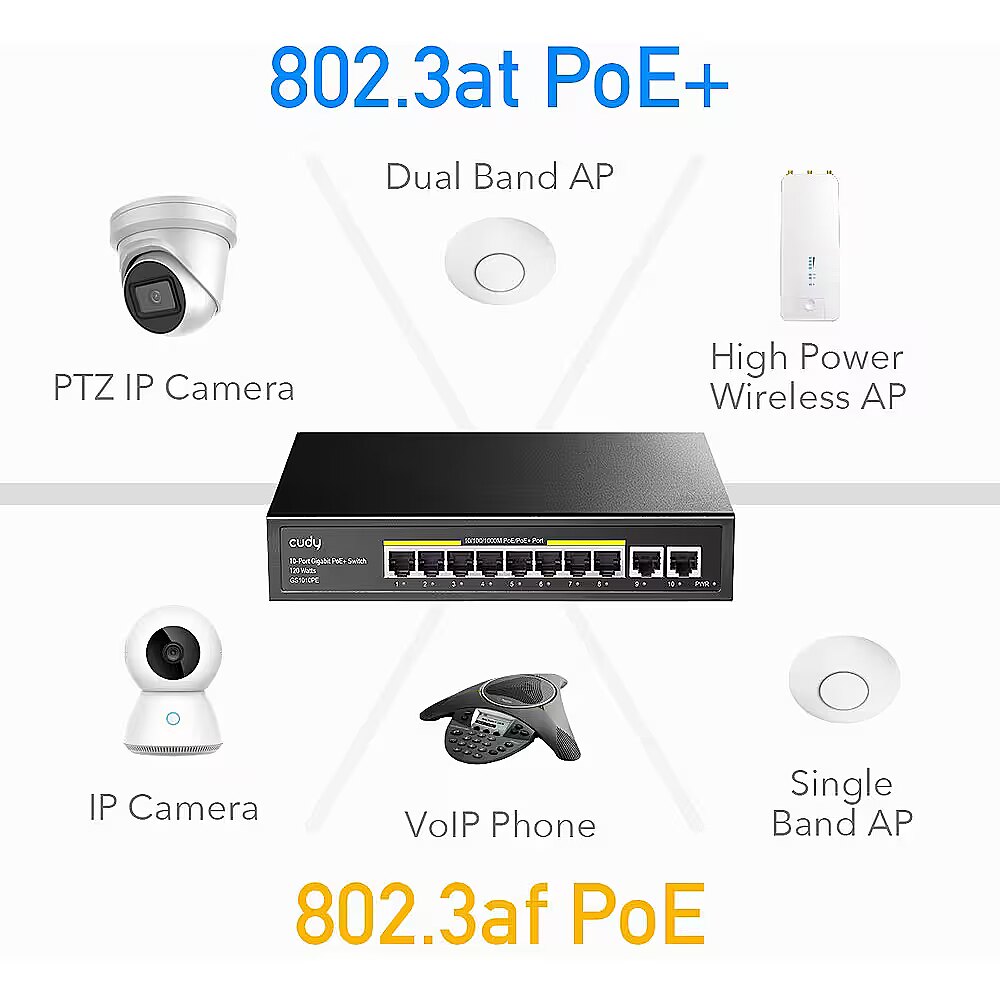

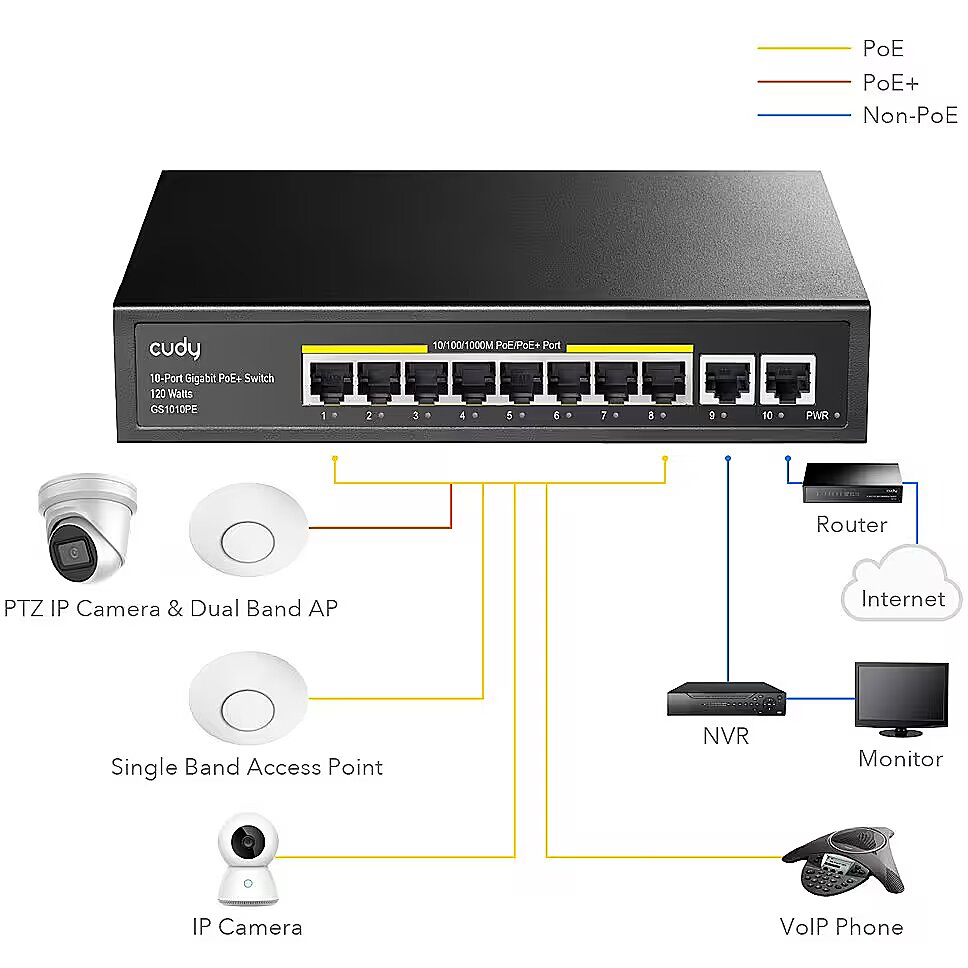

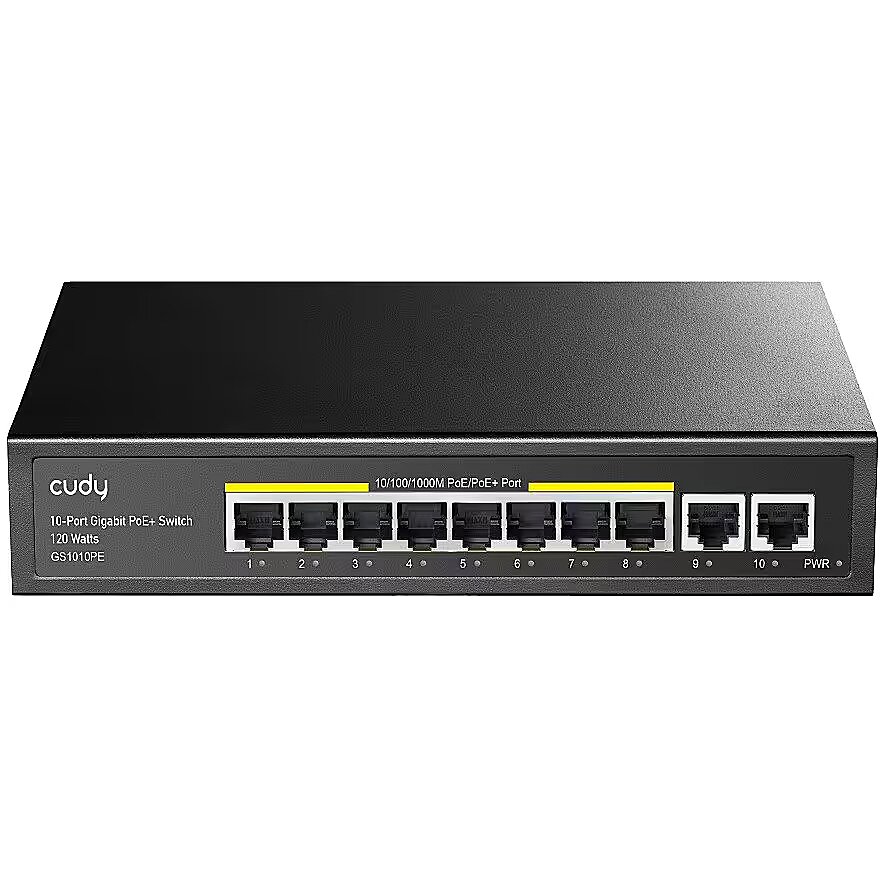

Description - GS1010PE 10-Port Gigabit PoE+ Switch Total PoE budget up to 120 watts Up to 30 watts of PoE power from a single port 8 10/100/1000Mbps PoE+ ports 2 10/100/1000Mbps uplinks Complies with IEEE802.3af/at standards IEEE 802.3x flow control
Design - Housing material - Metal
Design - LED indicators - Activity
Design - LED indicators - Link
Design - LED indicators - Power
Design - Product colour - Black
Design - Rack mounting - Yes
Design - Stackable - No
Design - Wall mountable - Yes
Designation - CE+WEEE
dimensionalWeight - 1326
dimension depth - 193 mm
dimension height - 310 mm
Dimensions - 222 x 163 x 40 mm
dimension weight - 1070 g
dimension width - 60 mm
ean - 6971690791421
EAN - 6971690791421
Environment requirements - Operating temperature: -20°C ~ 50°C Storage temperature: -40°C ~ 80°C Operating humidity: 10% ~ 90% non-condensing Storage humidity: 5% ~ 90% non-condensing
Fan - No
Forwarding mode - Store-and-forward
guarantee - 24
guarantee_type - normal
L2 features -
L3 features -
MAC address table size - 2000
Management, monitoring, configuration -
Manufacturer - Cudy
Mean time between failures (MTBF) - 100000 h
MPN - GS1010PE
Name - 8P Cudy GS1010PE PoE+
name - Switch GS1010PE 8 xGE PoE+ 120W 2xGb Uplink
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 10
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - 8
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP56 ports - None
Number of SFP ports - None
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -20 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 80 °C
Other features -
Other features - Bandwidth - 20 Gbit/s
Other functions -

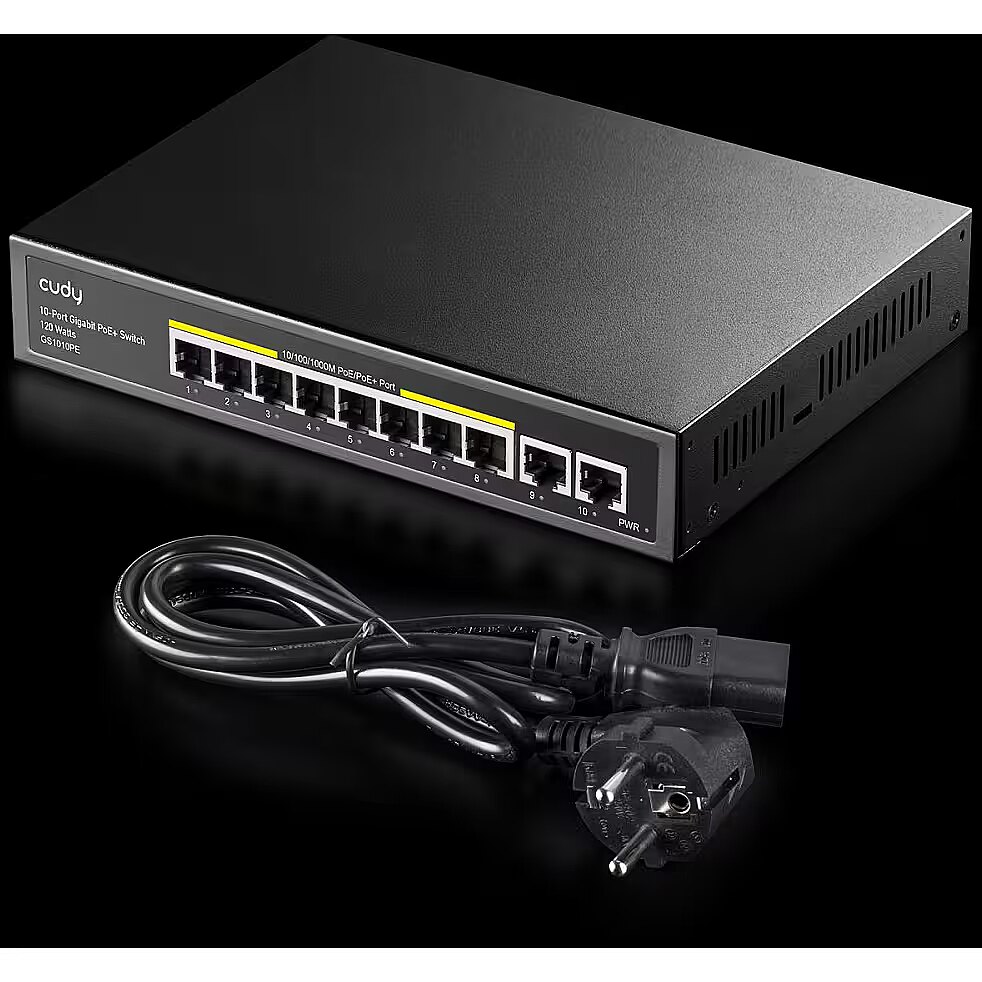

Packaging content - Cables included - AC
Performance - Fanless - Yes
Performance - Plug and Play - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 10
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)

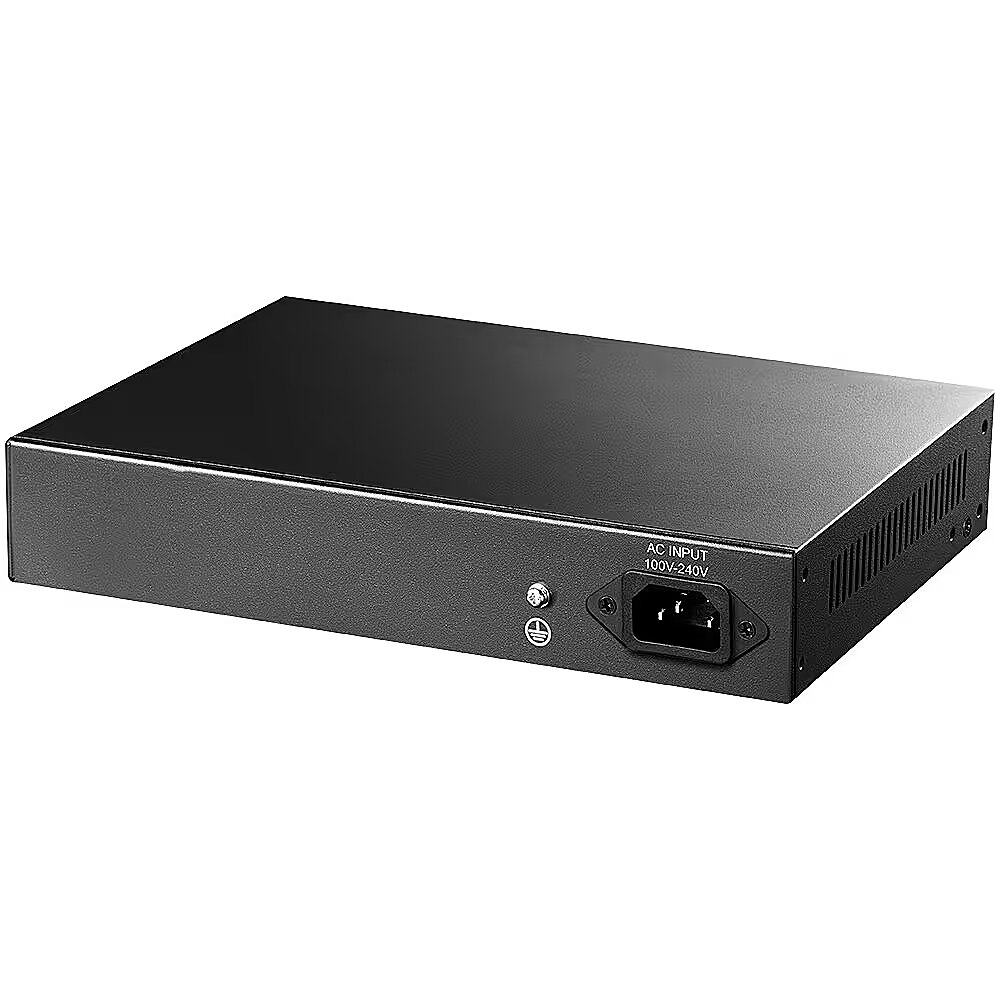

Ports & interfaces - Power connector - AC-in jack
Ports & interfaces - Uplink ports quantity - 2
Power - AC input voltage - 100 - 240 V
Power - Output current - 2.3 A
Power - Output voltage - 52 V
Power - Power source - AC
Power - Power supply included - Yes
Power consumption - 120 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 8
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 8
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 120 W
Power supply - Input: AC 100~240V POE: Ports: 1-8 Total PoE Budget: 120W Power for one port: 30W
Power supply - Internal
producer - Cudy
producerCode - GS1010PE
productName - Cudy GS1010PE network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
productSize - Normal
QoS -
Safety warning - Warnings - Do not open the case or try to repair it yourself.
Safety warning - Warnings - Ensure the unit is adequately ventilated during operation.
Safety warning - Warnings - The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.
Security -
sizeX - 305
sizeY - 87
sizeZ - 250
Stackability - No
Supported protocols and standards - IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3ab IEEE 802.3af IEEE 802.3at
Support for Jumbo frames - No
Switch class - Unmanaged
Throughput - 20 Gb/s
vendpn - GS1010PE
VLAN -
warrantyLength - 24
warrantyType - G
Weight - 1.131
Weight - 900 g
weight - 1160
Weight & dimensions - Depth - 163 mm
Weight & dimensions - Height - 40 mm
Weight & dimensions - Width - 222 mm
