Cudy Switch GS105 5xGE Metal Case

10/100/1000/2500 Mbps ports - None

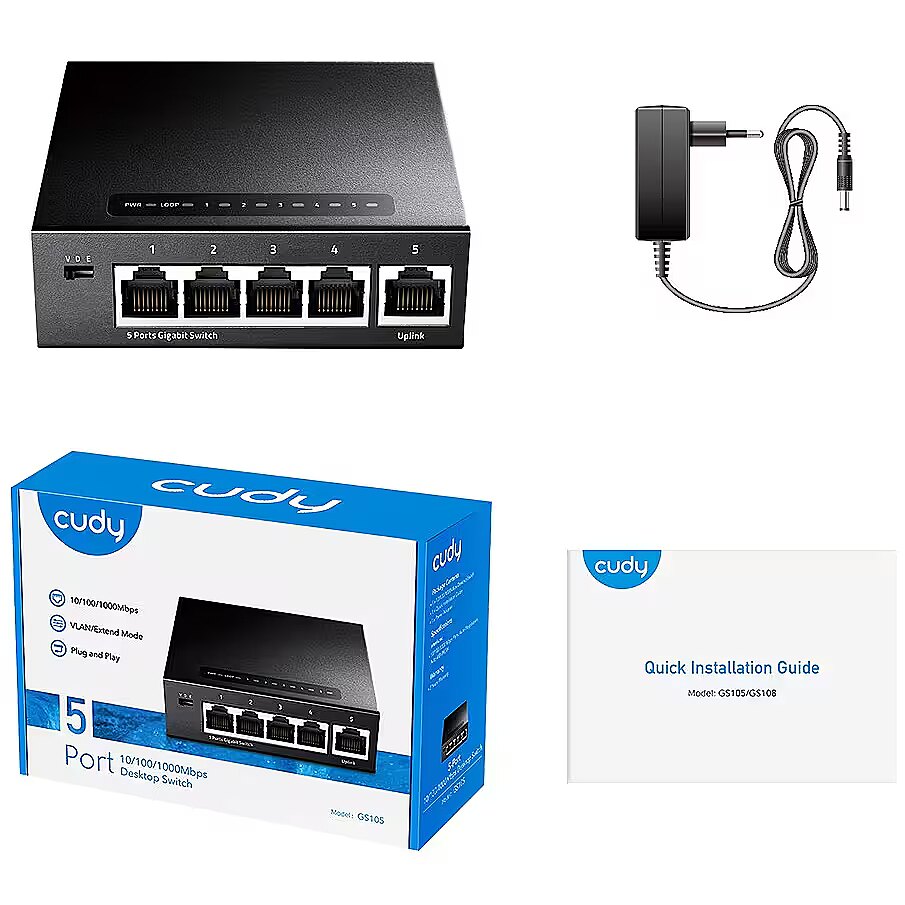

Accessories included - Switch Charger Instruction Warranty Card
Application - Home and small office
Brand - Cudy
BrandPartCode - GS105
Category - Network Switches
Category - Root/Electronics/Networks and communication/Switchers
Category1 - Network
Category 1 - Netzwerk
Category 2 - Switching Hubs
Chassis type - Desktop
Console port - No
Dane techniczne: Algorytm przełączania - store-and-forward
Dane techniczne: Gwarancja - 2 lata w serwisie sprzedawcy
Dane techniczne: Głębokość - 100 mm
Dane techniczne: Liczba portów LAN 10/100/1000 - 5 szt.
Dane techniczne: Obsługa VLANów - tak
Dane techniczne: Obsługiwane protokoły - IEEE 802.3
Dane techniczne: Obsługiwane protokoły - IEEE 802.3ab
Dane techniczne: Obsługiwane protokoły - IEEE 802.3u
Dane techniczne: Obsługiwane protokoły - IEEE 802.3x flow control
Dane techniczne: Producent - Cudy
Dane techniczne: Przeznaczenie - biurkowy
Dane techniczne: Prędkość magistrali wew. - 10 Gb/s
Dane techniczne: Rozmiar tablicy adresów MAC - 1000
Dane techniczne: Szerokość - 100 mm
Dane techniczne: Szybkość przekierowań pakietów - 7.44 mpps
Dane techniczne: Typ - niezarządzalny
Dane techniczne: Waga - 0.2 kg
Dane techniczne: Wysokość - 26 mm
Data Act - Link
Data transmission - Forwarding rate - 7.44 Mpps
Data transmission - Jumbo frames - 9000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 2048 entries
Data transmission - Packet buffer memory - 0.125 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 10 Gbit/s
Description - GS105 5-Port Gigabit Desktop Switch Compliant with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards 5 x 10/100/1000Mbps auto-negotiation ports, Auto-MDI/MDIX for intelligent switching between 10Mbps, 100Mbps and 1000Mbps Store-and-Forward
Description1 - Adapter Cudy GS105 5-Port Metal Switch
Design - LED indicators - Link
Design - LED indicators - Loop
Design - LED indicators - Loop, Link, Power
Design - LED indicators - Power
Design - Product colour - Black
Design - Rack mounting - No
Designation - CE+WEEE
dimensionalWeight - 98
dimension depth - 75 mm
dimension height - 125 mm
Dimensions - 100 x 70 x 26 mm
dimension weight - 310 g
dimension width - 180 mm
ean - 6971690790431
EAN - 6971690790431
Eans - 6971690790431
Environment requirements - Operating temperature: -10~50°C Storage temperature -40~70°C Operating humidity: 10% ~ 90%, non-condensing Storage temperature: 5% ~ 90%, non-condensing
Fan - No
Forwarding mode - Store-and-forward
Forwarding rate - 7.44 Mpps
GTIN - 6971690790431
guarantee - 24
guarantee_type - normal
Jumbo frame size - 2 KB
L2 features -
L3 features -
Logistics data - Master (outer) case gross weight - 17 kg
Logistics data - Master (outer) case height - 400 mm
Logistics data - Master (outer) case length - 320 mm
Logistics data - Master (outer) case width - 505 mm
Logistics data - Products per master (outer) case - 40 pc(s)
LongDesc - A Long-Distance Switch with Power SavingSuper-Fast Gigabit Five 10/100/1000 Mbps non-blocking Ethernet ports enable instant transferring of data without mutual interference.Extra Transmission Distance 140 meters of Gigabit transmission adding 40% longer distance compared to a standard switch, simplifies wiring for larger premises.Saves Power Reduce power consumption when Ethernet ports are idle, saving the electricity expenses on networking facilities.Wall Mounting Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement scenarios.A Plug and Play Network HubConnect Office Computers to Wired NetworkBoost Home Devices with Stable EthernetRobust Metal. Compact Size. Metal casing delivers simplicity and protection for the network hub, compact enough to fit in most home network distribution boxes.
LongProductName - 5-Port, Gigabit, Desktop Switch, Model: GS105, Black
LongSummaryDescription - Cudy GS105. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2048 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Power connector: DC-in jack
MAC address table size - 1000

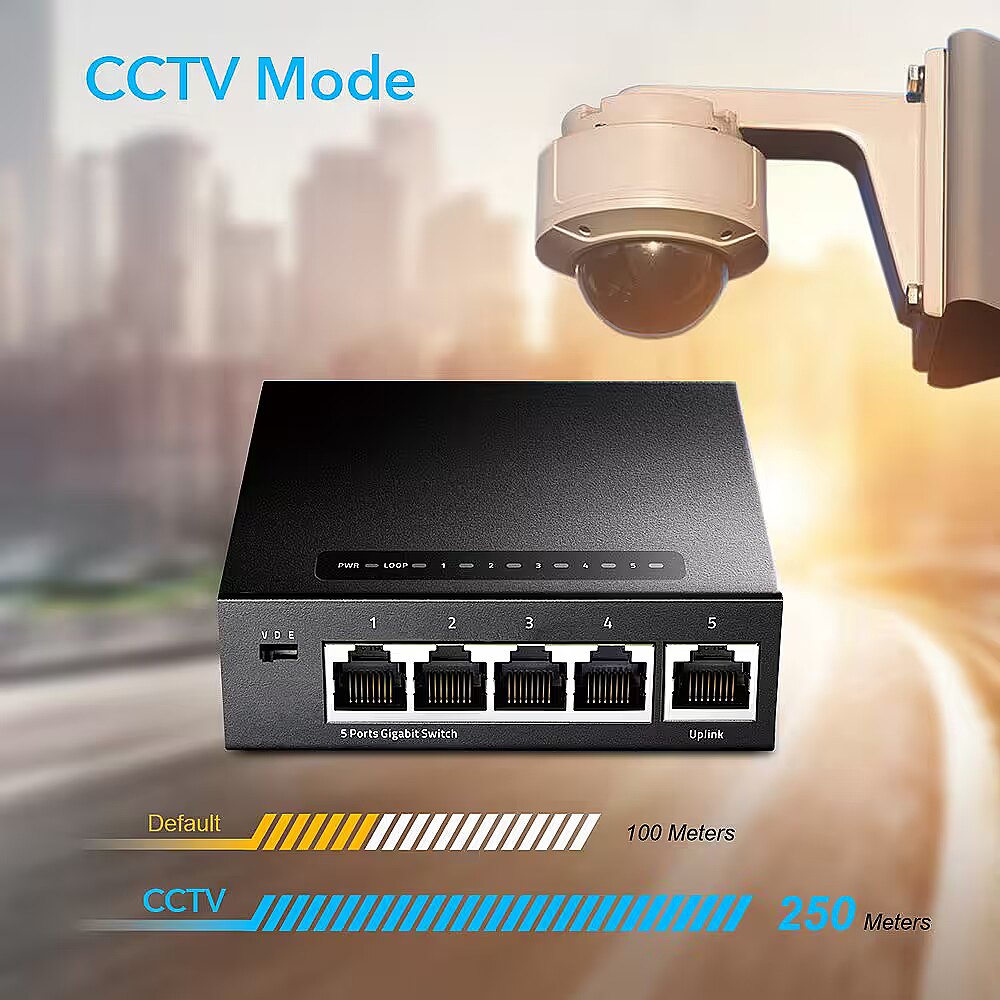

Management, monitoring, configuration - It supports three modes: VLAN, Default, Extend
Management features - Switch type - Unmanaged
Manufacturer - Cudy
ManufacturerID - GS105
Mean time between failures (MTBF) - 100000 h
MPN - GS105
Name - 5P Cudy GS105
Name - Cudy GS105
name - Switch GS105 5xGE Metal Case
Network - Cable types supported - Cat3
Network - Cable types supported - Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1
Network - Cable types supported - Cat4
Network - Cable types supported - Cat5
Network - Cable types supported - Cat5e
Network - Cable types supported - Cat6
Network - Cable types supported - Cat6+
Network - Cable types supported - Cat6a
Network - Cable types supported - Cat6e
Network - Cable types supported - Cat7
Network - Cable types supported - Cat7e
Network - Cable types supported - Cat8
Network - Cable types supported - Cat8.1
Network - Copper ethernet cabling technology - 10BASE-T
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX, 1000BASE-T
Network - Copper ethernet cabling technology - 100BASE-TX
Network - Copper ethernet cabling technology - 1000BASE-T
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Half duplex - Yes
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 5
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP56 ports - None
Number of SFP ports - None
Operational conditions - Operating altitude - 0 - 3048 m
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Other functions -
Packaging content - Cables included - DC
Packaging content - Manual - Yes
Packet buffer - 1 MB
Performance - Mean time between failures (MTBF) - 100000 h
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 5
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Power connector - DC-in jack
Power - DC input voltage - 5 V
Power - Input current - 0.55 A
Power - Power consumption (max) - 1.2 W
Power - Power source - DC
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Power supply - Powers external DC 5V
Power supply - External
Producent: Nazwa producenta / importera - Cudy
Cudy Polska Sp. z o.o.
Nowogrodzka 50/54/515
00-650 Warszawa

producer - Cudy
Producer - Cudy
producerCode - GS105
ProducerCode - GS105
productName - Cudy GS105 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
ProductName - GS105
productSize - Normal
QoS -
Safety warning - Warnings - Do not open the case or try to repair it yourself.
Safety warning - Warnings - Ensure the unit is adequately ventilated during operation.
Safety warning - Warnings - The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.
Security -
ShortDescription -
ShortSummaryDescription - Cudy GS105, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex
sizeX - 93
sizeY - 88
sizeZ - 60
Stackability - No
Supported protocols and standards - IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control)
Support for Jumbo frames - Yes
Switch class - Unmanaged
Throughput - 10 Gb/s
Title - Cudy GS105 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
URL - https://www.cudy.com/en-eu/products/gs105-5-0?_pos=1&_psq=GS105&_ss=e&_v=1.0#features
vendpn - GS105

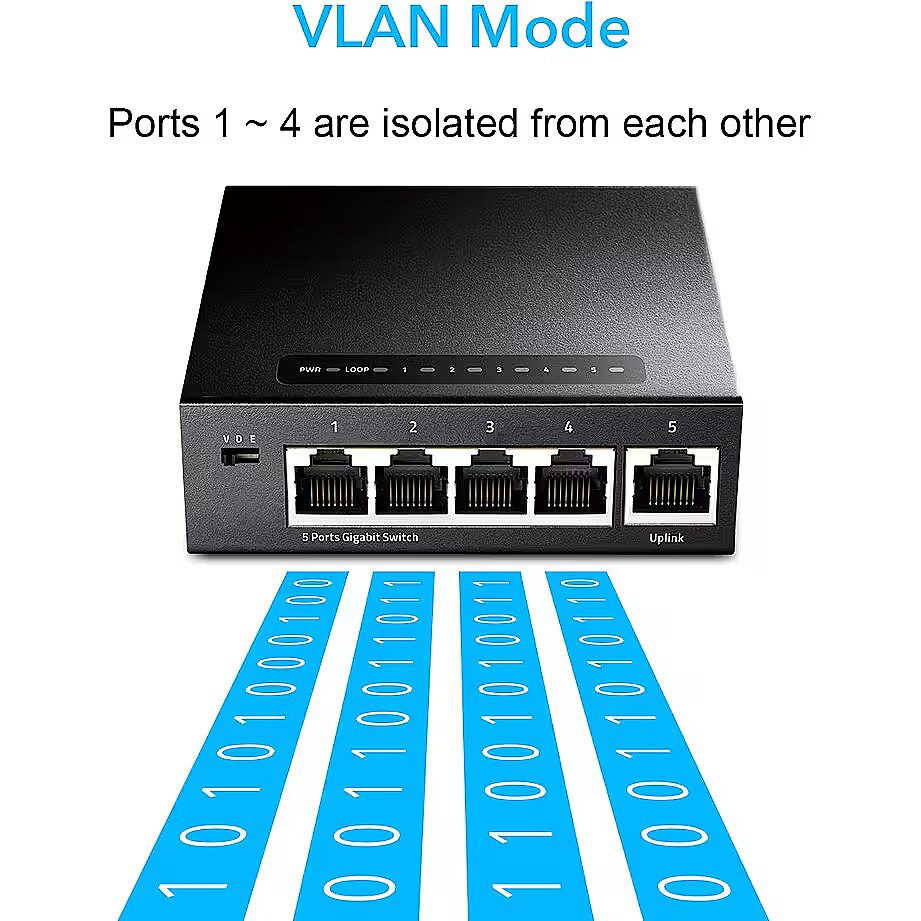

VLAN - Port isolation, ports 1-4 are isolated from each other, all communicate with uplink port 5
WarrantyInfo -
warrantyLength - 24
warrantyType - G
WEEE - DE46285170
Weight - 0.208
Weight - 200 g
weight - 210
Weight & dimensions - Depth - 53 mm
Weight & dimensions - Height - 23 mm
Weight & dimensions - Weight - 115.1 g
Weight & dimensions - Width - 86.5 mm
