10/100/1000/2500 Mbps ports - None
Accessories included -
Application - Home and small office
Category 1 - Netzwerk
Category 2 - Switching Hubs
Chassis type - Desktop
Console port - No
Data transmission - MAC address table - 4000 entries
Data transmission - Packet forwarding rate (1 Gbps) - 1488000 pps
Data transmission - Packet forwarding rate (10 Mbps) - 14880 pps
Data transmission - Packet forwarding rate (100 Mbps) - 148800 pps
Data transmission - Switching capacity - 7.2 Gbit/s

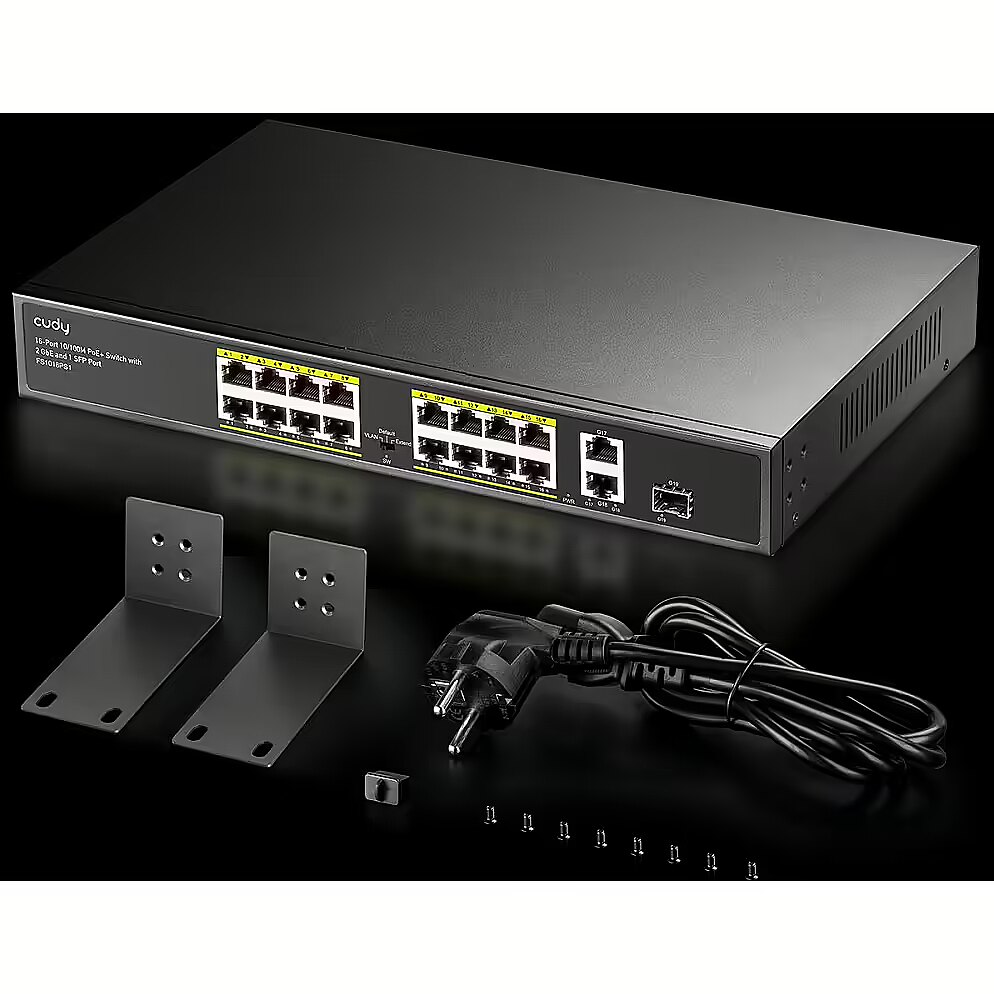

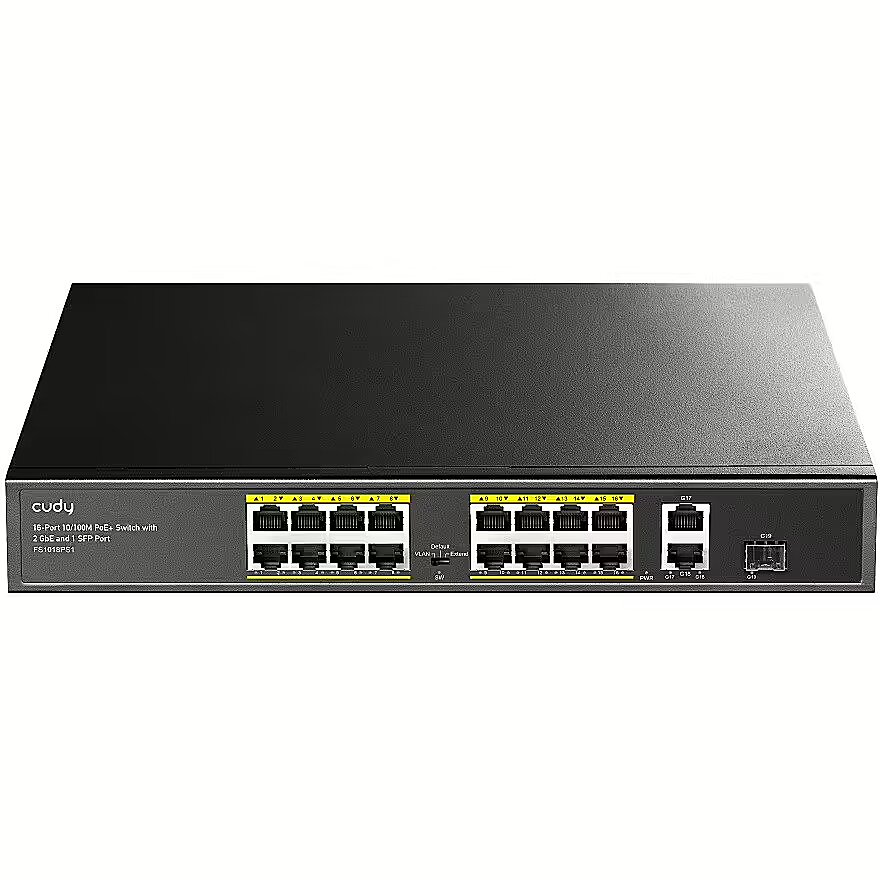

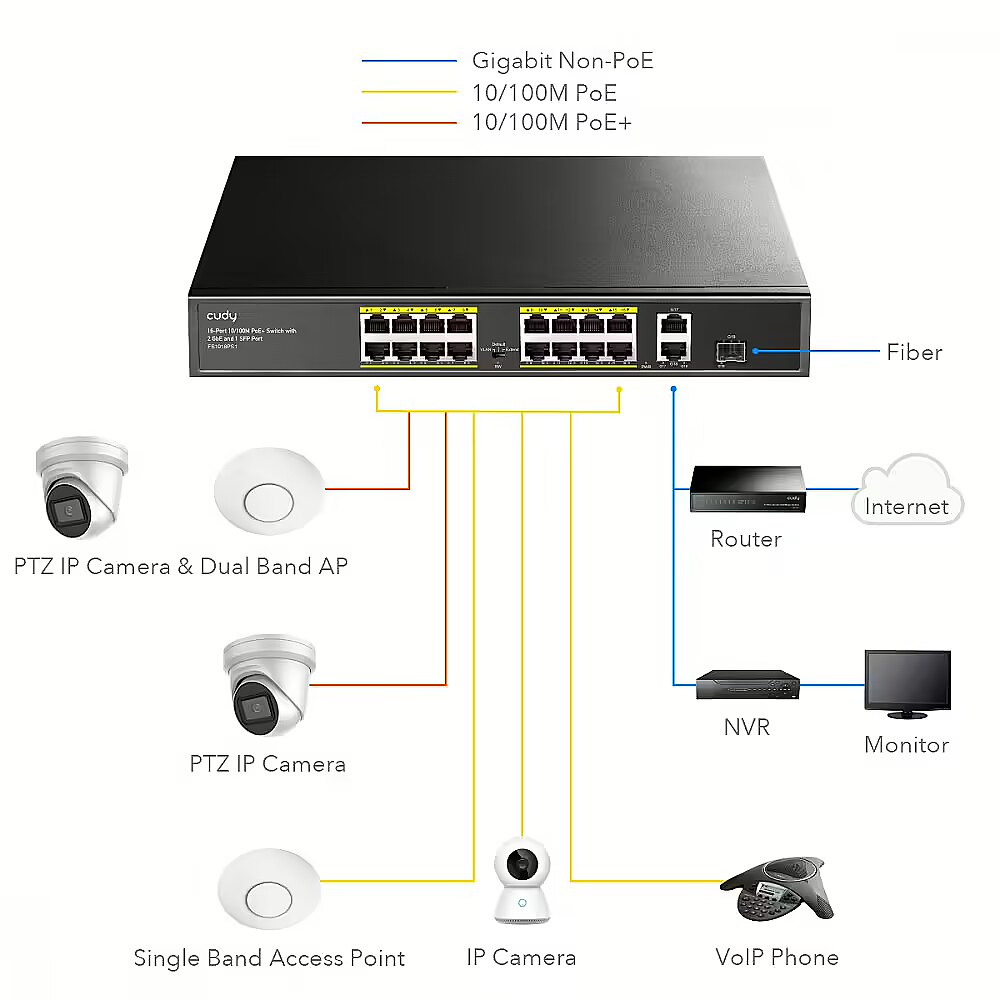

Description - FS1018PS1 16-Port 10/100M PoE+ Switch with 1 Combo SFP Port 200W PoE power, up to 30W per port 2 10/100/1000M uplink ports + 1 SFP port 16 10/100M PoE+ ports CCTV mode supports remote PoE power up to 250m VLAN mode isolates each PoE port for security IEEE 802.3at / IEEE 802.3af compliant Plug&Play
Design - Housing material - Metal
Design - LED indicators - Activity
Design - LED indicators - Link
Design - LED indicators - PoE
Design - LED indicators - Power
Design - Product colour - Grey
Design - Rack mounting - Yes
Designation - CE+WEEE
dimensionalWeight - 1824
dimension depth - 86 mm
dimension height - 377 mm
Dimensions - 280 x 180 x 44 mm
dimension weight - 2251 g
dimension width - 292 mm
ean - 6971690790271
EAN - 6971690790271
Environment requirements - Working temperature: 0~40°C Storage temperature: -40~70°C Non-condensing humidity: 0 ~ 85%
Fan - No
guarantee - 24
guarantee_type - normal
L2 features -
L3 features -
MAC address table size - 4000
Management, monitoring, configuration -
Manufacturer - Cudy
MPN - FS1018PS1
Name - 16+1P Cudy FS1018PS1 RM PoE+ SFP
name - Switch FS1018PS1 16xFE PoE+ 200W 1xSFP
Network - Ethernet LAN data rates - 10,100 Mbit/s
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3u
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - 16
Number of 10/100/1000 Mbps ports - 2
Number of 10Gb ports - None
Number of COMBO ports - 1
Number of PoE+ ports - 16
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP56 ports - None
Number of SFP ports - 1
Operational conditions - Operating relative humidity (H-H) - 0 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Transmission speed: 14880pps for 10Mbps 148800pps for 100Mbps 1488000pps for 1000Mbps
Other functions -
Packaging content - Cables included - AC
Packaging content - Rack mount kit - Yes
Performance - Fanless - Yes
Performance - Plug and Play - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 18
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Ports & interfaces - Combo SFP ports quantity - 1
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 2
Ports & interfaces - Installed SFP modules quantity - 1
Ports & interfaces - Power connector - AC-in jack
Ports & interfaces - Uplink ports quantity - 2
Power - AC input voltage - 100 - 240 V
Power - Power source - AC
Power - Power supply included - Yes
Power consumption - 190 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 16
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 16
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 200 W
Power supply - Internal power supply: AC 100 - 240V
Power supply - Internal
producer - Cudy
producerCode - FS1018PS1
productName - Cudy FS1018PS1 network switch Fast Ethernet (10/100) Power over Ethernet (PoE) Grey
productSize - Normal
QoS -
Safety warning - Warnings - Do not open the case or try to repair it yourself.
Safety warning - Warnings - Ensure the unit is adequately ventilated during operation.
Safety warning - Warnings - The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.
Security -
sizeX - 370
sizeY - 290
sizeZ - 85
Stackability - No
Supported protocols and standards - IEEE802.3 IEEE802.3i IEEE802.3u IEEE802.3z IEEE802.3ab IEEE802.3af IEEE802.3at
Support for Jumbo frames - No
Switch class - Unmanaged
Throughput - 7.2 Gb/s
vendpn - FS1018PS1
VLAN -
warrantyLength - 24
warrantyType - G
Weight - 2.193
weight - 2185
Weight & dimensions - Depth - 180 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 280 mm
