ARTIKEL1 - 4-PORT 10G MANAGED POE SWITCH
ARTIKEL2 - L2+ 2-PORT 10G SFP+ 4-PORT POE++
Brand - TP-Link
BrandPartCode - SX3206HPP
Breite - 0
Category - Network Switches
Category 1 - Netzwerk
Category 2 - Switching Hubs
Certificates - Certification - CE, FCC, RoHS
Data transmission - Forwarding rate - 89.28 Mpps
Data transmission - Jumbo frames - 9000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 32000 entries
Data transmission - Number of static routes - 48
Data transmission - Packet buffer memory - 16 MB
Data transmission - Static route - Yes
Data transmission - Switching capacity - 120 Gbit/s
Design - LED indicators - Yes
Design - Number of fans - 2 fan(s)
Design - Product colour - Black
Design - Rack mounting - Yes
EAN - 6935364006617
EANCode - 6935364006617
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 6935364006617
HERSTELLER - TP-LINK
Hoehe - 0
HSTNUMMER - SX3206HPP
Laenge - 0
LongDesc - TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

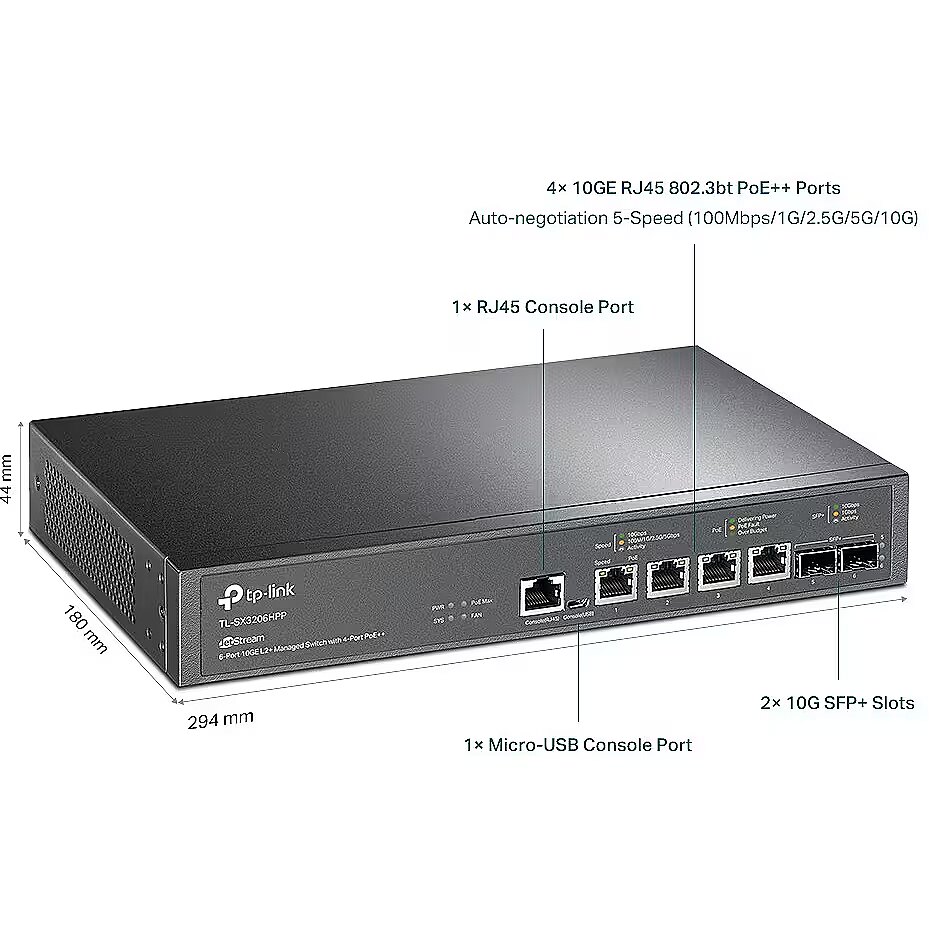

LongProductName - 4× 100/1000/2500/5000/10000 Mbps RJ45, 2× 10G SFP+ Slots, RJ45/Micro-USB, 120 Gbps, 32 K MAC, 9 KB Jumbo, 294×180×44 mm
LongSummaryDescription - TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4, Console port: RJ-45/Micro-USB. MAC address table: 32000 entries, Switching capacity: 120 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting
Management features - ARP inspection - Yes
Management features - Cloud-managed - Yes
Management features - Configuring Location Settings (CLI) - Yes
Management features - MIB support - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2+
Management features - Switch type - Managed
Management features - System event log - Yes
Management features - Web-based management - Yes
Manufacturer - TP-Link
Manufacturer Code - SX3206HPP
Manufacturer Name - TP-LINK
MPN - SX3206HPP
Multicast features - Multicast Listener Discovery (MLD) snooping - MLD v1/v2
Multicast features - Multicast support - Yes
Name - 4+2P TP-LINK Omada SG3206HPP M RM POE++
Network - 10G support - Yes
Network - Broadcast storm control - Yes
Network - Flow control support - Yes
Network - Head-of-line (HOL) blocking - Yes
Network - IP routing - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Network - Number of VLANs - 4000
Network - Port mirroring - Yes
Network - Rate limiting - Yes
Network - Routing entries - 512
Network - Spanning tree protocol - Yes
Network - Virtual LAN features - Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Network - VLAN support - Yes
Operational conditions - Heat dissipation - 835.67 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging content - Cables included - AC
Packaging content - Quick start guide - Yes
Packaging content - Rack mount kit - Yes
Performance - Minimum system requirements - Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 4
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - 10G Ethernet (100/1000/10000)
Ports & interfaces - Console port - RJ-45/Micro-USB
Ports & interfaces - Power connector - AC-in jack
Ports & interfaces - SFP+ module slots quantity - 2
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 244.9 W
Power - Power source - AC
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 60 W
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 4
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 200 W
ProductName - Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
Protocols - Management protocols - SNMP v1/v2c/v3
Security - Access Control List (ACL) - Yes
Security - Authentication - Guest VLAN
Security - Authentication type - AAA, RADIUS, TACACS+
Security - BPDU filtering/protection - Yes
Security - DHCP features - DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
Security - IGMP snooping - Yes
Security - Loop protection - Yes
Security - Security algorithms - HTTPS, SSL/TLS
Security - SSH/SSL support - Yes
Short description - TP-LINK Switch SX3206HPP 4x10G RJ45 PoE++/2xSFP+ Managed
ShortSummaryDescription - TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++, Managed, L2+, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Rack mounting
Stck_Kart - 8
Stck_Pal - 8
Storno - Y
Title - TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
URL - https://www.tp-link.com/en/business-networking/omada-switch-poe/sx3206hpp/
WarrantyInfo -
Weight - 2.6
Weight & dimensions - Depth - 180 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 294 mm
