TP-LINK TL-SG1210MPE 10-Port 8-Port PoE+

10G support Network - No
Accessories included -
Application - Home and small office
Basic switching RJ-45 Ethernet ports quantity Ports & interfaces - 9
Basic switching RJ-45 Ethernet ports type Ports & interfaces - Gigabit Ethernet (10/100/1000)
Brand - TP-Link
BrandPartCode - TL-SG1210MPE
Broadcast storm control Network - Yes
Category - Network Switches
Category Code - SWI
Chassis type - Desktop
Code - TL-SG1210MPE
Console port - No
Data transmission - Forwarding rate - 14.88 Mpps
Data transmission - Jumbo frames - 16000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 4000 entries
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 20 Gbit/s
DC input voltage Power - 53.5 V
Depth Weight & dimensions - 126 mm
Description - Switch SG1210MPE Smart 8GE PoE+ 1GE 1SFP Profesjonalny przełącznik Easy Smart z ośmioma portami PoE+. Wiele możliwych zastosowań Przełącznik TL-SG1210MPE jest w pełni zgodny z urządzeniami zasilanymi PoE, takimi jak kamery IP, punkty dostępowe i telefony IP. Współpracuje także z urządzeniami przewodowymi bez obsługi PoE - komputerami, drukarkami oraz IPTV. 10 portów gigabitowych, w tym 8 portów PoE+ 9 Gigabitowych portów RJ45 i 1 Gigabitowy port combo SFP/RJ45. 8 portów PoE+, zasilanie i przesył danych za pomocą jednego przewodu. Do 30W zasilania na każdym porcie PoE. Łączna moc zasilania do 123W. Monitoring sieci, Priorytetowanie ruchu, VLAN i PoE Auto Recovery. Podłączanie typu plug and play, bez potrzeby konfiguracji i skomplikowanej instalacji. Łatwe zarządzanie poprzez stronę lub narzędzie konfiguracyjne. Bezwentylatorowa konstrukcja ogranicza zużycie energii i zapewnia cichą pracę urządzenia.
Description - What This Product Does
TP-Link TL-SG1210MPE is an easy smart switch with 9× gigabit RJ45 ports and 1× gigabit combo SFP/RJ45 port that requires no configuration. With 8× PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc. Professional 10-Port Switch with 8-Port PoE+ (123 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 123 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more. System Self-Healing with PoE Auto Recovery

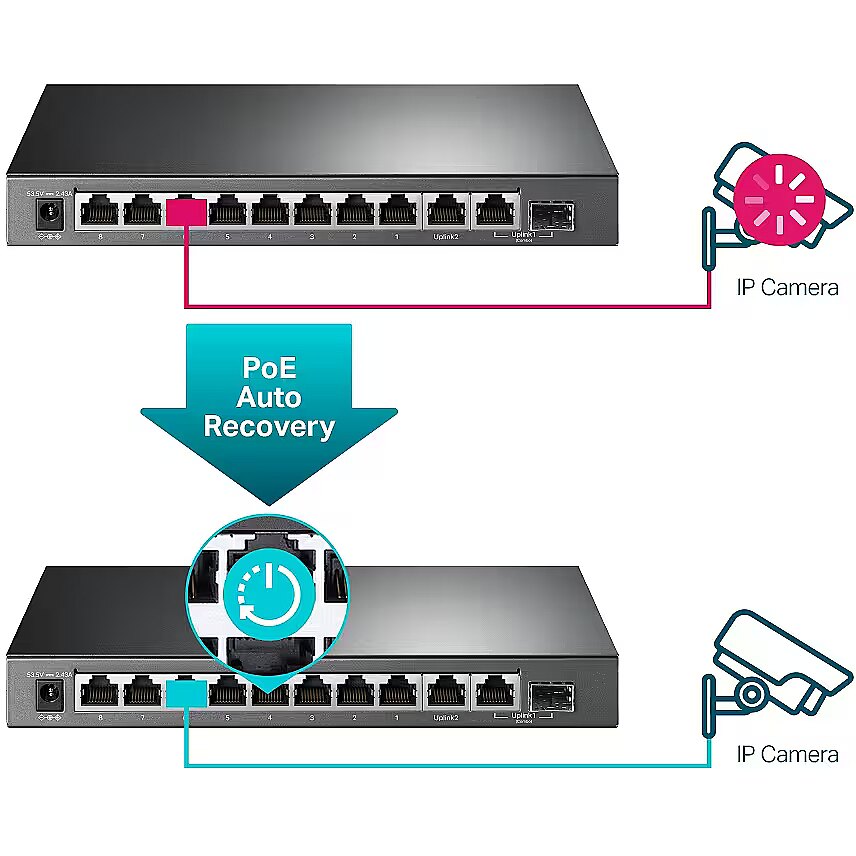

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without the need for manual monitoring and restart. Intelligent Power Management
When total power consumption exceeds 123 W, the intelligent power management will cut the lower priority port power. This ensures the high-priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged. Durable Metal Casing

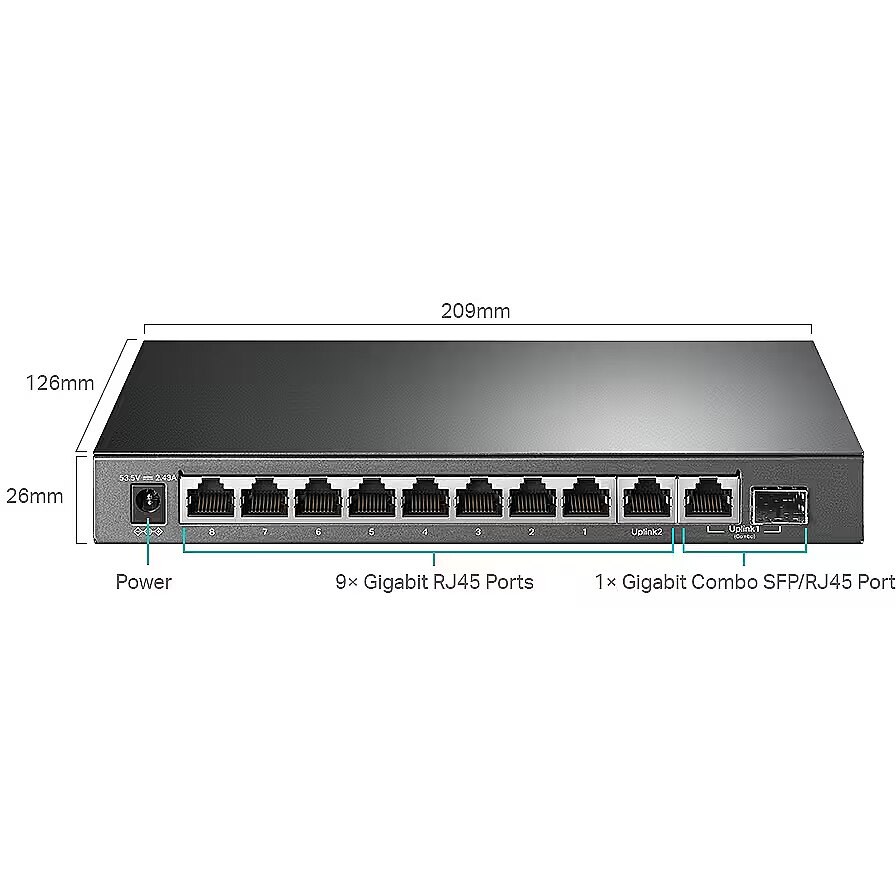

The interior components of TL-SG1210MPE are protected by high-quality metal casing to ensure a long product life. Its fanless design delivers zero added noise in its locations. Having passed an array of stringent reliability tests, TL-SG1210MPE delivers switching performance you can depend on.9× gigabit RJ45 ports and 1× combo gigabit SFP/RJ45 portEquipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cableSupports PoE power up to 123 W for all PoE ports*Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto RecoverySimple network set-up on top of plug-and-play connectivityWeb-based user interface and Easy Smart Configuration Utility simplify configurationFanless design lowers energy consumption and eliminates operating noise
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - No
Design > Colour of product - Black
Design > Form factor - Desktop
Designation - CE+WEEE
dimension depth - 75 mm
dimension height - 240 mm
Dimensions -
dimension weight - 1592 g
dimension width - 320 mm
EAN - 6935364052669
ean - 6935364052669
Fan - No
Fiber optic connector Ports & interfaces - SFP
Fiber ports quantity Ports & interfaces - 1
Forwarding mode - Store-and-forward
Forwarding rate Data transmission - 14.88 Mpps
GTIN - 0845973099565
GTIN - 845973099565
GTIN - 5715063515884
GTIN - 6935364052669
GTIN - 6935364052676
guarantee - 60
guarantee_type - normal
Harmonized System (HS) code Logistics data - 85176990
Height Weight & dimensions - 26 mm
IGMP snooping Security - Yes
Input current Power - 2.43 A
Jumbo frames Data transmission - 16000
Jumbo frames support Data transmission - Yes
L2 features -
L3 features -
LED indicators Design - Yes
Link - https://www.tp-link.com/uk/business-networking/poe-switch/tl-sg1210mpe/
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - What This Product DoesTP-Link TL-SG1210MPE is an easy smart switch with 9× gigabit RJ45 ports and 1× gigabit combo SFP/RJ45 port that requires no configuration. With 8× PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc. Professional 10-Port Switch with 8-Port PoE+ (123 W Budget) for Numerous ApplicationsCompliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 123 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more. System Self-Healing with PoE Auto RecoveryThe switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without the need for manual monitoring and restart. Intelligent Power ManagementWhen total power consumption exceeds 123 W, the intelligent power management will cut the lower priority port power. This ensures the high-priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged. Durable Metal CasingThe interior components of TL-SG1210MPE are protected by high-quality metal casing to ensure a long product life. Its fanless design delivers zero added noise in its locations. Having passed an array of stringent reliability tests, TL-SG1210MPE delivers switching performance you can depend on.
LongProductName - 10-Port Gigabit Easy Smart Switch with 8-Port PoE+
LongSummaryDescription - TP-Link 10-Port Gigabit Easy Smart Switch with 8-Port PoE+. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE.... DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE)
Loop protection Security - Yes
MAC address table Data transmission - 4000 entries
Management, monitoring, configuration -
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features > Switch layer - L2
Management features > Switch type - Web managed
Manual Packaging content - Yes
Model - TL-SG1210MPE
name - TP-Link SG1210MPE switc 8GE PoE+ 1GE 1SFP
Name - TP-LINK | 10-Port Gigabit Easy Smart Switch with 8-Port PoE+ | TL-SG1210MPE | Web managed | Desktop | Power supply type External | 60 month(s)
Network - 10G support - No
Network - Broadcast storm control - Yes
Network - Networking standards - IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Network - Port mirroring - Yes
Network - Rate limiting - Yes
Network architecture - GigabitEthernet
Networking standards Network - IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of 10/100/1000 Mbps ports - 9
Number of COMBO ports - 1
Number of PoE+ ports - 8
Number of QSFP+ ports - None
Number of SFP+ ports - None
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Other features > Power supply type - External
Other functions -
Package depth Packaging data - 315 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 312 mm
Package features > Gross depth master carton - 510 mm
Package features > Gross height (mm) - 240 mm
Package features > Gross height master carton - 370 mm
Package features > Gross width (mm) - 70 mm
Package features > Gross width master carton - 325 mm
Package features > Net weight master carton - 15.89 kg
Package features > Packing quantity - 10 pc(s)
Package features > Palette Qty - 280 pc(s)
Package features > Paper/Pasteboard - 400.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare other - 2.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Tare weight master carton - 1.043 kg
Package features > Volume (m3) - 0.0052416 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 70 mm
Package weight Packaging data - 1.58 kg
Package width Packaging data - 240 mm
Packaging content - Manual - Yes
Packaging data - Package depth - 315 mm
Packaging data - Package height - 70 mm
Packaging data - Package weight - 1.58 kg
Packaging data - Package width - 240 mm
Port mirroring Network - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 9
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Fiber optic connector - SFP
Ports & interfaces - Fiber ports quantity - 1
Ports & interfaces - Power connector - DC-in jack
Ports & interfaces > Ethernet LAN (RJ-45) ports - 9
Ports & interfaces > Predominant port type - 10/100/1000 Mbps (RJ-45)
Power - DC input voltage - 53.5 V
Power - Input current - 2.43 A
Power - Power supply included - Yes
Power connector Ports & interfaces - DC-in jack
Power consumption - 123 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 8
Power over Ethernet (PoE) Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) power per port Power over Ethernet (PoE) - 30 W
Power over Ethernet plus (PoE+) ports quantity Power over Ethernet (PoE) - 8
Power supply -
Power supply - Internal
Power supply included Power - Yes
producer - TP-LINK
Producer product family - 10-Port Gigabit Easy Smart Switch with 8-Port PoE+
Producer product name - TL-SG1210MPE
Product colour Design - Black
ProductName - 10-Port Gigabit Easy Smart Switch with 8-Port PoE+
QoS -
Quality of Service (QoS) support Management features - Yes
Rack mounting Design - No
Rate limiting Network - Yes
Security -
Security - IGMP snooping - Yes
Security - Loop protection - Yes
ShortSummaryDescription - TP-Link 10-Port Gigabit Easy Smart Switch with 8-Port PoE+, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
Storage relative humidity (H-H) Operational conditions - 5 - 95%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Store-and-forward Data transmission - Yes
Summary - TP-Link 10-Port Gigabit Easy Smart Switch with 8-Port PoE+. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE.... DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE)
Supported protocols and standards -
Switch class - Unmanaged
Switching capacity Data transmission - 20 Gbit/s
Switch layer Management features - L2
Switch type Management features - Managed
Technical details > Gross weight - 1.589 kg
Technical details > Net weight - 1.089 kg
Technical details > Producer - TP-LINK
Technical details > Warranty - 60 month(s)
Throughput - 1 Gb/s
Title - TP-Link 10-Port Gigabit Easy Smart Switch with 8-Port PoE+
Unit Box Height - 0.072
Unit Box Length - 0.316
Unit Box Width - 0.243
Unit Calculated Volume - 0.005529 cubm
Unit Calculated Weight - 1.59 kg
Units per Shipping Box - 1
URL - https://www.tp-link.com/uk/business-networking/easy-smart-switch/tl-sg1210mpe/
Vendor Homepage - https://www.tp-link.com/uk/business-networking/easy-smart-switch/tl-sg1210mpe/
vendpn - TL-SG1210MPE
VLAN -
Warranty - 60
Warranty - 60 months
WarrantyInfo -
Weight & dimensions - Depth - 126 mm
Weight & dimensions - Height - 26 mm
Weight & dimensions - Width - 209 mm
Width Weight & dimensions - 209 mm
