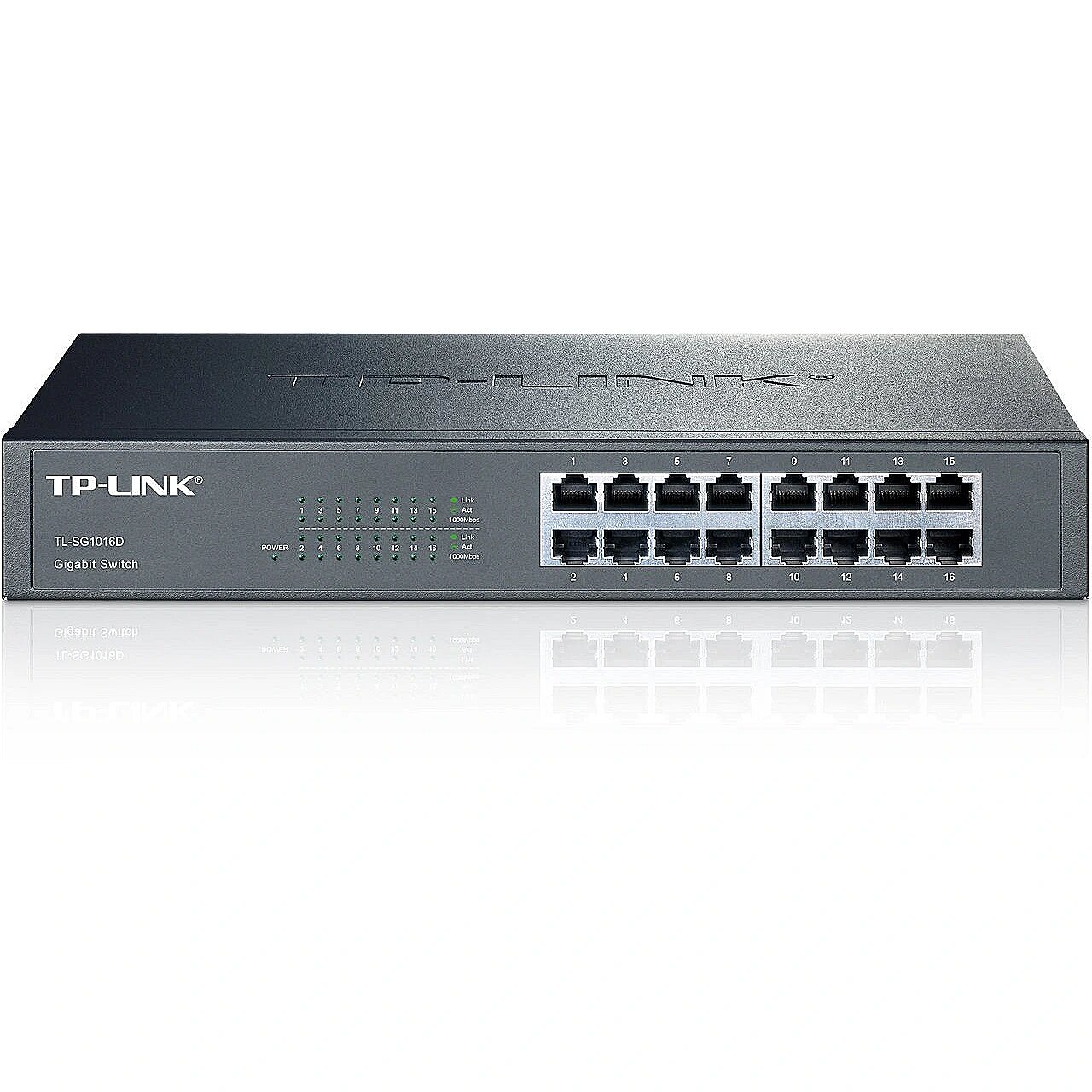

TP-LINK TL-SG1016D 16port

10G support Network - No
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
ARTIKEL1 - TL-SG1016D 16-PORT GIGAB SWITCH
ARTIKEL2 - 10/100/1000 MBIT/S-RJ45-PORTS
Auto-negotiation Network - Yes
Auto MDI/MDI-X Network - Yes
Basic switching RJ-45 Ethernet ports quantity Ports & interfaces - 16
Basic switching RJ-45 Ethernet ports type Ports & interfaces - Gigabit Ethernet (10/100/1000)
Brand - TP-Link
BrandPartCode - TL-SG1016D V7
Cables included Packaging content - AC
Cable types supported Network - Cat3, Cat4, Cat5, Cat5e
Category - Network Switches
Category - Root/Electronics/Networks and communication/Switchers
Category - Tīkla produkti, Gudrā māja :: Komutatori (Switch)
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Certificates - Compliance certificates - CE, Federal Communications Commission (FCC), RoHS
Code - TL-SG1016D
Compatible operating systems Performance - Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10
MacOS
NetWare
UNIX
Linux
Compliance certificates Certificates - CE, Federal Communications Commission (FCC), RoHS
Copper ethernet cabling technology Network - 10BASE-T, 100BASE-TX, 1000BASE-TX, 1000BASE-T
Dane techniczne: Akcesoria - kabel zasilający | zestaw elementów montażowych
Dane techniczne: Algorytm przełączania - store-and-forward
Dane techniczne: Grupa produktowa - Przełączniki TP-Link
Dane techniczne: Gwarancja - 5 lat w serwisie sprzedawcy
Dane techniczne: Głębokość - 180 mm
Dane techniczne: Klasa produktu - TPlink - Przełączniki
Dane techniczne: Liczba portów LAN 10/100/1000 - 16 szt.
Dane techniczne: Obsługiwane protokoły - IEEE 802.3ab
Dane techniczne: Obsługiwane protokoły - IEEE 802.3ae
Dane techniczne: Obsługiwane protokoły - IEEE 802.3i
Dane techniczne: Obsługiwane protokoły - IEEE 802.3u
Dane techniczne: Producent - TP-Link
Dane techniczne: Przeznaczenie - biurkowy
Dane techniczne: Prędkość magistrali wew. - 32 Gb/s
Dane techniczne: Rozmiar tablicy adresów MAC - 8192
Dane techniczne: Szerokość - 294 mm
Dane techniczne: Szybkość przekierowań pakietów - 23.8 mpps
Dane techniczne: Typ - niezarządzalny
Dane techniczne: Wysokość - 44 mm
Data transmission - Forwarding rate - 23.8 Mpps
Data transmission - Jumbo frames - 10000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 32 Gbit/s
Depth Weight & dimensions - 180 mm
Desc - Portu skaits: 16, Portu ātrums: 10/100/1000 Mb/s, Garantija: 2 gadi
Description - The TL-SG1016D 16-Port Gigabit switch provides an easy way to make the transition to Gigabit Ethernet. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save up to 40%* of the power consumption, making it an eco-friendly solution for your business network.
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10Base-T: UTP category 3, 4, 5 cable (maximum 328.1feet)
EIA/TIA-568 100Ù STP (maximum 328.1feet)
100Base-Tx: UTP category 5, 5e cable (maximum 328.1feet)
EIA/TIA-568 100Ù STP (maximum 328.1feet)
1000Base-T: UTP category 5, 5e cable (maximum 328.1feet)
Fan Quantity Fanless
Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
Power Supply 100-240VAC, 50/60Hz
PERFORMANCE
Switching Capacity 32Gbps
MAC Address Table 8K
Packet Forwarding Rate 23.8Mpps
Jumbo Frame 10KB
Green Technology Innovative energy-efficient technology saves power up to 40%
Transfer Method Store-and-Forward
OTHERS
Certification FCC, CE, RoHs
Package Contents 16-Port Gigabit Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
Description - What This Product Does
The TL-SG1016D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network. TP-LINK Green Technology
This new generation TL-SG1016D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled. High Performance
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1016D work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly. Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.16 10/100/1000Mbps portsInnovative energy-efficient technology saves power consumptionSupports MAC address self-learning, Auto MDI/MDIX and Auto negotiationPlug & play design
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - Yes
Design - Stackable - Yes
Design > Case design - Steel case
Design > Form factor - Desktop/Rackmountable
Designation - CE+WEEE
dimensionalWeight - 1263
dimension depth - 80 mm
dimension height - 400 mm
dimension weight - 2219 g
dimension width - 250 mm
EAN - 6935364020613
ean - 6935364020613
EANCode - 6935364020613
Eans - 6935364020613
EAN_code - 6935364020613
Fanless Performance - Yes
Flow control support Network - Yes
Forwarding rate Data transmission - 23.8 Mpps
Full duplex Network - Yes
Gigabit Ethernet (copper) ports quantity Ports & interfaces - 16
GRUPPE1 - Network
GRUPPE2 - Lan Switch Unmanaged
GTIN - 0682851723767
GTIN - 682851723767
GTIN - 0845973020613
GTIN - 845973020613
GTIN - 6935364020613
guarantee - 36
guarantee_type - normal
Harmonized System (HS) code Logistics data - 85176990
Heat dissipation Operational conditions - 31.6 BTU/h
Height Weight & dimensions - 44 mm
HERSTELLER - TP-LINK
HSTNUMMER - TL-SG1016D
Jumbo frames Data transmission - 10000
Jumbo frames support Data transmission - Yes
LargeDescHTML - 16-Port Gigabit Desktop/Rackmount SwitchTL-SG1016D16 10/100/1000Mbps portsInnovative energy-efficient technology saves power up to 15%*Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiationPlug & play design What This Product DoesThe TL-SG1016D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save up to 15% of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.TP-LINK Green TechnologyThis new generation TL-SG1016D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.High PerformanceAll 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1016D work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.Easy to UseThe auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.  The information provided on this page is a property of the manufacturer or the brand.To find out more, please visit: http://www.tp-link.com
LED indicators Design - Yes
Link - https://www.tp-link.com/us/business-networking/unmanaged-switch/tl-sg1016d/
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - What This Product DoesThe TL-SG1016D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.TP-LINK Green TechnologyThis new generation TL-SG1016D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.High PerformanceAll 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1016D work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.Easy to UseThe auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
LongProductName - 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX), IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x, 294 x 180 x 44 mm, 100-240VAC, 50/60Hz
LongSummaryDescription - TP-Link 16-Port Gigabit Desktop/Rackmount Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting
MAC address table Data transmission - 8000 entries
Management features - Switch type - Unmanaged
Management features > Switch type - Unmanaged
Manufacturer - TP-Link
Manufacturer_code - TL-SG1016D
Maximum cable length Performance - 100 m
MPN - SG1016D
name - 16-Port Gigabit Desktop/Rackmount Switch
Name - 16P TP-Link SG1016D
Name - TP-LINK TL-SG1016D
Name - TP-Link TL-SG1016D
Name - TP-LINK TL-SG1016D, Switch braun
Name - TP-LINK | 16-Port Gigabit Switch | TL-SG1016D | Unmanaged | Desktop/Rackmountable
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Cable types supported - Cat3
Network - Cable types supported - Cat3, Cat4, Cat5, Cat5e
Network - Cable types supported - Cat4
Network - Cable types supported - Cat5
Network - Cable types supported - Cat5e
Network - Copper ethernet cabling technology - 10BASE-T
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX, 1000BASE-TX, 1000BASE-T
Network - Copper ethernet cabling technology - 100BASE-TX
Network - Copper ethernet cabling technology - 1000BASE-T
Network - Copper ethernet cabling technology - 1000BASE-TX
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Networking standards Network - IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Heat dissipation - 31.6 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Package depth Packaging data - 400 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 405 mm
Package features > Gross depth master carton - 525 mm
Package features > Gross height (mm) - 255 mm
Package features > Gross height master carton - 345 mm
Package features > Gross width (mm) - 80 mm
Package features > Gross width master carton - 425 mm
Package features > Net weight master carton - 15.8 kg
Package features > Packing quantity - 8 pc(s)
Package features > Palette Qty - 176 pc(s)
Package features > Paper/Pasteboard - 613 g
Package features > PET - 4 g
Package features > Plastic (No PET) - 15.00 g
Package features > Tare weight (kg) - 0.628 kg
Package features > Tare weight master carton - 1.309 kg
Package features > Volume (m3) - 0.008262 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 80 mm
Package type Packaging data - Box
Package weight Packaging data - 1.85 kg
Package width Packaging data - 250 mm
Packaging content - Cables included - AC
Packaging content - Rack mount kit - Yes
Packaging content - User guide - Yes
Packaging data - Cables included - AC
Packaging data - Package depth - 400 mm
Packaging data - Package height - 80 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.85 kg
Packaging data - Package width - 250 mm
Packaging data - Rack mount kit - Yes
Packaging data - User guide - Yes
Performance - Compatible operating systems - Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10
MacOS
NetWare
UNIX
Linux
Performance - Fanless - Yes
Performance - Maximum cable length - 100 m
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 16
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 16
Ports & interfaces - Power connector - AC-in jack
Ports & interfaces > POE - No
Ports & interfaces > Predominant port type - 10/100/1000 Mbps (RJ-45)
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 9.26 W
Power - Power source - AC
Power - Power supply included - Yes
Power connector Ports & interfaces - AC-in jack
Power consumption (max) Power - 9.26 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Power over Ethernet (PoE) > Power over Ethernet (PoE) - No
Power over Ethernet (PoE) Power over Ethernet (PoE) - No
Power source Power - AC
Power supply included Power - Yes
Producent: Nazwa producenta / importera - TP-Link
TP-Link Polska sp. z o.o.
Ożarowska 40/42
05-850 Duchnice

producer - TP-LINK
Producer - TP-Link
producerCode - TL-SG1016D
ProducerCode - TL-SG1016D
Producer product family - 16-Port Gigabit Switch
Producer product name - TL-SG1016D
Product colour Design - Black
ProductName - 16-Port Gigabit Desktop/Rackmount Network Switch
productName - TP-Link 16-Port Gigabit Desktop/Rackmount Network Switch
productSize - Normal
Protocols - Supported network protocols - CSMA/CD, TCP/IP
Rack mounting Design - Yes
Rack mount kit Packaging content - Yes
ShortDescription - 16 portów 10/100/1000Mb/s | Tryb zapamiętywania adresów MAC, automatyczne krosowanie MDI/MDIX
ShortSummaryDescription - TP-Link 16-Port Gigabit Desktop/Rackmount Network Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting
sizeX - 336
sizeY - 80
sizeZ - 235
Stackable Design - Yes
Stck_Kart - 8
Stck_Pal - 0
Storage relative humidity (H-H) Operational conditions - 5 - 90%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Store-and-forward Data transmission - Yes
Storno - Y
Summary - TP-Link 16-Port Gigabit Desktop/Rackmount Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting
Supported network protocols Protocols - CSMA/CD, TCP/IP
Sustainability - Sustainability certificates - CE
Sustainability - Sustainability certificates - Federal Communications Commission (FCC)
Sustainability - Sustainability certificates - RoHS
Sustainability - Sustainability compliance - Yes
Sustainability compliance Sustainability - Yes
Switching capacity Data transmission - 32 Gbit/s
Switch type Management features - Unmanaged
Technical details > Gross weight - 1.975 kg
Technical details > Net weight - 1.347 kg
Technical details > Other features - Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
Technical details > Producer - TP-LINK
Title - TP-Link 16-Port Gigabit Desktop/Rackmount Network Switch
Unit Box Height - 0.08
Unit Box Length - 0.405
Unit Box Width - 0.25
Unit Calculated Volume - 0.009971 cubm
Unit Calculated Weight - 2.23 kg
Units per Shipping Box - 8
URL - https://www.tp-link.com/uk/service-provider/unmanaged-switch/tl-sg1016d/
User guide Packaging content - Yes
Vendor Homepage - https://www.tp-link.com/uk/service-provider/unmanaged-switch/tl-sg1016d/
vendpn - TL-SG1016D
Warranty - 60
Warranty - 60 month(s)
Warranty - 60 months
WarrantyInfo -
warrantyLength - 60
warrantyType - G
Weight - 1,91
Weight - 1.794
weight - 1840
Weight & dimensions - Depth - 180 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 294 mm
Width Weight & dimensions - 294 mm
