Startech I51G, 5x1Gb

ARTIKEL1 - I51G-ETHERNET-SWITCH
ARTIKEL2 - 5-PORT ETHERNET SWITCH - IP30
Brand - StarTech.com
BrandPartCode - I51G-ETHERNET-SWITCH
Breite - 0
Category - Network Switches
Certificates - Compliance certificates - RoHS, Trade Agreements Act (TAA)
Data transmission - Jumbo frames - 9000
Data transmission - Jumbo frames support - Yes
Data transmission - Store-and-forward - Yes

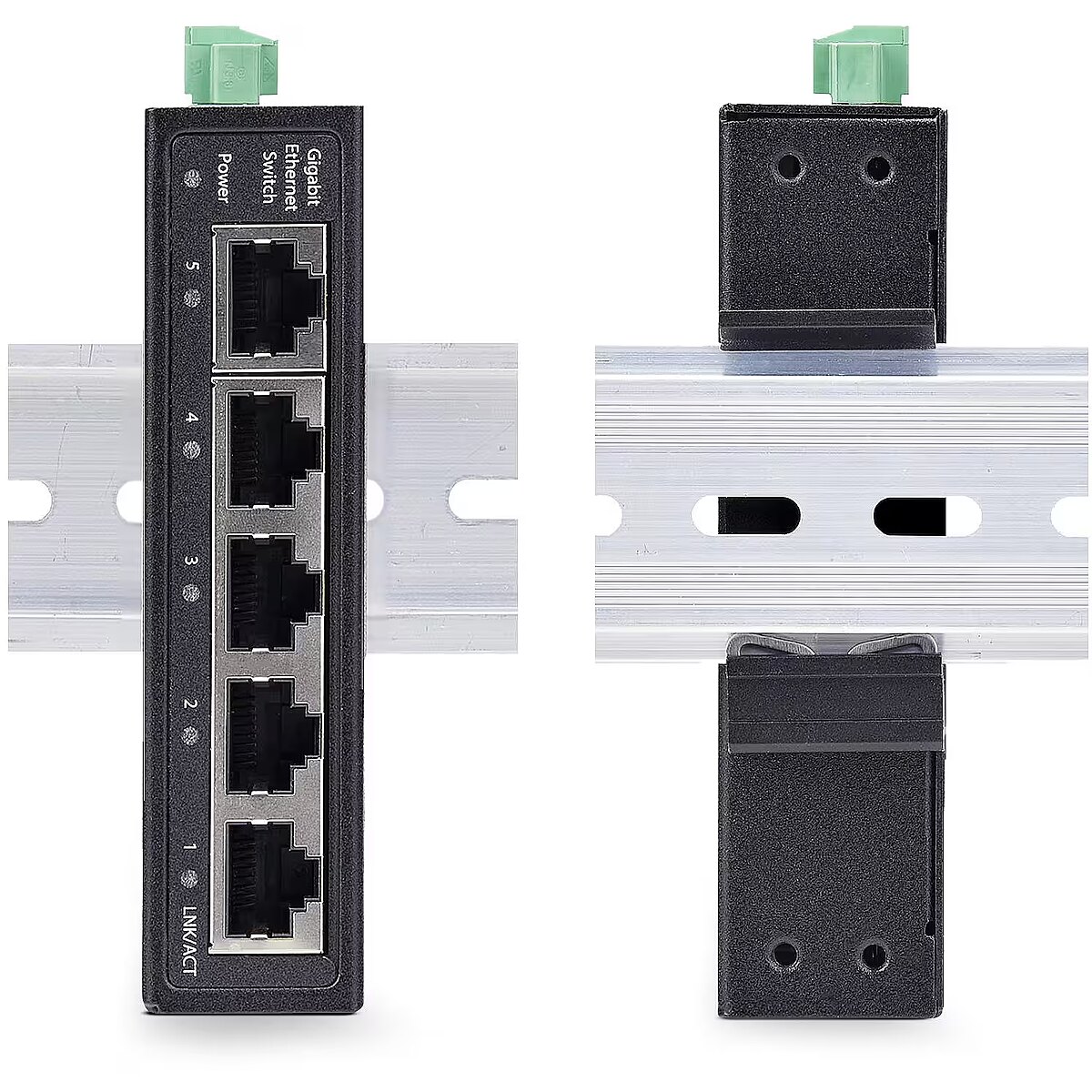

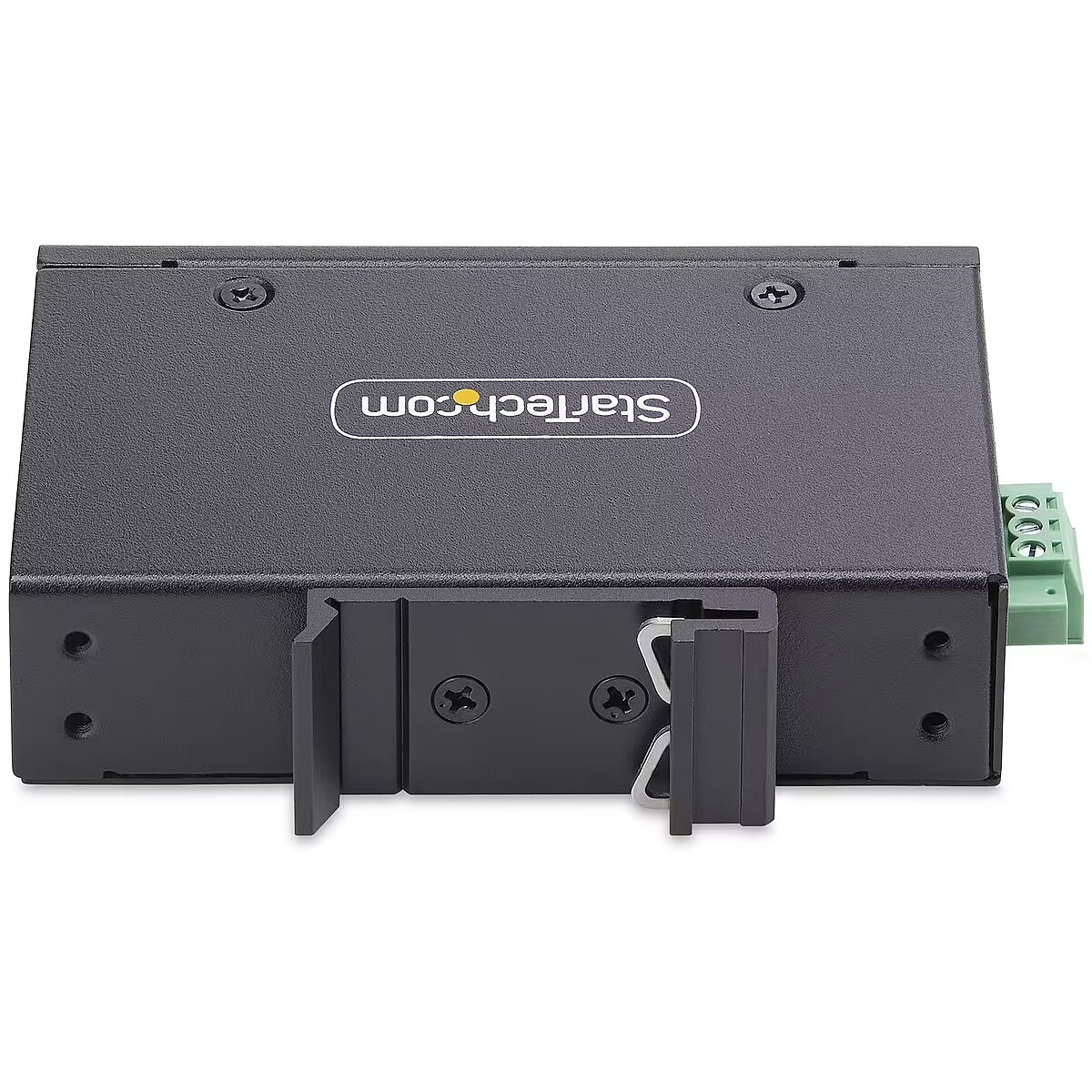

Design - DIN rail mounting - Yes
Design - Housing material - Metal
Design - International Protection (IP) code - IP30
Design - LED indicators - Yes
Design - Product colour - Black
Design - Wall mountable - Yes
EANCode - 0065030909648
Gewicht - 0.31
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 0065030909648
GTIN - 065030909648
HERSTELLER - STARTECH
Hoehe - 0
HSTNUMMER - I51G-ETHERNET-SWITCH
Laenge - 0
Logistics data - Master (outer) case height - 335 mm
Logistics data - Master (outer) case length - 295 mm
Logistics data - Master (outer) case width - 355 mm
Logistics data - Products per master (outer) case - 30 pc(s)

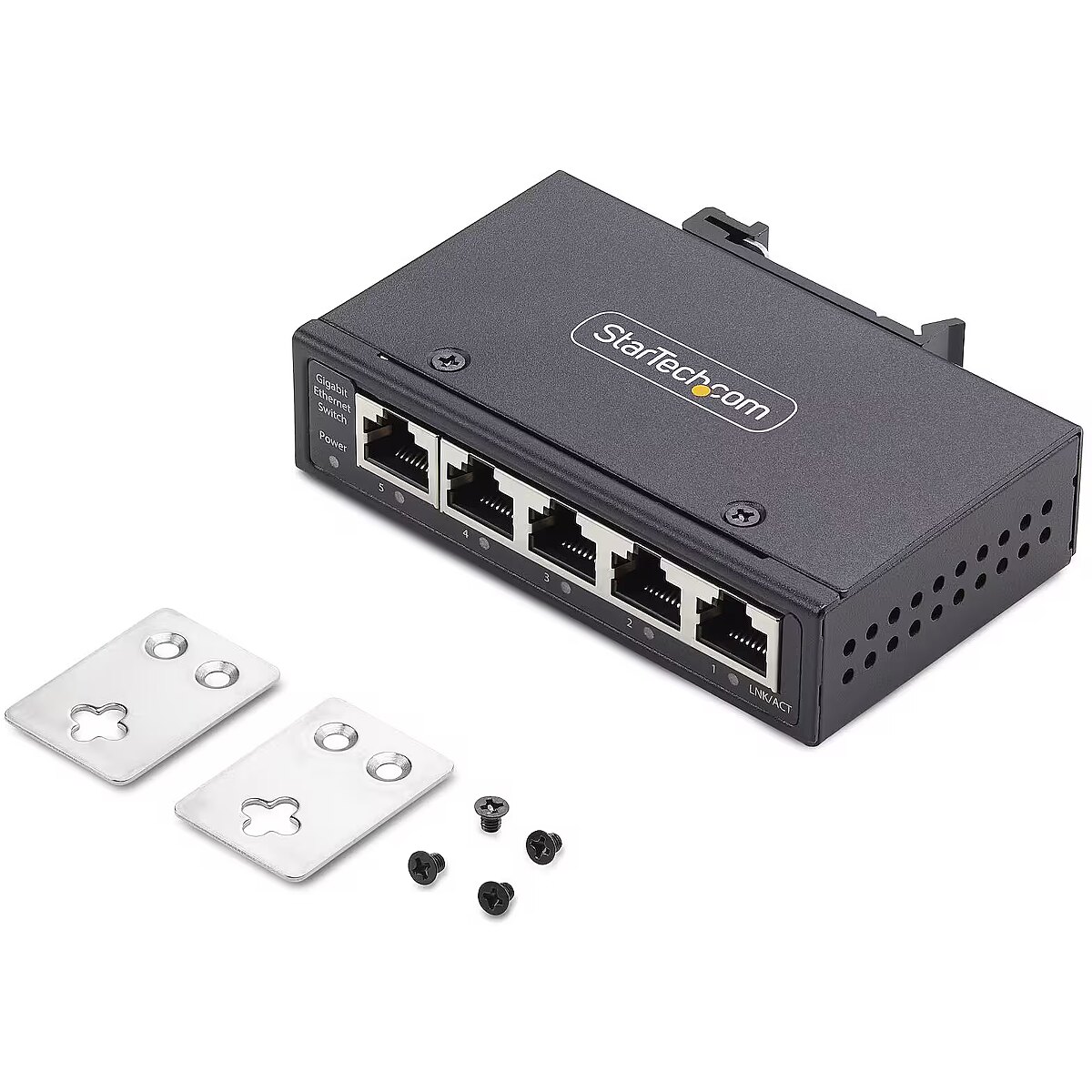

LongDesc - Expand your network connectivity with simple plug-and-play setupThis unmanaged, fanless network switch delivers silent, energy-efficient performance with five multi-speed Ethernet ports (10/100/1000 Mbps). Its durable all-metal casing ensures long-lasting reliability.Enhance Your NetworkExpand your network connectivity with simple plug-and-play setup. This network switch is ideal for large file transfers, streaming, network sharing and storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility.Rugged TAA SwitchThis TAA compliant unmanaged switch features an unintrusive design and small dimensions (3.9x2.3x1 inch / 100.5x60x 25.5mm). Key features such as 9K Jumbo Frames, 3-Pin Terminal Block Power Input, QoS IEEE 802.1p, and the included DIN Rail and Wall Mounting Kits give you the flexibility to use it in a multitude of scenarios. The rugged metal enclosure is IP30 rated to prevent objects larger than 2.5mm from getting inside and has an extended operating temperature range of -40°F-167°F (40°C-75°C). The clear diagnostic LEDs show the status of the devices at a glance.Designed for Demanding EnvironmentsThis network switch is deal for industrial settings and centralized control stations where device reliability is essential and environmental conditions fluctuate. The compact form factor makes it an ideal solution for Industrial Automation and IP Surveillance.The StarTech.com Advantage
LongProductName - StarTech.com 5-Port Unmanaged Industrial Network Switch, 100/1000 Ethernet, DIN Rail/Wall-Mount, IP30, -40-167F, 9~60VDC, TAA
LongSummaryDescription - StarTech.com 5-Port Unmanaged Industrial Network Switch, 100/1000 Ethernet, DIN Rail/Wall-Mountable, Rugged IP30 Gigabit Switch, -40F-167F, 9~60V DC, TAA Compliant. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex, Networking standards: IEEE 802.1p, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: Terminal block (3-pin). Wall mountable
Management features - Quality of Service (QoS) support - Yes
Management features - Switch type - Unmanaged
Network - 10G support - No
Network - Auto MDI/MDI-X - Yes
Network - Copper ethernet cabling technology - 100BASE-TX, 1000BASE-T
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Full duplex - Yes
Network - Networking standards - IEEE 802.1p, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -40 - 75 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Packaging content - Quick start guide - Yes
Packaging data - DIN rail included - Yes
Packaging data - Mounting brackets included - Yes
Packaging data - Package depth - 159 mm
Packaging data - Package height - 55 mm
Packaging data - Package weight - 293.7 g
Packaging data - Package width - 107 mm
Packaging data - Terminal block included - Yes
Performance - Mean time between failures (MTBF) - 556710 h

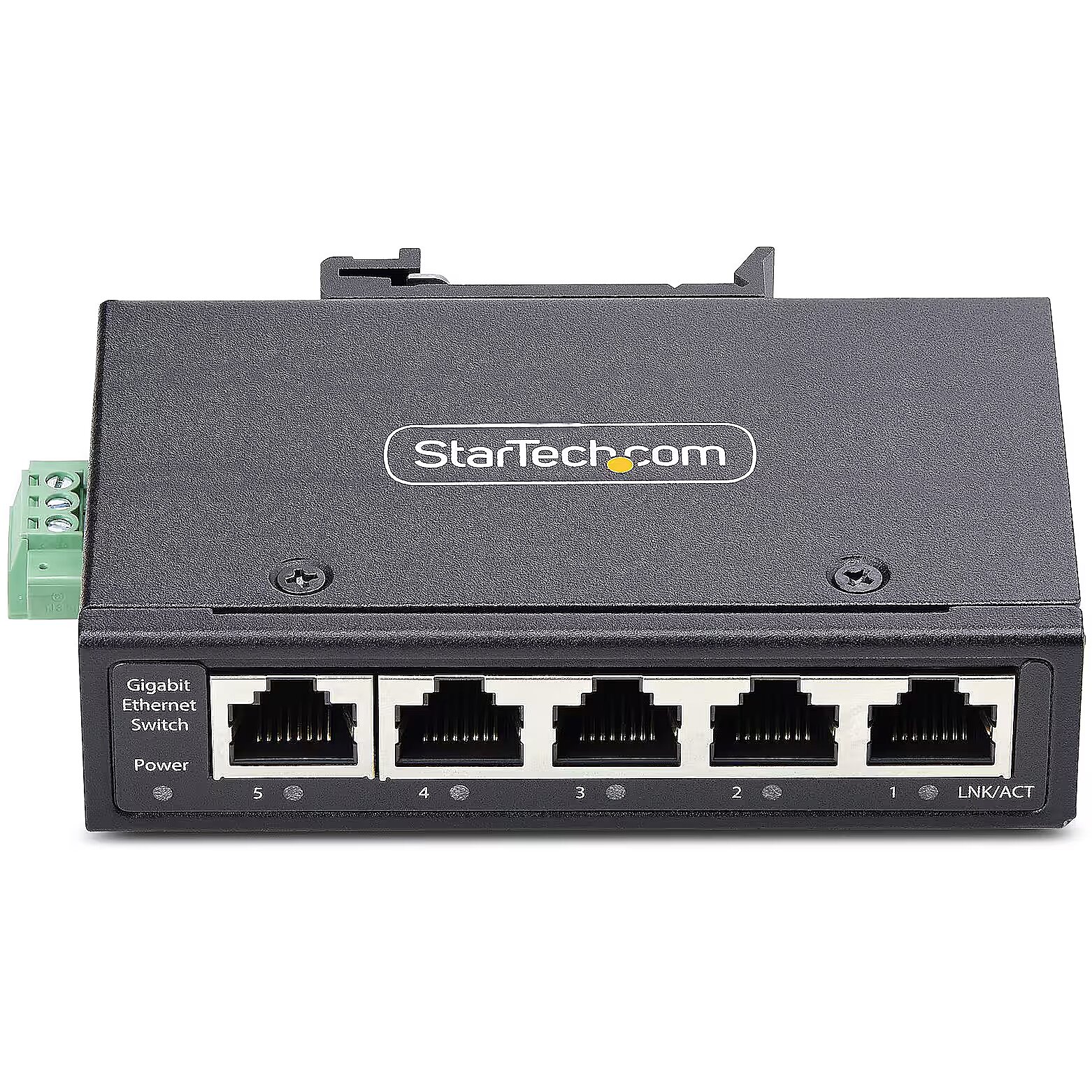

Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 5
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 5

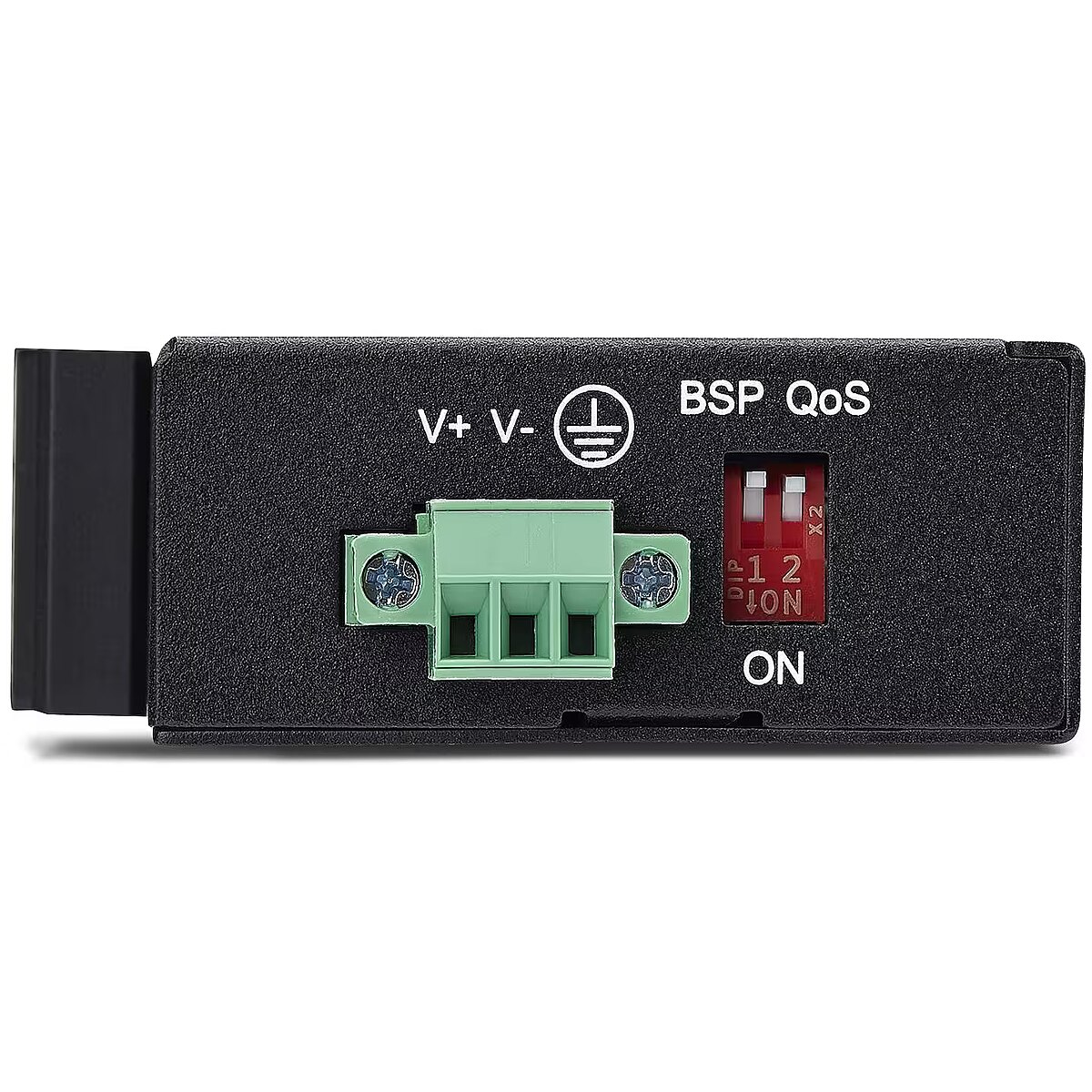

Ports & interfaces - Power connector - Terminal block (3-pin)
Power - Input voltage - 9 - 60 V
Power - Power supply included - Yes
ProductName - 5-Port Unmanaged Industrial Network Switch, 100/1000 Ethernet, DIN Rail/Wall-Mountable, Rugged IP30 Gigabit Switch, -40F-167F, 9~60V DC, TAA Compliant
ShortSummaryDescription - StarTech.com 5-Port Unmanaged Industrial Network Switch, 100/1000 Ethernet, DIN Rail/Wall-Mountable, Rugged IP30 Gigabit Switch, -40F-167F, 9~60V DC, TAA Compliant, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
Title - StarTech.com 5-Port Unmanaged Industrial Network Switch, 100/1000 Ethernet, DIN Rail/Wall-Mountable, Rugged IP30 Gigabit Switch, -40F-167F, 9~60V DC, TAA Compliant
URL - https://www.startech.com/en-us/I51G-ETHERNET-SWITCH
WarrantyInfo - 2 Years
Weight & dimensions - Depth - 100 mm
Weight & dimensions - Height - 26 mm
Weight & dimensions - Weight - 221.7 g
Weight & dimensions - Width - 60 mm
