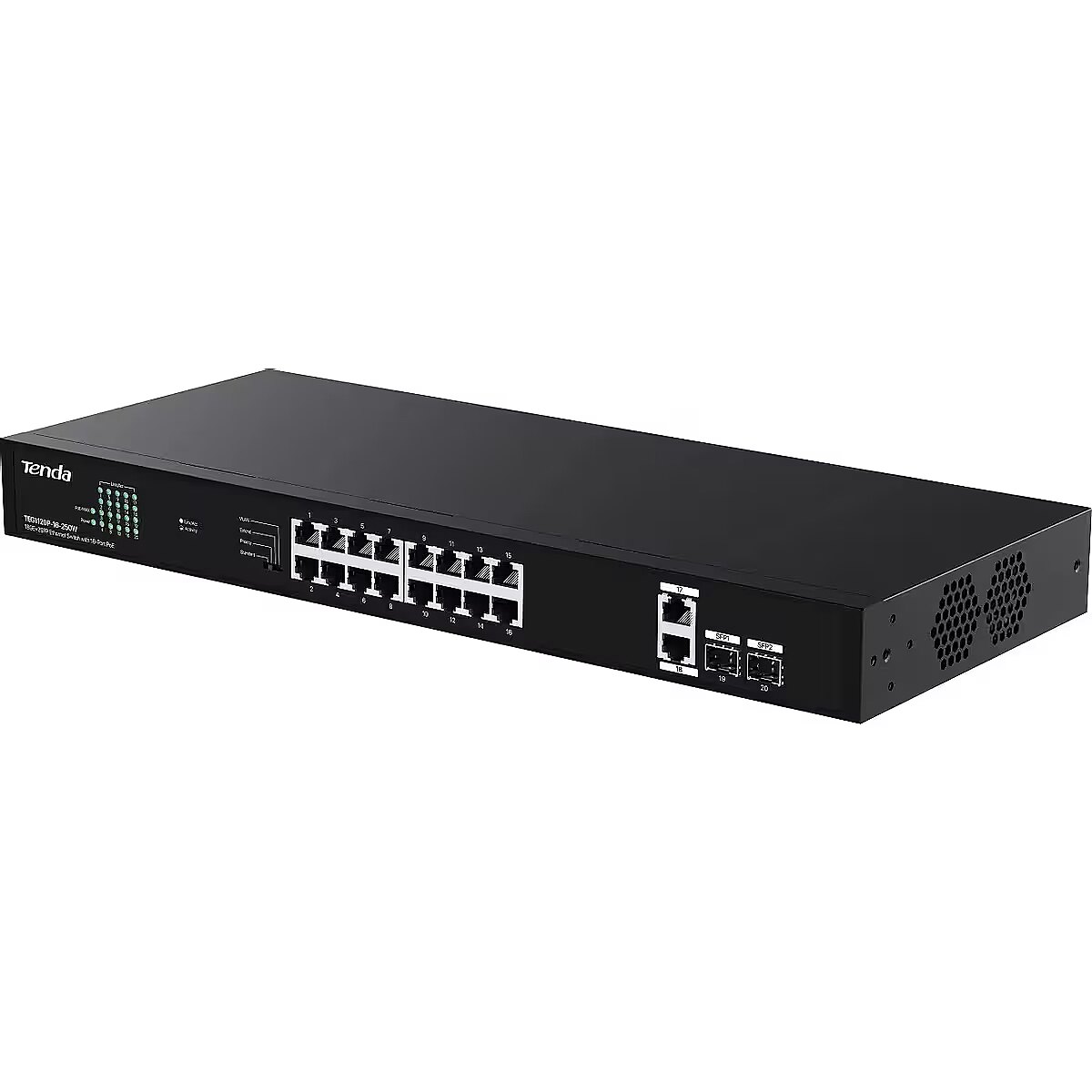

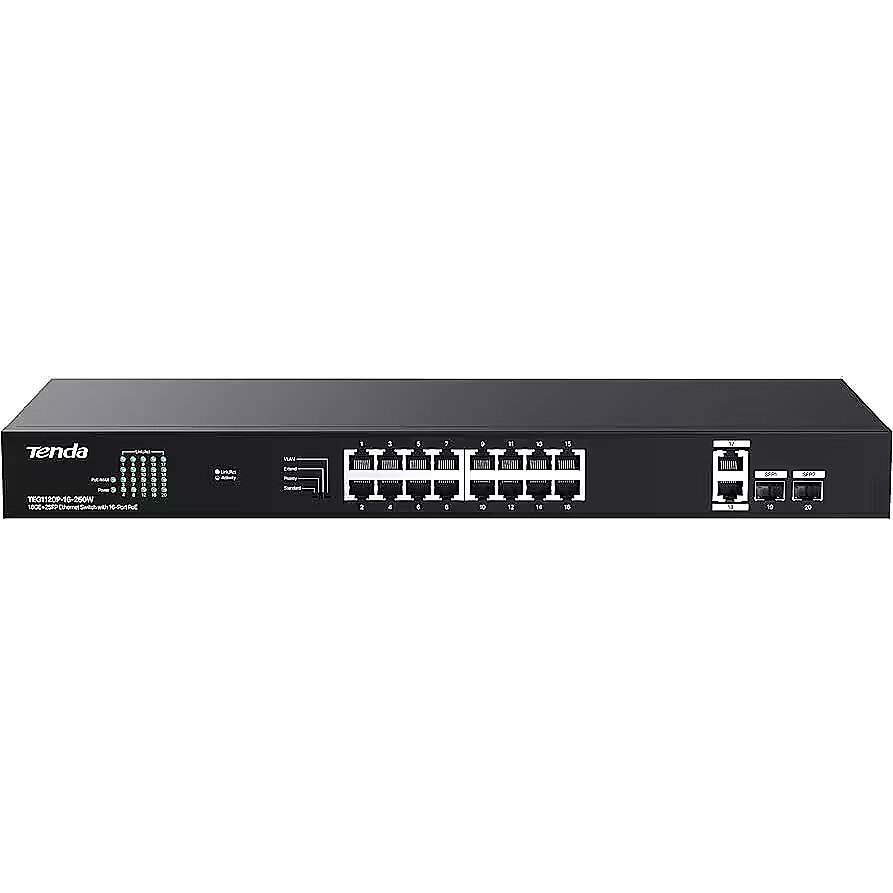

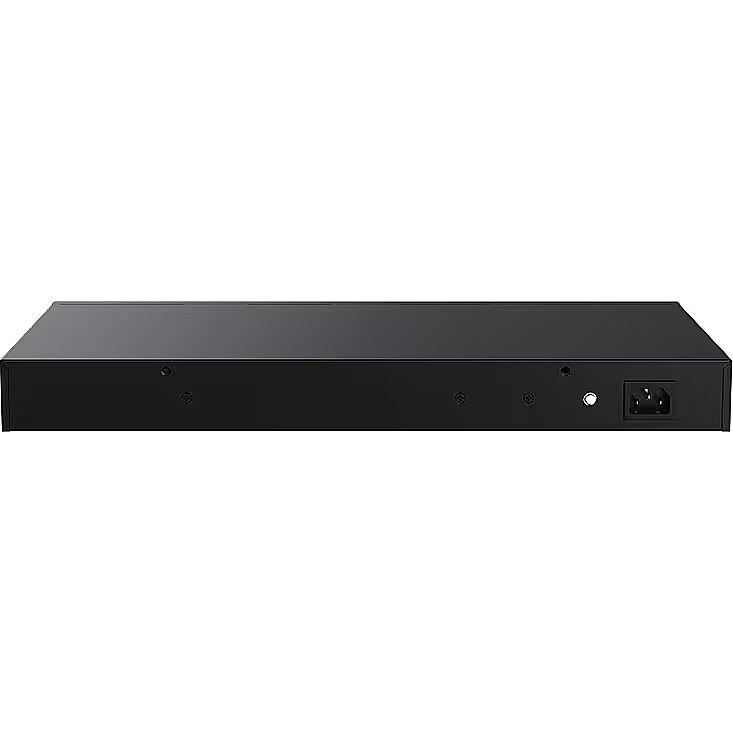

Tenda TEG1120P-16-250W, 16x1Gb PoE, 2xSFP

Name: Tenda TEG1120P-16-250W, 16x1Gb PoE, 2xSFP
Brand: Tenda
SKU: 1204469
Price: 130.25 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1204469 Product code: TEG1120P-16-250W

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years

Compare

Main product parameters All parameters

Base-T speed: 10/100/1000
RJ-45 Ports: 16

Similar Products

Ports and equipment
	This product Tenda TEG1120P-16-250W, 16x1Gb PoE, 2xSFP	Ubiquiti N-SW, 4x1G PoE, Openbox	TP-LINK TL-SF1016DS 16-Port 10/100Mbps Desktop/Rackmount Switch	TP-LINK TL-SG105-M2, 5x 100Mbps/1Gbps/2.5Gbp Ports	D-Link DGS-1100-24V2 Smart Managed Switch [24x Gigabit Ethernet], Openbox
Show similar specs. Hide similar specs.	130.25 €	39.00 €	48.17 €	61.74 €	149.00 €
Base-T speed	10/100/1000	10/100/1000	10/100	2,5GbE	10/100/1000
PoE Ports	16	4	N/A	N/A	N/A
RJ-45 Ports	16	4	16	5	24
SFP Ports	2	N/A	N/A	N/A	N/A
Specifikācija
Number of fans	1	Fanless	Fanless	Fanless	Fanless
PoE Per-Port Power Budget	30 W	24 W	N/A	N/A	N/A
PoE Support	Ir	Ir	Nav	Nav	Nav
PoE Total Power Budget	230 W	30 W	N/A	N/A	N/A
Weight (g)	2700 g	270 g	500 g	870 g	1630 g

Ports and equipment

Base-T speed : 10/100/1000

PoE Ports : 16

RJ-45 Ports : 16

SFP Ports : 2

Specifikācija

Number of fans : 1

PoE Per-Port Power Budget : 30 W

PoE Support : Ir

PoE Total Power Budget : 230 W

Weight (g) : 2700 g

More detailed specification

Data transmission - Forwarding rate - 29.8 Mpps
Data transmission - MAC address table - 8000 entries
Data transmission - Packet buffer memory - 4 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 40 Gbit/s
Design - Number of fans - 1 fan(s)
Design - Rack mounting - Yes
Design - Wall mountable - Yes
dimensionalWeight - 2117
Management features - Switch type - Unmanaged
Network - 10G support - No
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 45 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 18
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - SFP module slots quantity - 2
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (typical) - 250 W
Power - Power source - AC
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 230 W
producerCode - TEG1120P-16-250W
productName - Tenda TEG1120P-16-250W network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
productSize - Normal
sizeX - 470
sizeY - 265
sizeZ - 85
Sustainability - Sustainability compliance - Yes
warrantyLength - 36
warrantyType - G
weight - 2750
Weight & dimensions - Depth - 178 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 440 mm
