Mercusys MS108GP, 8x1GE PoE

10Base-T / 100Base-TX / 1000Base-T Ports - 8
Category Code - SWI
CnCode - 85176200
Code - MS108GP
Data transmission - MAC address table - 8000 entries
Data transmission - Store-and-forward - Yes

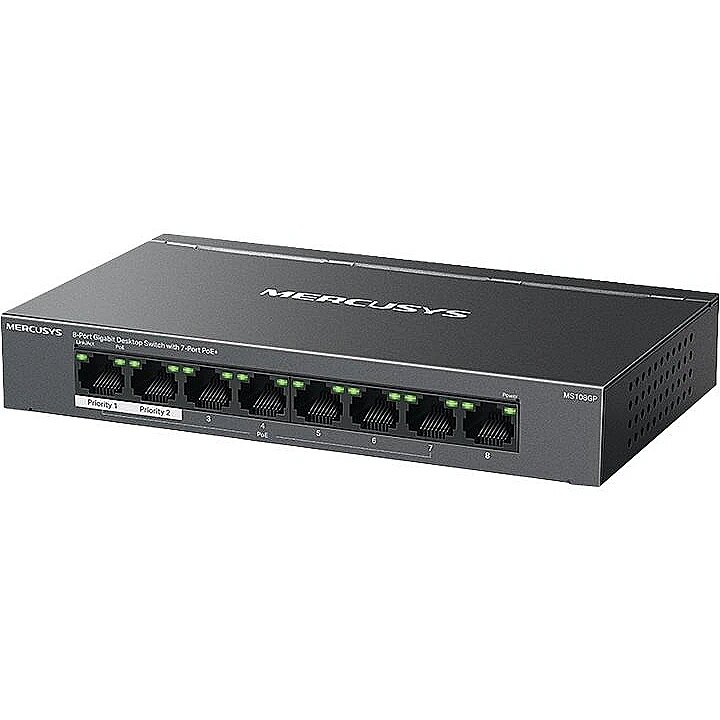

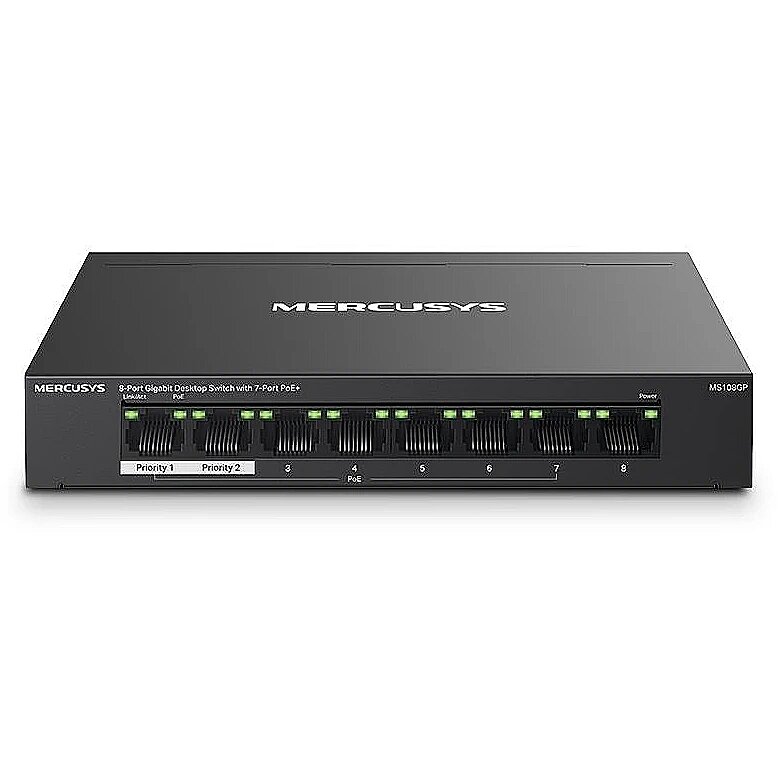

Description - MERCUSYS MS108GP 8-Port Gigabit Desktop Switch with 7-Port PoE+ Full Gigabit Ports: 8× 10/100/1000 Mbps RJ45 ports Two Cables in One: With 7 PoE+ ports, transfers data and power on one single cable High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode Isolation Mode: One click to divide traffic for specific ports for stability and security Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs Durable Metal Casing: Allows for efficient heat dissipation and long network life Plug and Play: Simple to use and saves time and effort
Design - Housing material - Metal
Design - Product colour - Black
Design - Rack mounting - No
Design - Stackable - No
Design - Wall mountable - Yes
Desktop/pedestal Mounting Type - Yes
dimensionalWeight - 403
Dimensions - 171x98x27 мм
EAN - 6957939001209
IEEE 802.3af Network standard - Yes
IEEE 802.3at Network standard - Yes
IEEE 802.3x Network standard - Yes
Management features - Switch type - Managed
Management features - Traffic classification - Yes
Management features - Web-based management - Yes
Model name - MS108GP
Name - Mercusys 8-Port Gigabit Desktop Switch with 7-Port PoE+ | Mercusys
Network - 10G support - No
Network - Auto MDI/MDI-X - Yes
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Half duplex - Yes
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3x
Network - Policy-based routing - Yes
Operational conditions - Heat dissipation - 262.922 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging content - Cables included - AC
Packaging content - Quick start guide - Yes
PoE+ ports - 7
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Power - AC input frequency - 50 Hz
Power - AC input voltage - 220 V
Power - Input current - 1.31 A
Power - Input voltage - 53.5 V
Power - Power consumption (max) - 77.33 W
Power - Power consumption (typical) - 5.07 W
Power - Power source - AC
Power - Power supply included - Yes
Power options - PoE
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 7
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 65 W
producerCode - MS108GP
productName - Mercusys 8-Port Gigabit Desktop Switch with 7-Port PoE+
Product Net Weight - 0.5 kg
productSize - Normal
sizeX - 190
sizeY - 125
sizeZ - 85
Unit Box Height - 0.085
Unit Box Length - 0.125
Unit Box Width - 0.19
Unit Calculated Volume - 0.00252 cubm
Unit Calculated Weight - 0.858 kg
Units per Shipping Box - 12
Vendor Homepage - www.mercusys.com/en/product/details/ms108gp
Warranty - 36 months
warrantyLength - 36
warrantyType - G
weight - 790
Weight & dimensions - Depth - 98 mm
Weight & dimensions - Height - 27 mm
Weight & dimensions - Width - 171 mm
