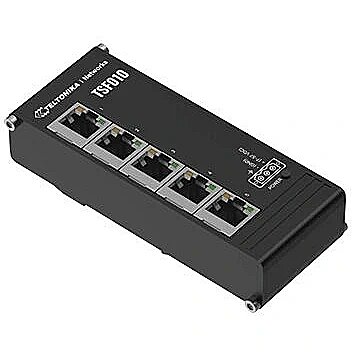

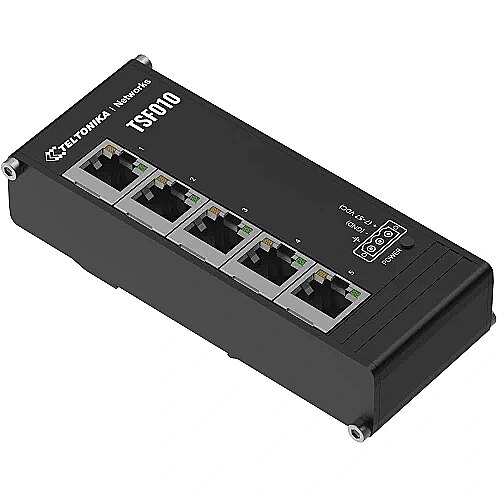

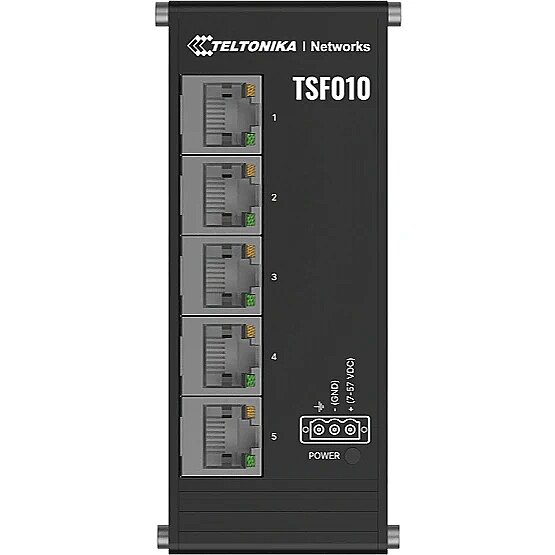

Teltonika TSF010, 5x100Mb

10G support Network - No
Auto MDI/MDI-X Network - Yes
Basic switching RJ-45 Ethernet ports quantity Ports & interfaces - 5
Basic switching RJ-45 Ethernet ports type Ports & interfaces - Fast Ethernet (10/100)
Category Code - SWI
Code - TSF010000000
Depth Weight & dimensions - 50 mm
Description - TELTONIKA TSF010 FLAT ETHERNET SWITCH
Description - The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.3-PIN POWER INPUTFlexible and tailor-made for industrial useFLAT & COMPACTFlat and compact design weighing only 142 gINTEGRATED DIN RAIL BRACKETEasy mounting for plug-and-play deployment7-57 VDCSuitable voltage range for industrial applications
Design > Form factor - DIN rail mountable
Dimensions W x D x H, mm - 113 x 50 x 28

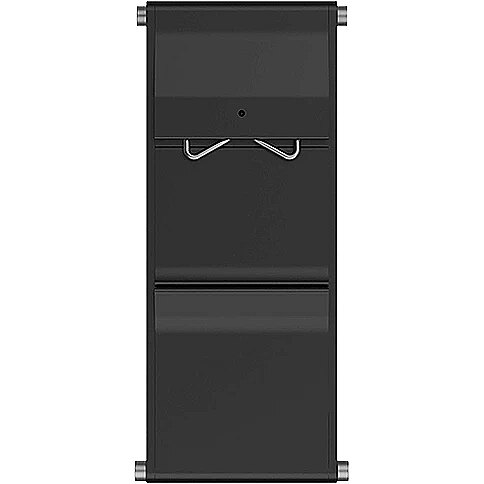

DIN rail mounting Design - Yes
EAN - 4779051841356
Fast Ethernet (copper) ports quantity Ports & interfaces - 5
Form factor Design - DIN rail
Full duplex Network - Yes
Height - 30.000000
Height Weight & dimensions - 28 mm
Housing material Design - Aluminium
Input voltage Power - 7 - 57 V
International Protection (IP) code Design - IP30
IP classification - IP30
Jumbo frames Data transmission - 9216
Jumbo frames support Data transmission - Yes
Length - 140.000000
MAC address table, entries - 2K
MAC address table Data transmission - 2048 entries
Management features > Switch type - Unmanaged
Manufacturer - Teltonika
ManufacturerPartNumber - TSF010000000
Name - Teltonika Industrial Switch | TSF010 | Unmanaged | DIN rail mountable | 10/100 Mbps (RJ-45) ports quantity 5 | Power supply type 3-pin industrial DC power socket
Networking standards Network - IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - -40 - 75 °C
Operating temperature range (T-T), °C - -40 - 75
Other features > Power supply type - 3-pin industrial DC power socket
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 50 mm
Package features > Gross height (mm) - 28 mm
Package features > Gross width (mm) - 113 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 4505 pc(s)
Package features > Paper/Pasteboard - 70 g
Package features > Plastic (No PET) - 10 g
Package features > Tare weight (kg) - 0.08 kg
Package features > Volume (m3) - 0.0001582 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PeriodofWarranty - 2 Y
Ports & interfaces > 10/100 Mbps (RJ-45) ports quantity - 5
Ports & interfaces > POE - No
Ports & interfaces > Predominant port type - 10/100 Mbps (RJ-45)
Ports quantity - 5
Power consumption (max) Power - 1.5 W
Power consumption (max.), W - 1.5
Power consumption (typical) Power - 1 W
Power consumption, W - 1
Power over Ethernet (PoE) > Power over Ethernet (PoE) - No
Power over Ethernet (PoE) Power over Ethernet (PoE) - No
Power over Ethernet (PoE) Support - No
Power source Power - DC
Power supply included Power - No
Product colour Design - Black
Rack mounting Design - No
Stackable Design - No
Summary - Teltonika NETWORKS TSF010 Flat Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2048 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Form factor: DIN rail
Switching capacity, Gbit/s - 10
Switching capacity Data transmission - 10 Gbit/s
Switch type - Ethernet
Switch type Management features - Unmanaged
Technical details > Gross weight - 0.222 kg
Technical details > Net weight - 0.14 kg
Technical details > Producer - Teltonika
Technical details > Producer product family - Industrial Switch
Technical details > Producer product name - TSF010
Unit Box Height - 0.031
Unit Box Length - 0.139
Unit Box Width - 0.055
Unit Calculated Volume - 0.000237 cubm
Unit Calculated Weight - 0.15 kg
Units per Pallet - 0
Units per Shipping Box - 1
Vendor Homepage - https://teltonika-networks.com/products/ethernet-switches/TSF010/
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
Weight - 0.150000
Weight, g - 142
Weight Weight & dimensions - 142 g
Width - 55.000000
Width Weight & dimensions - 113 mm
