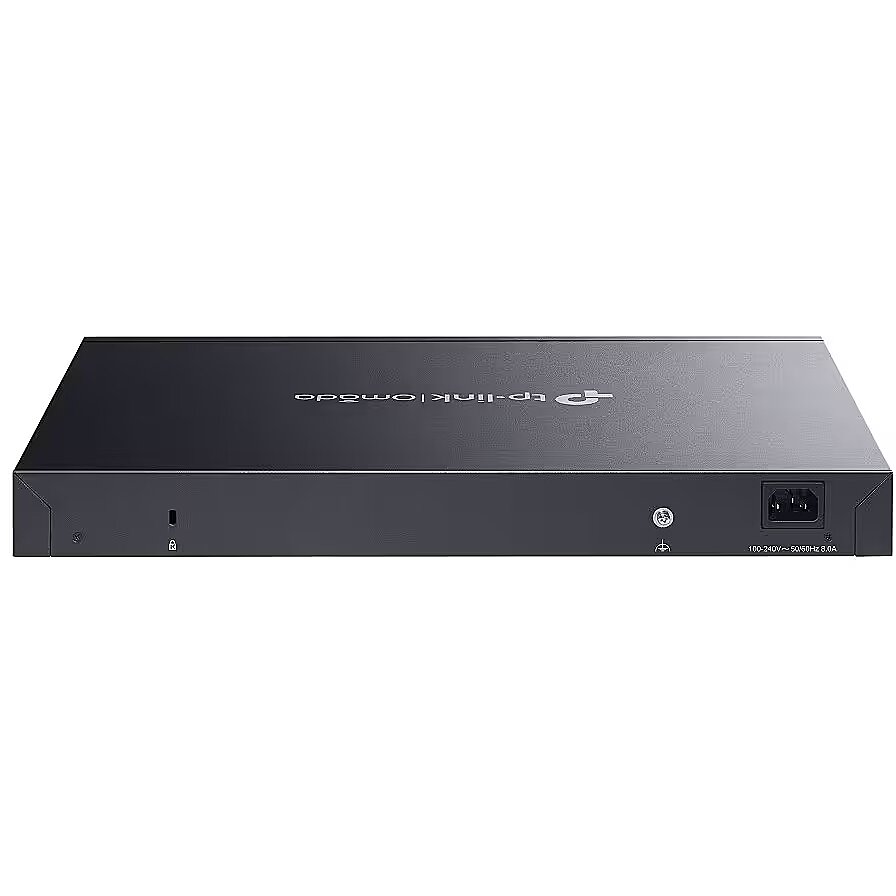

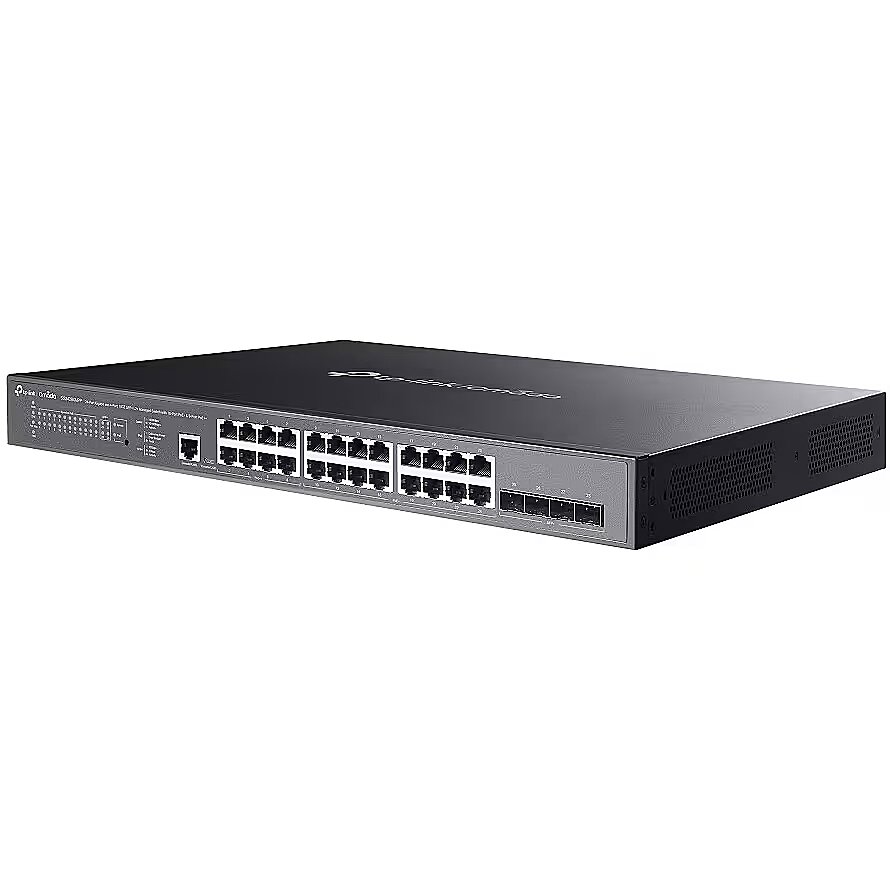

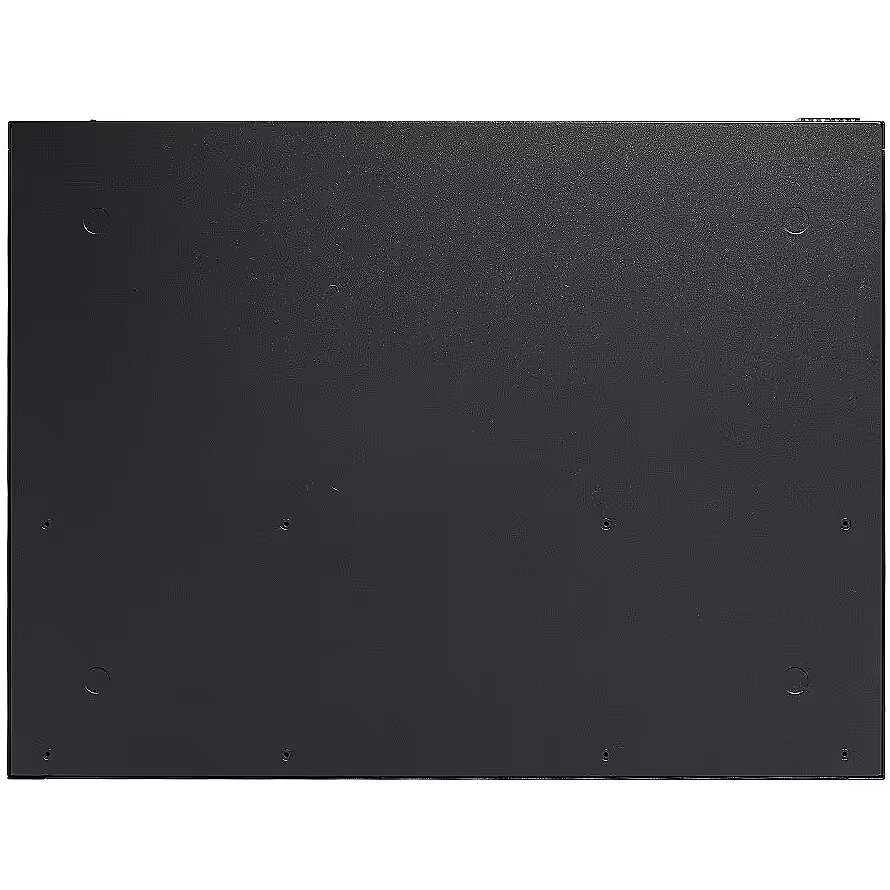

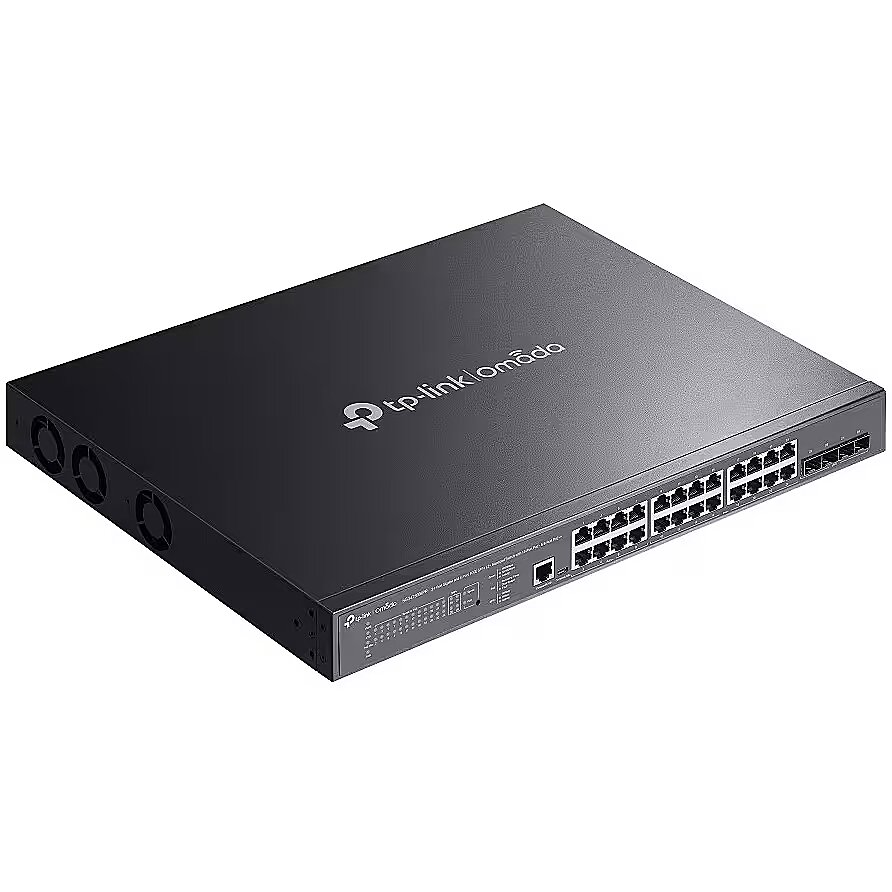

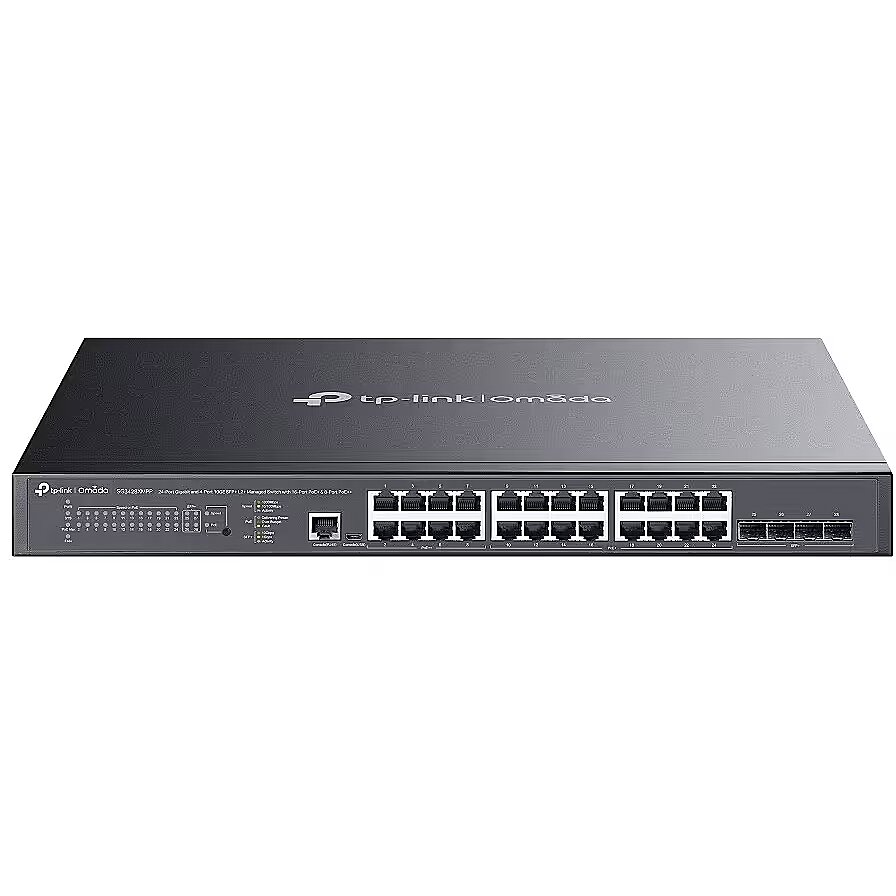

TP-LINK Omada SG3428XMPP

10G support Network - Yes
Access Control List (ACL) Security - Yes
Accessories included -
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
Application - Medium and large companies
ARP inspection Management features - Yes
ARTIKEL1 - 24-PORT 1G L2+ MANAGED SWITCH
ARTIKEL2 - 4X10G SFP+ + 16XPOE+ + 8XPOE++
Authentication Security - Auto VLAN, Guest VLAN
Basic switching RJ-45 Ethernet ports quantity Ports & interfaces - 24
Basic switching RJ-45 Ethernet ports type Ports & interfaces - Gigabit Ethernet (10/100/1000)
BPDU filtering/protection Security - Yes
Brand - TP-Link
BrandPartCode - SG3428XMPP
Breite - 0
Broadcast storm control Network - Yes
Cables included Packaging content - AC
Category - Network Switches
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Certificates - CE FCC
Certificates - Certification - CE, FCC, RoHS
Certification Certificates - CE, FCC, RoHS
Chassis type - Rack
Cloud-managed Management features - Yes
Configuring Location Settings (CLI) Management features - Yes
Console port Ports & interfaces - RJ-45/Micro-USB
Data transmission - Forwarding rate - 95.23 Mpps
Data transmission - Jumbo frames - 9000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 16000 entries
Data transmission - Packet buffer memory - 12 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 128 Gbit/s
Depth Weight & dimensions - 330 mm
Description - Empowering the High-Power Devices with Gigabit PoE++ Ports Easily Build a Whole 10G Multi-gigabit Network Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)16× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)500 W total PoE budget*Centralized cloud management via the web or the Omada app†Standalone management via web, CLI, SNMP, and RMONStatic Routing, VLAN, ACL, QoS, IGMP Snooping, OAM, and DDMERPS supports rapid protection and recovery in a ring topologyDurable metal casing and rack-mountable design
Description - Przełącznik zarządzalny Omada 24-portowy Gigabit i 4-portowy 10GE SFP+ L2+ z 16-portowym PoE+ i 8-portowym PoE++ 4 gniazda SFP+ 10 Gb/s 8 portów Gigabit 802.af/at/bt PoE++ (maksymalny budżet PoE 90 W dla każdego portu) 16 portów Gigabit 802.3af/at PoE+ (maksymalny budżet PoE 30 W dla każdego portu) 500 W całkowitego budżetu PoE Centralne zarządzanie w chmurze za pośrednictwem sieci lub aplikacji Omada Samodzielne zarządzanie za pośrednictwem sieci, CLI, SNMP i RMON Statyczne trasowanie, VLAN, ACL, QoS, IGMP Snooping, OAM i DDM ERPS obsługuje szybką ochronę i odzyskiwanie w topologii pierścieniowej Wytrzymała metalowa obudowa i konstrukcja umożliwiająca montaż w szafie
Design - Form factor - 1U
Design - LED indicators - Yes
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
Design - Rack mounting - Yes
Design - Reset button - Yes
Designation - CE+WEEE
DHCP features Security - DHCP client, DHCP relay, DHCP server
dimension depth - 90 mm
dimension height - 540 mm
Dimensions - 440 x 330 x 44 mm
dimension weight - 5000 g
dimension width - 470 mm
ean - 8885020620856
EAN - 8885020620856
EANCode - 8885020620856
Environment requirements -
Fan - No
Flow control support Network - Yes
Form factor Design - 1U
Forwarding rate - 95.23 Mpps
Forwarding rate Data transmission - 95.23 Mpps
Gewicht - 6.25
Gross Weight Kg - 6,2
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 0810142820400
GTIN - 810142820400
GTIN - 8885020620856
GTIN - 8885020620863
guarantee - 60
guarantee_type - normal
Head-of-line (HOL) blocking Network - Yes
Heat dissipation Operational conditions - 1658.78 BTU/h
Height Weight & dimensions - 44 mm
HERSTELLER - TP-LINK
Hoehe - 0
HSTNUMMER - SG3428XMPP
IGMP snooping Security - Yes
IP-MAC-Port binding Security - Yes
Jumbo frames Data transmission - 9000
Jumbo frame size - 9 KB
Jumbo frames support Data transmission - Yes
L2 features - 128 IP Interfaces: Support IPv4/IPv6 Interface Static Routing: 48 IPv4/IPv6 Static Routes Static ARP: 128 static entries 512 ARP Entries Proxy ARP Gratuitous ARP DHCP Server DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay DHCP L2 Relay Link Aggregation Spanning Tree Protocol Loopback Detection 802.3x Flow Control Mirroring Supports 1000 (IPv4, IPv6) IGMP groups IGMP Snooping IGMP Authentication Multicast VLAN Registration (MVR) MLD Snooping Multicast Filtering: 256 profiles and 16 entries per profile
L3 features -
Laenge - 0
LED indicators Design - Yes
Link aggregation Network - Yes
LongDesc - Empowering the High-Power Devices with Gigabit PoE++ PortsEasily Build a Whole 10G Multi-gigabit NetworkSoftware Defined Networking (SDN) with Cloud AccessRemotely manage your access points, switches, and gateways across multiple sites all from a single interface.
LongProductName - Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
LongSummaryDescription - TP-Link Omada SG3428XMPP. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
MAC address filtering Security - Yes
MAC address table Data transmission - 16000 entries
MAC address table size - 16000
Management, monitoring, configuration -
Management features - ARP inspection - Yes
Management features - Cloud-managed - Yes
Management features - Configuring Location Settings (CLI) - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2+
Management features - Switch type - Managed
Management features - System event log - Yes
Management features - Web-based management - Yes
Manufacturer - TP-Link
Manufacturer Code - SG3428XMPP
Manufacturer Name - TP-LINK
Memory buffer - 12 MB
Model name - SG3428XMPP
MPN - SG3428XMPP
Multicast features - Multicast support - Yes
Multicast support Multicast features - Yes
name - SG3428XMPP Switch 24xGE PoE+ 4xSFP+
Name - TP-Link Omada Switch 24x GE SG3428XMPP
Network - 10G support - Yes
Network - Broadcast storm control - Yes
Network - Flow control support - Yes
Network - Head-of-line (HOL) blocking - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.3af, IEEE 802.3at
Network - Port mirroring - Yes
Network - Rate limiting - Yes
Network - Spanning tree protocol - Yes
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Networking standards Network - IEEE 802.3af, IEEE 802.3at
Number of 10/100/1000 Mbps ports - 24
Number of fans Design - 3 fan(s)
Number of PoE+ ports - 16
Number of PoE ports (PoE & PoE+) - 8
Number of SFP+ ports - 4
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Heat dissipation - 1658.78 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Other functions -
Packaging content - Cables included - AC
Packaging content - Quick start guide - Yes
Packet buffer memory Data transmission - 12 MB
Port mirroring Network - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 24
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Console port - RJ-45/Micro-USB
Ports & interfaces - Power connector - AC-in jack
Ports & interfaces - SFP+ module slots quantity - 4
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 486.2 W
Power - Power source - AC
Power - Power supply included - Yes
Power connector Ports & interfaces - AC-in jack
Power consumption - 486.2 W
Power consumption (max) Power - 486.2 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
Power over Ethernet (PoE) - Power over Ethernet 4PPoE (PoE++) ports quantity - 8
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 16
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 500 W
Power over Ethernet (PoE) Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) power per port Power over Ethernet (PoE) - 30 W
Power over Ethernet 4PPoE (PoE++) ports quantity Power over Ethernet (PoE) - 8
Power over Ethernet plus (PoE+) ports quantity Power over Ethernet (PoE) - 16
Power source Power - AC
Power supply - 100-240 V AC~50/60 Hz
Power supply included Power - Yes
producer - TP-LINK
Product colour Design - Black
ProductName - SG3428XMPP
QoS - 8 kolejek priorytetowych Priorytet 802.1p CoS/DSCP Harmonogram kolejek: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR Kontrola przepustowości: Ograniczanie oceny na podstawie portu/przepływu Płynniejsza wydajność Działanie dla przepływów: Uwaga QoS (Uwaga 802.1P, Uwaga DSCP)
Quality of Service (QoS) support Management features - Yes
Quick start guide Packaging content - Yes
Rack mounting Design - Yes
Rate limiting Network - Yes
Reset button Design - Yes
Security - Powiązanie IP-MAC-Port
- 512 wpisów
- Podsłuchiwanie DHCP
- Inspekcja ARP
- Ochrona źródła IPv4: 100 wpisów Powiązanie IPv6-MAC-Port
- 512 wpisów
- Podsłuchiwanie DHCPv6
- Wykrywanie ND
- Podsłuchiwanie ND
- Ochrona źródła IPv6: 100 wpisów Obrona DoS Filtr DHCP Statyczne/dynamiczne zabezpieczenia portu: Do 64 adresów MAC na port Kontrola sztormu rozgłoszeniowego/wielokierunkowego/jednokierunkowego: tryb kontroli kbps/współczynnik/pps 802.1X
- Uwierzytelnianie na podstawie portu
- Uwierzytelnianie na podstawie MAC
- Przypisanie VLAN
- MAB
- Gościnna sieć VLAN
- Obsługa uwierzytelniania i rozliczania RADIUS AAA (w tym TACACS+) Izolacja portu Bezpieczne zarządzanie siecią przez HTTPS z SSLv3/TLS 1.2 Bezpieczne zarządzanie interfejsem wiersza poleceń (CLI) z SSHv1/SSHv2 Kontrola dostępu oparta na IP/Port/MAC
Security - Access Control List (ACL) - Yes
Security - Authentication - Auto VLAN, Guest VLAN
Security - BPDU filtering/protection - Yes
Security - DHCP features - DHCP client, DHCP relay, DHCP server
Security - IGMP snooping - Yes
Security - IP-MAC-Port binding - Yes
Security - MAC address filtering - Yes
Security - SSH/SSL support - Yes
Security - Static port security - Yes
Series - Omada
SFP+ module slots quantity Ports & interfaces - 4
Short description - TP-LINK Switch SG3428XMPP 24xGBit/4xSFP+ 8x PoE++ (500W) Managed
ShortSummaryDescription - TP-Link Omada SG3428XMPP, Managed, L2+, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Spanning tree protocol Network - Yes
SSH/SSL support Security - Yes
Static port security Security - Yes
Stck_Kart - 1
Stck_Pal - 3
Storage relative humidity (H-H) Operational conditions - 5 - 90%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Store-and-forward Data transmission - Yes
Storno - Y
Summary - TP-Link Omada SG3428XMPP. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Supported protocols and standards -
Support for Jumbo frames - Yes
Switch class - Managed
Switching capacity Data transmission - 128 Gbit/s
Switch layer - L2
Switch layer - L2+
Switch layer Management features - L2+
Switch type Management features - Managed
System event log Management features - Yes
Throughput - 128 GB/s
Title - TP-Link Omada SG3428XMPP network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Total Power over Ethernet (PoE) budget Power over Ethernet (PoE) - 500 W
Unit Box Height - 0.47
Unit Box Length - 0.53
Unit Box Width - 0.1
Unit Calculated Volume - 0.02355 cubm
Unit Calculated Weight - 6.2 kg
Units per Shipping Box - 1
URL - https://www.tp-link.com/ae/business-networking/omada-switch-poe/sg3428xmpp/#specifications
Vendor Homepage - https://www.tp-link.com/ae/business-networking/omada-switch-poe/sg3428xmpp/#specifications
vendpn - SG3428XMPP
VLAN - VLAN Group: Max 4K VLAN Groups 802.1q Tagged VLAN MAC VLAN: 30 Entries Protocol VLAN: Protocol Template 16, Protocol VLAN 16 Private VLAN GVRP VLAN VPN: VLAN Mapping, VLAN Replace Voice VLAN
VLAN support Network - Yes
Warranty - 24 months
WarrantyInfo -
Web-based management Management features - Yes
Weight & dimensions - Depth - 330 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 440 mm
Width Weight & dimensions - 440 mm
