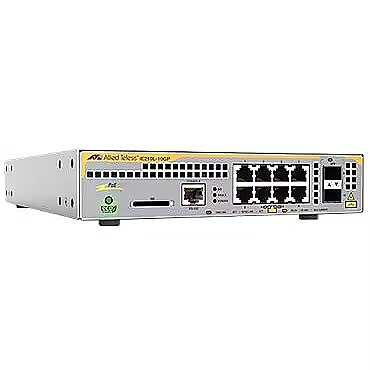

ARTIKEL1 - L2 IE 8 10/100/1000P + 2 SFP
ARTIKEL2 - IN
Brand - Allied Telesis
BrandPartCode - 990-005965-60
Breite - 0.26
Category - Network Switches
Certificates - Certification - UL, cUL, UL60950-1, CAN/CSA-C22.2 No.
60950-1-03, EN60950-1, EN60825-1, AS/NZS
60950.1
Data transmission - Forwarding rate - 14.9 Mpps
Data transmission - Jumbo frames - 10000
Data transmission - Jumbo frames support - Yes
Data transmission - Latency (1 Gbps) - 7.8 µs
Data transmission - Latency (10 Gbps) - 3.4 µs
Data transmission - Latency (10-100 Mbps) - 55 µs
Data transmission - MAC address table - 16000 entries
Data transmission - Number of queues - 8
Data transmission - Static route - Yes
Data transmission - Switching capacity - 20 Gbit/s
Design - Electromagnetic compatibility - EN55032 class A, FCC class A, VCCI class A, ICES-003 class A, EN55024, EN61000-3-2 (harmonic), EN61000-3-3 (flicker)
Design - LED indicators - Yes
Design - Product colour - Grey
Design - Rack mounting - Yes
Design - Stackable - Yes
EANCode - 0767035214443
Gewicht - 3.91
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 0767035214443
GTIN - 767035214443
HERSTELLER - ALLIED TELESIS
Hoehe - 0.11
HSTNUMMER - AT-IE210L-10GP-60
Laenge - 0.53
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - The Allied Telesis IE210L Series of Industrial-Lite Ethernet Gigabit Layer 2 switches are built for enduring performance at high ambient temperatures, making them ideal for indoor IoT applications and physical security.The Allied Telesis IE210L Series are wire-speed Layer 2 switches for industrial-lite Ethernet applications. With Power over Ethernet Plus (PoE+), and support for high operating temperatures of up to 65°C, IE210L switches tolerate the harsh and demanding environments found in industrial deployments.These high-performing, cost-effective switches provide network managers with several key features, including port-based VLANs, IEEE 802.1p, QoS, port trunking/link aggregation, port mirroring, priority queues, and IEEE 802.1x security support.With support for up to 16K MAC addresses, the IE210L Series is the ideal option for integrating management into any network solution.Device management is provided via an industry-standard CLI, web-based Graphical User Interface (GUI), SNMP, Telnet and SSH, as well as the Allied Telesis Autonomous Management Framework™ (AMF).Powerful network managementAMF meets the increased management requirements of modern converged networks, automating many everyday tasks including configuration management. AMF has powerful centralized management features that manage a complete network as a single virtual device. The network can be expanded with plug-and-play simplicity, and network node recovery is fully zero-touch. AMF secure mode increases network security with management traffic encryption, authorization, and monitoring. AMF Guestnode allows third-party devices, such as security cameras, to be part of an AMF network.SecureNetwork security is guaranteed, with powerful control over network traffic types, secure management options, and other multi-layered security features built right into the IE210L.Network Access Control (NAC) gives unprecedented control over user access to the network, in order to mitigate threats to network infrastructure.Allied Telesis IE210L switches use 802.1x port-based authentication, in partnership with standards-compliant dynamic VLAN assignment, to assess a user’s adherence to network security policies and either grant access or offer remediation. Tri-authentication ensures the network is only accessed by known users and devices, while secure access is also available for guests.Security from malicious network attacks is provided by a comprehensive range of features, such as DHCP snooping, STP root guard, BPDU protection and Access Control Lists (ACLs). Each of these can be configured to perform a variety of actions upon detection of a suspected attack.Network protectionAdvanced storm protection features include bandwidth limiting, policy-based storm protection and packet storm protection.Network storms are often caused by cabling errors that result in a network loop. IE210L switches provide features to detect loops as soon as they are created. Loop detection and thrash limiting take immediate action to prevent network storms.Network resiliencyThe convergence of network services in the Enterprise has led to increasing demand for highly-available networks with minimal downtime. The IE210L Series supports highly-stable and reliable network switching with a recovery time of less than 50ms.You can customize the IE210L with the most appropriate mechanism and protocol to prevent network connection failure. Choices include Allied Telesis Ethernet Protection Switched Ring (EPSRing™), and the standard ITU-T G.8032.Future-proofThe IE210L switches are Software-Defined Networking (SDN) ready and are able to support OpenFlow v1.3.
LongProductName - Industrial managed PoE+ switch, 8 × 10/100/1000TX PoE+ ports and 2 × 100/1000X SFP
LongSummaryDescription - Allied Telesis AT-IE210L-10GP-60. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1v, IEEE 802.2, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting
Management features - ARP inspection - Yes
Management features - Configuring Location Settings (CLI) - Yes
Management features - MIB support - Comprehensive SNMP
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features - System event log - Yes
Management features - Traffic classification - Yes
Management features - Web-based management - Yes
Multicast features - Multicast Listener Discovery (MLD) snooping - MLDv1 and v2
Multicast features - Multicast MAC address table - 512 entries
Multicast features - Multicast support - Yes
Network - 10G support - No
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-FX, 100BASE-T, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1v, IEEE 802.2, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Network - Number of VLANs - 2048
Network - Policy-based routing - Yes
Network - Port mirroring - Yes
Network - Spanning tree protocol - Yes
Network - Virtual LAN features - Policy-based VLAN, VLAN Identifier ( VLAN ID)
Network - VLAN support - Yes
Operational conditions - Heat dissipation - 128 BTU/h
Operational conditions - Operating altitude - 0 - 3048 m
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 65 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -30 - 70 °C
Packaging data - Package depth - 360 mm
Packaging data - Package height - 150 mm
Packaging data - Package weight - 3.45 kg
Packaging data - Package width - 430 mm
Performance - Flash memory - 128 MB
Performance - Internal memory - 512 MB
Performance - Memory type - DDR3-SDRAM
Performance - Noise level - 33 dB
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 8
Ports & interfaces - Power connector - AC-in jack
Ports & interfaces - SFP module slots quantity - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Input current - 2.4 A
Power - Power consumption (max) - 16 W
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 8
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 15 W
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 4
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 124 W
ProductName - AT-IE210L-10GP-60
Security - Access Control List (ACL) - Yes
Security - Authentication - MAC-based authentication, Port-based authentication, Web-based authentication
Security - Authentication type - IEEE 802.1x, Network Access Control (NAC), RADIUS
Security - BPDU filtering/protection - Yes
Security - DHCP features - DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay
Security - IGMP snooping - Yes
Security - Loop protection - Yes
Security - MAC address entries - Blackhole MAC address entries
Security - MAC address filtering - Yes
Security - Security algorithms - 802.1x RADIUS, HTTPS, MD5, PEAP, SSH, SSH-2, SSL/TLS, TTLS
Security - SSH/SSL support - Yes
ShortSummaryDescription - Allied Telesis AT-IE210L-10GP-60, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting
Stck_Kart - 1
Stck_Pal - 1
Storno - N
Title - Allied Telesis AT-IE210L-10GP-60 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
URL - https://www.alliedtelesis.com/documents/datasheet-ie210l-series
WarrantyInfo - 2 + 3 year
Weight & dimensions - Depth - 275 mm
Weight & dimensions - Height - 42.5 mm
Weight & dimensions - Weight - 2.1 kg
Weight & dimensions - Width - 210 mm
