ID: 1108594
Product code: TSW030000000
Can be ordered 7 units Availability: 14 days after order approval
Warranty: 2 years

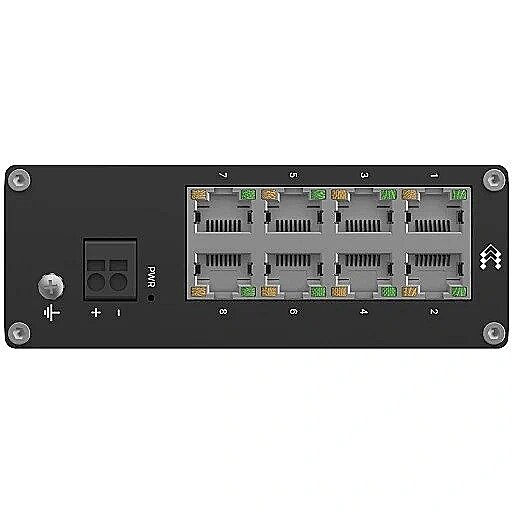

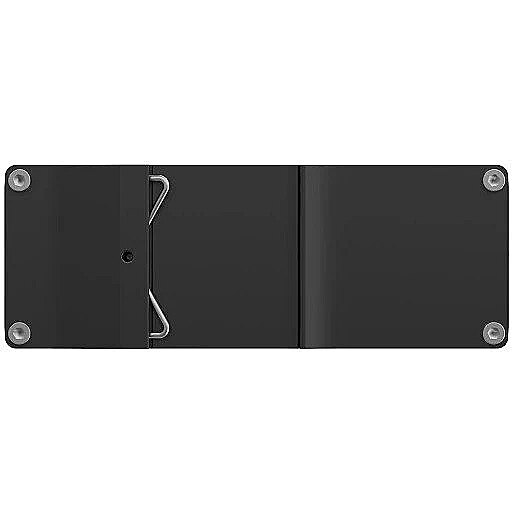

Teltonika TSW030, 8x100Mb
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Unisend parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Base-T speed: 10/100
- RJ-45 Ports: 8
Ports and equipment
Base-T speed
: 10/100
PoE Ports
: N/A
RJ-45 Ports
: 8
SFP Ports
: N/A
Specification
Number of fans
: Fanless
PoE Per-Port Power Budget
: N/A
PoE Support
: There isn't
PoE Total Power Budget
: N/A
Weight (g)
: 250 g
Network cards
More detailed specification
Auto MDI/MDI-X - Yes
Bandwidth, Gbit/s - 20
Code - TSW030000000
Description - TELTONIKA IOT SWITCH TSW030
Design > Form factor - DIN rail mountable
Dimensions W x D x H, mm - 113.1 x 74.6 x 41.2
EAN - 4779051841431
Ethernet LAN (RJ-45) ports quantity - 8
Ethernet LAN data transfer rates, Mbit/s - 10/100
Height - 45.000000
IP classification - IP30
Jumbo Frames support - 9216 bytes
LED indicators - 1 x Power LED, 16 x ETH status LEDs
Length - 130.000000
Link - https://teltonika-networks.com/products/ethernet-switches/tsw030
MAC address table, entries - 2K
Management features > Switch type - Unmanaged
Manufacturer - Teltonika
ManufacturerPartNumber - TSW030000000
Name - Teltonika Switch | TSW030 | Unmanaged | DIN rail mountable | 10/100 Mbps (RJ-45) ports quantity 8 | Power supply type 2-pin industrial DC power socket
Networking standards - 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Operating temperature range (T-T), °C - - 40 - 75
Other features > Power supply type - 2-pin industrial DC power socket
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 75.00 mm
Package features > Gross height (mm) - 41.00 mm
Package features > Gross width (mm) - 113.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 2487 pc(s)
Package features > Paper/Pasteboard - 100.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.12 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PeriodofWarranty - 2 Y
Ports & interfaces > 10/100 Mbps (RJ-45) ports quantity - 8
Ports & interfaces > Predominant port type - 10/100 Mbps (RJ-45)
Ports quantity - 8
Power consumption (max.), W - 1.5
Power consumption, W - 0.5
Power over Ethernet (PoE) > Power over Ethernet (PoE) - No
Power over Ethernet (PoE) Support - No
Technical details > Gross weight - 0.38 kg
Technical details > Net weight - 0.26 kg
Technical details > Producer - Teltonika
Technical details > Producer product family - Switch
Technical details > Producer product name - TSW030
Warranty - 24
Warranty - 24 month(s)
Weight - 0.280000
Weight, g - 256
Width - 80.000000
Bandwidth, Gbit/s - 20
Code - TSW030000000
Description - TELTONIKA IOT SWITCH TSW030
Design > Form factor - DIN rail mountable
Dimensions W x D x H, mm - 113.1 x 74.6 x 41.2
EAN - 4779051841431
Ethernet LAN (RJ-45) ports quantity - 8
Ethernet LAN data transfer rates, Mbit/s - 10/100
Height - 45.000000
IP classification - IP30
Jumbo Frames support - 9216 bytes
LED indicators - 1 x Power LED, 16 x ETH status LEDs
Length - 130.000000
Link - https://teltonika-networks.com/products/ethernet-switches/tsw030
MAC address table, entries - 2K
Management features > Switch type - Unmanaged
Manufacturer - Teltonika
ManufacturerPartNumber - TSW030000000
Name - Teltonika Switch | TSW030 | Unmanaged | DIN rail mountable | 10/100 Mbps (RJ-45) ports quantity 8 | Power supply type 2-pin industrial DC power socket
Networking standards - 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Operating temperature range (T-T), °C - - 40 - 75
Other features > Power supply type - 2-pin industrial DC power socket
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 75.00 mm
Package features > Gross height (mm) - 41.00 mm
Package features > Gross width (mm) - 113.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 2487 pc(s)
Package features > Paper/Pasteboard - 100.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.12 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PeriodofWarranty - 2 Y
Ports & interfaces > 10/100 Mbps (RJ-45) ports quantity - 8
Ports & interfaces > Predominant port type - 10/100 Mbps (RJ-45)
Ports quantity - 8
Power consumption (max.), W - 1.5
Power consumption, W - 0.5
Power over Ethernet (PoE) > Power over Ethernet (PoE) - No
Power over Ethernet (PoE) Support - No
Technical details > Gross weight - 0.38 kg
Technical details > Net weight - 0.26 kg
Technical details > Producer - Teltonika
Technical details > Producer product family - Switch
Technical details > Producer product name - TSW030
Warranty - 24
Warranty - 24 month(s)
Weight - 0.280000
Weight, g - 256
Width - 80.000000
