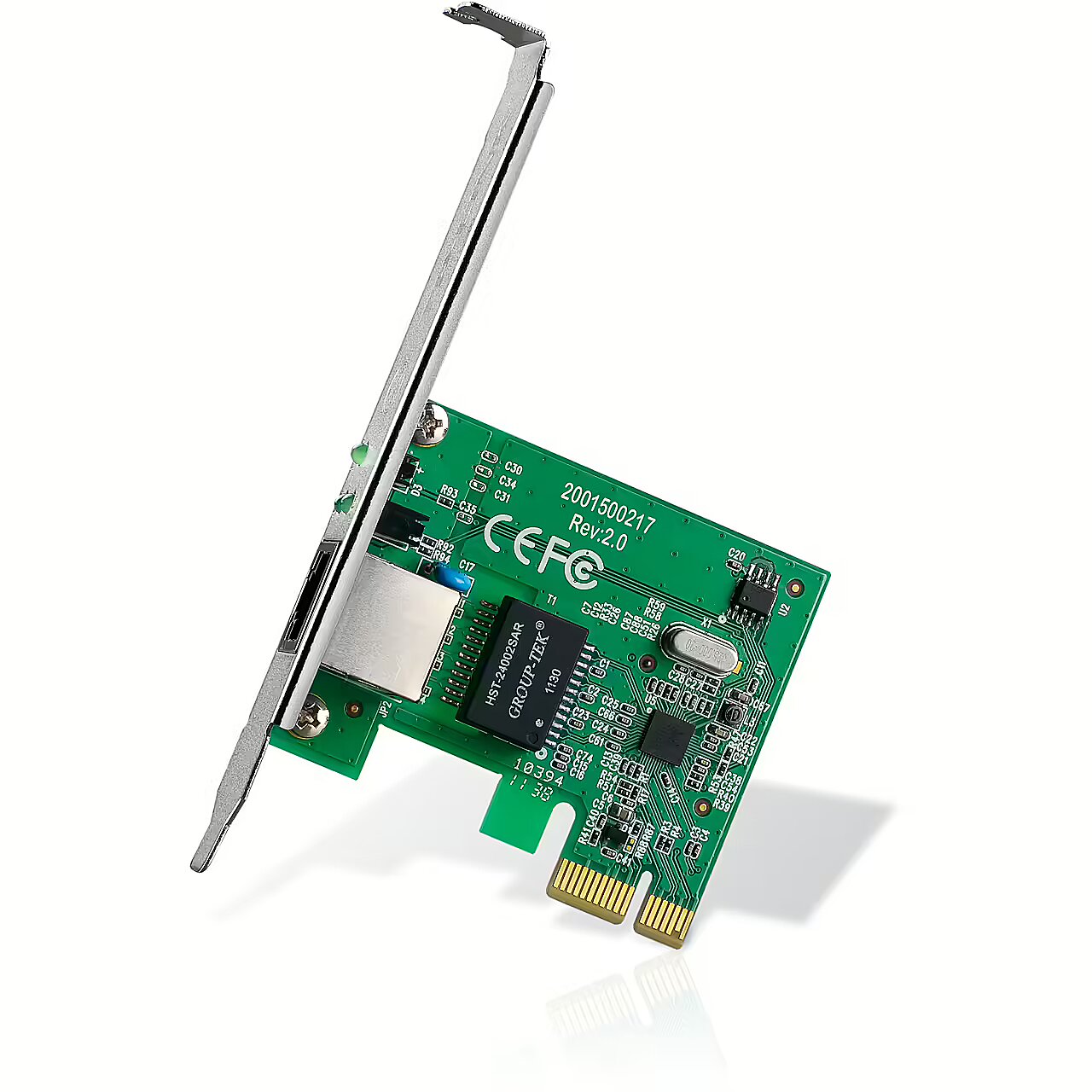

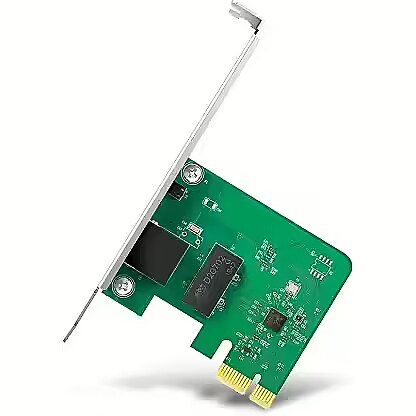

TP-LINK TG-3468, 10/100/1000Mbps, PCI-E

Accessories included -
Antenna - Not applicable
ARTIKEL1 - TG-3468 GIGABIT NETWORK
ARTIKEL2 - INTERFACE CARD
Auto-negotiation Network - Yes
Auto MDIX IEEE Network - Yes
BrandCode - TPLINK
Breite - 0.13
Cabling technology Network - 10/100/1000BaseT(X)
Category - Datortehnika :: Datoru komponentes :: Tīkla kartes (PCI/USB)
Category - Root/Electronics/Networks and communication/Network interface cards
Category 1 - Netzwerk
Category 2 - Netzwerkkarten
Category Code - NIC
Category_1 - Network and Servers
Category_2 - Network Cards - PCIe
Certification Design - FCC, BSMI, VCCI
Chipset type - Realtek
Code - TG-3468
Compliance certificates Technical details - BSMI, CE, Federal Communications Commission (FCC), RoHS
Component for Design - PC
Connectivity technology Ports & interfaces - Wired
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Interfejs - PCI-E
Dane techniczne: LAN 10/100/1000 Mb/s - 1 szt.
Dane techniczne: Obsługiwane systemy operacyjne - Windows 7
Dane techniczne: Obsługiwane systemy operacyjne - Windows Vista
Dane techniczne: Obsługiwane systemy operacyjne - Windows XP
Dane techniczne: Producent - TP-Link
Dane techniczne: Rodzaj komunikacji - przewodowa
Dane techniczne: Typ - wewnętrzna
Dane techniczne: Wake-On-LAN [WOL] - tak
Depth Weight & dimensions - 120.8 mm
Desc - Slots: PCIe, Ātrums: 10/100/1000 Mbit/s, Garantija: 2 gadi
Description - Operating System Supports operating systems include Windows 10/8.1/8/7/Vista/XP Low-Profile Bracket In addition to standard bracket, low-profile bracket is also provided for mini tower computer case Wake On LAN Remotely power on/off your computer with WOL, good for centralized management10/100/1000Mbps PCIe Adapter32-bit PCIe interface, saving the finite chassis spaceWake-on-LAN, convenient to manage over LAN
Description - TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.
The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network.
Designation - CE+WEEE
dimensionalWeight - 134
dimension depth - 160 mm
dimension height - 25 mm
Dimensions -
Dimensions - depth - 2.15
Dimensions - height - 12.08
Dimensions - width - 7.85
dimension weight - 106 g
dimension width - 135 mm
EAN - 6935364001049
ean - 6935364001049
EANCode - 6935364001049
Eans - 6935364001049
EAN_code - 6935364001049
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN data rates Network - 10,100,1000 Mbit/s
Ethernet LAN Network - Yes
Flow control support Other features - Yes
Full duplex Network - Yes
General parameters - colour - black
General parameters - manufacturer - TP-Link
General parameters - type of networking device - network card
GrossWeight - 0.1100
Gross Weight Kg - 0,13
Group - IT > IT ACCESSORIES > NETWORK GEAR > NETWORK ADAPTERS
GRUPPE1 - Network
GRUPPE2 - Network Adapters
guarantee - 36
guarantee_type - normal
Harmonized System (HS) code Logistics data - 85176990
Height - 0.1400
Height Weight & dimensions - 21.5 mm
HERSTELLER - TP-LINK
Hoehe - 0.03
Host interface Ports & interfaces - PCI Express
HSTNUMMER - TG-3468
I/O ports - 1 x 10/100/1000 Mbit/s
Interface - PCIe
Interface Ports & interfaces - Ethernet
Interfaces - LAN (network, RJ45) - 1
Interfaces - LAN (RJ45) - 10/100/1000
Internal Design - Yes
Laenge - 0.16
LargeDescHTML - 10/100/1000Mbps PCIe Adapter32-bit PCIe interface, saving the finite chassis spaceWake-on-LAN, convenient to manage over LAN What This Product DoesTG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network. The information provided on this page is a property of the manufacturer or the brand.To find out more, please visit: http://www.tp-link.com
LED indicators Design - Status
Length - 0.1600
Link - https://www.tp-link.com/us/home-networking/pci-adapter/tg-3468/
Manufacturer - TP-Link
Manufacturer Code - TG-3468
Manufacturer Name - TP-LINK
Manufacturer_code - TG-3468
Maximum data transfer rate Network - 2000 Mbit/s
Maximum operating distance Network - 100 m
MediumDescription EN - The TP-Link TG-3468 is a Gigabit PCI Express network adapter that provides fast and reliable wired internet connectivity for desktop computers. It supports 10/100/1000 Mbps speeds. TG-3468 utilizes energy-efficient Ethernet (EEE) technology, which automatically reduces power consumption when network activity is low. The Wake-on-LAN feature allows remote computer power-up via network management. Easy installation and broad operating system compatibility make this network adapter an ideal choice for fast and convenient internet connectivity.
MediumDescription ET - TP-Link TG-3468 on Gigabit PCI Express võrguadapter, mis pakub kiiret ja usaldusväärset traadiga internetiühendust lauaarvutitele. See toetab 10/100/1000 Mbps kiirust. TG-3468 kasutab energiatõhusat Etherneti (EEE) tehnoloogiat, mis vähendab tarbitavat energiat automaatselt, kui võrgu aktiivsus on madal. Wake-on-LAN funktsioon võimaldab arvuti kaugjuhtimisega sisse lülitada. Lihtne paigaldus ja laialdane operatsioonisüsteemide tugi teevad sellest võrguadapterist ideaalse valiku kiireks ja mugavaks internetiühenduseks.
MediumDescription LV - TP-Link TG-3468 ir Gigabit PCI Express tīkla adapteris, nodrošina ātru un uzticamu vadu interneta savienojumu datoriem. Tas atbalsta ātrumu 10/100/1000 Mbps. TG-3468 izmanto energoefektīvu Ethernet (EEE) tehnoloģiju, kas automātiski samazina enerģijas patēriņu, kad tīkla aktivitāte ir zema. Wake-on-LAN funkcija ļauj attālināti ieslēgt datoru, izmantojot tīkla pārvaldību. Vienkārša uzstādīšana un plaša operētājsistēmas saderība padara šo tīkla adapteri par ideālu izvēli ātram un ērtam interneta savienojumam.
Model name - TG-3468
Mounting brackets included Packaging content - Yes
MPN - TG-3468
Name - INTG 1Gb 1xRJ45 TP-Link TG-3468 |RTL8168B; PCIeX1; Vlan; WoL
name - TG-3468 Gigabit PCI Express Network Adapter
Name - TP-Link TG-3468
Name - TP-LINK TG-3468, Network card - PCIe
Name - TP-LINK | PCI Express Network Adapter | TG-3468
Name EN - TP-Link Gigabit PCI Express LAN Adapter
Name ET - TP-LINK PCI Expressi võrguadapter 1Gbit
NameInWeb EN - TP-Link TG-3468, PCI Express, Gigabit - Network adapter
NameInWeb ET - TP-Link TG-3468, PCI Express, Gigabit - Võrguadapter
NameInWeb LV - TP-Link TG-3468, PCI Express, Gigabit - Tīkla adapteris
Name LV - TP-Link Gigabit PCI Express LAN Adapter
NetWeight - 0.1000
Networking standards Network - IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Number of antennas - Not applicable
Operating frequency - Not applicable
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Other features -
Package depth Packaging data - 135 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 160 mm
Package features > Gross height (mm) - 135 mm
Package features > Gross weight - 0.118 kg
Package features > Gross width (mm) - 30 mm
Package features > Packing quantity - 1 pc(s)
Package features > Palette Qty - 2667 pc(s)
Package features > Paper/Pasteboard - 5 g
Package features > Plastic (No PET) - 35 g
Package features > Tare weight (kg) - 0.04 kg
Package features > Volume (m3) - 0.000648 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 30 mm
Package weight Packaging data - 100 g
Package width Packaging data - 160 mm
Producent: Nazwa producenta / importera - TP-Link
TP-Link Polska sp. z o.o.
Ożarowska 40/42
05-850 Duchnice

producer - TP-LINK
Producer - TP-Link
producerCode - TG-3468
ProducerCode - TG-3468
Producer product family - PCI Express Network Adapter
Producer product name - TG-3468
ProductCode - TG-3468
Product colour Design - Green, Grey
productName - TP-Link TG-3468 v2
productSize - Normal
Quality of Service (QoS) support Network - Yes
Quick installation guide Packaging content - Yes
Resource CD Packaging content - Yes
Safety warning - Warnings - Avoid contact with liquids. If spilled, the product may be damaged.
Safety warning - Warnings - Please observe local regulations regarding the disposal of electronic waste.
Safety warning - Warnings - The product contains electronic components and should not be disposed of in the regular rubbish bin.
SalesUnitOfMeasureCode - tk
Security -
Short description - TP-LINK PCIe LAN Adapter GBit (10/100/1000MBit)
ShortDescription - Urządzenie spełnia wymagania specyfikacji IEEE 802.3, IEEE 802.3u oraz IEEE 802.3ab.
sizeX - 160
sizeY - 140
sizeZ - 30
Standards - 802.1Q
Standards - 802.3
Standards - 802.3ab
Standards - 802.3u
Standards - 802.3x
Stck_Kart - 120
Stck_Pal - 0
Storage relative humidity (H-H) Operational conditions - 5 - 90%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Storno - Y
Summary - TP-Link TG-3468. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2000 Mbit/s. Product colour: Green, Grey
Supported operating systems - Linux
Supported operating systems - Windows 98 SE
Supported operating systems - Windows 2000
Supported operating systems - Windows ME
Supported operating systems - Windows Vista
Supported operating systems - Windows XP
Sustainability compliance Sustainability - Yes
System Requirements -
TariffNo - 84733080
Technical details > Net weight - 0.078 kg
Technical details > Other features - 1x10/100/1000 Mbps port, 32-bit PCI Express
Technical details > Producer - TP-LINK
Type - LAN
Unit Box Height - 0.135
Unit Box Length - 0.16
Unit Box Width - 0.03
Unit Calculated Volume - 0.000648 cubm
Unit Calculated Weight - 0.111 kg
UnitOfMeasureCode - tk
UnitsPerPackage - 1
Units per Shipping Box - 1
Vendor Homepage - https://www.tp-link.com/uk/home-networking/pci-adapter/tg-3468/
vendpn - TG-3468
VLAN tagging Network - Yes
Volume - 0.00067200
Wake-on-LAN ready Network - Yes
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 0,11
Weight - 0.104
weight - 108
Width - 0.0300
Width Weight & dimensions - 78.5 mm
