Brand - Lindy
BrandPartCode - 32309
Category - Touch Control Panels
Category1 - Keyboards
Description1 - Lindy Touch-Control-Panel 32309 - 24.4 cm (10") - 1280 x 800 WXGA
Display - Display diagonal - 25.4 cm (10")
Display - Display resolution - 1280 x 800 pixels
Display - Native aspect ratio - 16:10
Display - Touchscreen technology - Capacitive
EAN - 4002888323093
GTIN - 4002888323093
LongDesc - This touchpad allows control of any device with commands over TCP IP or RS-485 connections. The programming is done via Lindy Pro Control software, a platform to set up the unit and manage any device with commands in a simple and effective way. In addition is possible to manage the programmed projects from your smartphone or tablet via Lindy Pro Control app downloadable from Google Play Store and Apple Store.The capacitive touchscreen supports 1280x800 (16:10) resolution, buttons design and background picture are fully customizable from the software to provide always the best solution for any kind of installation.An adjustable metal bracket is integrated on the rear side to position the unit correctly at the right angle on a desk. Make control in presentation and conference room systems, board rooms and auditoriums easy and flexible - Manage any room device via LAN or RS-485 connections creating your own design over touchscreen buttons.Connect the touchpad to a computer's network port and create your projects over Lindy Pro Control software; effective UI Design and Logical Design options can be used to configure the Lindy Control pads and create the best solution for your installation.
LongProductName - Control Touchpad Desktop, 10 inch
LongSummaryDescription - Lindy 32309. Display diagonal: 25.4 cm (10"), Display resolution: 1280 x 800 pixels, Touchscreen technology: Capacitive. Product colour: Grey, Internal memory: 32000 MB, RAM capacity: 4000 MB. Power source type: DC, Input voltage: 24 V. Width: 245.4 mm, Depth: 164 mm, Height: 27 mm. Package weight: 1 kg, Package depth: 209 mm, Package width: 375 mm
Manufacturer - Lindy
ManufacturerID - 32309
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - Compliance certificates - CE, Federal Communications Commission (FCC), UKCA, REACH, RoHS
PackageHeight - 68
PackageLength - 375
PackageWeight - 1400
PackageWidth - 211
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 209 mm
Packaging data - Package height - 65 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1 kg
Packaging data - Package width - 375 mm
Performance - Housing material - Aluminium
Performance - Internal memory - 32000 MB
Performance - Mean time between failures (MTBF) - 30000 h
Performance - Operating system installed - Android
Performance - Operating system version - 11
Performance - Product colour - Grey
Performance - RAM capacity - 4000 MB

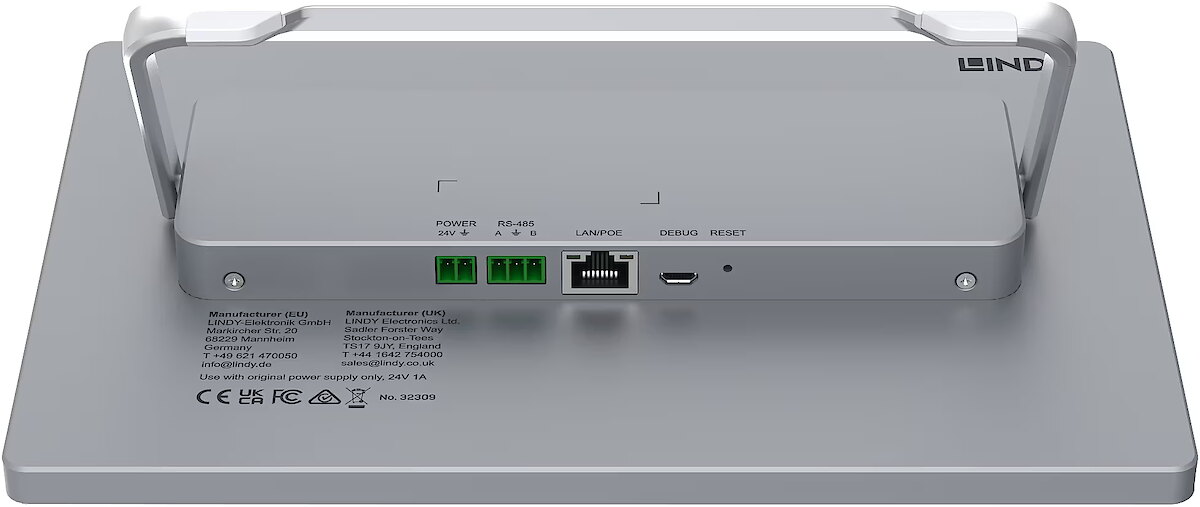

Ports & interfaces - RJ-45 ports quantity - 1
Power - Input voltage - 24 V
Power - Power source type - DC
ProductName - 32309
ShortSummaryDescription - Lindy 32309, 25.4 cm (10"), 1280 x 800 pixels, Capacitive, 16:10, Grey, 32000 MB
Title - Lindy 32309 touch control panel 25.4 cm (10") 1280 x 800 pixels
URL - https://www.lindy.eu/Control-Touchpad-Desktop-10-inch.htm?websale8=ld0101.ld021102&pi=32309&ci=226
WarrantyInfo - 2 year warranty
Weight & dimensions - Depth - 164 mm
Weight & dimensions - Height - 27 mm
Weight & dimensions - Weight - 887 g
Weight & dimensions - Width - 245.4 mm
