ID: 899409
Product code: ZP1000GP3A4001
Can be ordered 56 units Availability: 14 days after order approval
Warranty: 3 years

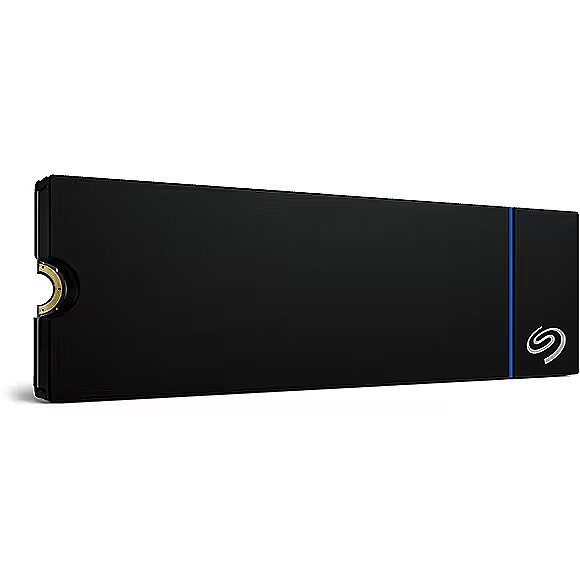

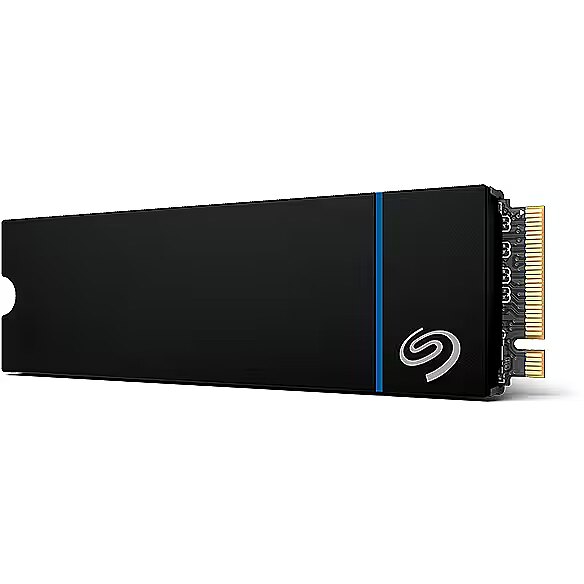

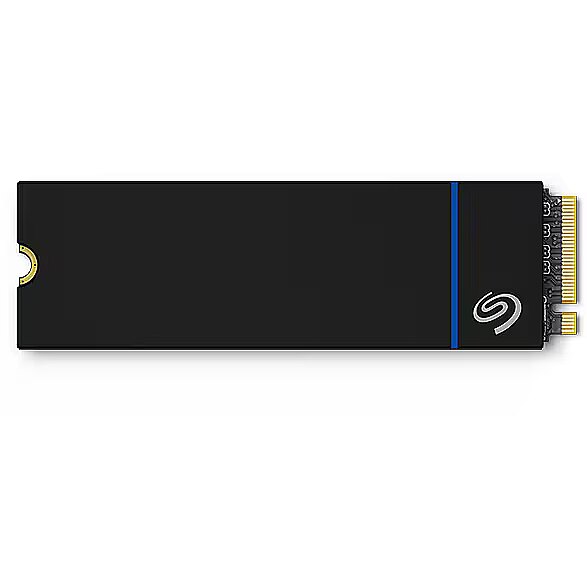

Seagate GaneDrive PS5, 1TB, Gen4 x4, with Heatsink, PS5 Ready
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
Itella parcel machineWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Capacity: 1 TB
- Type: NVMe
- Read speed (sequential): 7300 MB/s
- Write speed (sequential): 6000 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 4.0 x4
Description
Available for purchase, the Seagate M.2 80mm (2280) format SSD disk with a large volume of 1 TB.
This disc uses the latest generation compact M.2 port.
This is an NVME type SSD drive. It uses the PCI-e protocol, which allows data to be transmitted over multiple lines at the same time. This type of drive is ideal for processing large files, gaming, video editing, and other resource-intensive tasks.
The read speed for this SSD drive reaches 7300 MB/s. However, it's crucial to note - if the "fast" drives are not provided with adequate cooling, they may not be able to operate at the speed indicated by the manufacturer.
The writing speed for this SSD disk reaches 6000 MB/s. Without a suitable cooling mechanism, "fast" disks may not be able to achieve the performance indicators promised by the manufacturer.
The format of this SSD drive (physical size of the drive) is M.2 80mm (2280).
The SSD drive has a PCIe 4.0 x4 interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.
Basic information
Capacity
1 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVMe
Read speed (sequential)
7300 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
6000 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: Ir
Lighting
: Nav
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 4.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specifikācija
Memory type
: TLC (Triple-Level Cell)
Random Read IOPS
: 800K
Random Write IOPS
: 1m
Endurance (TBW)
: 1275 TB
More detailed specification
ARTIKEL1 - GAMEDRIVE M.2 1TB SSD PCIE GEN4
ARTIKEL2 - NVME
Brand - Seagate
BrandPartCode - ZP1000GP3A4001
Breite - 0.11
Category - Internal Solid State Drives
EANCode - 8719706432504
Features - Component for - Game console
Features - Interface - PCI Express 4.0
Features - Mean time between failures (MTBF) - 1800000 h
Features - Memory type - 3D TLC
Features - NVMe - Yes
Features - NVMe version - 1.4
Features - Random read (4KB) - 800000 IOPS
Features - Random write (4KB) - 1000000 IOPS
Features - S.M.A.R.T. support - Yes
Features - Sequential read speed (AS SSD) - 7300 MB/s
Features - Sequential write speed (AS SSD) - 6000 MB/s
Features - SSD capacity - 1 TB
Features - SSD form factor - M.2
Features - TRIM support - Yes
Gewicht - 0.11
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
GTIN - 8719706432504
HERSTELLER - SEAGATE
Hoehe - 0.03
HSTNUMMER - ZP1000GP3A4001
Laenge - 0.16

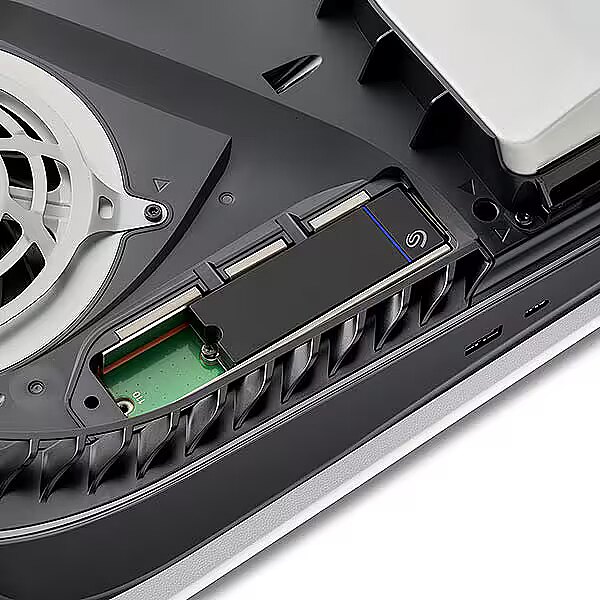

LongDesc - Maximise your PS5™ gaming experience with the Game Drive M.2 SSD for PS5. Optimised for both the Digital and Standard Editions of PS5, this SSD installs with just a screwdriver and features a custom heatsink to keep your system running at peak performance.Optimised for PS5Optimised with matching firmware to seamlessly work with both Digital and Standard Editions of PS5. This high-speed SSD installs with just a screwdriver and features a custom heatsink to keep your system running at peak performance.Cool Speed AheadCustom heatsink helps minimize thermal throttling and maintain peak performance for longer periods of time.Download. Update. Play.Digital and Standard Edition PS5 games operate directly from the M.2 SSD.Absolute PerformanceUp to 7,300/6,000 MB/s read/write speeds harnesses the full power of PCIe Gen4.Build Your Game VaultUp to 4 TB of capacity means no more sacrificing, deleting, or redownloading games.Simple Drop-in Storage Expansion for PS5The Game Drive M.2 SSD for PS5 meets all PS5 specs on performance and dimensions. All you need is a screwdriver and you’ve got expanded high-speed capacity at your fingertips.
LongProductName - 1 Tb, M.2, PCIe Gen4, NVMe 1.4, 3D TLC, 80 x 24 x 11 mm, 47 g
LongSummaryDescription - Seagate Game Drive. SSD capacity: 1 TB, SSD form factor: M.2, Component for: Game console
Operational conditions - Non-operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features - Compliance certificates - RoHS
Other features - Warranty period - 5 year(s)
Power - Power consumption (average) - 6.3 W
Power - Power consumption (idle) - 0.02 W
ProductName - Game Drive
ShortSummaryDescription - Seagate Game Drive, 1 TB, M.2
Stck_Kart - 0
Stck_Pal - 0
Storno - Y
Technical details - Doesn't contain - Halogen
Title - Seagate Game Drive 1 TB M.2 PCI Express 4.0 NVMe 3D TLC
URL - https://www.seagate.com/as/en/products/gaming-drives/playstation-gaming/game-drive-m2-ssd-for-ps5/#VerticalSlider-item-2
WarrantyInfo - 5 years
Weight & dimensions - Depth - 24.2 mm
Weight & dimensions - Height - 11 mm
Weight & dimensions - Weight - 47 g
Weight & dimensions - Width - 80.2 mm
ARTIKEL2 - NVME
Brand - Seagate
BrandPartCode - ZP1000GP3A4001
Breite - 0.11
Category - Internal Solid State Drives
EANCode - 8719706432504
Features - Component for - Game console
Features - Interface - PCI Express 4.0
Features - Mean time between failures (MTBF) - 1800000 h
Features - Memory type - 3D TLC
Features - NVMe - Yes
Features - NVMe version - 1.4
Features - Random read (4KB) - 800000 IOPS
Features - Random write (4KB) - 1000000 IOPS
Features - S.M.A.R.T. support - Yes
Features - Sequential read speed (AS SSD) - 7300 MB/s
Features - Sequential write speed (AS SSD) - 6000 MB/s
Features - SSD capacity - 1 TB
Features - SSD form factor - M.2
Features - TRIM support - Yes
Gewicht - 0.11
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
GTIN - 8719706432504
HERSTELLER - SEAGATE
Hoehe - 0.03
HSTNUMMER - ZP1000GP3A4001
Laenge - 0.16
LongDesc - Maximise your PS5™ gaming experience with the Game Drive M.2 SSD for PS5. Optimised for both the Digital and Standard Editions of PS5, this SSD installs with just a screwdriver and features a custom heatsink to keep your system running at peak performance.Optimised for PS5Optimised with matching firmware to seamlessly work with both Digital and Standard Editions of PS5. This high-speed SSD installs with just a screwdriver and features a custom heatsink to keep your system running at peak performance.Cool Speed AheadCustom heatsink helps minimize thermal throttling and maintain peak performance for longer periods of time.Download. Update. Play.Digital and Standard Edition PS5 games operate directly from the M.2 SSD.Absolute PerformanceUp to 7,300/6,000 MB/s read/write speeds harnesses the full power of PCIe Gen4.Build Your Game VaultUp to 4 TB of capacity means no more sacrificing, deleting, or redownloading games.Simple Drop-in Storage Expansion for PS5The Game Drive M.2 SSD for PS5 meets all PS5 specs on performance and dimensions. All you need is a screwdriver and you’ve got expanded high-speed capacity at your fingertips.
LongProductName - 1 Tb, M.2, PCIe Gen4, NVMe 1.4, 3D TLC, 80 x 24 x 11 mm, 47 g
LongSummaryDescription - Seagate Game Drive. SSD capacity: 1 TB, SSD form factor: M.2, Component for: Game console
Operational conditions - Non-operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features - Compliance certificates - RoHS
Other features - Warranty period - 5 year(s)
Power - Power consumption (average) - 6.3 W
Power - Power consumption (idle) - 0.02 W
ProductName - Game Drive
ShortSummaryDescription - Seagate Game Drive, 1 TB, M.2
Stck_Kart - 0
Stck_Pal - 0
Storno - Y
Technical details - Doesn't contain - Halogen
Title - Seagate Game Drive 1 TB M.2 PCI Express 4.0 NVMe 3D TLC
URL - https://www.seagate.com/as/en/products/gaming-drives/playstation-gaming/game-drive-m2-ssd-for-ps5/#VerticalSlider-item-2
WarrantyInfo - 5 years
Weight & dimensions - Depth - 24.2 mm
Weight & dimensions - Height - 11 mm
Weight & dimensions - Weight - 47 g
Weight & dimensions - Width - 80.2 mm
