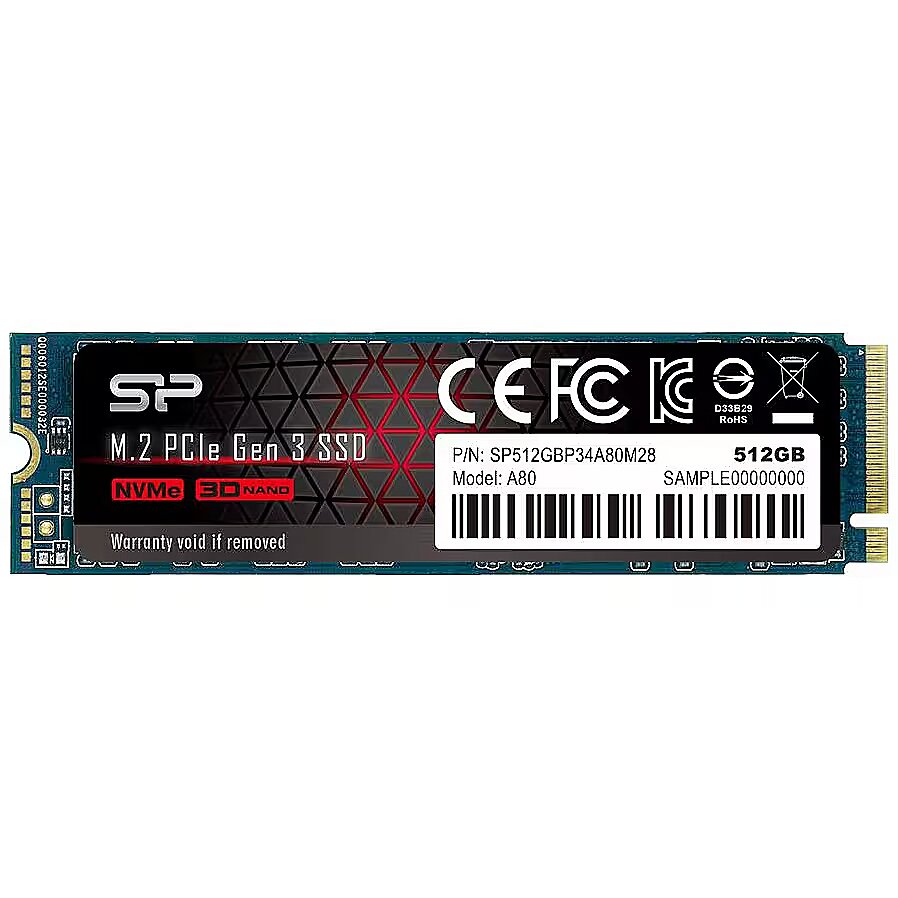

Silicon Power P34A80, 512GB, M.2 Gen3 x4

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 301746 Product code: SP512GBP34A80M28
Can be ordered 9 units Availability: 14 days after order approval
Warranty: 3 years
45.49 €
Ready for dispatch
21.07.2025
starting from 1.99 €
Delivery options
  • Omniva parcel machine
    Within 1-2 working days
    1.99 €
  • SmartPosti parcel terminal
    Within 1-2 working days
    1.99 €
  • Delivery by courier to the address
    Within 1-2 working days
    5.99 €
Main product parameters All parameters
  • Capacity: 512 GB
  • Type: NVMe
  • Read speed (sequential): 3400 MB/s
  • Write speed (sequential): 2300 MB/s
  • Form factor: M.2 80mm (2280)
  • Interface: PCIe 3.0 x4
Description

This Silicon Power brand SSD has a 512 GB capacity and a M.2 80mm (2280) format.

This disc uses the latest generation compact M.2 port.

This SSD drive uses the latest NVME standard with PCIe interface, which allows simultaneous data transmission across multiple data lines. Thanks to this technology, the drive is ideally suited for those who work with large files, play computer games or deal with video editing.

3400 MB/s – this is the data reading speed that this SSD disk is capable of reaching. However, we must remember one crucial nuance - "fast" disks may not show the performance promised by the manufacturer if adequate cooling is not provided.

The writing speed for this SSD disk reaches 2300 MB/s. Without a suitable cooling mechanism, "fast" disks may not be able to achieve the performance indicators promised by the manufacturer.

This is an SSD disk in the M.2 80mm (2280) format.

The SSD drive has a PCIe 3.0 x4 interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.

Basic information
Capacity 512 GB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type : NVMe
Read speed (sequential) 3400 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 2300 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality
Radiators : Nav
Lighting : Nav
Ports and equipment
Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 3.0 x4
Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija
Memory type : TLC (Triple-Level Cell)
Random Read IOPS : 290K
Random Write IOPS : 510K
Endurance (TBW) : 400 TB
More detailed specification
Additional information in manufacturers website Silicon Power P34A80, 512GB, M.2 Gen3 x4
Category - Root/Electronics/PC parts/Hard drives
Dane fizyczne: Długość - 80 mm
Dane fizyczne: Szerokość - 22 mm
Dane fizyczne: Waga - 8 g
Dane fizyczne: Wysokość - 3.5 mm
Dane techniczne: Format M.2 - 2280
Dane techniczne: Gwarancja - 5 lat w serwisie zewnętrznym
Dane techniczne: Interfejs - M.2
Dane techniczne: Pojemność - 512 GB
Dane techniczne: Producent - Silicon Power
Dane techniczne: Rodzaj dysku - wewnętrzny
Dane techniczne: Rodzina produktów - P34A80
Dane techniczne: Typ - SSD
Dane techniczne: Wersja M.2 - PCIe 3.0
Depth - 80 mm
Description - The new P34A80 SSD drive allows you to enjoy a whole new level of performance and data transfer speed. Thanks to the super-fast PCIe Gen 3x4 interface, the drive achieves incredible read speeds of up to 3400MB / s and write speeds of up to 3000MB / s. Even in the case of games that require very fast read / write and advanced graphics processing, it ensures smooth operation thanks to the use of the latest solutions.
Designation - CE+WEEE
dimensionalWeight - 10
dimension depth - 15 mm
dimension height - 140 mm
dimension weight - 40 g
dimension width - 85 mm
Disk type - SSD
Drive type - Internal
ean - 4713436123767
Eans - 4713436123767
Features - Certification - CE/FCC/BSMI/Green dot/WEEE/KCC
Features - Component for - PC
Features - Hardware encryption - No
Features - Interface - PCI Express 3.0
Features - Memory type - SLC
Features - NVMe - Yes
Features - NVMe version - 1.3
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 500000 IOPS
Features - Random write (4KB) - 600000 IOPS
Features - Read speed - 3400 MB/s
Features - RoHS compliance - Y
Features - SSD capacity - 512 GB
Features - SSD form factor - M.2
Features - Write speed - 2700 MB/s
Form factor (width) - M.2 2280
guarantee - 60
guarantee_type - normal
HDD capacity - 512 GB
HDD interface - PCI-Express
Height - 3.5 mm
Informacje dodatkowe: Dodatkowe informacje - pamięć podręczna SLC
Informacje dodatkowe: Model - Silicon Power P34A80 M.2
Informacje dodatkowe: Zastosowane technologie - NVMe
Informacje dodatkowe: Zastosowane technologie - RAID
Model - P34A80
Name - Silicon Power P34A80 M.2 NVMe PCIe 512GB
name - SSD A80 512GB M.2 PCIe 3400/3000 MB/s NVMe
Operational conditions - Operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Other features -
producer - Silicon Power
Producer - Silicon Power
producerCode - SP512GBP34A80M28
ProducerCode - SP512GBP34A80M28
productName - Silicon Power P34A80 M.2 512 GB PCI Express 3.0 SLC NVMe
productSize - Normal
Reading speed - 3400 MB/s
ShortDescription - SSD | 512GB | 3400/3000 MB/s | M.2 | 2280 | PCI-E Gen3x4 | NVMe
sizeX - 125
sizeY - 85
sizeZ - 5
vendpn - SP512GBP34A80M28
warrantyLength - 60
warrantyType - G
Weight - 8 g
weight - 15
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 3.5 mm
Weight & dimensions - Weight - 8 g
Weight & dimensions - Width - 22 mm
Width - 22 mm
Writing speed - 3000 MB/s
Wydajność: Prędkość obrotowa - nie dotyczy obr./min.
Wydajność: Szybkość odczytu - 3400 MB/s
Wydajność: Szybkość zapisu - 3000 MB/s
