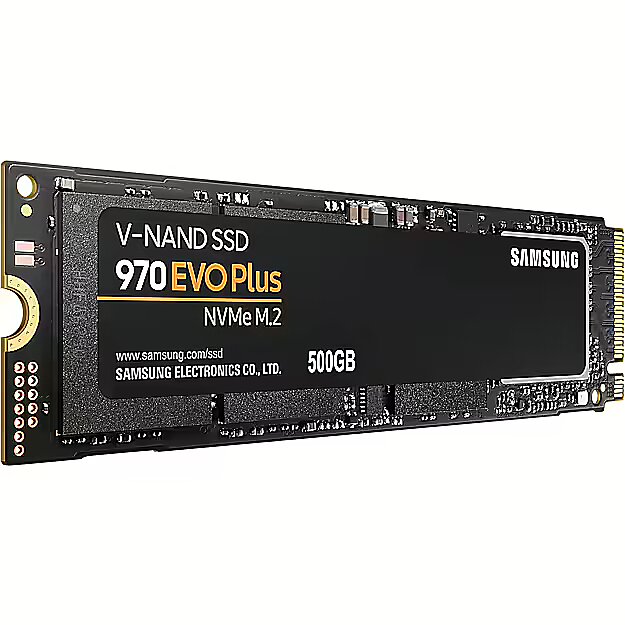

Samsung 970 EVO Plus, 500GB, M.2 Gen3 x4

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Recommended
ID: 178162 Product code: MZ-V7S500BW
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)
Main product parameters All parameters
  • Capacity: 500 GB
  • Type: NVMe
  • Read speed (sequential): 3500 MB/s
  • Write speed (sequential): 3200 MB/s
  • Form factor: M.2 80mm (2280)
  • Interface: PCIe 3.0 x4
Similar Products
Recommended This product Samsung 970 EVO Plus, 500GB, M.2 Gen3 x4
Recommended Lexar NM620, 512GB, M.2 Gen3 x4
Recommended Lexar NM620, 256GB, M.2 Gen3 x4
Recommended Crucial P3, 1TB, M.2 Gen3 x4
Recommended Samsung 990 PRO, 4TB, M.2 Gen4 x4
Show similar specs. Hide similar specs.
88.36 €
39.96 €
30.09 €
66.99 €
310.87 €
Basic information
Capacity 500 GB 512 GB 256 GB 1 TB 4 TB
Type NVMe NVMe NVMe NVMe NVMe
Read speed (sequential) 3500 MB/s 3300 MB/s 3000 MB/s 3500 MB/s 7450 MB/s
Write speed (sequential) 3200 MB/s 2400 MB/s 1300 MB/s 3000 MB/s 6900 MB/s
Functionality
Radiators Nav Nav Nav Nav Nav
Lighting Nav Nav Nav Nav Nav
Ports and equipment
Form factor M.2 80mm (2280) M.2 80mm (2280) M.2 80mm (2280) M.2 80mm (2280) M.2 80mm (2280)
Interface PCIe 3.0 x4 PCIe 3.0 x4 PCIe 3.0 x4 PCIe 3.0 x4 PCIe 4.0 x4
Interface M.2 M.2 M.2 M.2 M.2
Specifikācija
Memory type TLC (Triple-Level Cell) TLC (Triple-Level Cell) TLC (Triple-Level Cell) QLC (Quad-Level Cell) TLC (Triple-Level Cell)
Random Read IOPS 480K 200K 92K Not specified 1.4M
Random Write IOPS 550K 256K 240K Not specified 1.55M
Endurance (TBW) 300 TB 250 TB 125 TB 220 TB 1200 TB
Description

Available for purchase, the Samsung M.2 80mm (2280) format SSD disk with a large volume of 500 GB.

This SSD drive has a compact and modern M.2 connector.

This is a fast-acting NVME SSD drive, based on PCIe technology. It allows data to be transmitted in parallel over multiple channels, ensuring excellent performance. This type of drive is perfectly suited for activities such as processing large files, gaming, and video editing, where maximum data transmission speed is required.

The read speed for this SSD drive reaches 3500 MB/s. However, it's crucial to note - if the "fast" drives are not provided with adequate cooling, they may not be able to operate at the speed indicated by the manufacturer.

The write speed (Sequential write speed) of this SSD is 3200 MB/s. However, if adequate cooling is not provided, "fast" drives may not achieve the speeds guaranteed by the manufacturer.

The format of this SSD drive (physical size of the drive) is M.2 80mm (2280).

This SSD drive interface is PCIe 3.0 x4. If you insert this drive into an older interface slot, the speed of the drive will decrease, as the drive will not have sufficient data transfer speed (Bandwidth).

Basic information
Capacity 500 GB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type : NVMe
Read speed (sequential) 3500 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 3200 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality
Radiators : Nav
Lighting : Nav
Ports and equipment
Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 3.0 x4
Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija
Memory type : TLC (Triple-Level Cell)
Random Read IOPS : 480K
Random Write IOPS : 550K
Endurance (TBW) : 300 TB
More detailed specification
Additional information in manufacturers website Samsung 970 EVO Plus, 500GB, M.2 Gen3 x4
  -
Box Weight Brutto (kg) - 0.72 kg
Brand - Samsung
BrandPartCode - MZ-V7S500BW
Category - Internal Solid State Drives
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
Color - Not applicable
Depth - 2.38 mm
Depth - 80.15 mm
Depth (mm) - 80.5 mm
Description - Dysk SSD 970 EVO PLUS MZ-V7S500BW 500GB NIEPRZERWANA EWOLUCJA SSD
Najlepsza wydajność w jeszcze doskonalszej wersji. Szybszy od swojego poprzednika, 970 EVO, dysk 970 EVO Plus wykorzystuje najnowszą technologię V-NAND i zoptymalizowane oprogramowanie sprzętowe.
Lepsza wydajność komputera
Chciałbyś, by Twój PC dał z siebie wszystko? Dysk 970 EVO Plus osiąga sekwencyjną prędkość odczytu/zapisu
wynoszącą odpowiednio nawet do 3500/3300 MB/s*.Prędkość zapisu została zwiększona nawet o 53%** w stosunku do serii 970 EVO. Najnowsza technologia M.2 i interfejs PCIe Gen 3.0 x4 sprawiają, że seria 970 EVO Plus zapewnia niezrównaną wydajność przetwarzania dużych ilości danych (w tym grafiki 3D i 4K) i danych analitycznych.
Niezawodność i wytrzymałość
970 EVO Plus został skonstruowany z myślą o długiej żywotności i niezawodności, dlatego jest objęty gwarancją
do 5 lat lub do 1200 TBW* (aż o 50 procent więcej niż w poprzedniej generacji). Ponadto technologia Dynamic Thermal Guard zabezpiecza go przed przegrzaniem dzięki automatycznemu monitorowaniu i utrzymywaniu
optymalnej temperatury pracy.
Superpamięć
Nieulotna pamięć interfejsu NVMe pozwala na przechowywanie większej liczby plików nawet do 2 TB! Prędkość sekwencyjna jest aż 6 razy większa niż w dyskach SATA SSD, a to za sprawą pamięci V-NAND,
która do maksimum wykorzystuje potencjał sprzętu.
*Dotyczy pojemności 2 TB.
**Dotyczy pojemności 250 GB.
dimension depth - 20 mm
dimension height - 145 mm
dimension weight - 60 g
dimension width - 100 mm
Disk type - SSD
Drive type - Internal
ean - 8801643628116
EAN Code - 8801643628116
EAN_code - 8801643628116
External Color - Melna
Features - Component for - PC
Features - Controller type - Samsung Phoenix
Features - DevSlp (device sleep) support - Yes
Features - Hardware encryption - Yes
Features - Interface - PCI Express 3.0
Features - Mean time between failures (MTBF) - 1500000 h
Features - Memory type - V-NAND MLC
Features - NVMe - Yes
Features - NVMe version - 1.3
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 480000 IOPS
Features - Random write (4KB) - 550000 IOPS
Features - Read speed - 3500 MB/s
Features - S.M.A.R.T. support - Yes
Features - Security algorithms - 256-bit AES
Features - SSD capacity - 500 GB
Features - SSD form factor - M.2
Features - TRIM support - Yes
Features - Write speed - 3300 MB/s
Flash Memory Cell Technology - Multi-Level Cell
Form Factor - M.2 22x80mm
Form factor (width) - M.2 2280
GTIN - 0887276302546
GTIN - 887276302546
GTIN - 8801643628116
guarantee - 60
guarantee_type - normal
HDD capacity - 500 GB
HDD interface - PCI-Express
Height - 2.38 mm
Height - 22.1 mm
Height (mm) - 2.38 mm
HighLights -
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/190222150010080745.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/190222150010091301.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/190222150010103334.jpg
Logistics data - Harmonized System (HS) code - 84717070
LongDesc -
LongDesc - Always Evolving SSDThe ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimisation. It maximises the potential of NVMe™ bandwidth for unbeatable computing in capacities up to 2TB, with reliability of up to 1,200 TBW.Level Up PerformanceThe 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53%‡ faster than the 970 EVO. The latest V-NAND—which brings greater NAND performance and higher power efficiency—along with optimised firmware, a proven in-house controller and Intelligent TurboWrite boost.Design FlexibilityThe next advancement in NVMe SSD. The 970 EVO Plus fits up to 2TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsungs innovative technology empowers you with the capacity to do more and accomplish more.Exceptional EnduranceThe new standard in sustainable performance. Get up to 1,200 TBW with a 5-year limited warranty for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsungs quality.Unparalleled ReliabilityAchieve a new level of drive confidence. Samsungs advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimise performance drops.Samsung MagicianAdvanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health, check speed and even boost performance.
LongProductName - MZ-V7S500BW
LongSummaryDescription - Samsung 970 EVO Plus. SSD capacity: 500 GB, SSD form factor: M.2, Read speed: 3500 MB/s, Write speed: 3300 MB/s, Component for: PC
M.2 Interface Quantity - 1
Manufacturer - Samsung
Manufacturer_code - MZ-V7S500BW
ManufDatasheet -
Maximum Operating Ambient Temperature - 70 °C
Maximum Power Consumption - 8.5 W
Maximum Random Read Rate - 19000 IOPS
Maximum Random Write Rate - 550000 IOPS
Maximum Sequential Read Rate - 3500 MB/s
Maximum Sequential Write Rate - 3300 MB/s
Mean Time Between Failures - 1500000 hr
Memory Technology - NAND Flash
Minimum Operating Ambient Temperature - 0 °C
Minimum Power Consumption - 30 mW
Model - 970 EVO PLUS
Name - Samsung 970 EVO Plus 500 GB - PCIe Gen 3 x4, M.2 2280
name - SSD disk 970 EVO PLUS MZ-V7S500BW 500GB
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Other features -
Other features - Launch date - 1/22/2019
Package Type - Retail
Packaging data - Bundled software - Magician Software for SSD management
Packaging data - Package type - Box
Packs in Box - 10
Pack Weight (kg) - 0.01 kg
Pack Weight Brutto (kg) - 0.0522 kg
Pack Weight Netto (kg) - 0.01 kg
Pieces in pack - 1
Power - Operating voltage - 3.3 V
Power - Power consumption (average) - 5.8 W
Power - Power consumption (idle) - 0.003 W
Power - Power consumption (max) - 9 W
ProdDesc - SSD M.2 (2280) 500GB Samsung 970 EVO Plus
producer - Samsung
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=190124120122983247&THEME=asbis&LANG=lv
ProductCategory - SSD
ProductCode - MZ-V7S500BW
Productcondition - Original
ProductDescription - SAMSUNG 970 EVO PLUS 500GB SSD, M.2 2280, NVMe, Read/Write: 3500 / 3200 MB/s, Random Read/Write IOPS 480K/550K
ProductHighLights -
  • Always Evolving SSD
  • Level up Performance
  • Design Flexibility

ProductName - 970 EVO Plus
ProductPicture - https://www.tdbaltic.ee/images/products/SAMSUNG/MZ-V7S500BW_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/SAMSUNG/MZ-V7S500BW_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/SAMSUNG/MZ-V7S500BW_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/SAMSUNG/MZ-V7S500BW_4.jpg
ProductPicture4 - https://www.tdbaltic.ee/images/products/SAMSUNG/MZ-V7S500BW_5.jpg
ProductPicture5 - https://www.tdbaltic.ee/images/products/SAMSUNG/MZ-V7S500BW_6.jpg
ProductType - SSD Client
Random read IOPS (max) - 480 K
Random write IOPS (max) - 550 K
Reading speed - 3500 MB/s
Retail Packaging Net Weight Carton - 0.01 kg
Retail Packaging Net Weight Plastic - 0.01 kg
Shock Tolerance Operating - 1500G @ 0.5ms
ShortSummaryDescription - Samsung 970 EVO Plus, 500 GB, M.2, 3500 MB/s
Solid State Drive Features - S.M.A.R.T.TRIM SupportAES 256-bit EncryptionAuto Garbage Collection
SSD Controller - Samsung Phoenix
Storage Capacity - 500 GB
Supports Data Channel - NVMe PCIe® Gen3
Title - Samsung 970 EVO Plus 500 GB M.2 PCI Express 3.0 NVMe V-NAND MLC
Total Bytes Written (TBW) - 300
URL - https://www.samsung.com/uk/memory-storage/nvme-ssd/970-evo-plus-nvme-m-2-ssd-500gb-mz-v7s500bw/
Vendor - SAMSUNG
vendpn - MZ-V7S500BW
Warranty - 12 months
Warrantyandmisc -
WarrantyInfo -
Warranty Products Returnable - Yes
Warranty Term (month) - 60 mēneši
Warranty validation Criteria - Serial Number
Weight - 0,08
Weight - 8 g
Weight - 8 g
Weight & dimensions - Depth - 2.38 mm
Weight & dimensions - Height - 22.1 mm
Weight & dimensions - Weight - 8 g
Weight & dimensions - Width - 80.2 mm
Weightdimensions -
Width - 22.15 mm
Width - 80.2 mm
Width (mm) - 22.15 mm
Writing speed - 3200 MB/s
