ID: 1433693
Product code: SDSP51100TAN-000E0
In stock 30 units
Warranty: 3 years

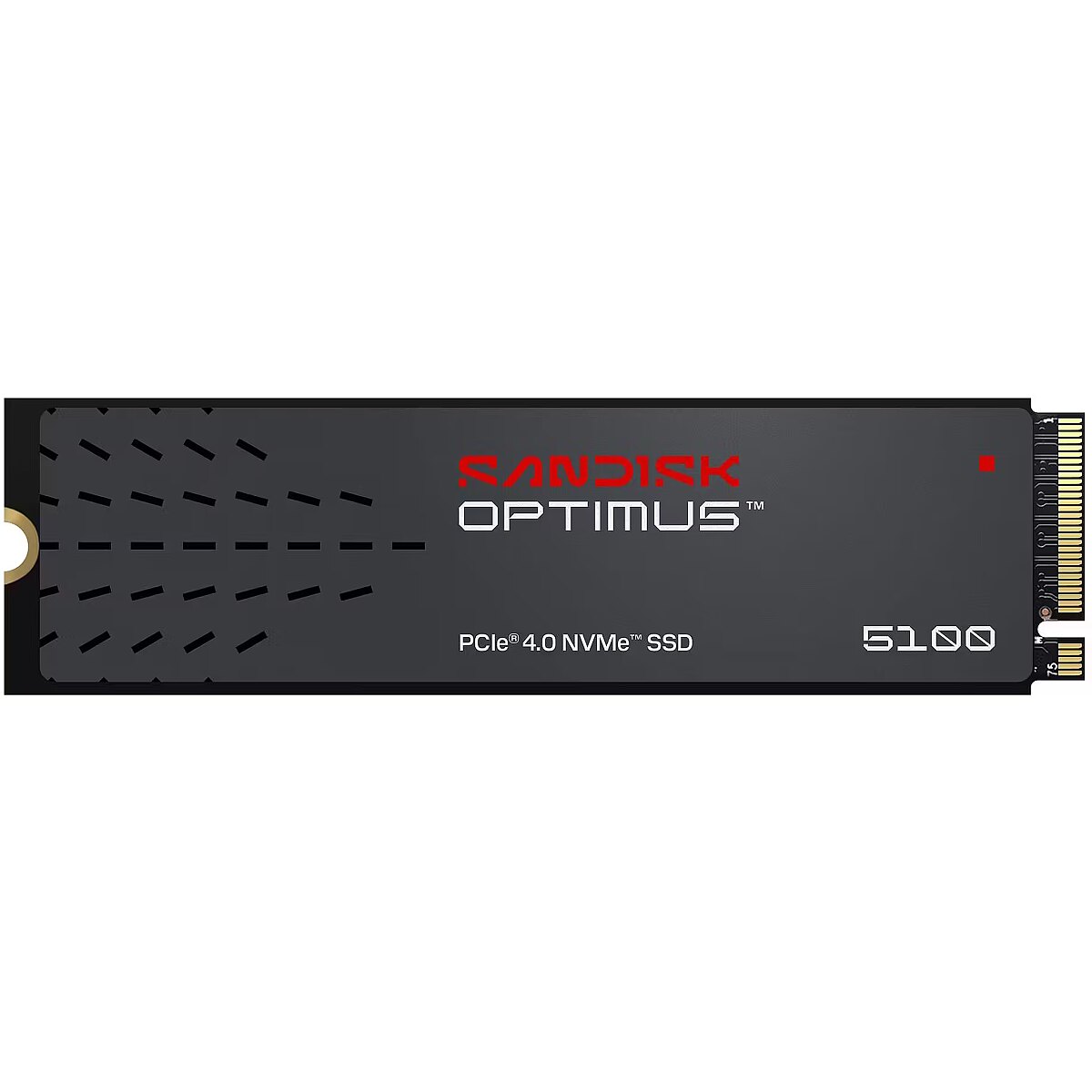

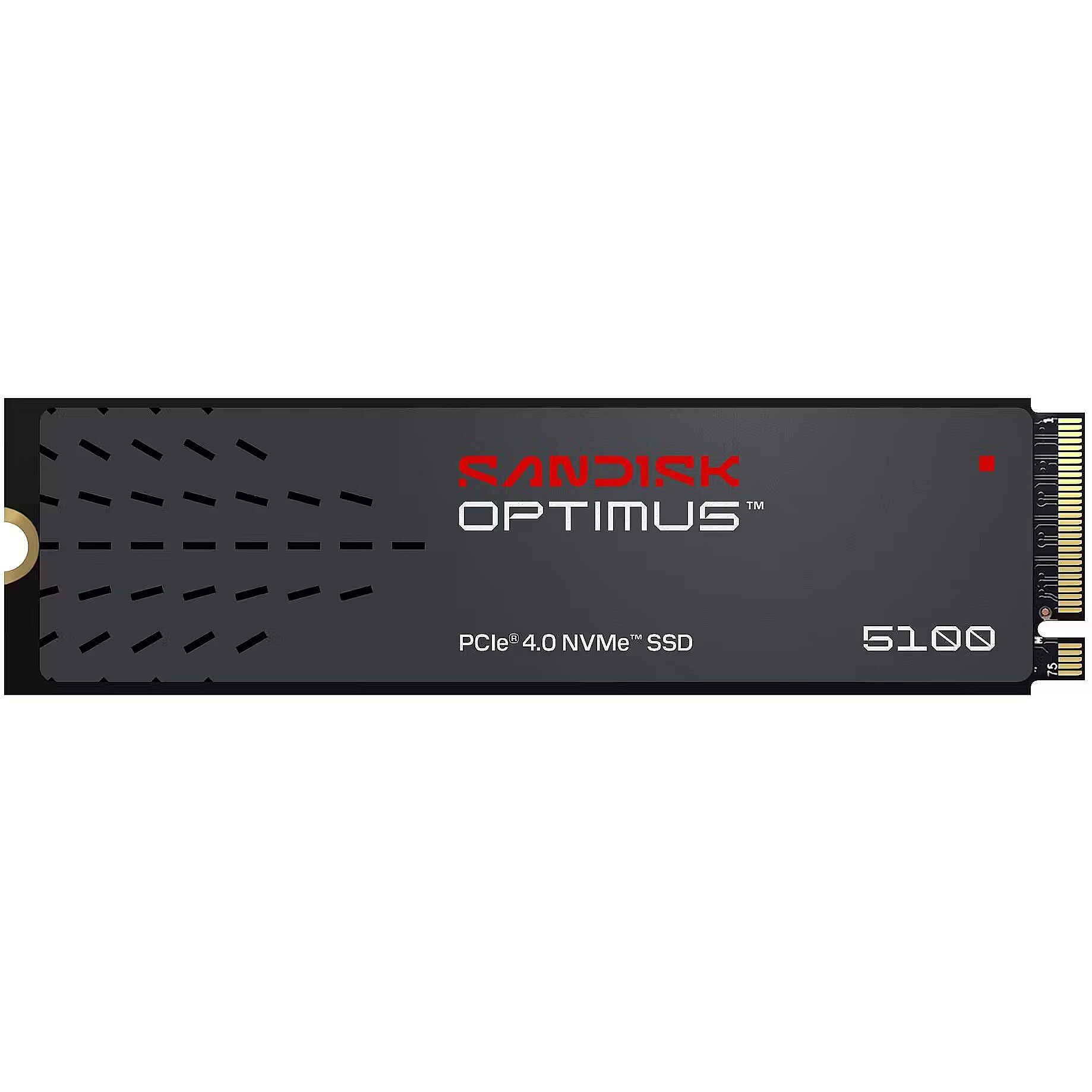

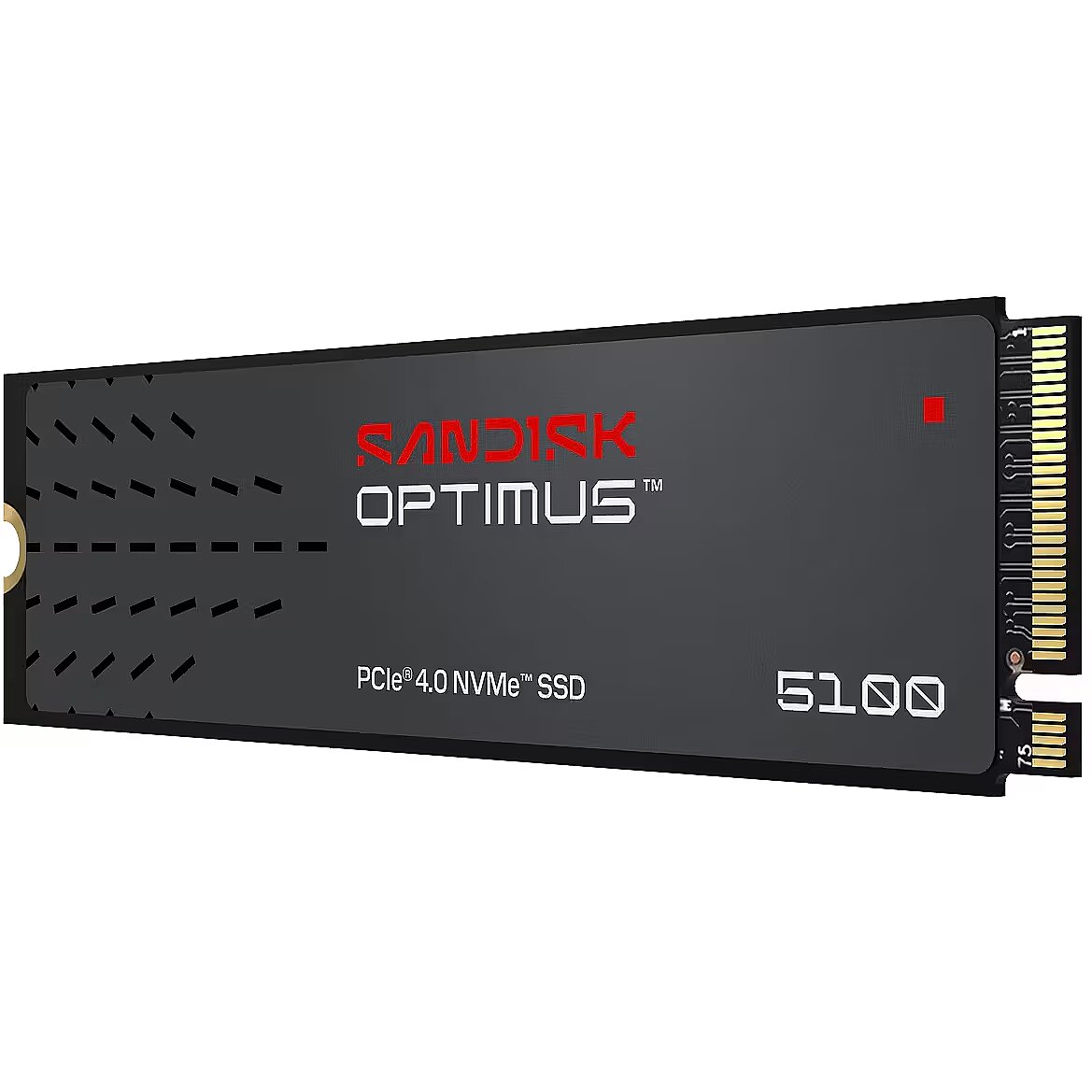

SanDisk Optimus 5100, 1TB, M.2 Gen4 x4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Unisend parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Capacity: 1 TB
- Type: NVME
- Read speed (sequential): 7100 MB/s
- Write speed (sequential): 6700 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 4.0 x4
Description
Available for purchase, the Sandisk M.2 80mm (2280) format SSD disk with a large volume of 1 TB.
The disk is equipped with the currently most advanced and compact M.2 connection port.
This is an NVME type SSD drive. It uses the PCI-e protocol, which allows data to be transmitted over multiple lines at the same time. This type of drive is ideal for processing large files, gaming, video editing, and other resource-intensive tasks.
7100 MB/s – this is the data reading speed that this SSD disk is capable of reaching. However, we must remember one crucial nuance - "fast" disks may not show the performance promised by the manufacturer if adequate cooling is not provided.
The writing speed for this SSD disk reaches 6700 MB/s. Without a suitable cooling mechanism, "fast" disks may not be able to achieve the performance indicators promised by the manufacturer.
This is an SSD disk in the M.2 80mm (2280) format.
The SSD drive has a PCIe 4.0 x4 interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.
Basic information
Capacity
1 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVME
Read speed (sequential)
7100 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
6700 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: None
Lighting
: None
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 4.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specification
Memory type
: QLC (Quad-Level Cell)
Random Read IOPS
: 660K
Random Write IOPS
: 1.1M
Endurance (TBW)
: 600 TB
More detailed specification
Average power consumption (read) Power - 3.9 W
Average power consumption (write) Power - 3.9 W
Bundled software Packaging data - Acronis True Image
Category Code - SSU
Compliance certificates Other features - BSMI, CB, CE, Federal Communications Commission (FCC), KCC, RCM, RoHS, TÜV mark, UKCA, UL, VCCI
Component for Features - PC/Laptop
Depth Weight & dimensions - 80 mm
Description - The uncompromising high performance affordable SSD for creators. The SANDISK Optimus 5100 NVMe™ SSD strikes the ideal balance of high performance and affordability for creators. Enjoy fast speeds and increased capacity with PCIe® 4.0 speeds up to 7,100MB/s (1TB and 2TB models) and capacities up to 4TB on slim M.2 2280. Seamless application multitasking and fast file copies with integrated SANDISK nCache™ 4.0 technology. Have peace of mind with our trusted 8th generation SANDISK BiCS QLC 3D CBA NAND and a 5-year limited warranty. Monitor your SSD’s performance and check for updates with the downloadable SANDISK Dashboard application (Windows® only). Don’t wait to upgrade your laptop or desktop PC and transform everything you do. Storage to Revitalize Your PC
Launch creator applications fast with uncompromising PCIe® 4.0 read speeds up to 7,100MB/s, (1TB and 2TB models) and write speeds up to 6,700MB/s (1TB - 4TB models). Seamless project multitasking and fast file copies with integrated SANDISK nCache™ 4.0 technology. Create and store more
Make more room for your 4K videos and high-resolution images with capacities from 500GB up to 4TB built with our trusted 8th generation SANDISK QLC 3D CBA NAND. A slim M.2 2280 form-factor makes an easy upgrade for compatible laptops or a secondary high-capacity addition to your desktop PC. It goes where you go
With an all-new power-efficient design, your drive delivers high performance with low power consumption, giving you more time to be productive on the go. Uncompromising reliability
With up to 1,200 TBW (4TB model) endurance rating, your drive is designed for video editing and productivity suites. As the trusted brand for reliability, Sandisk covers your drive with Sandisk’s 5-year limited warranty. Keep your drive up to date
Monitor your SSD’s performance and check for updates with the downloadable SANDISK Dashboard application (Windows® only). Free Acronis® True Image™ software
Download Acronis® True Image™ for SANDISK software to transfer your data to your new SSD (separate cable/enclosure may be required).High-performance affordable NVMe SSD.Launch applications faster with PCIe 4.0 speeds.Reliable internal SSD with uncompromised endurance rating.
Hardware encryption Features - No
Height Weight & dimensions - 2.38 mm
Interface Features - PCI Express 4.0
M.2 SSD size Features - 2280 (22 x 80 mm)
Mean time between failures (MTBF) Features - 1750000 h
Memory type Features - QLC 3D NAND
Non-operating shock Operational conditions - 1500 G
Non-operating vibration Operational conditions - 4.9 G
NVMe Features - Yes
Operating temperature (T-T) Operational conditions - 0 - 85 °C
Operating vibration Operational conditions - 5 G
PCI Express interface data lanes Features - x4
Power consumption (sleep) Power - 0.004 W
Random read (4KB) Features - 1000000 IOPS
Random write (4KB) Features - 1300000 IOPS
Read speed Features - 7100 MB/s
Security algorithms Features - TCG Pyrite
SSD capacity Features - 1 TB
SSD form factor Features - M.2
Storage temperature (T-T) Operational conditions - -40 - 85 °C
Summary - SanDisk Optimus 5100. SSD capacity: 1 TB, SSD form factor: M.2, Read speed: 7100 MB/s, Write speed: 6700 MB/s, Component for: PC/Laptop
TBW rating Features - 600
Unit Box Height - 0.02
Unit Box Length - 0.125
Unit Box Width - 0.105
Unit Calculated Volume - 0.0003619 cubm
Unit Calculated Weight - 0.049 kg
Units per Pallet - 0
Units per Shipping Box - 10
Vendor Homepage - https://shop.sandisk.com/products/ssd/internal-ssd/sandisk-optimus-5100-internal-nvme-ssd
Warranty - 60L months
Warranty period Other features - 5 year(s)
Weight Weight & dimensions - 5.7 g
Width Weight & dimensions - 22 mm
Windows operating systems supported Features - Windows 10, Windows 11
Write speed Features - 6700 MB/s
