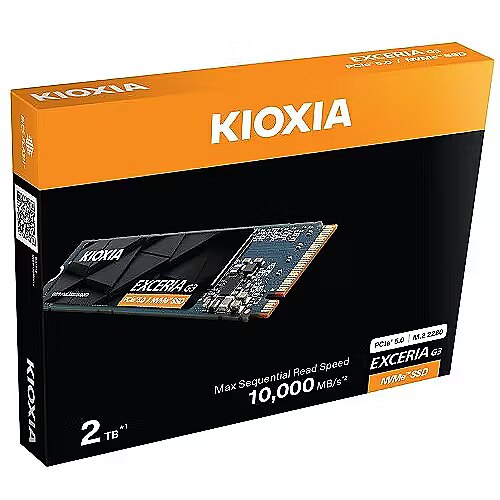

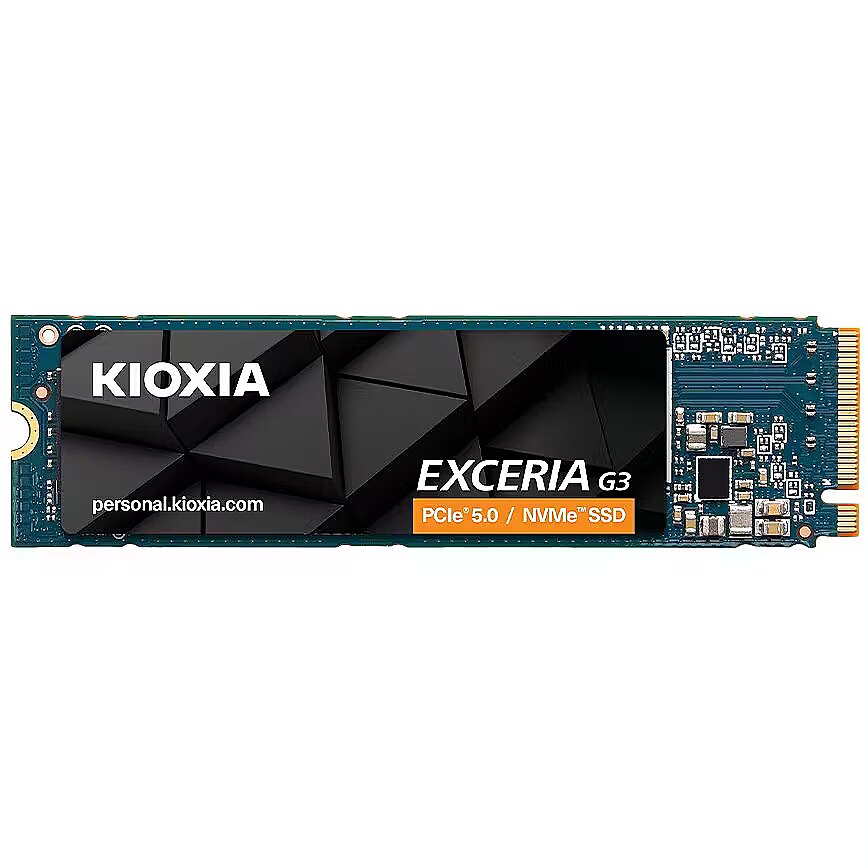

Kioxia Exceria G3, 2TB, M.2 Gen5 x4

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
News
ID: 1388621 Product code: LVC10Z002TG8
Can be ordered 40 units Availability: 14 days after order approval
Warranty: 3 years
362.41 €
Ready for dispatch
16.03.2026
starting from 1.99 €
Delivery options
  • Omniva parcel machine
    Within 1-2 working days
    1.99 €
  • SmartPosti parcel terminal
    Within 1-2 working days
    1.99 €
  • Unisend parcel terminal
    Within 1-2 working days
    1.99 €
  • Delivery by courier to the address
    Within 1-2 working days
    5.99 €
Main product parameters All parameters
  • Capacity: 2 TB
  • Type: NVMe
  • Read speed (sequential): 10000 MB/s
  • Write speed (sequential): 9600 MB/s
  • Form factor: M.2 80mm (2280)
  • Interface: PCIe 5.0 x4
Description

Available for purchase, the Kioxia M.2 80mm (2280) format SSD disk with a large volume of 2 TB.

The disk is equipped with the currently most advanced and compact M.2 connection port.

This SSD drive uses the latest NVME standard with PCIe interface, which allows simultaneous data transmission across multiple data lines. Thanks to this technology, the drive is ideally suited for those who work with large files, play computer games or deal with video editing.

The read speed for this SSD drive reaches 10000 MB/s. However, it's crucial to note - if the "fast" drives are not provided with adequate cooling, they may not be able to operate at the speed indicated by the manufacturer.

The writing speed for this SSD disk reaches 9600 MB/s. Without a suitable cooling mechanism, "fast" disks may not be able to achieve the performance indicators promised by the manufacturer.

The format of this SSD drive (physical size of the drive) is M.2 80mm (2280).

This SSD drive interface is PCIe 5.0 x4. If you insert this drive into an older interface slot, the speed of the drive will decrease, as the drive will not have sufficient data transfer speed (Bandwidth).

Basic information
Capacity 2 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type : NVMe
Read speed (sequential) 10000 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 9600 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality
Radiators : Nav
Lighting : Nav
Ports and equipment
Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 5.0 x4
Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija
Memory type : QLC (Quad-Level Cell)
Random Read IOPS : 1.6M
Random Write IOPS : 1.45M
Endurance (TBW) : 1200 TB
More detailed specification
Color - Not applicable
Depth - 80.15 mm
Description - Exceria G3 The First Step Toward PCIe 5.0 Performance
Take the first step toward PCIe 5.0 performance. The KIOXIA EXCERIA G3 SSD series, the entry-level model supporting PCIe 5.0, takes performance to a new level, reaching up to 10,000 MB/s sequential read speeds. It accelerates not only everyday computing tasks but also supports AI applications and helps create a comfortable gaming environment. Thanks to 3D BiCS FLASH memory, this updated SSD series now offers up to 2 TB of capacity in the M.2 2280 form factor, suitable for both desktops and laptops.
Designation - CE+WEEE
dimensionalWeight - 35
dimension depth - 20 mm
dimension height - 120 mm
dimension weight - 38 g
dimension width - 100 mm
Disk type - SSD
Drive type - Internal
ean - 4582761161511
Features - Component for - PC/Laptop
Features - Hardware encryption - No
Features - Interface - PCI Express 5.0
Features - JEDEC standard - Yes
Features - M.2 SSD size - 2280 (22 x 80 mm)
Features - Mean time between failures (MTBF) - 1500000 h
Features - Memory type - QLC
Features - NVMe - Yes
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 1600000 IOPS
Features - Random write (4KB) - 1450000 IOPS
Features - Read speed - 10000 MB/s
Features - SSD capacity - 2 TB
Features - SSD form factor - M.2
Features - SSD usage tag - Consumer
Features - TBW rating - 1200
Features - TRIM support - Yes
Features - Write speed - 9600 MB/s
Form factor (width) - M.2 2280
guarantee - 60
guarantee_type - normal
HDD capacity - 2 TB
HDD interface - PCIe 5.0
Height - 2.38 mm
Mean time between failures (MTBF) - 1500000 h
Model - Exceria G3
name - SSD Exceria G3 2TB 2280 PCIe5.0 10000/9600 MB/s
Operational conditions - Operating shock - 1000 G
Operational conditions - Operating temperature (T-T) - 0 - 85 °C
Operational conditions - Operating vibration - 20 G
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Power - Operating voltage - 3.3 V
Power - Power consumption (max) - 6.4 W
producer - Kioxia
producerCode - LVC10Z002TG8
productName - Kioxia Exceria G3 2 TB M.2 PCI Express 5.0 NVMe QLC
productSize - Normal
Random read IOPS (max) - 1600 K
Random write IOPS (max) - 1450 K
Reading speed - 10000 MB/s
sizeX - 117
sizeY - 17
sizeZ - 90
TBW - 1200 TB
vendpn - LVC10Z002TG8
warrantyLength - 60
warrantyType - G
Weight - 5.8 g
weight - 40
Weight & dimensions - Depth - 80.2 mm
Weight & dimensions - Height - 2.38 mm
Weight & dimensions - Weight - 5.8 g
Weight & dimensions - Width - 22.1 mm
Width - 22.15 mm
Writing speed - 9600 MB/s
