ID: 1261072
Product code: WDS500G5B0E
In stock >50 units
Warranty: 3 years

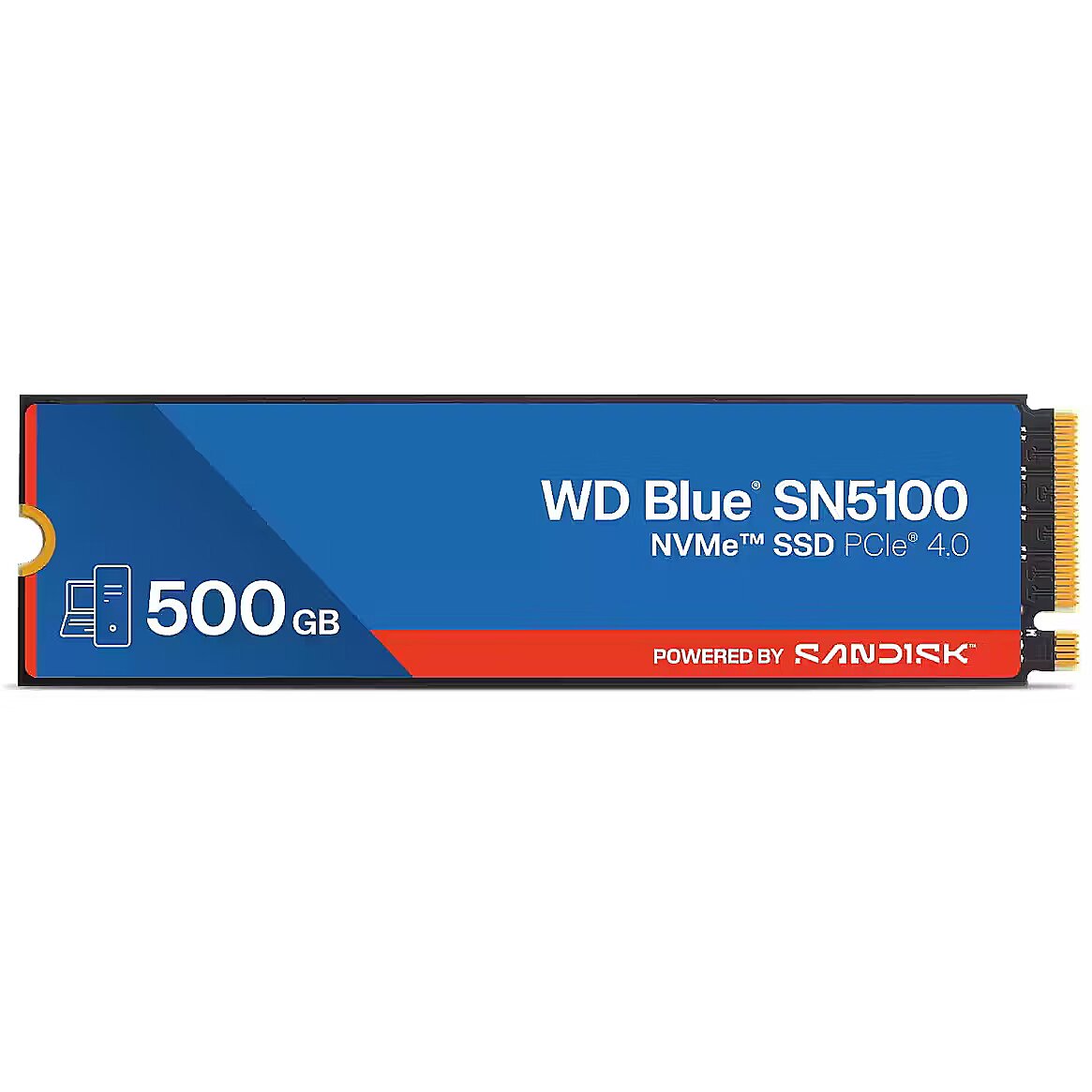

Western Digital Blue SN5100, 500GB, M.2 Gen4 x4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Unisend parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Capacity: 500 GB
- Type: NVME
- Read speed (sequential): 6600 MB/s
- Write speed (sequential): 5600 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 4.0 x4
Description
Available for purchase, the Western Digital M.2 80mm (2280) format SSD disk with a large volume of 500 GB.
This disc uses the latest generation compact M.2 port.
This is an NVME type SSD drive. It uses the PCI-e protocol, which allows data to be transmitted over multiple lines at the same time. This type of drive is ideal for processing large files, gaming, video editing, and other resource-intensive tasks.
The read speed for this SSD drive reaches 6600 MB/s. However, it's crucial to note - if the "fast" drives are not provided with adequate cooling, they may not be able to operate at the speed indicated by the manufacturer.
The write speed (Sequential write speed) of this SSD is 5600 MB/s. However, if adequate cooling is not provided, "fast" drives may not achieve the speeds guaranteed by the manufacturer.
The format of this SSD drive (physical size of the drive) is M.2 80mm (2280).
The SSD drive has a PCIe 4.0 x4 interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.
Basic information
Capacity
500 GB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVME
Read speed (sequential)
6600 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
5600 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: None
Lighting
: None
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 4.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specification
Memory type
: TLC (Triple-Level Cell)
Random Read IOPS
: 660K
Random Write IOPS
: 1.1M
Endurance (TBW)
: 300 TB
More detailed specification
Additional model naming - POWERED BY SANDISK
Augstums (mm) - 2.38 milimetrs
Average power consumption (read) Power - 3.8 W
Average power consumption (write) Power - 3.8 W
Category 1 - SSDs
Category 2 - Interne SSDs
Category Code - SSU
Compliance certificates Other features - BSMI/CB/CE/Federal Communications Commission (FCC)/ICES/KCC/RCM/RoHS/UKCA/UL/VCCI
Component for Features - PC/Laptop
Depth Weight & dimensions - 80 mm
Description - WD Blue SN5100 NVMe SSD POWERED BY SANDISK 500 GB Harness the power of AI with the WD Blue® SN5100 NVMe™ SSD. The WD Blue® SN5100 NVMe™ SSD with PCIe® Gen 4.0 delivers read speeds up to 7,100 MB/s, 30% faster than our prior generation. Create and store more with capacities up to 4TB on M.2 2280 built with our next generation SANDISK 3D CBA NAND technology. And with SANDISK nCache 4.0, you can copy large files or project folders faster than before. Speed up your projects Accelerate your AI-enabled workflow and loading assets quicker with PCIe® Gen 4.0 read speeds up to 7,100 MB/s, 30% faster than our prior generation. Create and store more Make more room for your masterpieces with capacities from 500GB up to 4TB on M.2 2280 deploying next generation SANDISK 3D CBA NAND technology. Work faster, wait less Copy large files or project folders in blistering speeds thanks to our SANDISK nCache™ 4.0 technology. Create confidently Your new drive comes with a 5-year limited warranty, giving you peace of mind that your hard work isn’t wasted. Free Acronis® True Image™ software Download Acronis True Image™ for SANDISK data migration software to transfer your files to your new SSD. Monitor your new drive Monitor your SSD’s performance and check for updates with the downloadable SANDISK Dashboard application. PCIe® Gen 4.0, NVMe™ SSD Sequential read speeds up to 7,100 MB/s and sequential write speeds up to 6,700 MB/s (1TB-2TB models) Random read speeds up to 1M IOPS and random write speeds up to 1.3M IOPS (1TB-2TB models) 500GB, 1TB, 2TB, and 4TB SANDISK® QLC 3D CBA NAND SANDISK® nCache™ 4.0 Technology
Dziļums (mm) - 80 milimetrs
EAN - 0718037906287
EAN kods - 718037906287
Flash Memory Cell Technology - Quad-Level Cell
Formas faktors - M.2 22x80mm
Gabali iepakojumā - 1
Garantija Produkti atgriežami - Jā
Garantijas apstiprināšanas kritēriji - Sērijas numurs
Garantijas termiņš (mēnesis) - 60 mēnesis(-i)
Hardware encryption Features - Yes
Height Weight & dimensions - 2.38 mm
Iekļauti aksesuāri - Ātrā lietošanas pamācība
Iepakojuma augstums (mm) - 2 milimetrs
Iepakojuma garums (mm) - 80 milimetrs
Iepakojuma platums (mm) - 21 milimetrs
Iepakojuma svars Brutto (kg) - 0.049 kilograms
Iepakojuma svars Netto (kg) - 0.01 kilograms
Iepakojuma tips - Kaste
Iepakojums kastē - 10
Ierīces atrašanās vieta - Plug-in Module
Interface Features - PCI Express 4.0
Kastes augstums (mm) - 126 milimetrs
Kastes garums (mm) - 102 milimetrs
Kastes platums (mm) - 21 milimetrs
Kastes svars Brutto (kg) - 0.521 kilograms
M.2 SSD size Features - 2280 (22 x 80 mm)
Maksimālā darba vides temperatūra - 85 Celsija grāds
Maksimālā nedarbojošās apkārtējās vides temperatūra - 85 Celsija grāds
Manufacturer - Western Digital
Maximum Power Consumption - 3.8 Vats
Maximum Random Read Rate - 660000 IOPS
Maximum Random Write Rate - 1100000 IOPS
Maximum Sequential Read Rate - 6600 Megabaits sekundē
Maximum Sequential Write Rate - 5600 Megabaits sekundē
Mean Time Between Failures - 17500000 stunda
Mean time between failures (MTBF) Features - 1750000 h
Memory Technology - 3D NAND
Memory type Features - QLC 3D NAND
Minimālā darba vides temperatūra - 0 Celsija grāds
Minimālā nedarbojošās apkārtējās vides temperatūra - -40 Celsija grāds
Model - WD Blue SN5100 NVMe SSD POWERED BY SANDISK 500 GB
MPN - WDS500G5B0E-00CPE0
Name - M.2 WD Blue SN5100 NVMe 500 GB Internal Solid State Drive PCIe 4.0 x4 NVMe – WDS500G5B0E-00CPE0
Nominālais svars - 5.7 grams
Non-operating vibration Operational conditions - 4.9 G
NVMe Features - Yes
Operating shock Operational conditions - 1500 G
Operating temperature (T-T) Operational conditions - 0 - 85 °C
Operating vibration Operational conditions - 5 G
Package depth Packaging data - 21 mm
Package height Packaging data - 126 mm
Package type Packaging data - Box
Package weight Packaging data - 49 g
Package width Packaging data - 101.6 mm
PCI Express interface data lanes Features - x4
Platums (mm) - 22 milimetrs
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=250818073245856724&THEME=asbis&LANG=lv
ProductCategory - SSD
ProductCode - WDS500G5B0E-00CPE0
ProductDescription - SSD POWERED BY SANDISK WD Blue SN5100 500GB M.2 2280 PCIe Gen4 x4 NVMe QLC 3D, Read/Write: 6600/5600 MBps, IOPS 660K/1100K, TBW: 300
ProductType - SSD Client
Random read (4KB) Features - 660000 IOPS
Random write (4KB) Features - 1100000 IOPS
Read speed Features - 6600 MB/s
Security algorithms Features - TCG Pyrite
Sertifikācija - BSMI, CAN ICES-3(B)/NMB-3(B), CB-Scheme, CE, FCC, KCC, Morocco, RCM, TÜV, UL, VCCI, UKCA
Shock Tolerance Operating - 1500G @ 0.5ms
SSD capacity Features - 500 GB
SSD form factor Features - M.2
SSD series - Blue SN5100
Storage Capacity - 500 gigabaits
Storage temperature (T-T) Operational conditions - -40 - 85 °C
Summary - Western Digital 500GB WD Blue® SN5100 NVMe™ SSD. SSD capacity: 500 GB, SSD form factor: M.2, Read speed: 6600 MB/s, Write speed: 5600 MB/s, Component for: PC/Laptop
Supports Data Channel - PCIe NVMe 4.0 x4
TBW rating Features - 300
Total Bytes Written (TBW) - 300 terabaits
Unit Box Height - 0.023
Unit Box Length - 0.125
Unit Box Width - 0.102
Unit Calculated Volume - 0.0003668 cubm
Unit Calculated Weight - 0.056 kg
Units per Pallet - 0
Units per Shipping Box - 10
Vendor - WESTERN DIGITAL
Vendor Homepage - https://shop.sandisk.com/products/ssd/internal-ssd/wd-blue-sn5100-nvme-ssd?sku=WDS500G5B0E-00CPE0
Vibration Tolerance Operating - 5G @ 10-2000Hz
Vibration Tolerance Storage - 4.9G @ 7-800Hz
Warranty - 60L months
Weight - 0.049
Weight Weight & dimensions - 5.7 g
Width Weight & dimensions - 22 mm
Write speed Features - 5600 MB/s
