Lenovo THINKSYSTEM M.2 ER3 480GB READ INTENSIVE SATA 6GB NHS SSD

Name: Lenovo THINKSYSTEM M.2 ER3 480GB READ INTENSIVE SATA 6GB NHS SSD
Brand: Lenovo
SKU: 1251408
Price: 470.99 EUR
Availability: InStock

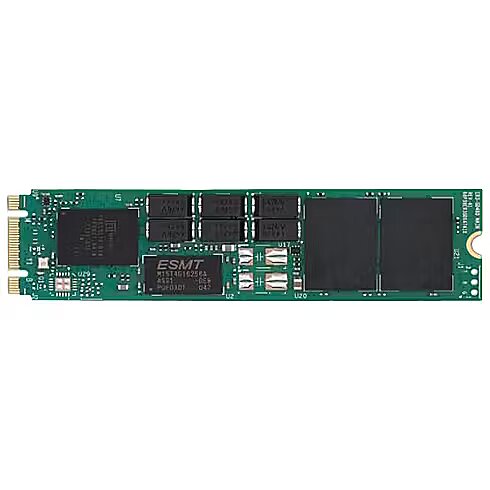

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1251408 Product code: 4XB7A90049

Can be ordered 2 units Availability: 14 days after order approval

Warranty: 2 years (Warranty for business entities 1 year)

Compare

Ready for dispatch

15.09.2025

starting from 1.99 €

Delivery options

Omniva parcel machine

Within 1-2 working days

1.99 €
SmartPosti parcel terminal

Within 1-2 working days

1.99 €
Delivery by courier to the address

Within 1-2 working days

5.99 €

Main product parameters All parameters

Capacity: 480 GB
Type: SATA
Write speed (sequential): 520 MB/s
Interface: SATA III (6Gb/s)

Basic information

Capacity 480 GB

The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.

Type : SATA

Write speed (sequential) 520 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Ports and equipment

Interface : SATA III (6Gb/s)

Interface SATA

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija

Random Read IOPS : 90K

More detailed specification

Additional information in manufacturers website Lenovo THINKSYSTEM M.2 ER3 480GB READ INTENSIVE SATA 6GB NHS SSD

ARTIKEL1 - THINKSYSTEM M.2 ER3 480GB
ARTIKEL2 - READ INTENSIVE SATA 6GB NHS SSD
Brand - Lenovo
BrandPartCode - 4XB7A90049
Breite - 0.14
Category - Internal Solid State Drives
EANCode - 0889488704965
Features - Certification - CE
UL
BSMI
RoHS
Features - Component for - Server/workstation
Features - Data transfer rate - 6 Gbit/s
Features - Drive writes per day (DWPD) - 1
Features - H/W PLP function - Yes
Features - Hardware encryption - Yes
Features - Interface - Serial ATA III
Features - M.2 SSD size - 2280 (22 x 80 mm)
Features - Mean time between failures (MTBF) - 2000000 h
Features - Memory type - 3D TLC NAND
Features - Native Command Queuing (NCQ) - Yes
Features - NVMe - No
Features - Random latency - read (up to) - 120 µs
Features - Random latency - write (up to) - 70 µs
Features - Random read (4KB) - 90000 IOPS
Features - Random write (4KB) - 15000 IOPS
Features - Read speed - 520 MB/s
Features - S.M.A.R.T. support - Yes
Features - SSD capacity - 480 GB
Features - SSD form factor - M.2
Features - TRIM support - Yes
Features - Uncorrectable Bit Error Rate (UBER) - < 1 per 10^17 bits read
Features - Write speed - 520 MB/s
Gewicht - 0.03
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
GTIN - 0889488704965
GTIN - 889488704965
HERSTELLER - LENOVO
Hoehe - 0.02
HSTNUMMER - 4XB7A90049
Laenge - 0.22
LongDesc - The ThinkSystem ER3 Read Intensive SATA 6Gb SSDs, in capacities up to 960GB, are 6Gb SATA drives, available in M.2 form factor. They are suitable for general data storage functions and operating system boot purposes on ThinkSystem servers.This product guide provides essential presales information to understand the ER3 SSDs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ER3 SSDs and consider their use in IT solutions.
LongProductName - ThinkSystem M.2 ER3 480GB Read Intensive SATA 6Gb NHS
LongSummaryDescription - Lenovo 4XB7A90049. SSD capacity: 480 GB, SSD form factor: M.2, Read speed: 520 MB/s, Write speed: 520 MB/s, Data transfer rate: 6 Gbit/s, Component for: Server/workstation
Operational conditions - Non-operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features - Compliance certificates - RoHS
Power - Power consumption (read) - 3.5 W
Power - Power consumption (write) - 3.8 W
ProductName - 4XB7A90049
ShortSummaryDescription - Lenovo 4XB7A90049, 480 GB, M.2, 520 MB/s, 6 Gbit/s
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
Title - Lenovo 4XB7A90049 internal solid state drive 480 GB M.2 Serial ATA III 3D TLC NAND
URL - https://lenovopress.lenovo.com/lp1858-thinksystem-er3-read-intensive-sata-6gb-ssd?orgRef=https%253A%252F%252Fwww.google.com%252F
WarrantyInfo -
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 3.65 mm
Weight & dimensions - Weight - 10 g
Weight & dimensions - Width - 22 mm
