ID: 1230159
Product code: ASX6000LNP-256GT-C
Can be ordered 1 units Availability: 14 days after order approval
Warranty: 3 years

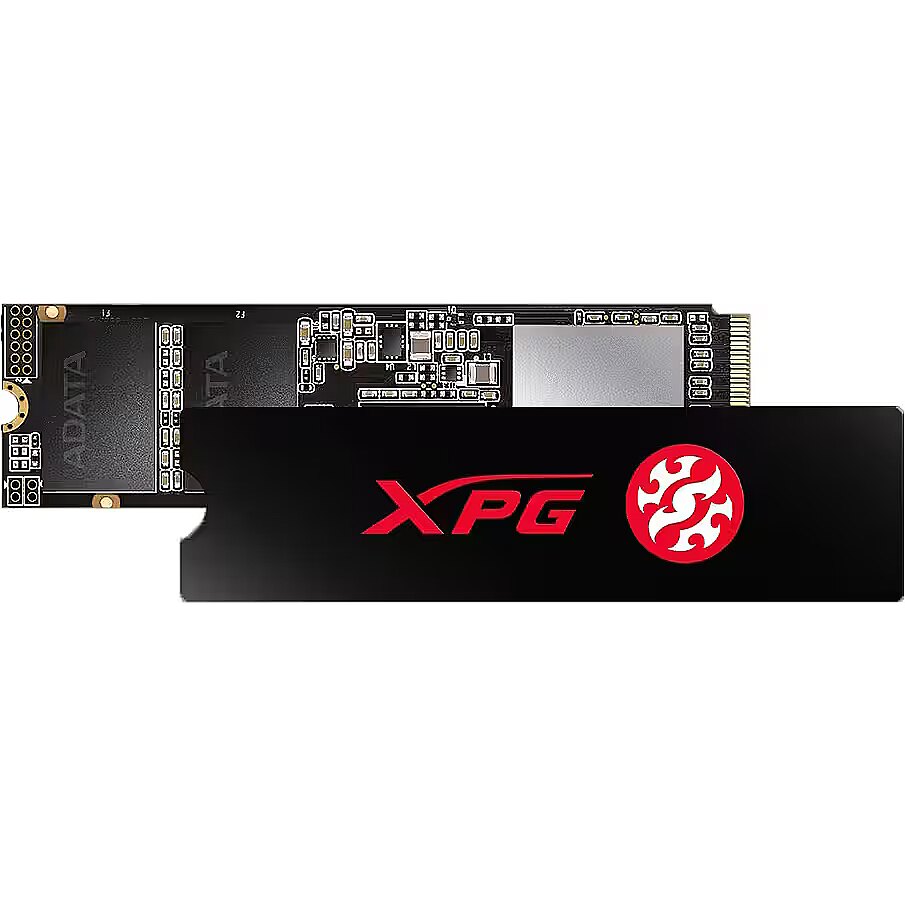

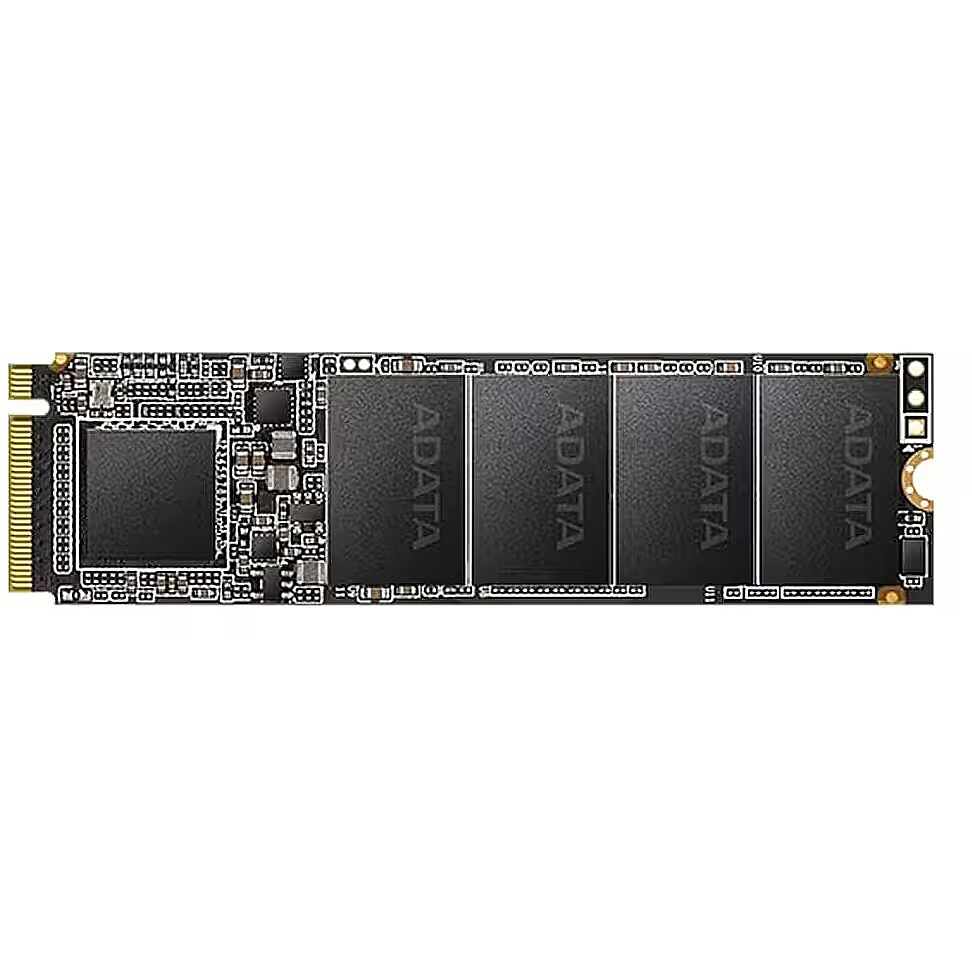

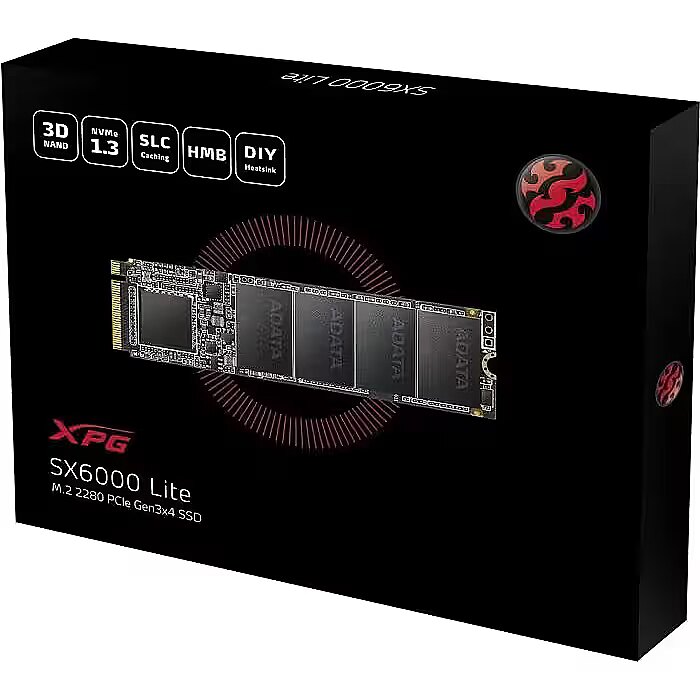

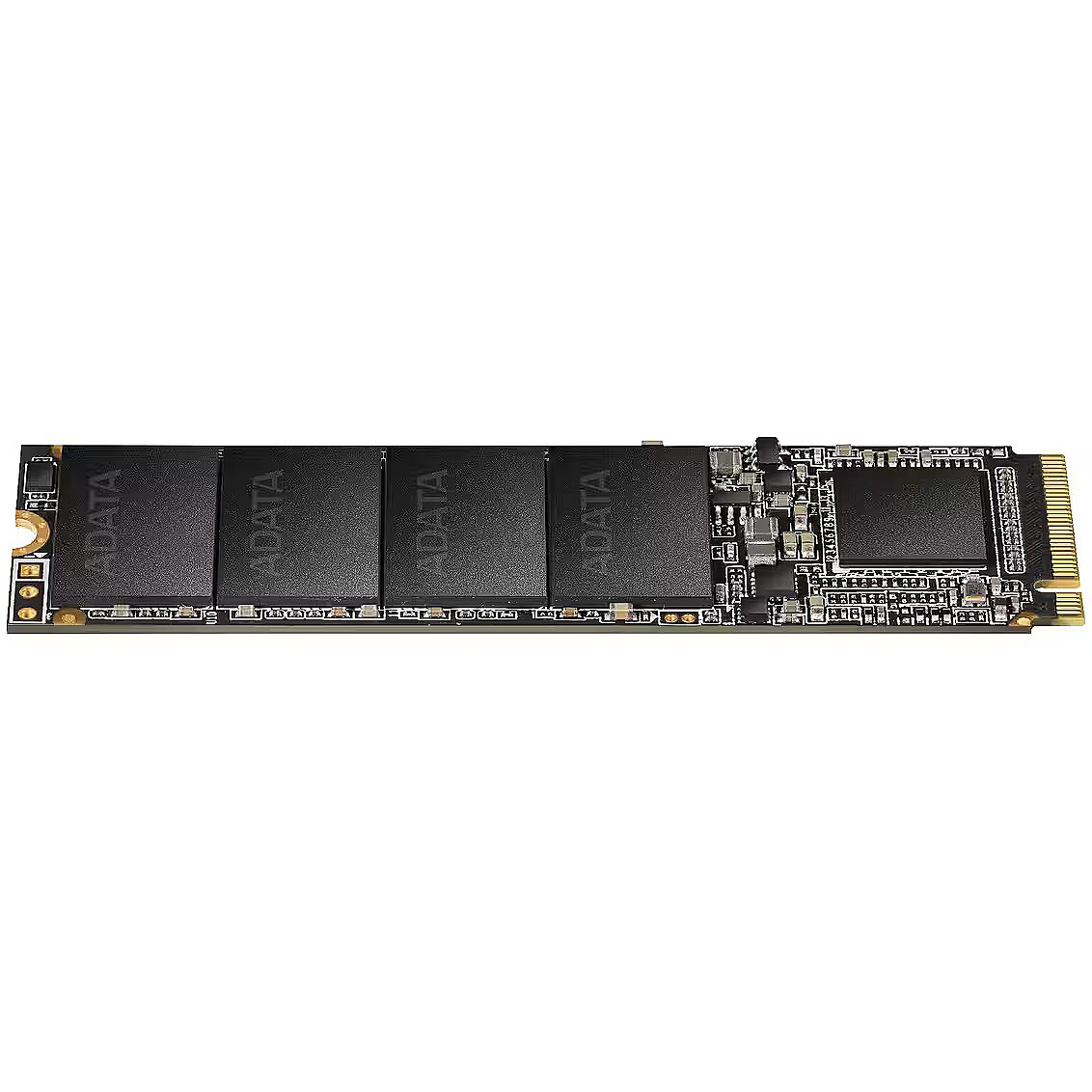

ADATA XPG SX6000 Lite, 256GB, M.2 Gen3 x4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPost parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Capacity: 256 GB
- Type: NVMe
- Read speed (sequential): 1800 MB/s
- Write speed (sequential): 900 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 3.0 x4
Description
Available for purchase, the Adata M.2 80mm (2280) format SSD disk with a large volume of 256 GB.
This SSD drive has a compact and modern M.2 connector.
This is a fast-acting NVME SSD drive, based on PCIe technology. It allows data to be transmitted in parallel over multiple channels, ensuring excellent performance. This type of drive is perfectly suited for activities such as processing large files, gaming, and video editing, where maximum data transmission speed is required.
The read speed for this SSD drive reaches 1800 MB/s. However, it's crucial to note - if the "fast" drives are not provided with adequate cooling, they may not be able to operate at the speed indicated by the manufacturer.
900 MB/s - this SSD drive is capable of achieving such data writing speed. The speed parameters promised by the manufacturer may not be reached if the "fast" disk is not provided with an appropriate cooling system.
The format of this SSD drive (physical size of the drive) is M.2 80mm (2280).
This SSD drive interface is PCIe 3.0 x4. If you insert this drive into an older interface slot, the speed of the drive will decrease, as the drive will not have sufficient data transfer speed (Bandwidth).
Basic information
Capacity
256 GB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVMe
Read speed (sequential)
1800 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
900 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: Nav
Lighting
: Nav
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 3.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specifikācija
Memory type
: TLC (Triple-Level Cell)
Random Read IOPS
: Not indicated
Random Write IOPS
: Not indicated
Endurance (TBW)
: 120 TB
More detailed specification
Brand - XPG
BrandPartCode - ASX6000LNP-256GT-C
Category - Internal Solid State Drives
dimensionalWeight - 45
Features - Certification - CE, FCC, BSMI, VCCI, KC
Features - Component for - PC/Laptop
Features - ECC - Yes
Features - Interface - PCI Express 3.0
Features - Mean time between failures (MTBF) - 1800000 h
Features - Memory type - 3D TLC
Features - NVMe - Yes
Features - NVMe version - 1.3
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 220000 IOPS
Features - Random write (4KB) - 200000 IOPS
Features - Read speed - 1800 MB/s
Features - SSD capacity - 256 GB
Features - SSD form factor - M.2
Features - Write speed - 1200 MB/s
GTIN - 4710273770727
Logistics data - Harmonized System (HS) code - 84717070
LongDesc - Looking to replace your SATA SSD? If so, look no further than the SX6000 Lite PCIe Gen3x4 M.2 2280 SSD. Supporting NVMe 1.3, equipped with 3D NAND Flash, and coming with up to 1TB capacity, the SX6000 Lite is a great upgrade choice.Fast, Efficient, More ProductiveFeaturing HMB (Host Memory Buffer) and SLC Caching, the SX6000 Lite accelerates read/write speeds up to 1800/1200MB/s and delivers random performance of up to 220K/200K IOPS. Whether booting, gaming or transferring large files, the SX6000 Lite accomplish them quickly and effectively.LDPC ECC for Improved Data IntegrityThe SX6000 Lite utilizes LDPC (Low-Density Parity-Check) error correcting code technology to detect and fix a wider range of data errors for more reliable data transfers and a longer product lifespan.Great for Desktops and NotebooksThe SX6000 Lite is suitable for desktop and notebook PCs. As there’s no need for cumbersome installation, you can immediately experience the high speed and smoothness of a PCIe SSD.Cool XPG HeatsinkThe SX6000 Lite comes with a sleek black XPG heatsink with a pre-applied thermal compound inside for DIY installation. With or without the heatsink, the choice is yours. Either way, the SX6000 Lite looks great inside your build.
LongProductName - 256GB, PCIe Gen3x4, M.2, 3D TLC, NVMe 1.3
LongSummaryDescription - XPG SX6000 Lite. SSD capacity: 256 GB, SSD form factor: M.2, Read speed: 1800 MB/s, Write speed: 1200 MB/s, Component for: PC/Laptop
Operational conditions - Operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features - Compliance certificates - RoHS
Packaging data - Package type - Box
Power - Power consumption (average) - 0.33 W
Power - Power consumption (standby) - 0.14 W
producerCode - ASX6000LNP-256GT-C
ProductName - SX6000 Lite
productName - XPG SX6000 Lite M.2 256 GB PCI Express 3.0 3D TLC NVMe
productSize - Normal
ShortSummaryDescription - XPG SX6000 Lite, 256 GB, M.2, 1800 MB/s
sizeX - 130
sizeY - 17
sizeZ - 104
Technical details - Sustainability certificates - RoHS
Title - XPG SX6000 Lite 256 GB M.2 PCI Express 3.0 NVMe 3D TLC
URL - https://www.xpg.com/en/feature/597
WarrantyInfo - 3 years
warrantyLength - 60
warrantyType - G
weight - 30
Weight & dimensions - Depth - 22 mm
Weight & dimensions - Height - 2.15 mm
Weight & dimensions - Weight - 8 g
Weight & dimensions - Width - 80 mm
BrandPartCode - ASX6000LNP-256GT-C
Category - Internal Solid State Drives
dimensionalWeight - 45
Features - Certification - CE, FCC, BSMI, VCCI, KC
Features - Component for - PC/Laptop
Features - ECC - Yes
Features - Interface - PCI Express 3.0
Features - Mean time between failures (MTBF) - 1800000 h
Features - Memory type - 3D TLC
Features - NVMe - Yes
Features - NVMe version - 1.3
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 220000 IOPS
Features - Random write (4KB) - 200000 IOPS
Features - Read speed - 1800 MB/s
Features - SSD capacity - 256 GB
Features - SSD form factor - M.2
Features - Write speed - 1200 MB/s
GTIN - 4710273770727
Logistics data - Harmonized System (HS) code - 84717070
LongDesc - Looking to replace your SATA SSD? If so, look no further than the SX6000 Lite PCIe Gen3x4 M.2 2280 SSD. Supporting NVMe 1.3, equipped with 3D NAND Flash, and coming with up to 1TB capacity, the SX6000 Lite is a great upgrade choice.Fast, Efficient, More ProductiveFeaturing HMB (Host Memory Buffer) and SLC Caching, the SX6000 Lite accelerates read/write speeds up to 1800/1200MB/s and delivers random performance of up to 220K/200K IOPS. Whether booting, gaming or transferring large files, the SX6000 Lite accomplish them quickly and effectively.LDPC ECC for Improved Data IntegrityThe SX6000 Lite utilizes LDPC (Low-Density Parity-Check) error correcting code technology to detect and fix a wider range of data errors for more reliable data transfers and a longer product lifespan.Great for Desktops and NotebooksThe SX6000 Lite is suitable for desktop and notebook PCs. As there’s no need for cumbersome installation, you can immediately experience the high speed and smoothness of a PCIe SSD.Cool XPG HeatsinkThe SX6000 Lite comes with a sleek black XPG heatsink with a pre-applied thermal compound inside for DIY installation. With or without the heatsink, the choice is yours. Either way, the SX6000 Lite looks great inside your build.
LongProductName - 256GB, PCIe Gen3x4, M.2, 3D TLC, NVMe 1.3
LongSummaryDescription - XPG SX6000 Lite. SSD capacity: 256 GB, SSD form factor: M.2, Read speed: 1800 MB/s, Write speed: 1200 MB/s, Component for: PC/Laptop
Operational conditions - Operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features - Compliance certificates - RoHS
Packaging data - Package type - Box
Power - Power consumption (average) - 0.33 W
Power - Power consumption (standby) - 0.14 W
producerCode - ASX6000LNP-256GT-C
ProductName - SX6000 Lite
productName - XPG SX6000 Lite M.2 256 GB PCI Express 3.0 3D TLC NVMe
productSize - Normal
ShortSummaryDescription - XPG SX6000 Lite, 256 GB, M.2, 1800 MB/s
sizeX - 130
sizeY - 17
sizeZ - 104
Technical details - Sustainability certificates - RoHS
Title - XPG SX6000 Lite 256 GB M.2 PCI Express 3.0 NVMe 3D TLC
URL - https://www.xpg.com/en/feature/597
WarrantyInfo - 3 years
warrantyLength - 60
warrantyType - G
weight - 30
Weight & dimensions - Depth - 22 mm
Weight & dimensions - Height - 2.15 mm
Weight & dimensions - Weight - 8 g
Weight & dimensions - Width - 80 mm
