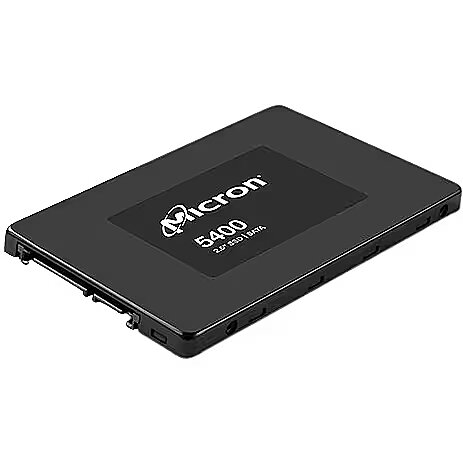

Lenovo ThinkSystem 5400 PRO, 1.92TB, SATA III

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
News
ID: 1227522 Product code: 4XB7A82261
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)
Main product parameters All parameters
  • Capacity: 1.92TB
  • Type: SATA
  • Read speed (sequential): 540 MB/s
  • Write speed (sequential): 520 MB/s
  • Form factor: 2.5"
  • Interface: SATA III (6Gb/s)
Similar Products
News This product Lenovo ThinkSystem 5400 PRO, 1.92TB, SATA III
Recommended Samsung 990 PRO, 1TB, M.2 Gen4 x4
Recommended Samsung 990 PRO, 2TB, M.2 Gen4 x4
Recommended Samsung 990 PRO, 4TB, M.2 Gen4 x4
Recommended Samsung 9100 PRO, 1TB, M.2 Gen5 x4
Show similar specs. Hide similar specs.
1,539.93 €
110.32 €
169.78 €
311.32 €
171.96 €
Basic information
Capacity 1.92TB 1 TB 2 TB 4 TB 1 TB
Type SATA NVMe NVMe NVMe NVMe
Read speed (sequential) 540 MB/s 7450 MB/s 7450 MB/s 7450 MB/s 14700 MB/s
Write speed (sequential) 520 MB/s 6900 MB/s 6900 MB/s 6900 MB/s 13300 MB/s
Functionality
Radiators Nav Nav Nav Nav Nav
Lighting Nav Nav Nav Nav Nav
Ports and equipment
Form factor 2.5" M.2 80mm (2280) M.2 80mm (2280) M.2 80mm (2280) M.2 80mm (2280)
Interface SATA III (6Gb/s) PCIe 4.0 x4 PCIe 4.0 x4 PCIe 4.0 x4 PCIe 5.0 x4
Interface SATA M.2 M.2 M.2 M.2
Specifikācija
Memory type Nav norādīts TLC (Triple-Level Cell) TLC (Triple-Level Cell) TLC (Triple-Level Cell) TLC (Triple-Level Cell)
Random Read IOPS 95K 1.2m 1.4M 1.4M 1.85M
Random Write IOPS 33K 1.55M 1.55M 1.55M 2.6M
Endurance (TBW) 5256 TB 600 TB 1200 TB 1200 TB 600 TB
Description

We offer to purchase a Lenovo 2.5" format SSD drive with a 1.92TB capacity.

The disk is equipped with the traditional SATA port. It uses SATA data and power cables.

This is a SATA type of disk. Even though this SSD disk operates with an older SATA III protocol, it is fully suitable for both everyday tasks and situations when it's important to reduce costs.

The read speed for this SSD drive reaches 540 MB/s. However, it's crucial to note - if the "fast" drives are not provided with adequate cooling, they may not be able to operate at the speed indicated by the manufacturer.

The writing speed for this SSD disk reaches 520 MB/s. Without a suitable cooling mechanism, "fast" disks may not be able to achieve the performance indicators promised by the manufacturer.

This SSD drive has an 2.5" format.

This SSD drive interface is SATA III (6Gb/s). If you insert this drive into an older interface slot, the speed of the drive will decrease, as the drive will not have sufficient data transfer speed (Bandwidth).

Basic information
Capacity 1.92TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type : SATA
Read speed (sequential) 540 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 520 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality
Radiators : Nav
Lighting : Nav
Ports and equipment
Form factor 2.5"

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : SATA III (6Gb/s)
Interface SATA

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija
Memory type : Nav norādīts
Random Read IOPS : 95K
Random Write IOPS : 33K
Endurance (TBW) : 5256 TB
More detailed specification
Additional information in manufacturers website Lenovo ThinkSystem 5400 PRO, 1.92TB, SATA III
ARTIKEL1 - 2.5IN 5400P 1.92TB RI SATA HS
ARTIKEL2 - .
Brand - Lenovo
BrandPartCode - 4XB7A82261
Category - Internal Solid State Drives
EANCode - 0889488633333
Features - Certification - Micron Green Standard
Built with sulfur resistant resistors
CE (Europe): EN 55032 Class B, RoHS
UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS
FCC: CFR Title 47, Part 15 Class B
UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013
BSMI (Taiwan): approval to CNS 13438 Class B and CNS 15663
RCM (Australia, New Zealand): AS/NZS CISPR32 Class B
KC RRA (Korea): approval to KN32 Class B, KN 35 Class B
W.E.E.E.: compliance with EU WEEE directive 2012/19/EC
TUV (Germany): approval to IEC60950/EN60950
VCCI (Japan): 2015-04 Class B
IC (Canada): ICES-003 Class B
Morocco: approval to EN55032/EN55024 Class B
UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139)
Features - Component for - Server/workstation
Features - ECC - Yes
Features - Hot-swap - Yes
Features - Interface - Serial ATA III
Features - Mean time between failures (MTBF) - 3000000 h
Features - Memory type - 3D TLC NAND
Features - Random read (4KB) - 95000 IOPS
Features - Random write (4KB) - 33000 IOPS
Features - Read latency - 170 µs
Features - S.M.A.R.T. support - Yes
Features - Security algorithms - 256-bit AES
Features - SSD capacity - 1.92 TB
Features - SSD form factor - 2.5"
Features - Write latency - 120 µs
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
GTIN - 0889488633333
GTIN - 889488633333
HERSTELLER - LENOVO
HSTNUMMER - 4XB7A82261
LongDesc - The ThinkSystem 5400 PRO Read Intensive SATA 6Gb SSDs are general-purpose self-encrypting SSDs (SEDs) based on the Micron 5400 PRO platform and are available in capacities ranging from 240GB to 7.86TB. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.This product guide provides essential presales information to understand the 5400 PRO SSDs, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the 5400 PRO SSDs and consider their use in IT solutions.
LongProductName - 2.5" 5400 PRO 1.92TB Read Intensive SATA 6Gb HS SSD
LongSummaryDescription - Lenovo 4XB7A82261. SSD capacity: 1.92 TB, SSD form factor: 2.5", Component for: Server/workstation
Operational conditions - Non-operating shock - 1500 G
Operational conditions - Non-operating vibration - 3.13 G
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Power - Power consumption (read) - 3 W
Power - Power consumption (write) - 3.6 W
ProductName - 4XB7A82261
ShortSummaryDescription - Lenovo 4XB7A82261, 1.92 TB, 2.5"
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
Title - Lenovo 4XB7A82261 internal solid state drive 1.92 TB 2.5" Serial ATA III 3D TLC NAND
URL - https://lenovopress.lenovo.com/lp1634-thinksystem-5400-pro-read-intensive-sata-6gb-ssds
WarrantyInfo -
Weight & dimensions - Depth - 100 mm
Weight & dimensions - Height - 7 mm
Weight & dimensions - Weight - 70 g
Weight & dimensions - Width - 70 mm
