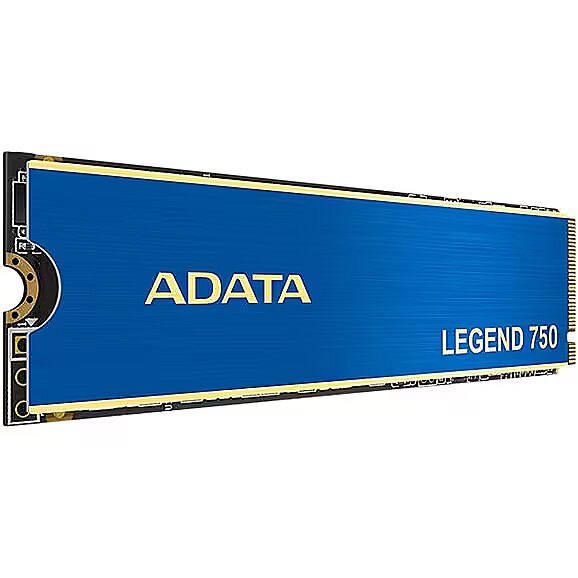

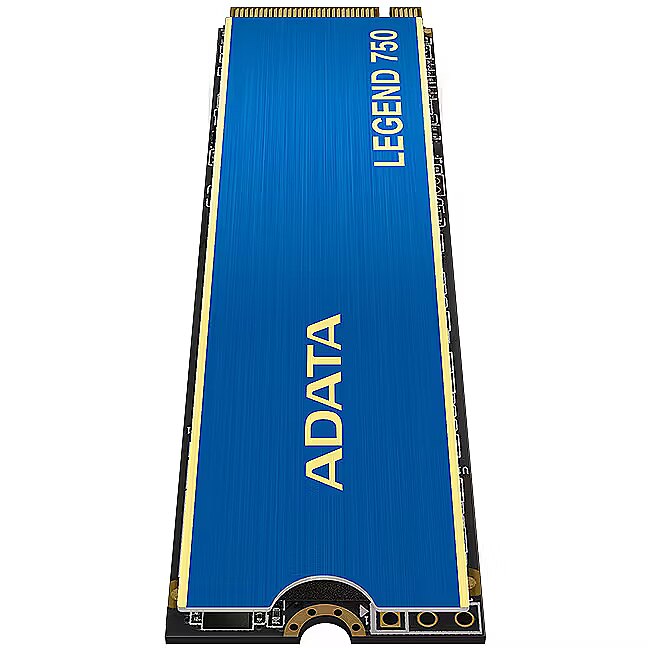

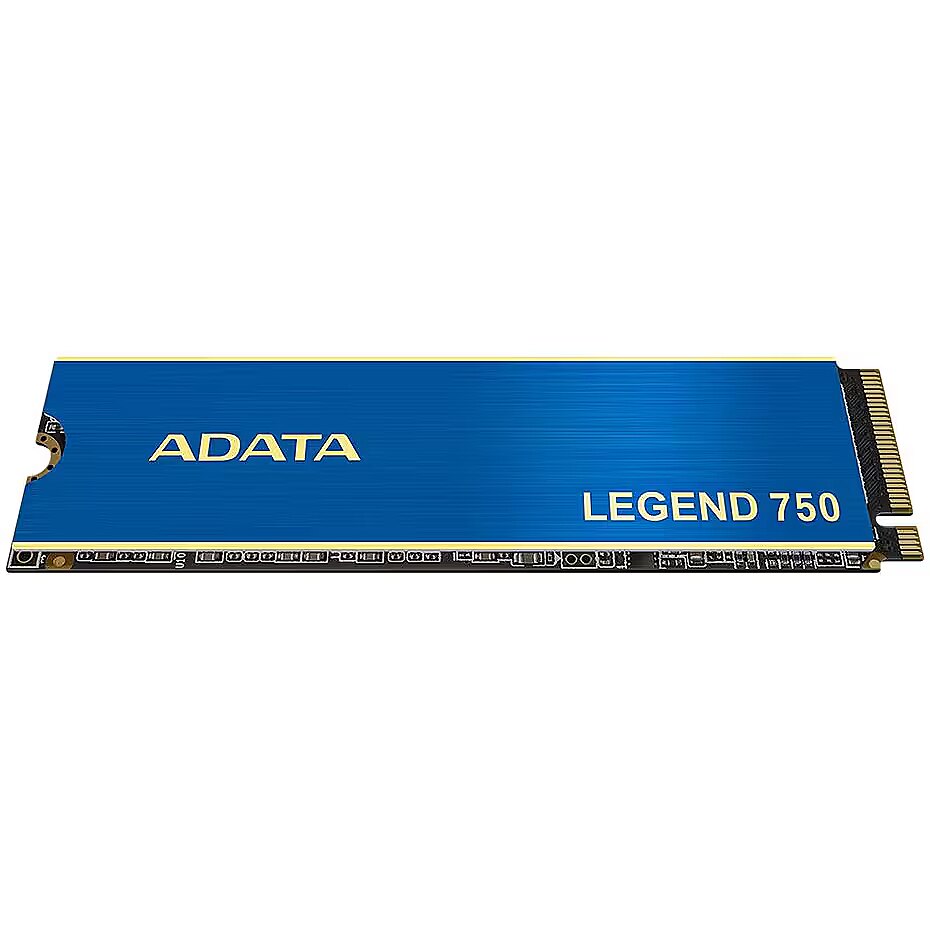

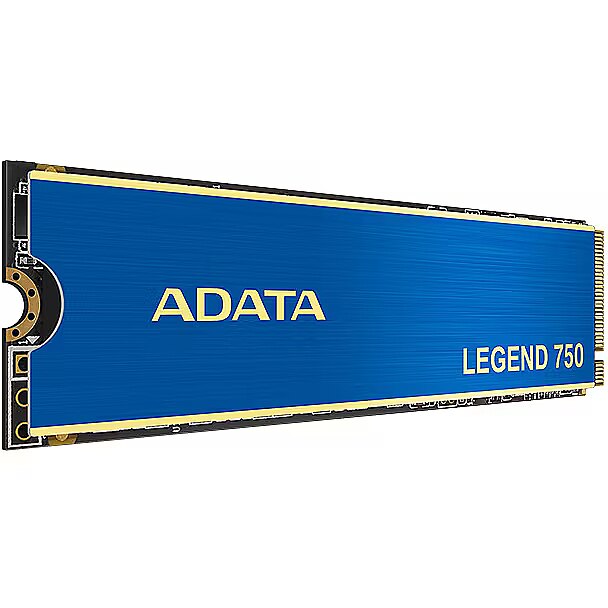

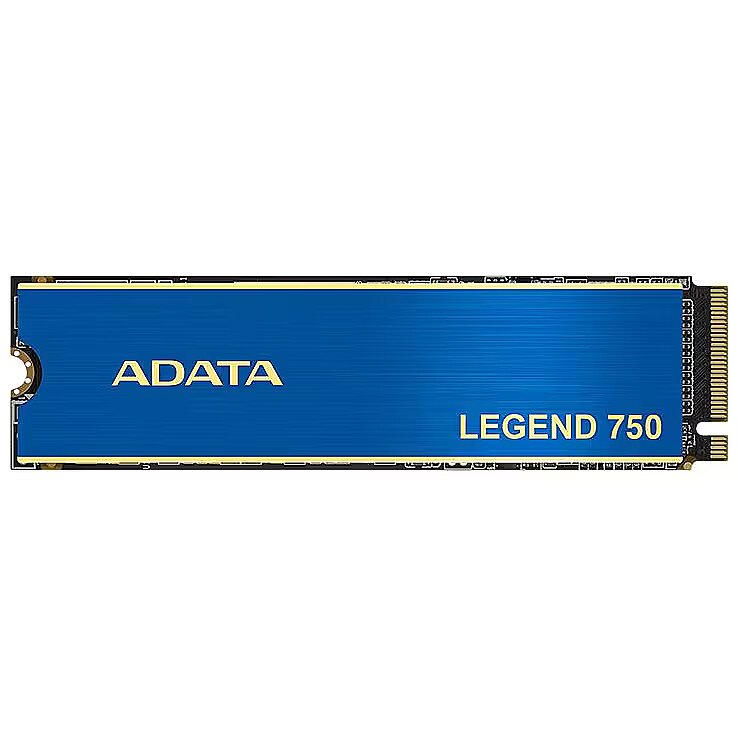

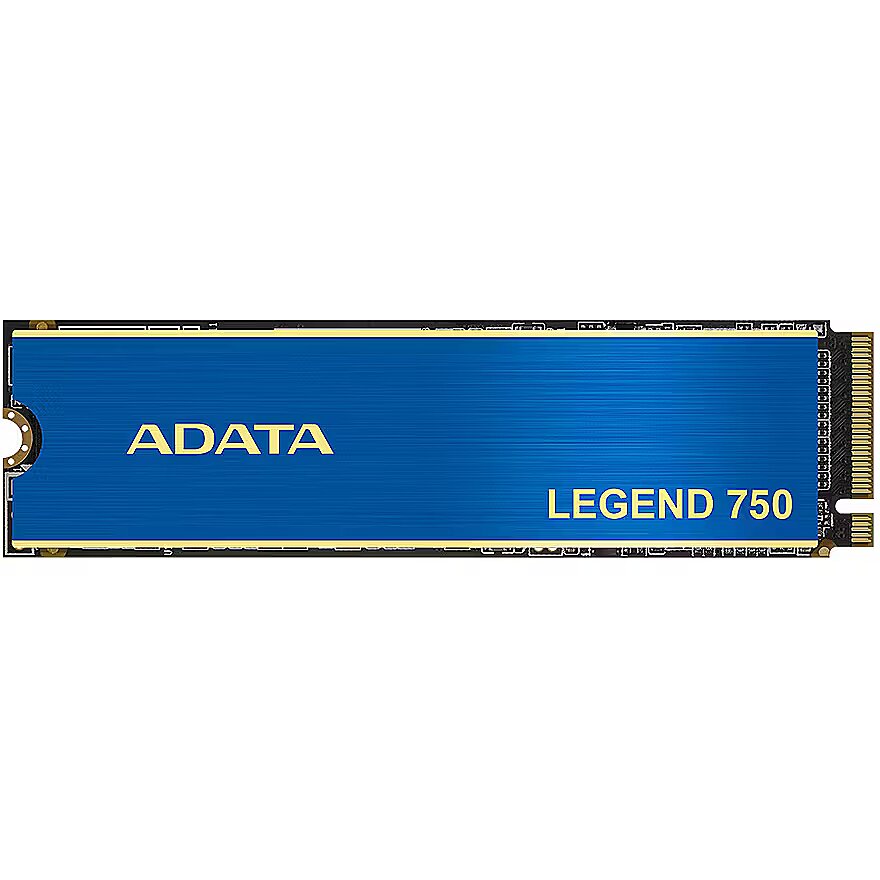

ADATA Legend 750, 500GB, M.2 Gen3 x4

Name: ADATA Legend 750, 500GB, M.2 Gen3 x4
Brand: ADATA
SKU: 1149632
Price: 32.05 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1149632 Product code: ALEG-750-500GCS

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years

Compare

Main product parameters All parameters

Capacity: 500 GB
Type: NVMe
Read speed (sequential): 3500 MB/s
Write speed (sequential): 3000 MB/s
Form factor: M.2 80mm (2280)
Interface: PCIe 3.0 x4

Similar Products

Basic information
	This product ADATA Legend 750, 500GB, M.2 Gen3 x4	ADATA Legend 900, 512GB, M.2 Gen4 x4	ADATA Legend 900, 1TB, M.2 Gen4 x4	ADATA Legend 900, 2TB, M.2 Gen4 x4	Crucial P3, 1TB, M.2 Gen3 x4
Show similar specs. Hide similar specs.	32.05 €	43.27 €	64.50 €	117.48 €	71.14 €
Capacity	500 GB	512 GB	1 TB	2 TB	1 TB
Type	NVMe	NVMe	NVMe	NVMe	NVMe
Read speed (sequential)	3500 MB/s	6200 MB/s	7000 MB/s	7000 MB/s	3500 MB/s
Write speed (sequential)	3000 MB/s	2300 MB/s	4700 MB/s	5400 Mb/s	3000 MB/s
Functionality
Radiators	Nav	Ir	Ir	Ir	Nav
Lighting	Nav	Nav	Nav	Nav	Nav
Ports and equipment
Form factor	M.2 80mm (2280)	M.2 80mm (2280)	M.2 80mm (2280)	M.2 80mm (2280)	M.2 80mm (2280)
Interface	PCIe 3.0 x4	PCIe 4.0 x4	PCIe 4.0 x4	PCIe 4.0 x4	PCIe 3.0 x4
Interface	M.2	M.2	M.2	M.2	M.2
Specifikācija
Memory type	SLC (Single-Level Cell)	TLC (Triple-Level Cell)	TLC (Triple-Level Cell)	TLC (Triple-Level Cell)	QLC (Quad-Level Cell)
Random Read IOPS	250K	Not specified	Not specified	Not specified	Not specified
Random Write IOPS	190K	Not specified	Not specified	Not specified	Not specified
Endurance (TBW)	300 TB	300 TB	600 TB	1200 TB	220 TB

Description

This Adata brand SSD has a 500 GB capacity and a M.2 80mm (2280) format.

The disk is equipped with the currently most advanced and compact M.2 connection port.

This is an NVME type SSD drive. It uses the PCI-e protocol, which allows data to be transmitted over multiple lines at the same time. This type of drive is ideal for processing large files, gaming, video editing, and other resource-intensive tasks.

This SSD disk read speed (Sequential read speed) is 3500 MB/s. Keep in mind that "fast" disks without a proper cooling solution may not reach the speeds indicated by the manufacturer.

3000 MB/s - this SSD drive is capable of achieving such data writing speed. The speed parameters promised by the manufacturer may not be reached if the "fast" disk is not provided with an appropriate cooling system.

This is an SSD disk in the M.2 80mm (2280) format.

The SSD drive has a PCIe 3.0 x4 interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.

Basic information

Capacity 500 GB

The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.

Type : NVMe

Read speed (sequential) 3500 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 3000 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality

Radiators : Nav

Lighting : Nav

Ports and equipment

Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 3.0 x4

Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija

Memory type : SLC (Single-Level Cell)

Random Read IOPS : 250K

Random Write IOPS : 190K

Endurance (TBW) : 300 TB

More detailed specification

Additional information in manufacturers website ADATA Legend 750, 500GB, M.2 Gen3 x4

Brand - ADATA
BrandPartCode - ALEG-750-500GCS
Category - Internal Solid State Drives
dimensionalWeight - 52
Features - Component for - PC/Laptop
Features - ECC - Yes
Features - Hardware encryption - Yes
Features - Interface - PCI Express 3.0
Features - Mean time between failures (MTBF) - 2000000 h
Features - Memory type - 3D NAND
Features - NVMe - Yes
Features - NVMe version - 1.3
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 370000 IOPS
Features - Random write (4KB) - 190000 IOPS
Features - Read speed - 3350 MB/s
Features - Security algorithms - 256-bit AES
Features - Sequential read speed (AS SSD) - 2900 MB/s
Features - Sequential read speed (ATTO) - 3350 MB/s
Features - Sequential read speed (CDM) - 3400 MB/s
Features - Sequential write speed (AS SSD) - 2100 MB/s
Features - Sequential write speed (ATTO) - 2450 MB/s
Features - Sequential write speed (CDM) - 2400 MB/s
Features - SSD capacity - 500 GB
Features - SSD form factor - M.2
Features - TBW rating - 300
Features - Write speed - 2450 MB/s
GTIN - 4711085935915
Logistics data - Harmonized System (HS) code - 84717070

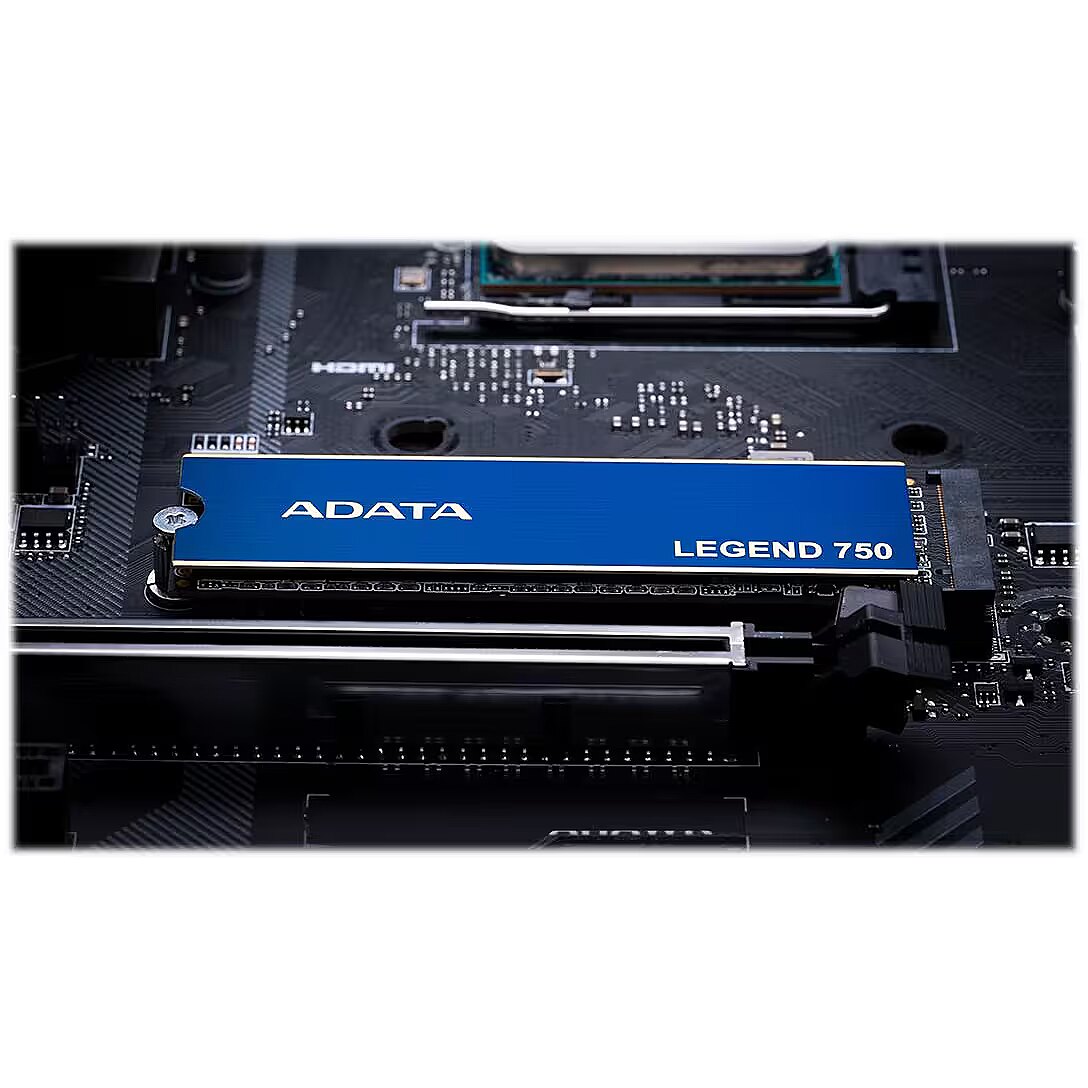

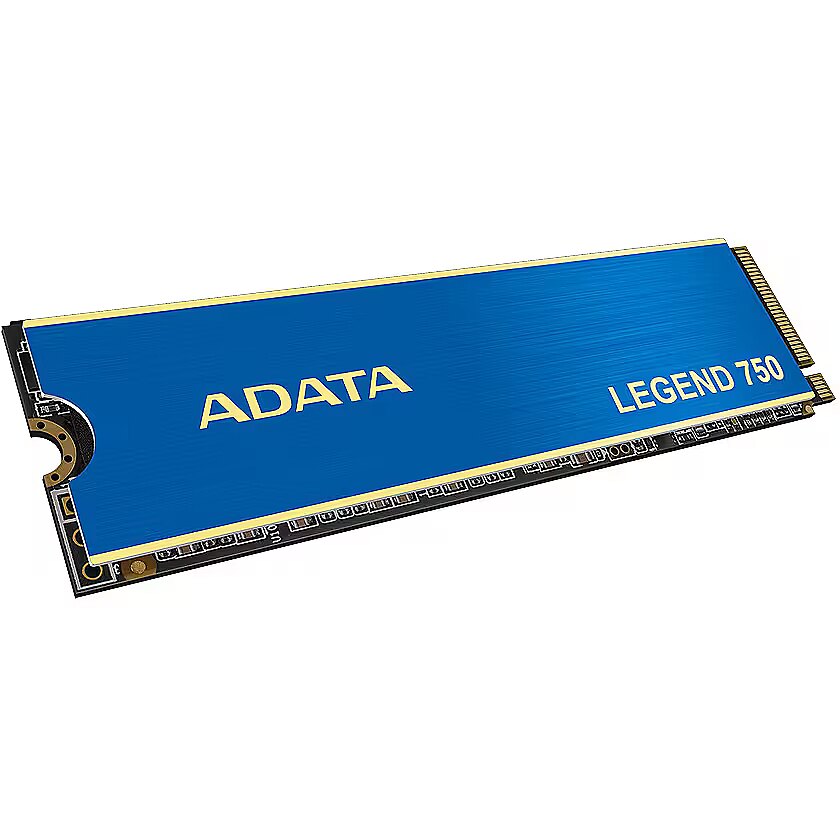

LongDesc - A Burst of InspirationUtilizing PCIe Gen3 x4 and NVMe 1.3, the LEGEND 750 delivers sustained read and write speeds of up to 3,500/3,000 MB per second. It's M.2 2280 specification supports the latest Intel and AMD platforms, including desktop PCs and laptops.Keeping Things CoolThe LEGEND 750's understated but elegant heat sink design is characterized by a regal blue color scheme with an exquisite bronze-colored trimming. The heat sink works to keep temperatures down by 15% for optimal performance and stability.Helping You Create BetterCreativity can't wait! The LEGEND 750 is equipped with SLC caching and HMB technology (Host Memory Buffer) for seamless productivity. Its maximum 4K random read/write reaches up to 480K/260K IOPS for effortless multitasking.Protecting Your CreationsWith LDPC (Low Density Parity Check Code) and AES 256-bit encryption, the LEGEND 750 ensures accurate data transmissions and security.
LongProductName - 500 GB, M.2, PCIe Gen3 x4, 3D NAND, NVMe 1.3, 3350 MB/s read, 2450 MB/s write
LongSummaryDescription - ADATA Legend 750. SSD capacity: 500 GB, SSD form factor: M.2, Read speed: 3350 MB/s, Write speed: 2450 MB/s, Component for: PC/Laptop
Operational conditions - Maximum operating temperature - 70 °C
Operational conditions - Minimum operating temperature - 0 °C
Operational conditions - Operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features - Compliance certificates - CE, RoHS
Packaging data - Package type - Box
producerCode - ALEG-750-500GCS
productName - ADATA Legend 750 M.2 500 GB PCI Express 3.0 3D NAND NVMe
ProductName - Legend 750
productSize - Normal
ShortSummaryDescription - ADATA Legend 750, 500 GB, M.2, 3350 MB/s
sizeX - 100
sizeY - 20
sizeZ - 130
Title - ADATA Legend 750 500 GB M.2 PCI Express 3.0 NVMe 3D NAND
URL - https://www.adata.com/us/consumer/solid-state-drives-LEGEND-750?tab=description
WarrantyInfo - 5 years limited
warrantyLength - 60
warrantyType - G
weight - 300
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 3.13 mm
Weight & dimensions - Weight - 9 g
Weight & dimensions - Width - 22 mm
