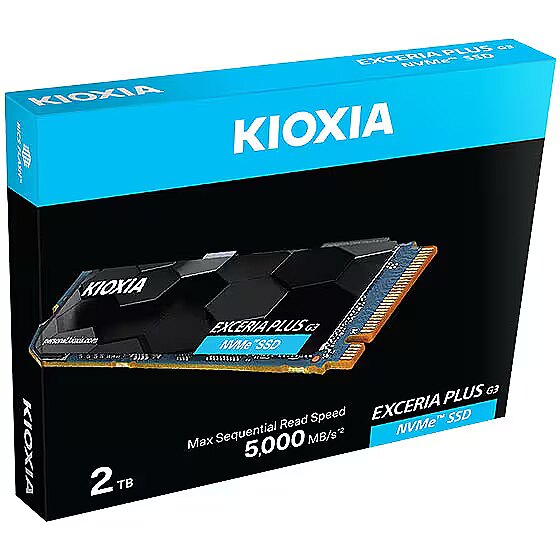

Kioxia Exceria Plus G3, 2TB, M.2 Gen4 x4

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1020563 Product code: LSD10Z002TG8
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)
Main product parameters All parameters
  • Capacity: 2 TB
  • Type: NVME
  • Read speed (sequential): 5000 MB/s
  • Write speed (sequential): 3900 MB/s
  • Form factor: M.2 80mm (2280)
  • Interface: PCIe 4.0 x4
Similar Products
This product Kioxia Exceria Plus G3, 2TB, M.2 Gen4 x4
Kioxia Exceria Plus G3, 1TB, M.2 Gen4 x4
Kioxia Exceria Basic, 2TB, M.2 Gen4 x4
Kioxia Exceria Basic, 1TB, M.2 Gen4 x4
Kioxia Exceria Plus G4, 2TB, M.2 Gen5 x4
Show similar specs. Hide similar specs.
283.36 € €
22,851.61 € € w/o VAT
189.43 € €
152.76 € € w/o VAT
257.92 € €
208.00 € € w/o VAT
181.78 € €
146.60 € € w/o VAT
314.84 € €
253.90 € € w/o VAT
Basic information
Capacity 2 TB 1 TB 2 TB 1 TB 2 TB
Type NVME NVME NVME NVME NVME
Read speed (sequential) 5000 MB/s 5000 MB/s 7300 MB/s 7200 MB/s 10000 MB/s
Write speed (sequential) 3900 MB/s 3900 MB/s 6800 MB/s 6600 MB/s 8200 MB/s
Functionality
Radiators None None None None None
Lighting None None None None None
Ports and equipment
Form factor M.2 80mm (2280) M.2 80mm (2280) M.2 80mm (2280) M.2 80mm (2280) M.2 80mm (2280)
Interface PCIe 4.0 x4 PCIe 4.0 x4 PCIe 4.0 x4 PCIe 4.0 x4 PCIe 5.0 x4
Interface M.2 M.2 M.2 M.2 M.2
Specification
Memory type TLC (Triple-Level Cell) TLC (Triple-Level Cell) QLC (Quad-Level Cell) QLC (Quad-Level Cell) TLC (Triple-Level Cell)
Random Read IOPS 680K 770K 1M 1M 1.3M
Random Write IOPS 950K 950K 1.25M 1.15M 1.4M
Endurance (TBW) 1200 TB 600 TB 600 TB 300 TB 1200 TB
Description

Available for purchase, the Kioxia M.2 80mm (2280) format SSD disk with a large volume of 2 TB.

The disk is equipped with the currently most advanced and compact M.2 connection port.

This SSD drive uses the latest NVME standard with PCIe interface, which allows simultaneous data transmission across multiple data lines. Thanks to this technology, the drive is ideally suited for those who work with large files, play computer games or deal with video editing.

The read speed for this SSD drive reaches 5000 MB/s. However, it's crucial to note - if the "fast" drives are not provided with adequate cooling, they may not be able to operate at the speed indicated by the manufacturer.

The writing speed for this SSD disk reaches 3900 MB/s. Without a suitable cooling mechanism, "fast" disks may not be able to achieve the performance indicators promised by the manufacturer.

The format of this SSD drive (physical size of the drive) is M.2 80mm (2280).

This SSD drive interface is PCIe 4.0 x4. If you insert this drive into an older interface slot, the speed of the drive will decrease, as the drive will not have sufficient data transfer speed (Bandwidth).

Basic information
Capacity 2 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type : NVME
Read speed (sequential) 5000 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 3900 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality
Radiators : None
Lighting : None
Ports and equipment
Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 4.0 x4
Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specification
Memory type : TLC (Triple-Level Cell)
Random Read IOPS : 680K
Random Write IOPS : 950K
Endurance (TBW) : 1200 TB
More detailed specification
Category1 - SSD
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
Color - Not applicable
Depth - 80.15 mm
Description - Exceria Plus G3 SSD The KIOXIA EXCERIA PLUS G3 SSD features a powerful PCIe 4.0 interface, providing gamers and video editors with improved performance. With capacities up to 2TB, this single-sided M.2 2280 series is perfect for popular desktops and notebooks supporting the latest PCIe 4.0 standard. Welcome to the world of PCIe 4.0 Designed to enhance your PC experience, the EXCERIA PLUS G3 SSD series is compatible with PCIe 4.0 and delivers exceptional transfer speeds of up to 5,000 MB/s sequential reading and 3,900 MB/s sequential writing. Whether you're gaming or editing videos, this new series will give you the performance you need. Slimmer storage With a compact, single-sided M.2 2280 form factor, the EXCERIA PLUS G3 SSD series is compatible with a wider range of devices. These compact SSDs plug directly into your motherboard, eliminating cluttered cables for a more elegant and easy system upgrade. Leading speed with PCIe 4.0 The EXCERIA PLUS G3 SSD series delivers better performance without cutting corners. With support for PCIe 4.0 and NVMe 1.4, these SSDs take everyday hardware to the next level and offer gamers and video editors increased computing power. State-of-the-art 3D flash memory The use of BiCS FLASH memory and vertical memory cell structure technology in EXCERIA series SSDs allows for achieving the highest performance. SSD Utility management software The task of the SSD Utility management software is to ensure optimal operation of the KIOXIA drive. It allows you to maintain, monitor, perform improvements on SSD drives and much more! We highly recommend installing and updating to the latest version to improve drive performance and check the remaining percentage of device life on the status indicator.
Description1 - KIOXIA Exceria Plus G3 Series LSD10Z002TG8 - SSD - 2 TB - PCIe 4.0 x4 (NVMe)
Description2 - Elevate your computing experience with the KIOXIA Exceria Plus G3 Series solid state drive. Designed for speed, durability, and efficiency, this SSD features a robust 2 TB capacity, making it suitable for gamers, creative professionals, and tech enthusiasts. With read speeds of up to 5000 MBps and write speeds of up to 3900 MBps, courtesy of its PCI Express 4.0 x4 interface, you'll enjoy swift boot times, quick application launches, and seamless data transfers. The drive's 3D BiCS Flash and Host Memory Buffer (HMB) technologies not only enhance performance but also ensure reliability over time. Additionally, its power-efficient design, featuring Idle Time Garbage Collection and TRIM support, maximizes system responsiveness while minimizing energy consumption. Whether you're upgrading your current system or building a new one, the KIOXIA Exceria Plus G3 Series SSD is a compelling choice for those seeking performance and reliability.
Designation - CE+WEEE
dimension depth - 20 mm
dimension height - 90 mm
dimension weight - 45 g
dimension width - 117 mm
Disk type - SSD
Drive type - Internal
ean - 4582563857889
EAN - 4582563857889
EAN_code - 4582563857889
Form factor (width) - M.2 2280
guarantee - 60
guarantee_type - normal
HDD capacity - 2 TB
HDD interface - PCIe 4.0
Height - 2.63 mm
Manufacturer - Kioxia
ManufacturerID - LSD10Z002TG8
Manufacturer_code - LSD10Z002TG8
Model - Exceria Plus G3
Name - Kioxia Exceria Plus G3 2TB, SSD (PCIe 4.0 x4, M.2 2280)
name - SSD Exceria Plus G3 1TB NVMe
Other features -
producer - Kioxia
Random read IOPS (max) - 680 K
Random write IOPS (max) - 950 K
Reading speed - 5000 MB/s
TBW - 1200 TB
vendpn - LSD10Z002TG8
WEEE - DE83654239
Weight - 0,04
Weight - 7.4 g
Width - 22.15 mm
Writing speed - 3900 MB/s
