ID: 1191482
Product code: S78-440L0F0-P83
In stock 19 units
Warranty: 3 years

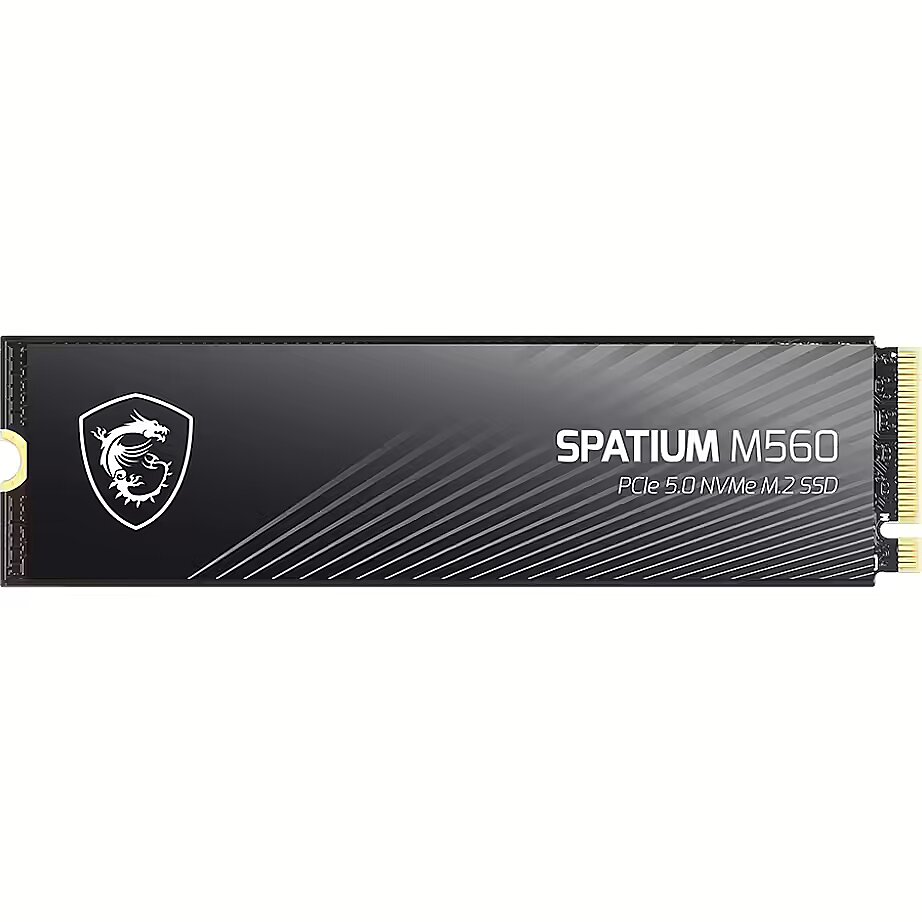

MSI SPATIUM M560, 1TB, M.2 Gen5 x4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPost parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Capacity: 1 TB
- Type: NVMe
- Read speed (sequential): 10200 MB/s
- Write speed (sequential): 8400 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 5.0 x4
Description
This MSI brand SSD has a 1 TB capacity and a M.2 80mm (2280) format.
This SSD drive has a compact and modern M.2 connector.
This is a fast-acting NVME SSD drive, based on PCIe technology. It allows data to be transmitted in parallel over multiple channels, ensuring excellent performance. This type of drive is perfectly suited for activities such as processing large files, gaming, and video editing, where maximum data transmission speed is required.
10200 MB/s – this is the data reading speed that this SSD disk is capable of reaching. However, we must remember one crucial nuance - "fast" disks may not show the performance promised by the manufacturer if adequate cooling is not provided.
The write speed (Sequential write speed) of this SSD is 8400 MB/s. However, if adequate cooling is not provided, "fast" drives may not achieve the speeds guaranteed by the manufacturer.
This is an SSD disk in the M.2 80mm (2280) format.
This SSD disk has a PCIe 5.0 x4 interface. Keep in mind that if you insert a disk with a newer interface (for example, with PCIe 4.0 or 5.0) into an older interface slot (for example, PCIe 3.0), the disk speed will decrease because the disk will not have sufficient data transfer speed (Bandwidth).
Basic information
Capacity
1 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVMe
Read speed (sequential)
10200 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
8400 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: Nav
Lighting
: Nav
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 5.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specifikācija
Memory type
: TLC (Triple-Level Cell)
Random Read IOPS
: 1.3M
Random Write IOPS
: 1.4M
Endurance (TBW)
: 600 TB
More detailed specification
Brand - MSI
BrandPartCode - SPATIUM M560 PCIE 5.0 NVME M.2 1TB
Category - Internal Solid State Drives
Category Code - SSU
Description - SPATIUM M560 PCIe 5.0 NVMe M.2.
dimensionalWeight - 61
Features - Component for - PC/Laptop
Features - Controller type - Phison E31T
Features - ECC - Yes
Features - Interface - PCI Express 5.0
Features - Low-density parity-check (LDPC) - Yes
Features - M.2 SSD size - 2280 (22 x 80 mm)
Features - Mean time between failures (MTBF) - 1500000 h
Features - Memory type - 3D NAND
Features - NVMe - Yes
Features - NVMe version - 2.0
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 1300000 IOPS
Features - Random write (4KB) - 1400000 IOPS
Features - Read speed - 10200 MB/s
Features - S.M.A.R.T. support - Yes
Features - SSD capacity - 1 TB
Features - SSD form factor - M.2
Features - TRIM support - Yes
Features - Write speed - 8400 MB/s
Form Factor - M.2
Full Description Line - SSD series SPATIUM M560|1TB|Form Factor M.2|PCIe Gen5|NVMe|Technology 3D NAND|Write speed 8400 MBytes/sec|Read speed 10200 MBytes/sec|TBW 600 TB|MTBF 1500000 hours
GTIN - 4711377275347
LongDesc - M560CHARGING AHEAD WITH SPEEDFrom the MSI universe comes storage with blazing speeds and incredible performance. Take your system to the next level with SPATIUM.SUPERCHARGED WITHPCIe 5.0Get excited for next-generation storage performance that unites the latest PCIe Gen 5 controller technology and state-of-the-art 3D NAND flash, providing up to 1.8 times faster read/write speeds compared to the previous generation SSDs.The SPATIUM M560 delivers immense performance and capabilities that effortlessly handle even the most extreme gaming or productivity workflows, representing a significant advancement over PCIe 3.0 and SATA technologies.FULFILL UNLIMITED POTENTIALBuilt-in data security and error-correction capabilities extend the endurance and longevity of the NAND flash storage, empowering you to break records in games or take your talents to the next level.Freeing Up SpaceTRIMTo process unnecessary data efficiently and extend the life of SSD for more games or content creations.Gaining ControlsS.M.A.R.TTo Monitor the health of the drive and identify possible issues, letting you be free from worry in games or at work.Error RemovalECCTo maintain your important records or files intact and ensure a nonstop gaming experience from system failure.Steady TransferE2E DATA PROTECTIONTo enable reliable data transfer and assist you to game and create in confidence with enhanced system stability.A THOROUGH SHORTCUT WITHDIRECTSTORAGEDirectStorage accelerates loading times in gameplay and high-resolution rendering, enhancing system performance by enabling hardware decompression directly from NVMe drives to GPUs and freeing up CPU resources for multitasking.Your Performance BoosterBUILT TO WINWith the gamers’ first attitude, SPATIUM SSDs optimized for high-performance bandwidth and throughput enable you to wait less at loading games and play to win with minimal latency.CREATE. PRODUCE. DONE.With the gamers’ first attitude, SPATIUM SSDs optimized for high-performance bandwidth and throughput enable you to wait less at loading games and play to win with minimal latency.TAKE CARE OF YOUR DATAMigrate your data, monitor drive health and performance metrics in real-time with MSI Center. Prevent loss of data using the provided Actiphy software solution which includes backup & restore functionality.PARTNERED WITH ACTIPHYActiphy, a world-leading data protection solution provider, develops essential and user-friendly software. ActiveImage Protector* - an enterprise-level backup and disaster recovery software that protects your computer from system failures and data loss. Ideal for individuals and organizations.OPTIMAL M.2 SSDDesigned in the M.2 2280 form factor, SPATIUM SSDs are easy to install into desktops, bringing speedy performance and power efficiency to any computing system.5-YEAR WARRANTYMSI stands by the quality and reliability of the SPATIUM M560 with a 5-Year comprehensive warranty. If you need assistance or are not satisfied with your product, MSI support is available to help and assist.
LongProductName - 1000GB, M.2 2280, 3D NAND, PCIe 5.0, NVMe
LongSummaryDescription - MSI Spatium M560 PCIE 5.0 NVME M.2 1TB. SSD capacity: 1 TB, SSD form factor: M.2, Read speed: 10200 MB/s, Write speed: 8400 MB/s, Component for: PC/Laptop
MTBF - 1.5e+006 hours
NAND flash technology - 3D NAND
NVMe - Yes
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - 40 - 85 °C
PCIe Gen5 Interface - Yes
Power - Power consumption (max) - 5.9 W
producerCode - S78-440L0F0-P83
ProductName - M560 PCIE 5.0 NVME M.2 1TB
productName - MSI Spatium M560 PCIE 5.0 NVME M.2 1TB PCI Express 5.0 3D NAND
Product Net Weight - 0.02 kg
productSize - Normal
Read speed - 10200 MBytes/sec
Shipping Box Depth Shipping/Package Box Dimensions - 29.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 20.5 cm
Shipping Box Weight Shipping/Package Box Dimensions - 1.29 kg
Shipping Box Width Shipping/Package Box Dimensions - 22 cm
ShortSummaryDescription - MSI Spatium M560 PCIE 5.0 NVME M.2 1TB, 1 TB, M.2, 10200 MB/s
sizeX - 160
sizeY - 80
sizeZ - 24
SSD Capacity - 1TB
SSD series - SPATIUM M560
TBW - 600 TB
Title - MSI Spatium M560 PCIE 5.0 NVME M.2 1TB PCI Express 5.0 3D NAND
Unit Box Height - 0.02
Unit Box Length - 0.16
Unit Box Width - 0.085
Unit Calculated Volume - 0.0006652 cubm
Unit Calculated Weight - 0.065 kg
Units per Shipping Box - 20
URL - https://www.msi.com/Storage/SPATIUM-M560-PCIe-5.0-NVMe-M.2/Overview
Vendor Homepage - www.msi.com/Storage/SPATIUM-M560-PCIe-5.0-NVMe-M.2
Warranty - 36L months
WarrantyInfo - 5 Year
warrantyLength - 60
warrantyType - G
weight - 60
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 2.15 mm
Weight & dimensions - Width - 22 mm
Write speed - 8400 MBytes/sec
