Accessories included - Ulefone Armor Pad 4 Ultra Thermal Type-C to Type-C Data Cable (100cm) Tablet Hand Strap (requires self-installation) Screwdriver (used to install Hand Strap) 8 x Screw (4 pre-installed on the tablet, 4 spare) Protective Film (Pre-installed) SIM Needle Multi-language User Manual Multi-function Instruction Card Warranty Card Charging Instruction Card Safety Prompt Card Service Center APP Instructions Accessories Ecosystem Brochure Thermal Imaging User Manual Access Guide
Battery capacity - 11800 mAh
Camera - Yes
Cell type - Li-poly (internal battery)
Color - Black
Communication - 5G
Communication - Bluetooth 5.2
Communication - NFC
Communication - Wi-Fi (802.11a/b/g/n/ac)
CPU - other information - MediaTek Dimensity 6300 CPU: MediaTek MT6835T CPU architecture: 8, 4 x Arm Cortex-A76 2.4GHz, 4 x Arm Cortex-A55 2.0GHz CPU frequency: 2.4GHz GPU: Arm Mali-G57 MC2 GPU frequency: up to 1068MHz
CPU frequency - 2.4 GHz
Depth - 14.3 mm

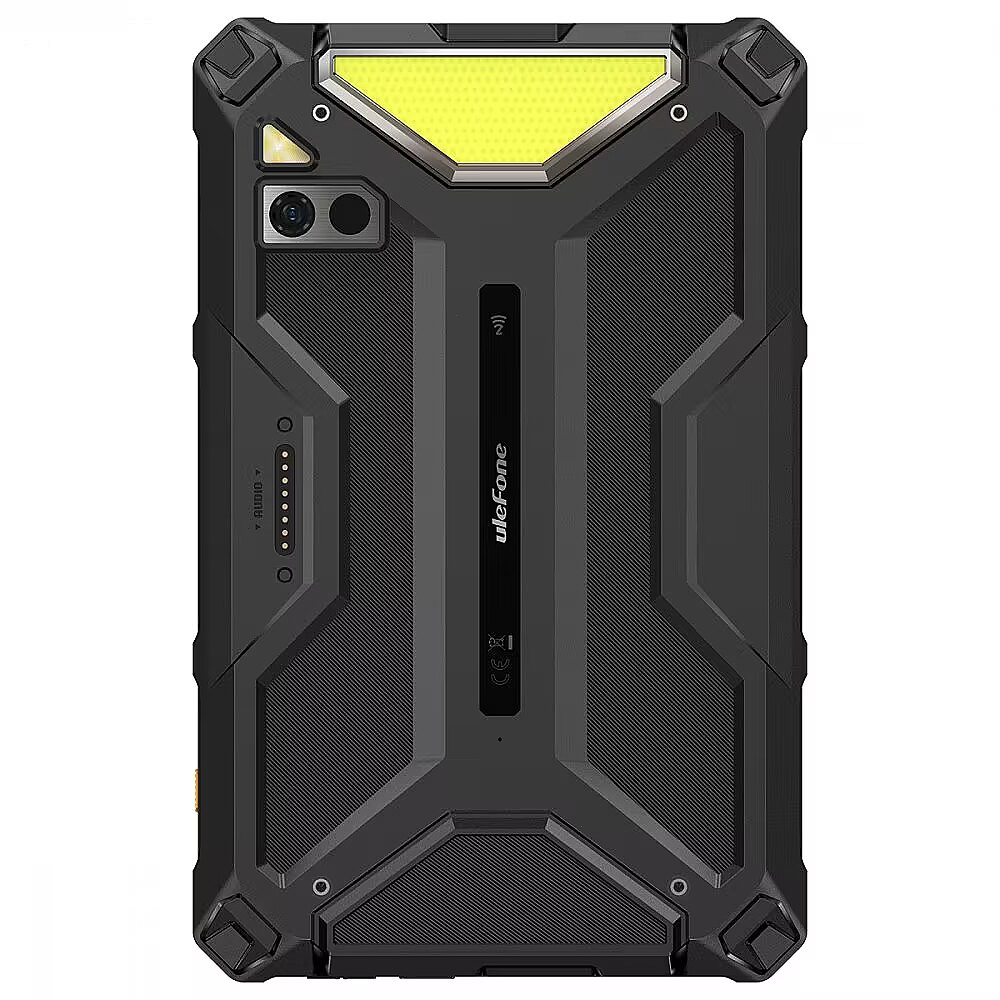

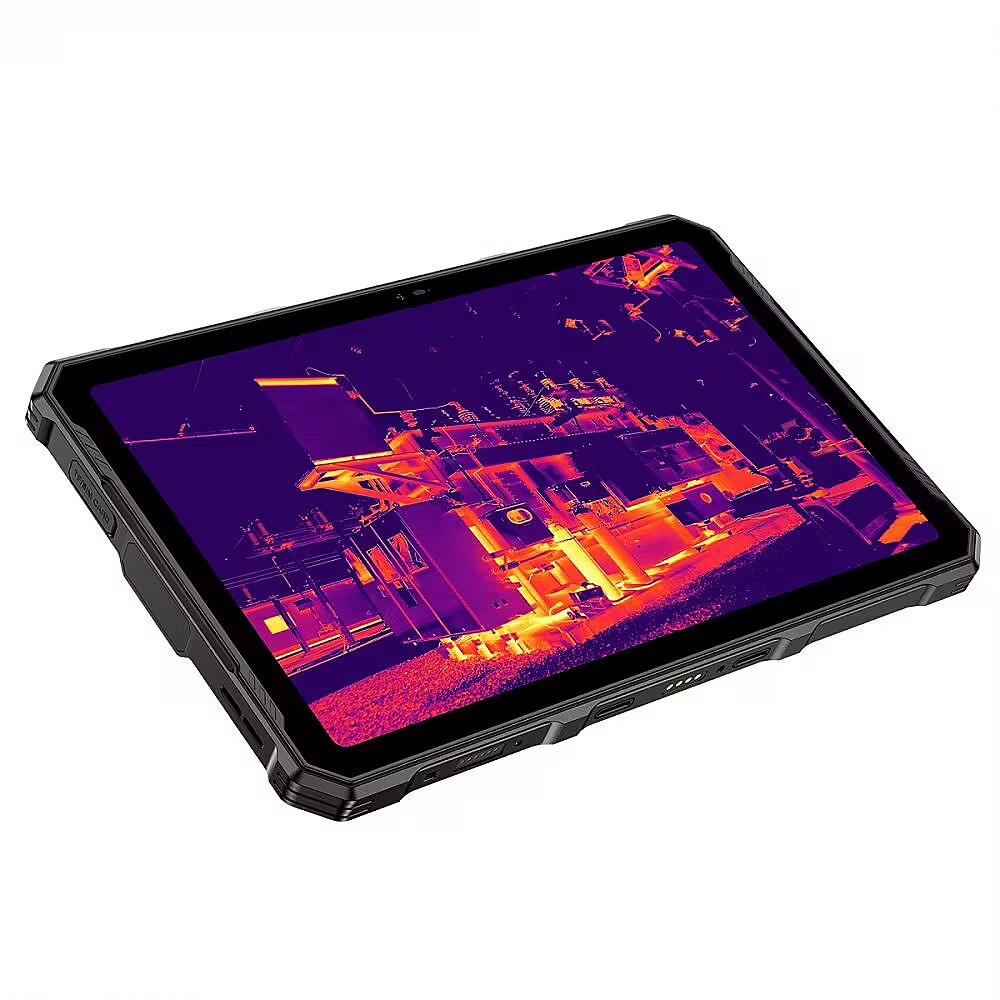

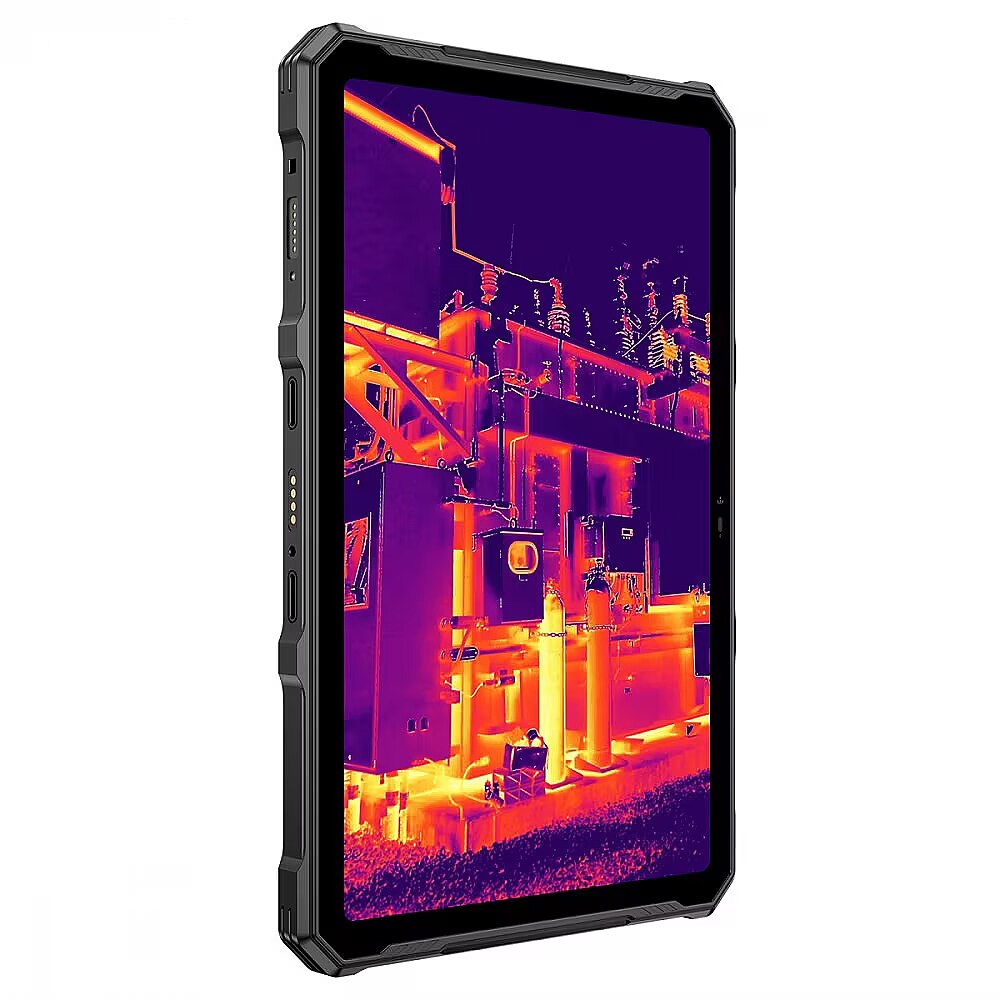

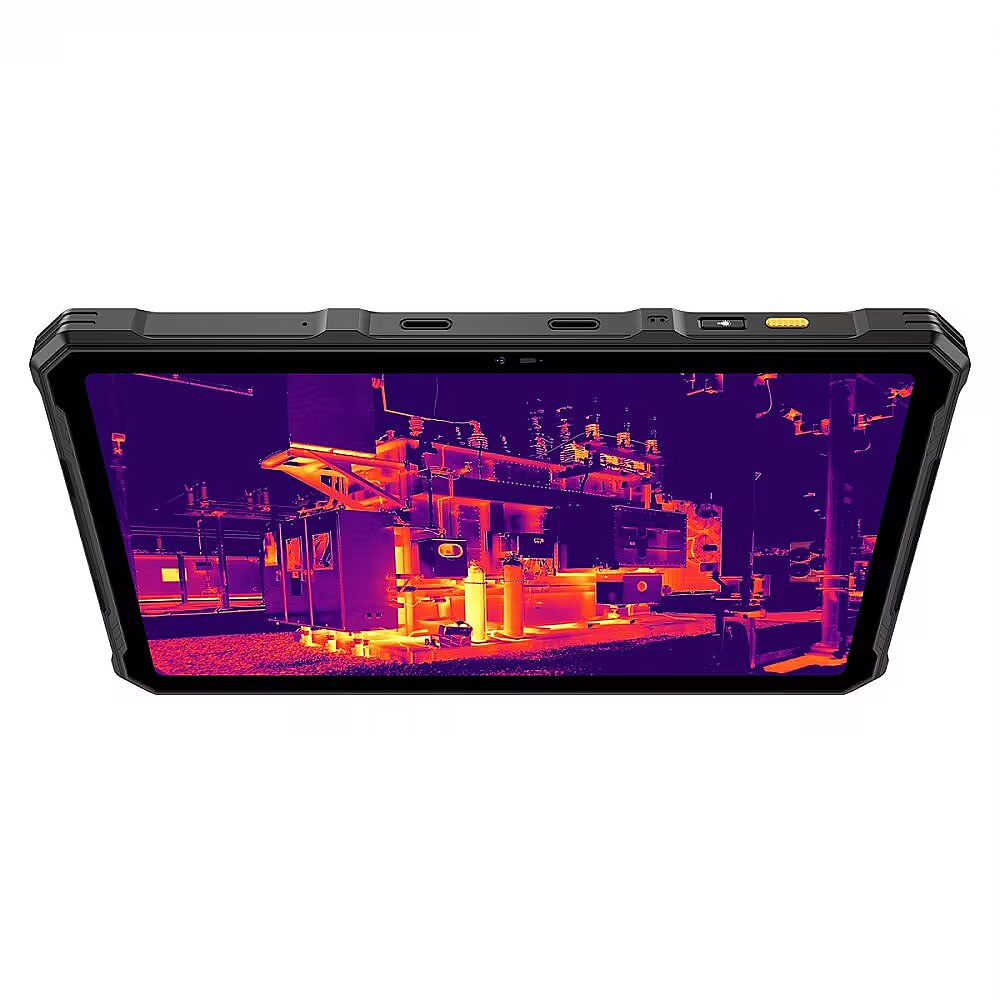

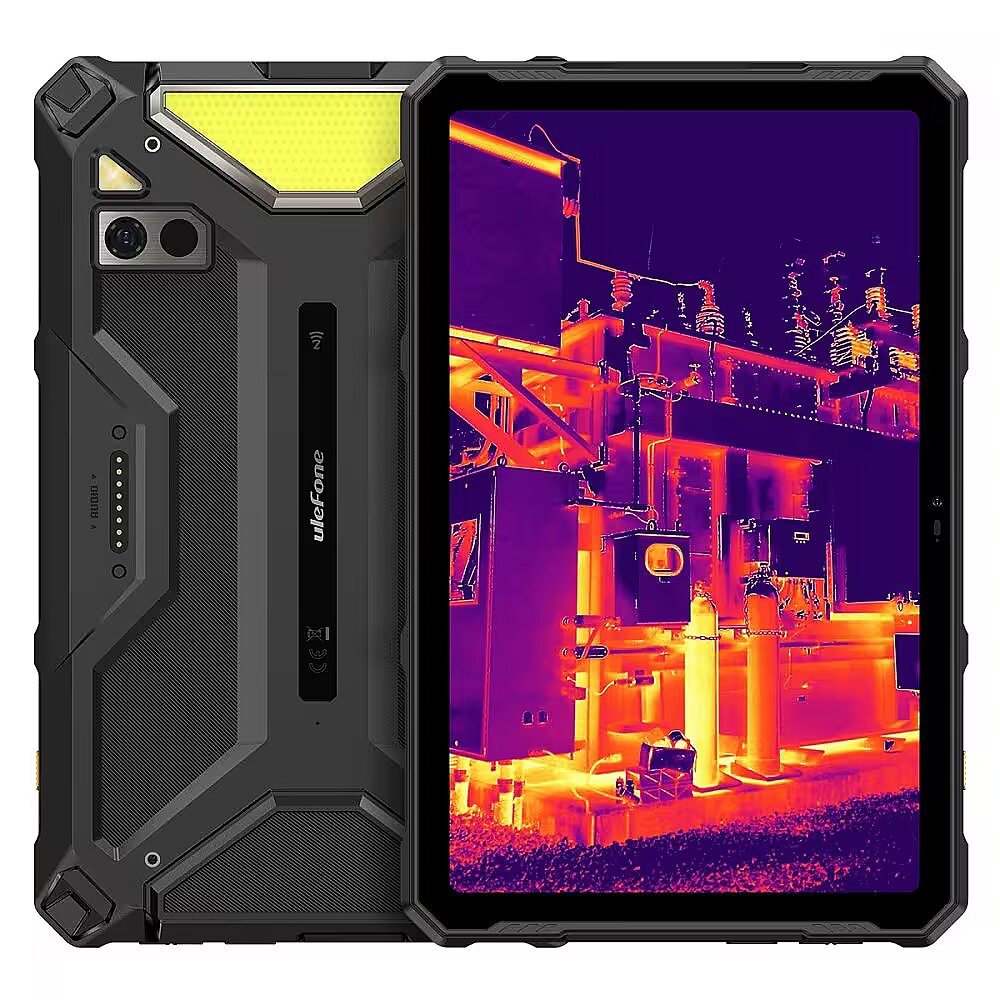

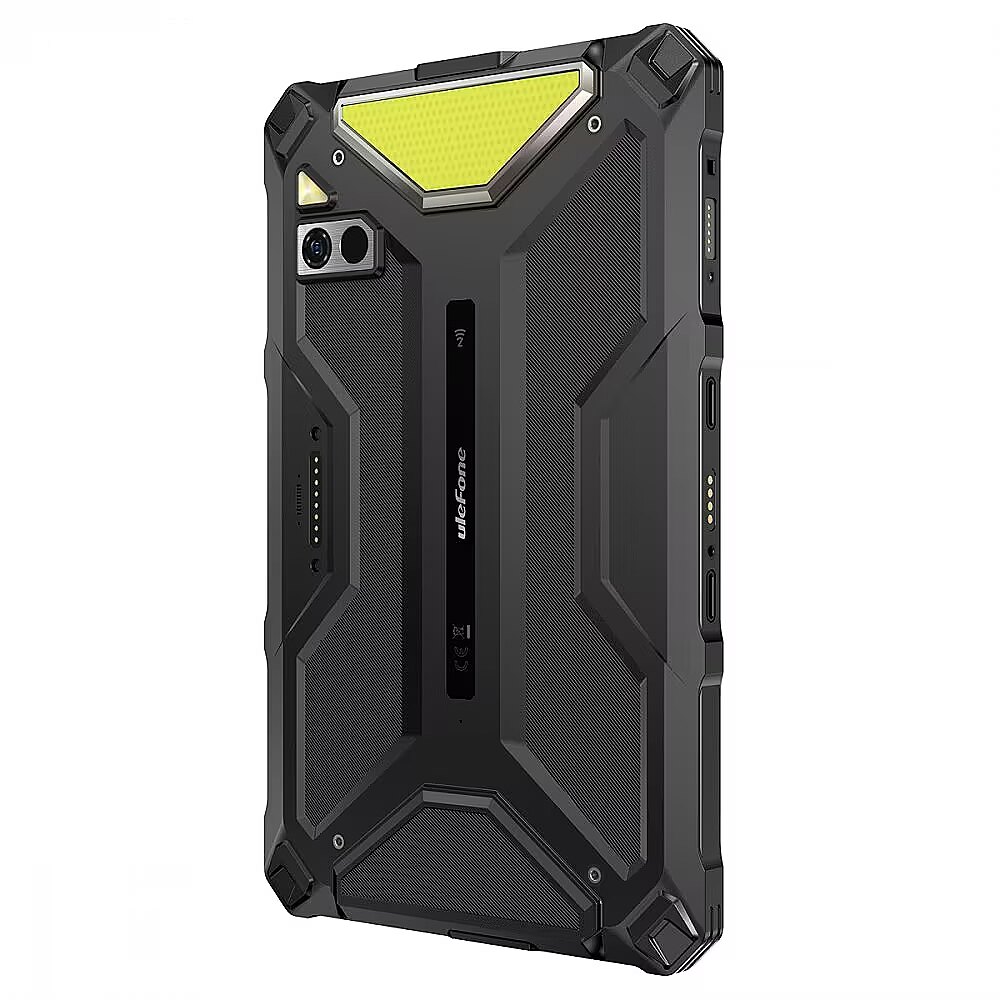

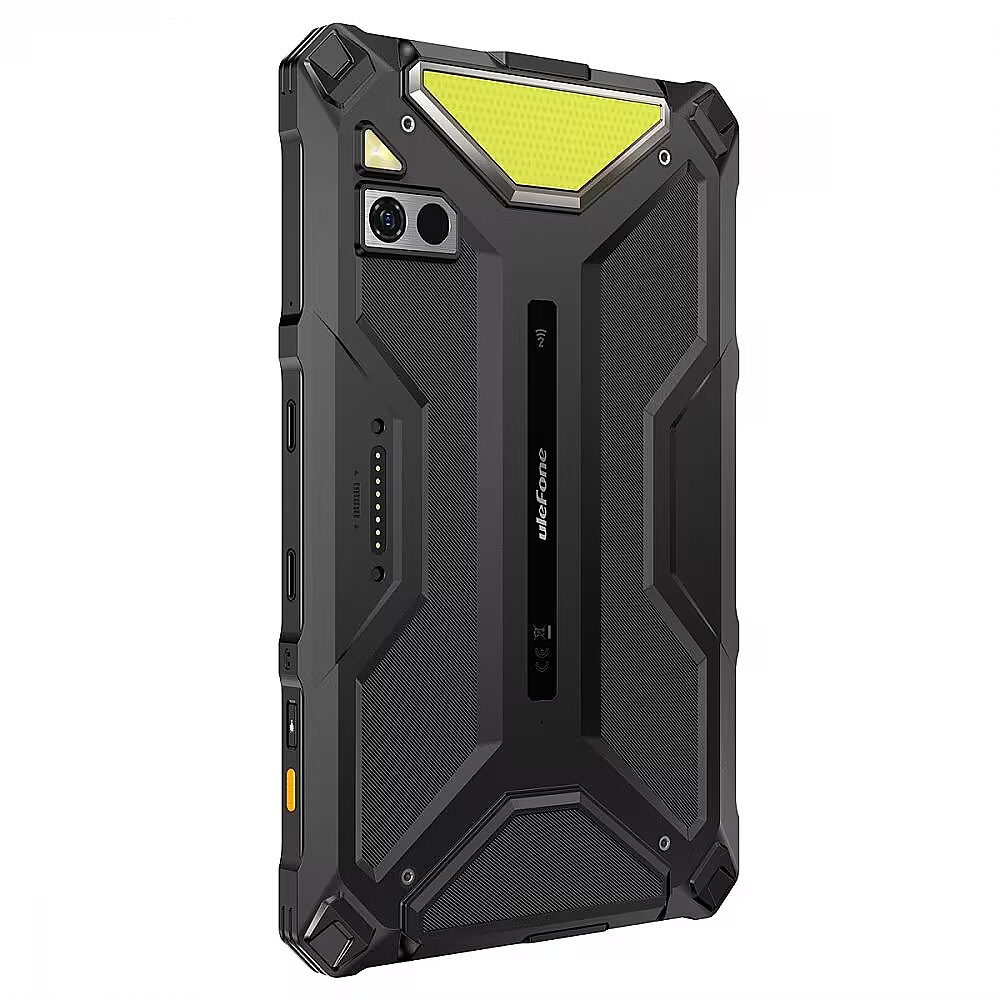

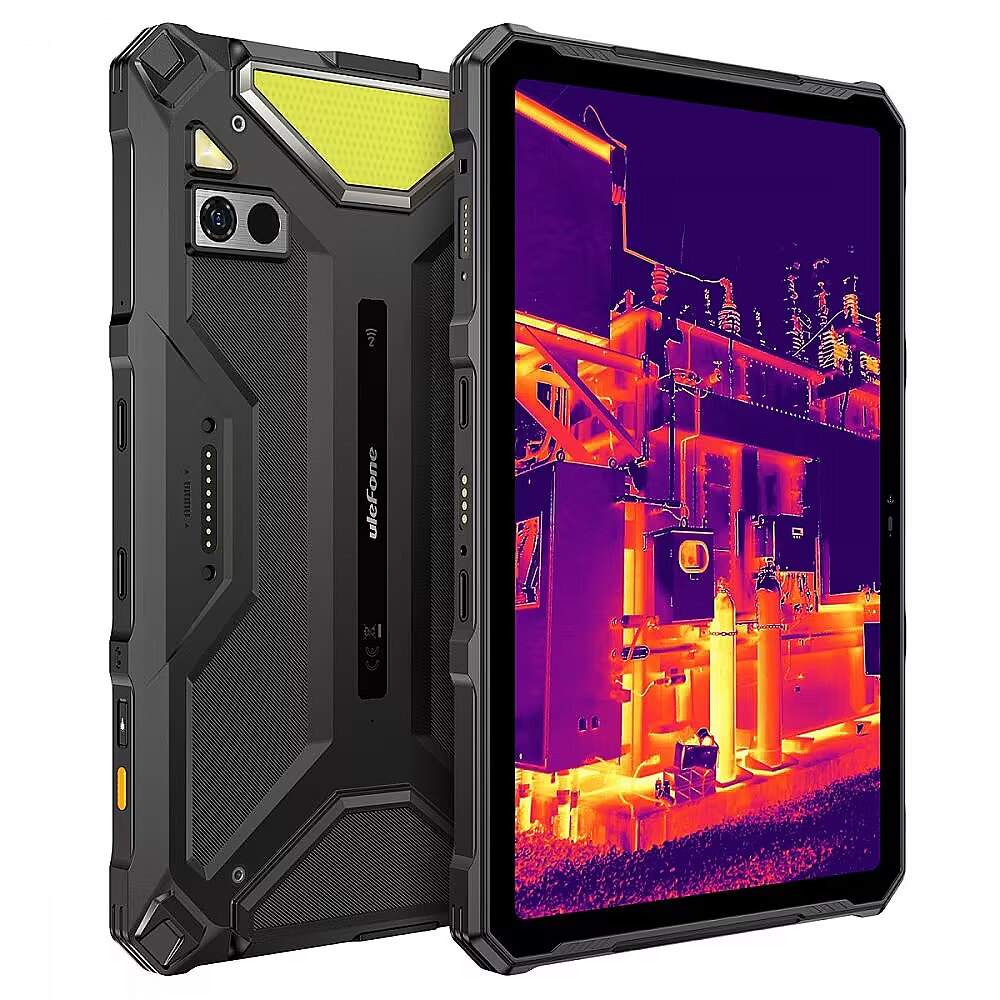

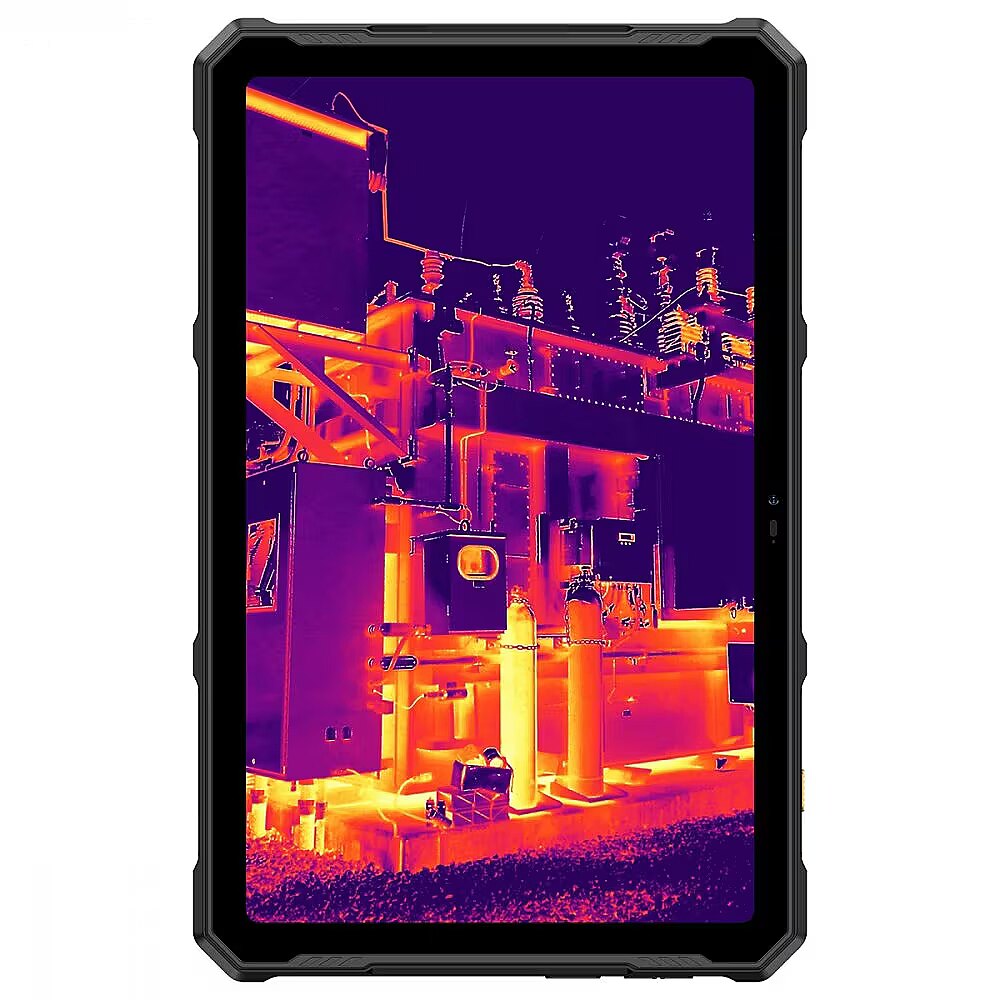

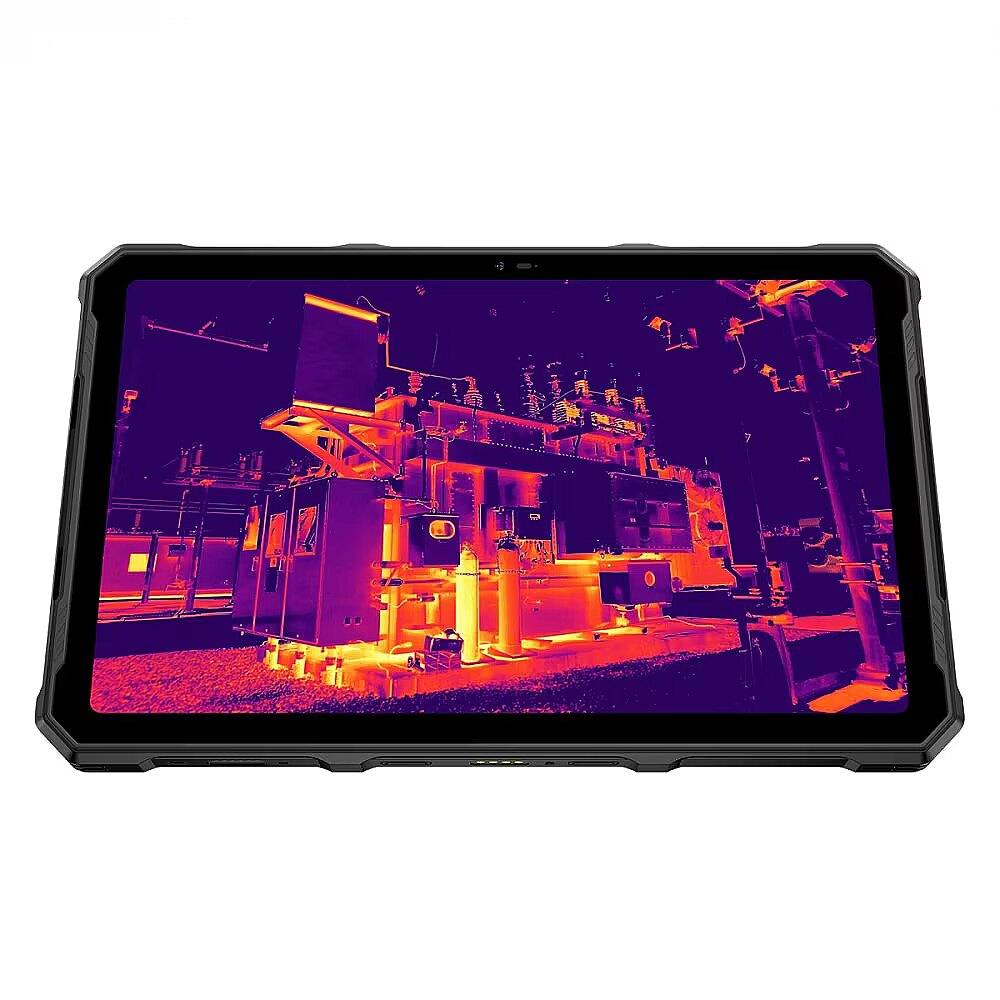

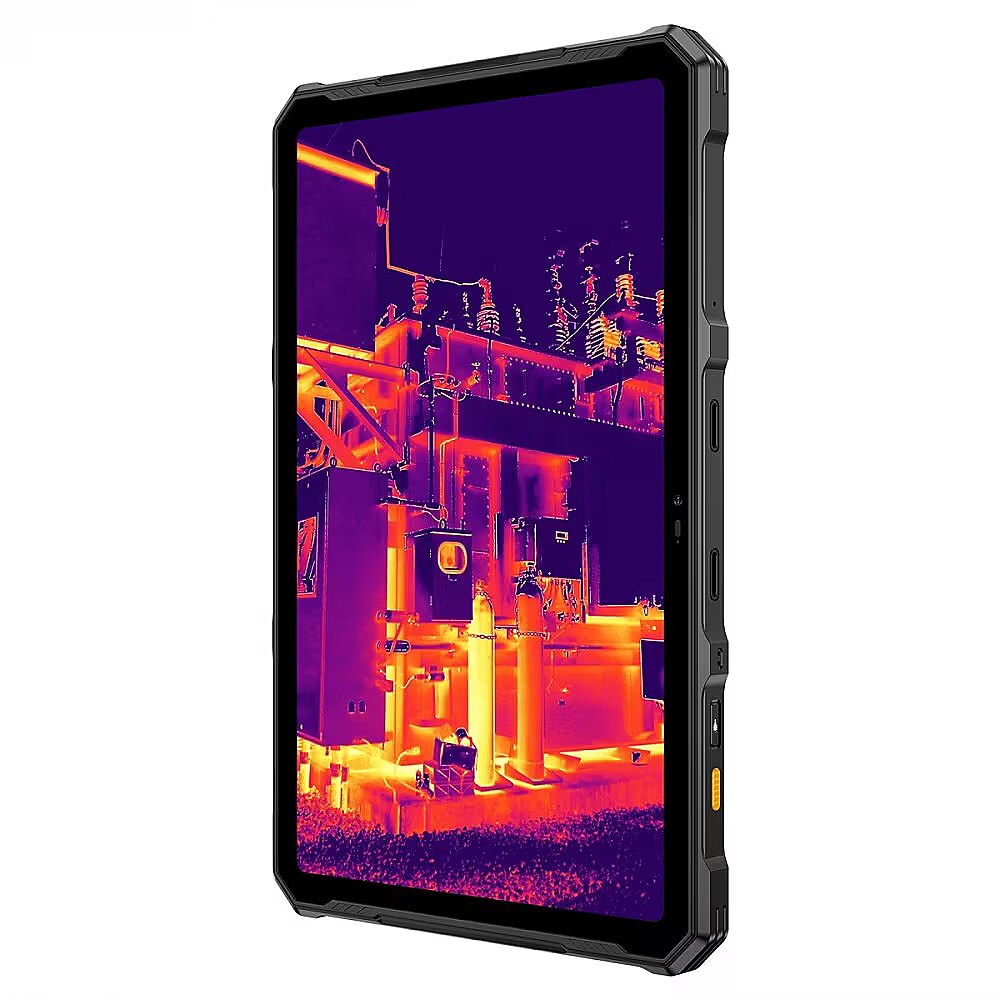

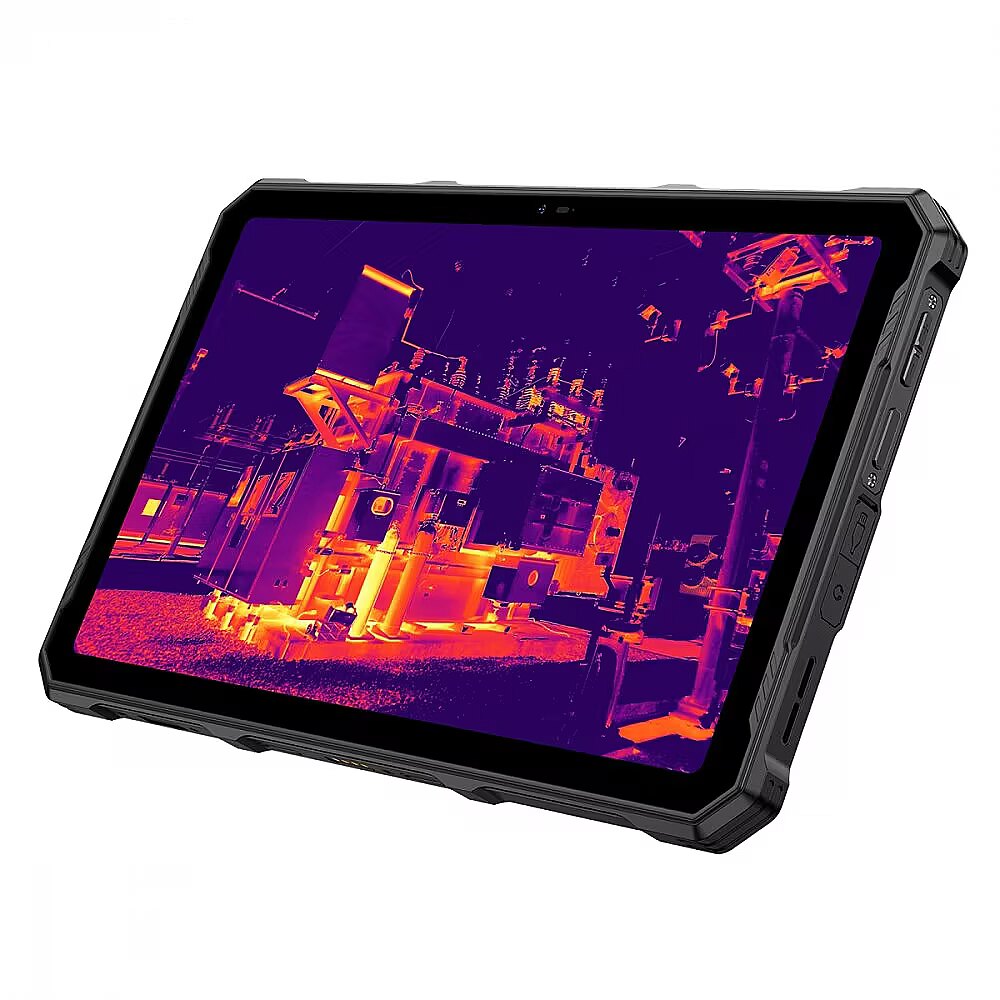

Description - Armor Pad 4 Ultra Thermal IP68, IP69K & MIL-STD-810H certified The Armor Pad 4 Ultra is a rugged tablet designed to perform in the harshest environments. Featuring military-grade durability and a reinforced construction, it delivers outstanding protection against drops, impacts, and demanding working conditions. Ulefone Defender construction Built from premium-grade materials, the rugged chassis provides exceptional resistance to drops and heavy impacts. Raised bezels around the cameras and LED light, along with specially reinforced corners, offer additional protection and durability. Industry-leading thermal imaging technology Up to 3× higher performance The Armor Pad 4 Ultra features the advanced ThermoVue thermal imaging sensor. Intelligent algorithms make it easy to detect heat sources and temperature differences while delivering high-quality thermal images. ThermoVue app The ThermoVue application allows you to capture thermal photos and videos. It also includes a time-lapse mode for monitoring temperature changes over time. Every feature is optimised for the large Armor Pad 4 Ultra display, ensuring excellent clarity and making thermal data easy to analyse. Dedicated uSmart port The exclusive uSmart expansion port supports a range of accessories, including endoscope cameras and the uSmart C01 microscope. Its reliable connection makes maintenance work, pipe inspections, vehicle servicing, and similar tasks faster and more efficient. The uSmart accessories mentioned above are sold separately. Hand strap A hand strap can be attached to the back of the Armor Pad 4 Ultra, providing a secure and comfortable grip. It helps prevent accidental drops when working in demanding environments or on the move, while keeping your other hand free for additional tasks. The hand strap is included in the package. Hand grip with 360° kickstand The optional hand grip with a 360° rotating kickstand provides greater comfort and improved efficiency when working in challenging conditions. Hand grip with kickstand sold separately. Armor Holster Pro Built for professionals on the move Armor Holster Pro, complete with a protective case and shoulder strap, is designed for users who work on the go. It improves mobility while keeping the tablet secure and easily accessible. Armor Holster Pro is sold separately. Exclusive Sound Kit speaker The optional Sound Kit speaker connects easily through the built-in 8-pin connector. In addition to delivering excellent sound quality, it features LED lighting synchronised with your music. Armor Mount Max Vehicle tablet mount Armor Mount Max can be securely attached to the windscreen of a car or truck, providing a stable platform for navigation or entertainment while travelling. Four vibration-absorbing modules, together with a cushioning pad, anti-vibration suction cup, and shock absorber, ensure secure mounting and minimal vibration even on rough terrain. Armor Mount Max is sold separately. 5G connectivity The latest 5G technology delivers ultra-fast downloads and uploads, extremely low latency, and significantly increased network capacity. MediaTek Dimensity 6300 5G Powered by the octa-core MediaTek Dimensity 6300 processor with an Arm Mali-G57 MC2 GPU, the Armor Pad 4 Ultra delivers excellent performance together with fast and reliable 5G connectivity. Up to 16 GB RAM + 256 GB ROM The tablet features 8 GB of physical RAM, expandable with up to 8 GB of virtual memory for smooth multitasking and seamless app switching. With 256 GB of internal storage and support for microSD cards of up to 2 TB*, you'll have plenty of room for photos, videos, documents, games, and more. Virtual RAM can be enabled in Settings. microSD card sold separately. Massive 11,800 mAh battery The powerful 11,800 mAh battery keeps you working and entertained for extended periods without frequent charging. It also performs reliably in sub-zero temperatures as low as -30°C. Charging dock In addition to 33 W wired fast charging, the Armor Pad 4 Ultra also supports convenient wireless charging via an optional charging dock. Wireless charging dock sold separately. Portable power bank The 10 W reverse charging function allows you to recharge compatible devices such as wireless earbuds, iPhones, tablets, and smartwatches. 10.36" 2K display The large 10.36-inch 2K display delivers breathtaking visuals with exceptional clarity, vibrant colours, and lifelike detail. 500 nits peak brightness With a peak brightness of 500 nits, the display remains easy to read even in direct sunlight or brightly lit environments. Corning Gorilla Glass Corning Gorilla Glass provides excellent resistance to drops and impacts, significantly reducing the risk of cracks or screen damage, making it ideal for demanding work environments. 32 MP front camera The 32 MP front camera captures fine detail and delivers high-quality video calls for professional communication. Professional 50 MP main camera The 50 MP rear camera features a large 1/1.31-inch sensor and an f/1.95 aperture, allowing it to capture more light for exceptionally bright, sharp, and detailed images. Professional 1,100-lumen LED light The Armor Pad 4 Ultra doubles as a flashlight, spotlight, or portable camping light thanks to its ultra-bright integrated LEDs. Simply press the dedicated lighting button or use the companion app to activate the powerful illumination. Versatile for any adventure Its rugged design and powerful LED lighting make the tablet ideal for outdoor activities such as camping, night fishing, hiking, cycling, and many other adventures. Dual stereo speakers and FM radio No headphones required Enjoy rich, immersive audio through the dual symmetrical stereo speakers, which deliver loud, clear, and perfectly balanced sound across the entire frequency range. Watch films, listen to music, or tune in to FM radio without connecting headphones. Android 14 More personalised, more secure, and easier to use Android 14 introduces enhanced imaging, AI-generated themes and wallpapers, improved privacy controls, stronger data protection, and expanded accessibility features, ensuring smooth performance and reliable security even during intensive use. Stay connected anywhere 4G LTE, 5G Sub-6 & dual-band Wi-Fi The Armor Pad 4 Ultra supports dual SIM 4G LTE and 5G Sub-6 connectivity, along with 2.4 GHz and 5 GHz Wi-Fi, ensuring reliable communication wherever your work takes you. Digital toolbox The Armor Pad 4 Ultra includes a range of practical digital tools designed to assist with both indoor and outdoor tasks. Guaranteed durability At Ulefone, quality assurance is always a priority. The Armor Pad 4 Ultra has successfully passed Ulefone's comprehensive laboratory durability testing, ensuring reliable performance in demanding environments.
Designation - CE+WEEE
Detailed camera specifications - Rear Camera 50MP Main Camera SAMSUNG GN1 sensor FOV 85°, /1.95 Photo resolution: up to 6138x8152 pixel Video resolution: up to 1080P Flash Rear camera photography features: Normal Mode, Mono Mode, Beauty Mode, 50MP Mode, Portrait, Pro Mode, Slow Motion, Night Shot, Scan, AI Scene Detection, Grid line, Self Timer, Capture Mode, Scene Mode, Anti-shake, Geo-Tagging, ZSD, Sound Switch, Watermark, White Balance, ISO, Anti Flicker, Volume Key, Continuous Shot, Restore Defaults, Camping Light Front Camera 32MP selfie camera SAMSUNG GD1 sensor, 1.12m, 4P, FOV 80.4°, /2.45 Front camera photography features Normal Mode, Mono Mode, Beauty Mode Grid line, Self Timer, Capture Mode, Scene Mode, Anti-shake, Geo-Tagging, ZSD, Sound Switch, Mirror Switch, Watermark, White Balance, ISO, Anti Flicker, Volume Keys, Restore Defaults, Camping Light
Diagonal screen - 10,36"
dimension depth - 65 mm
dimension height - 200 mm
dimension weight - 1250 g
dimension width - 300 mm
ean - 6975326662659
Front camera - 32 Mpix
GPS receiver - Yes
guarantee - 24
guarantee_type - external
Height - 166.8 mm
I/O connectors - 1 x 3,5 mm minijack
I/O connectors - 1 x USB (Type C)
Internal memory - 256 GB
Memory card - microSD
Memory card reader - Yes
Memory standard - SD
Memory standard - SDHC
Memory standard - SDXC
Mobile phone features - Yes
Model - Armor Pad 4 Ultra Thermal
name - Tablet Armor Pad 4 Ultra Thermal 5G 10.36 inches 8/256GB IP69K thermovision black
Operating System - Android 14
Other display parameters - 10.36-inch All-screen LCD Multi-Touch display with IPS technology Resolution: 1200 x 2000 FHD+ Brightness: 500 nits Corning Gorilla Glass 5
Other features - Sensors: NFC, Side-Mounted FingerprintLight sensor, Gravity sensor, Acceleration sensor, Geomagnetic sensor, Gyro sensor, Coulomb counter Navigation: GPS, GLONASS, Beidou, Galileo, Digital Compass Rugged: Rated IP68 (maximum depth of 1.5 metres up to 30 minutes) under IEC standard 60529, Rated IP69K under IEC standard 60529, MIL-STD-810H Certification
Processor - Octa Core
producer - ULEFONE
RAM memory installed - 8 GB
Rear camera - 50 Mpix
Resolution - 2000 x 1200
SIM card - Nano
vendpn - UF-TAP4UT_NC
Video ports - None
Weight - 0.8345 kg
Width - 261.7 mm
WWAN (3G) / LTE (4G) / 5G - Built-in
