ID: 991537
Product code: T/PWPRRT-111K00/00
Can be ordered 2 units Availability: 14 days after order approval
Warranty: 2 years

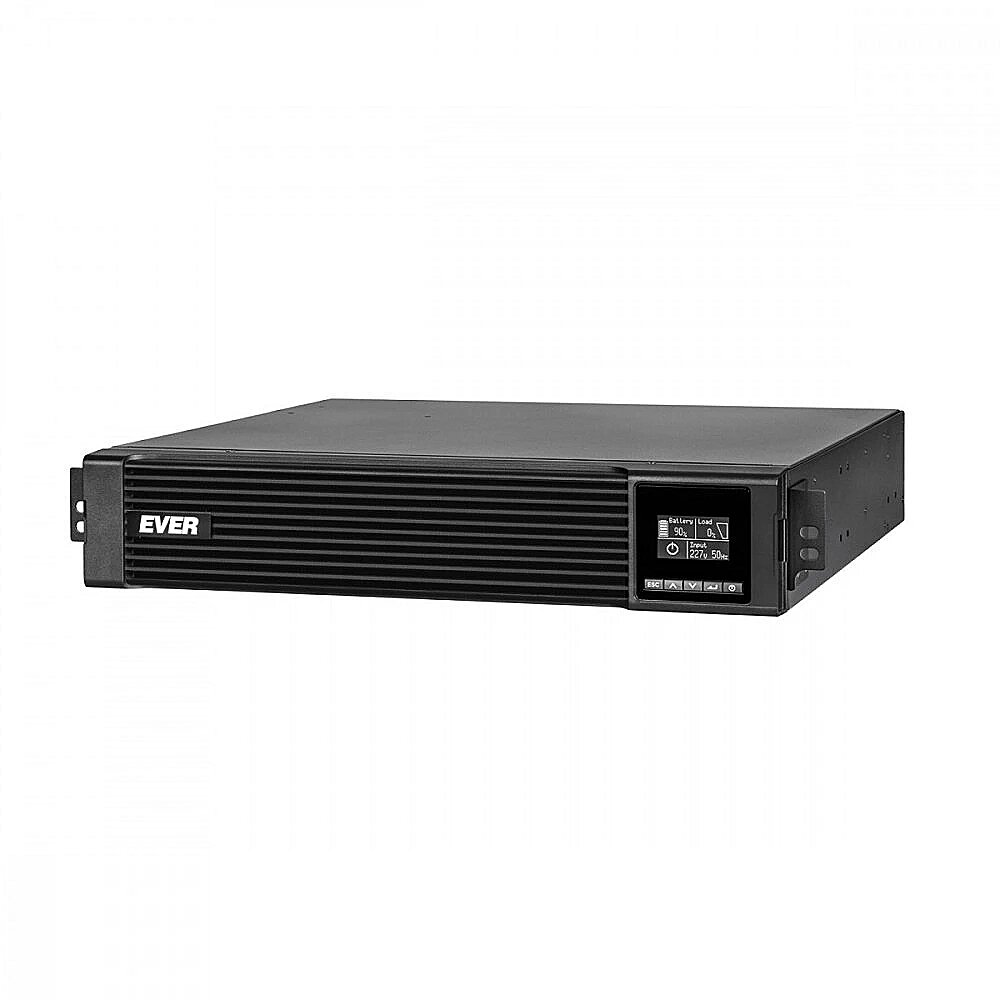

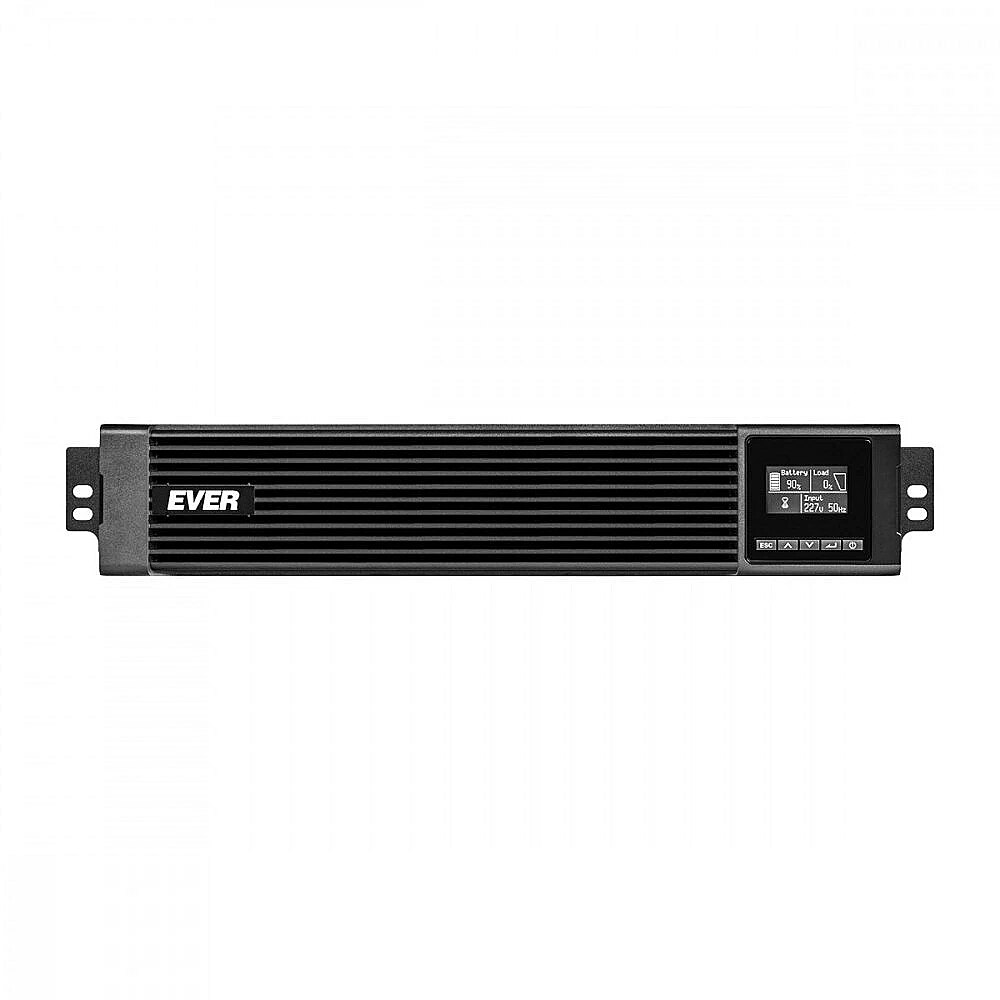

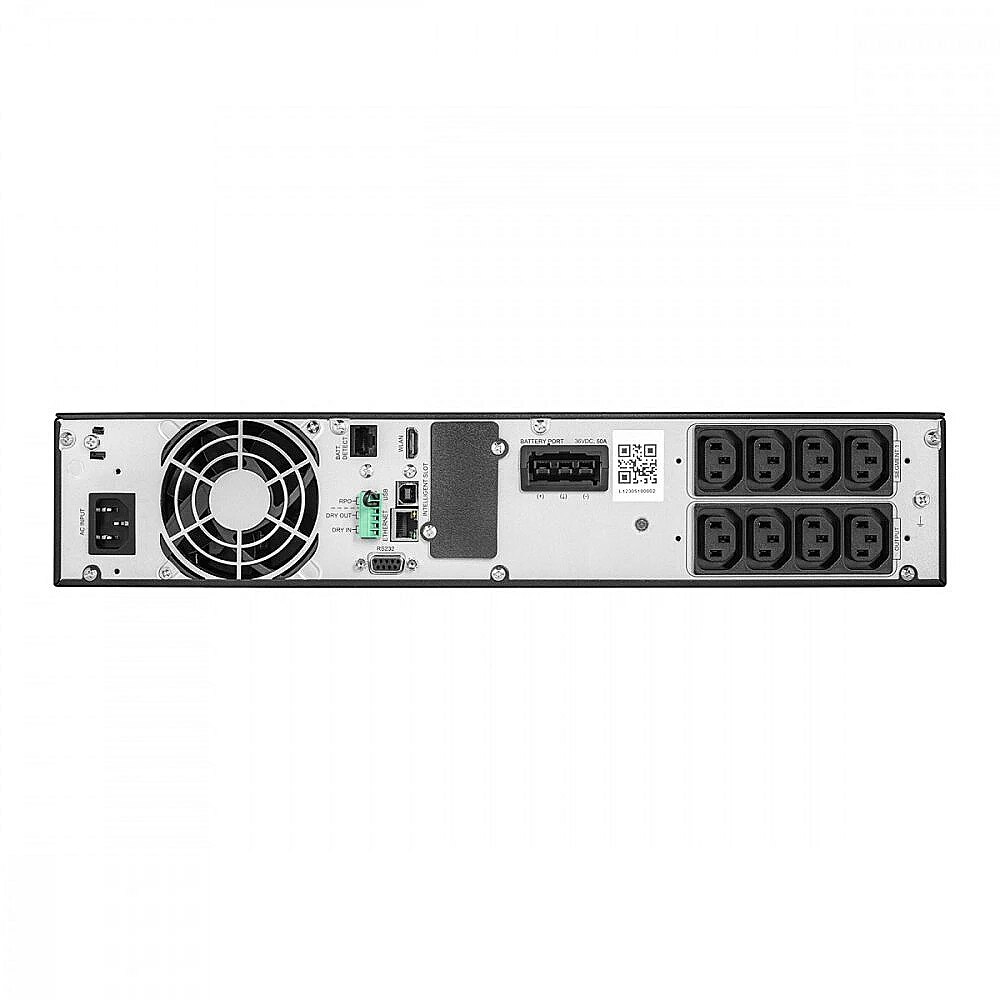

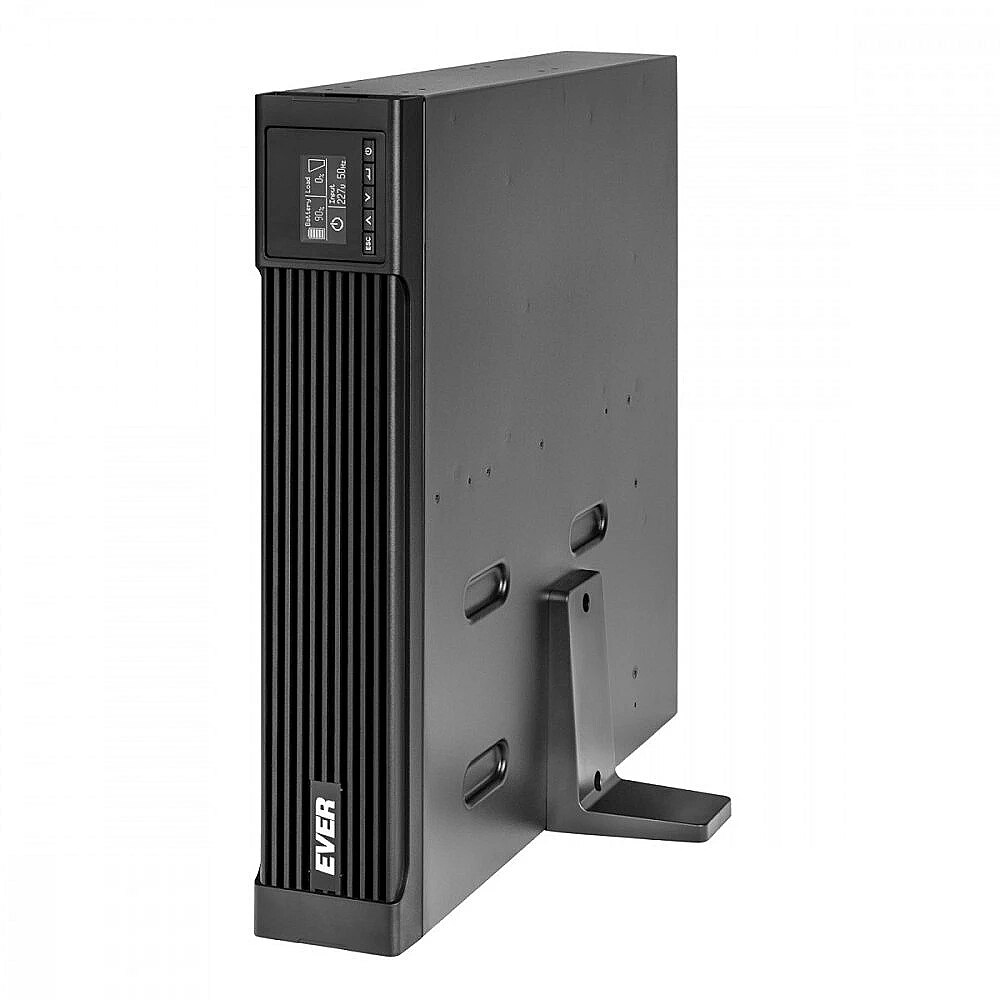

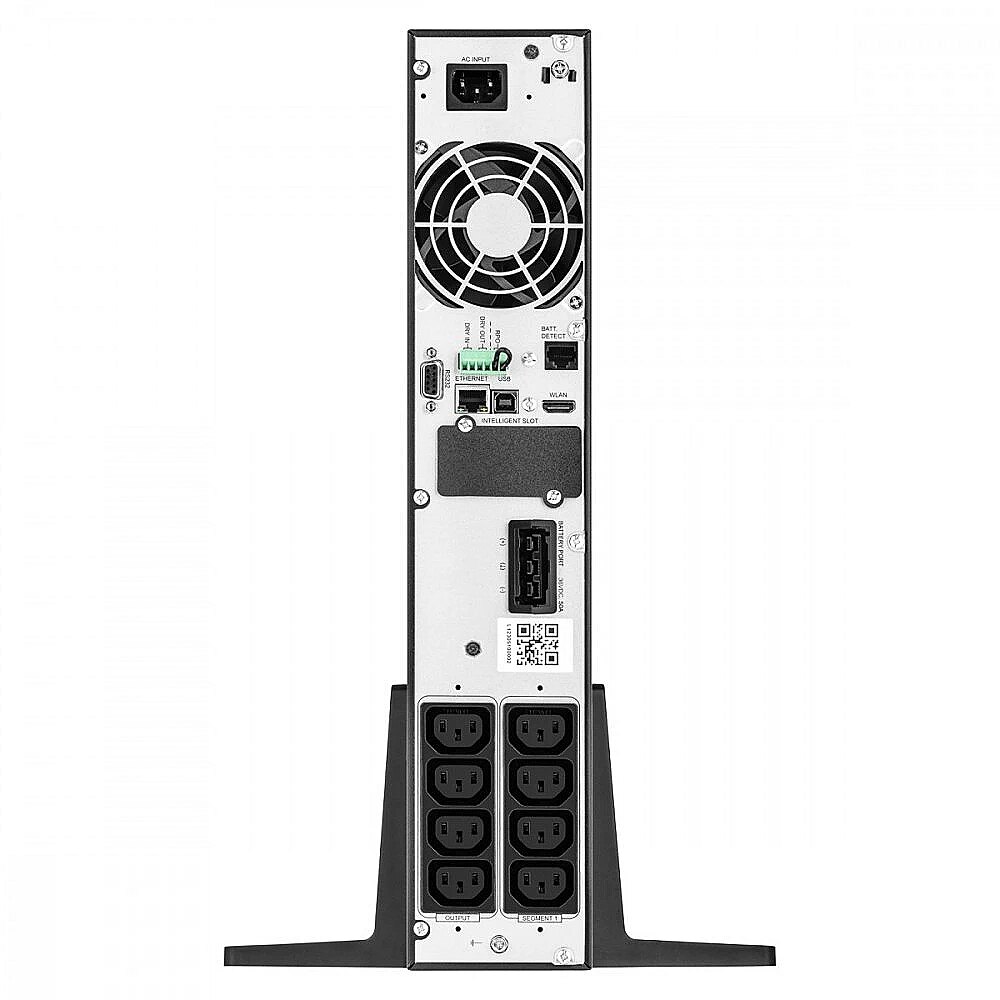

Ever POWERLINE RT PRO, 1000VA 1000W, IEC 2U
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Unisend parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Battery capacity (VA): 1000
- Output power (W): 1000
Description
This UPS Ever POWERLINE RT PRO, 1000VA 1000W, IEC 2U with an output capacity of 1000 W and a battery capacity of 1000 VA offers a balanced solution for daily use. The battery backup allows for temporary operation of multiple connected devices.
Display in the UPS device provides a visual representation of the operating parameters. It facilitates the diagnosis of the device's condition and allows the user to promptly assess readiness for operation in the event of power supply disruptions.
The presence of a IEC320 connection type in a UPS device ensures standardized device connection using removable power cables. Such a connector facilitates the replacement and maintenance of connected devices, ensures a secure electrical contact and broad compatibility with server and office equipment.
Warranty
Ever provides a 2 year warranty for this model at all certified service centres.
*When purchasing the device for a legal entity, the manufacturer's warranty is 1 year.
All parameters
Model
: POWERLINE RT PRO 1kVA/1kW
Display characteristics
Display
: Is
Basic information
Battery capacity (VA)
1000
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Not specified
Charging time (hours)
: 3
Output power (W)
: 1000
Ports and equipment
Number of nests (total)
: 8
Number of sockets (Battery Backup)
: 8
RJ-45
: 0
Socket type
: IEC320
USB
: 0
More detailed specification
Accessories included -
Active power - 1000 W
Apparent power - 1000 VA
Backup time (100% load) - 6 min
Battery capacity - 9 Ah
Charging time - 3 h
Chassis type - Rack
Chassis type - Tower
Color - Black
Data Act - Link
Description - A series of technologically advanced on-line uninterruptible power system (UPS) systems (VFI), constructed in a double conversion topology, in which the output active power reaches the apparent power value. POWERLINE RT PRO series power supplies protect sensitive devices and systems against basic problems occurring in the power supply network, such as interruptions in electricity supply, voltage increases and dips, overvoltages and harmonic distortions. The main purpose of EVER POWERLINE RT PRO series power supplies is: network devices, servers, workstations, as well as other electrical, electronic and IT devices. Online operation with true double conversion, with sinusoidal output voltage (with the highest quality parameters VFI SS-111) Output active power equal to apparent power (PF=1) ECO mode reducing losses Rack/Tower case Backup time prediction - determination of the UPS autonomy time in real time - via PowerSoft software and on the display Wide window (range) of input voltage Ability to manage output sockets (1 section) Cold start Remote Emergency Power Off (EPO) ROO (Remote ON/OFF) function - ability to remotely turn on/off the power supply Possibility to extend the backup time by connecting external battery modules (up to 4 pieces) Automatic detection of the number of connected battery modules Free PowerSoft monitoring and management software (download)
Designation - CE+WEEE
dimension depth - 575 mm
dimension height - 240 mm
Dimensions - 86(2U) x 438 x 445 mm
dimension weight - 18900 g
dimension width - 495 mm
ean - 5907683607982
Environment requirements - Operating temperature: 0 - 40°C Storage temperature: 0 - 40°C Relative humidity during operation: 95% non-condensing Relative storage humidity: 95% non-condensing Height above sea level: up to 3000m
Filters / protection - Circuit
Filters / protection - Overload
Filters / protection - Surge
guarantee - 24
guarantee_type - external
Hold-up time (maks) - 0 ms
I/O connectors - 1 x EPO
I/O connectors - 1 x HDMI
I/O connectors - 1 x RJ-45 (management)
I/O connectors - 1 x RJ-45 LAN
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB 2.0
Input power ports - IEC-C14
name - UPS POWERLINE RT PRO 1kVA/1kW R2T
No. of batteries - 3
Number of phases input - 1 (230V)
Other features - Degree of protection: IP20 Heat released for nominal operating conditions: 430 BTU/h
Output power ports - 8 x IEC-C13
producer - EVER
Software -
Special functions -
The shape of the output voltage - Full sine wave
UPS Architecture - on-line
vendpn - T/PWPRRT-111K00/00
Voltage - 230 V
Weight - 15.5 kg
Active power - 1000 W
Apparent power - 1000 VA
Backup time (100% load) - 6 min
Battery capacity - 9 Ah
Charging time - 3 h
Chassis type - Rack
Chassis type - Tower
Color - Black
Data Act - Link
Description - A series of technologically advanced on-line uninterruptible power system (UPS) systems (VFI), constructed in a double conversion topology, in which the output active power reaches the apparent power value. POWERLINE RT PRO series power supplies protect sensitive devices and systems against basic problems occurring in the power supply network, such as interruptions in electricity supply, voltage increases and dips, overvoltages and harmonic distortions. The main purpose of EVER POWERLINE RT PRO series power supplies is: network devices, servers, workstations, as well as other electrical, electronic and IT devices. Online operation with true double conversion, with sinusoidal output voltage (with the highest quality parameters VFI SS-111) Output active power equal to apparent power (PF=1) ECO mode reducing losses Rack/Tower case Backup time prediction - determination of the UPS autonomy time in real time - via PowerSoft software and on the display Wide window (range) of input voltage Ability to manage output sockets (1 section) Cold start Remote Emergency Power Off (EPO) ROO (Remote ON/OFF) function - ability to remotely turn on/off the power supply Possibility to extend the backup time by connecting external battery modules (up to 4 pieces) Automatic detection of the number of connected battery modules Free PowerSoft monitoring and management software (download)
Designation - CE+WEEE
dimension depth - 575 mm
dimension height - 240 mm
Dimensions - 86(2U) x 438 x 445 mm
dimension weight - 18900 g
dimension width - 495 mm
ean - 5907683607982
Environment requirements - Operating temperature: 0 - 40°C Storage temperature: 0 - 40°C Relative humidity during operation: 95% non-condensing Relative storage humidity: 95% non-condensing Height above sea level: up to 3000m
Filters / protection - Circuit
Filters / protection - Overload
Filters / protection - Surge
guarantee - 24
guarantee_type - external
Hold-up time (maks) - 0 ms
I/O connectors - 1 x EPO
I/O connectors - 1 x HDMI
I/O connectors - 1 x RJ-45 (management)
I/O connectors - 1 x RJ-45 LAN
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB 2.0
Input power ports - IEC-C14
name - UPS POWERLINE RT PRO 1kVA/1kW R2T
No. of batteries - 3
Number of phases input - 1 (230V)
Other features - Degree of protection: IP20 Heat released for nominal operating conditions: 430 BTU/h
Output power ports - 8 x IEC-C13
producer - EVER
Software -
Special functions -
The shape of the output voltage - Full sine wave
UPS Architecture - on-line
vendpn - T/PWPRRT-111K00/00
Voltage - 230 V
Weight - 15.5 kg
