ID: 839577
Product code: BX500MI
In stock >50 units
Warranty: 2 years
(Warranty for business entities 1 year)

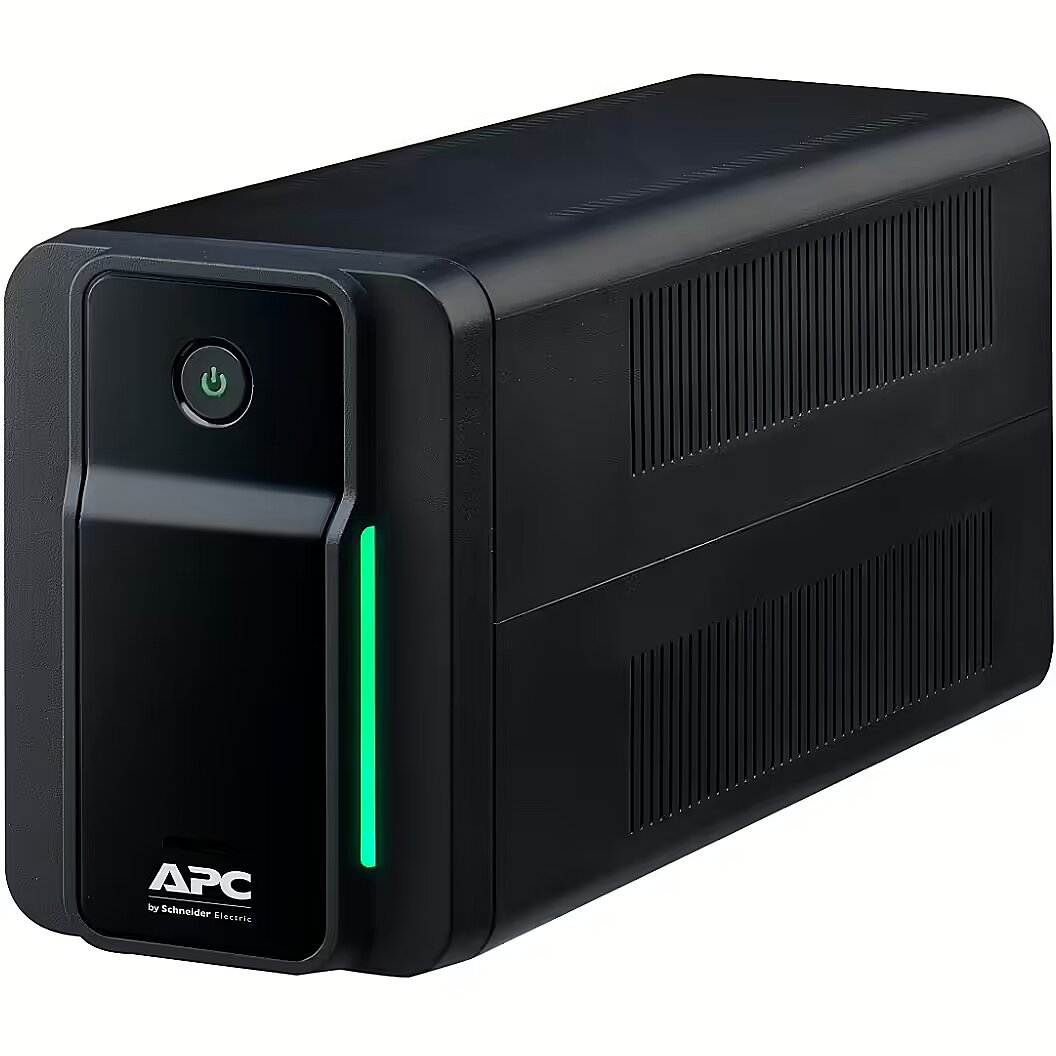

APC Back-UPS BX500MI 500VA, 300W IEC
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Battery capacity (VA): 500 VA
- Output power (W): 300 W
Display characteristics
Display
: Nav
Basic information
Battery capacity (VA)
500 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: 8h
Output power (W)
: 300 W
Ports and equipment
Number of nests (total)
: 3
Number of sockets (Battery Backup)
: 3
RJ-45
: 2
Socket type
: IEC320
USB
: 0
More detailed specification
Accessories included -
ACoutletsquantity - 3 AC outlet(s)
ACoutlettypes - C13 coupler
Active power - 300 W
Apparent power - 500 VA
ARTIKEL1 - APC BACK-UPS 500VA 230V AVR IEC
ARTIKEL2 - SOCKETS
AutomaticVoltageRegulationAVR - Yes
Backup time (100% load) - 1.02 min
Battery -
Battery - Automatic battery test - Yes
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 8 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Battery voltage - 12 V
Batterycapacity -
Battery capacity - 7 Ah
Battery recharge time, h - 8
Batterytechnology - Sealed Lead Acid (VRLA)
Batteryvoltage - 12 V
Brand - APC
BrandPartCode - BX500MI
Breite - 0.23
Cable length, m - 1.5
Cablesincluded -
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Certificates - Certification - CE, EAC, EN/IEC 62040-1
Certificates - Compliance certificates - RoHS
Charging time - 8 h
Chassis type - Tower
Color - Black
Depth - 310 mm
Depth, mm - 355
Description - 500 VA / 300 W interactive UPS Controls LED brightness, quick mute and generator setting by pressing a single power button. Our new BX series offers data line protection for data transmission over the network at 1 gigabit. Ideal for home and office users USB communication cable ready to use
Description - APC BACK-UPS 500VA, 230V, AVR, IEC SOCKETS
Design -
Design - Cable length - 1.5 m
Design - Form factor - Tower
Design - International Protection (IP) code - IP20
Design - LED indicators - Battery replacement
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 190 mm
dimension height - 225 mm
Dimensions - 13,8 x 9,8 x 31 cm
dimension weight - 5000 g
dimension width - 370 mm
Displaytype -
ean - 731304435648
EAN - 0731304435648
EANCode - 0731304435648
Eans - 731304435648
Efficiency - 96.1%
Environment requirements - Ambient temperature for operation: 0-40 °C Relative humidity: 0-95 %. Operating altitude (metres above sea level): 0-3000 m Ambient temperature for storage: -15-40 °C Relative humidity (storage): 0-95 % Altitude of storage: 0-3000 m
Features -
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Low battery alarm
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Efficiency - 96.1%
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 300 V
Features - Input operation voltage (min) - 140 V
Features - Input power factor - 0.63
Features - Noise level - 40 dB
Features - Output frequency - 50/60 Hz
Features - Output power - 300 W
Features - Output power capacity - 0.5 kVA
Features - Surge energy rating - 273 J
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Formfactor - Tower
Form factor - Tower
Gewicht - 5.56
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 0731304435648
GTIN - 731304435648
guarantee - 24
guarantee_type - external
Heatdissipation -
Height - 138 mm
Height - 220.000000
Height, mm - 160
HERSTELLER - APC
HighLights -
Hoehe - 0.19
Hold-up time (maks) - 10 ms
Hotswapbattery -
HSTNUMMER - BX500MI
I/O connectors - 1 x USB (Type B)
I/O connectors - 2 x RJ-45 LAN
Input connection - IEC 60320 C14
Inputfrequency - 50/60 Hz
Input frequency, Hz - 50/60 +/- 5
Inputoperationvoltagemax - 300 V
Inputoperationvoltagemin - 140 V
Input power ports - IEC-C14
Input voltage, V - 140 - 300
IP classification - IP20
Laenge - 0.38
Length - 345.000000
Logistics data - Harmonized System (HS) code - 85078000
LongDesc -
LongDesc - 500VA / 300W line-interactive UPS Controls LED brightness , Quick Mute and Generator Setting by pressing one single power button. Our New BX Series offers Dataline protection for data transmission through Network with 1 gigabit speed. Ideal for Home and Office Users USB communication cable ready to use
LongProductName - Back-UPS 500VA, 230V, AVR, IEC Sockets
LongSummaryDescription - APC Back-UPS 500VA, 230V, AVR, IEC Sockets. UPS topology: Line-Interactive, Output power capacity: 0.5 kVA, Output power: 300 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 3 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 12 V, Battery life (max): 5 year(s). Form factor: Tower, Product colour: Black, Cable length: 1.5 m. Compliance certificates: RoHS, Certification: CE, EAC, EN/IEC 62040-1
Manufacturer - APC
ManufacturerPartNumber - BX500MI
ManufDatasheet - https://www.tdbaltic.ee/leaflets/APC/BX500MI.pdf
Maximum power, W - 300
MPN - BX500MI
Name - APC Back-UPS Tower BX550MI 500VA 300W Line-Interactive
Name - APC Back BX500MI
name - BX500MI Back-UPS 500VA, 230V, AVR, IEC Sockets
Networkcardslot -
No. of batteries - 1
Noiselevel - 40 dB
Noise level, dB - 40
Nominal input voltage, V - 230
Nominal output voltage, V - 230
Numberofbatterycells -
Numberofinputphases -
Numberofoutputphases -
Number of phases input - 1 (230V)
Operatingaltitude - 0 - 3000 m
OperatingrelativehumidityHH - 0 - 95%
Operating temperature range (T-T), °C - 0 - 40
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Operational conditions - Non-operating altitude - 0 - 3000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 40 °C
Other features -
Outputfrequency - 50/60 Hz

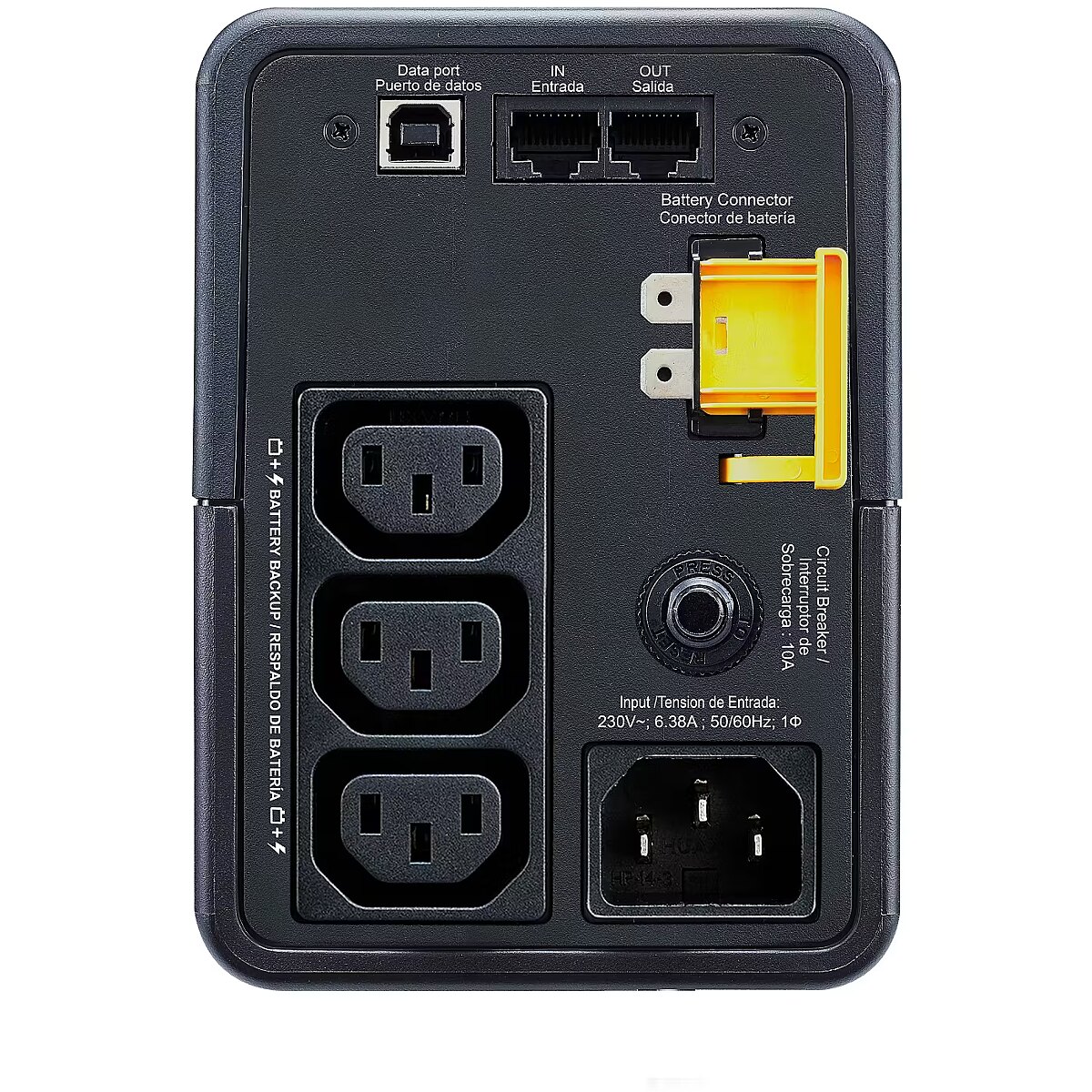

Output interface - 3 x IEC 60320 C13
Outputoperationvoltagemax -
Outputoperationvoltagemin -
Outputpower - 300 W
Output power, W - 300
Outputpowercapacity - 0.5 kVA
Output power capacity (VA) - 500
Output power ports - 3 x IEC-C13
Packagingcontent -
Packaging data - Package depth - 346 mm
Packaging data - Package height - 222 mm
Packaging data - Package weight - 4.5 kg
Packaging data - Package width - 142 mm
PeriodofWarranty - 2 Y
Ports & interfaces - AC outlets quantity - 3 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Cabling technology - 10/100/1000Base-T(X)
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Number of output IEC jumpers - 1
Ports & interfaces - Power plug - C14 coupler
Portsinterfaces -
Powerfactor -
Powerplug - C14 coupler
ProdDesc - APC Back-UPS 500VA, 230V, AVR, IEC Sockets
producer - APC
Producer - APC
ProducerCode - BX500MI
Productcolour - Black
Productcondition - Original
ProductHighLights -
ProductName - Back-UPS 500VA, 230V, AVR, IEC Sockets
ProductPicture - https://www.tdbaltic.ee/images/products/APC/BX500MI_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/APC/BX500MI_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/APC/BX500MI_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/APC/BX500MI_4.jpg
ProductPicture4 -
ProductPicture5 -
Quickinstallationguide -
Rackmountkit -
RS232ports -
Serialinterface -
Serialinterfacetype -
Serialportsquantity -
ShortDescription -
ShortSummaryDescription - APC Back-UPS 500VA, 230V, AVR, IEC Sockets, Line-Interactive, 0.5 kVA, 300 W, Sine, 140 V, 300 V
Software -
Special functions - AVR
Stck_Kart - 3
Stck_Pal - 27
Storno - Y
Surge energy rating, J - 273
Title - APC Back-UPS 500VA, 230V, AVR, IEC Sockets
Typicalbackuptimeathalfload -
UPS Architecture - line-interactive
UPS devices and accessories - Yes
UPStopology - Line-Interactive
URL - https://www.apc.com/
USBport -
USBporttype -
vendpn - BX500MI
Voltage - 12 V
Warranty - 12 months
Warrantyandmisc -
WarrantyInfo - 2 Years
Waveform - Sine
Weight - 4.2 kg
Weight - 4.2 kg
Weight - 5.593
Weight - 5.200000
Weight & dimensions - Depth - 310 mm
Weight & dimensions - Height - 138 mm
Weight & dimensions - Weight - 4.2 kg
Weight & dimensions - Width - 98 mm
Weight, kg - 5.4
Weightdimensions -
Width - 98 mm
Width - 140.000000
Width, mm - 120
