ID: 775959
Product code: 3S550I
In stock 1 units
Warranty: 2 years

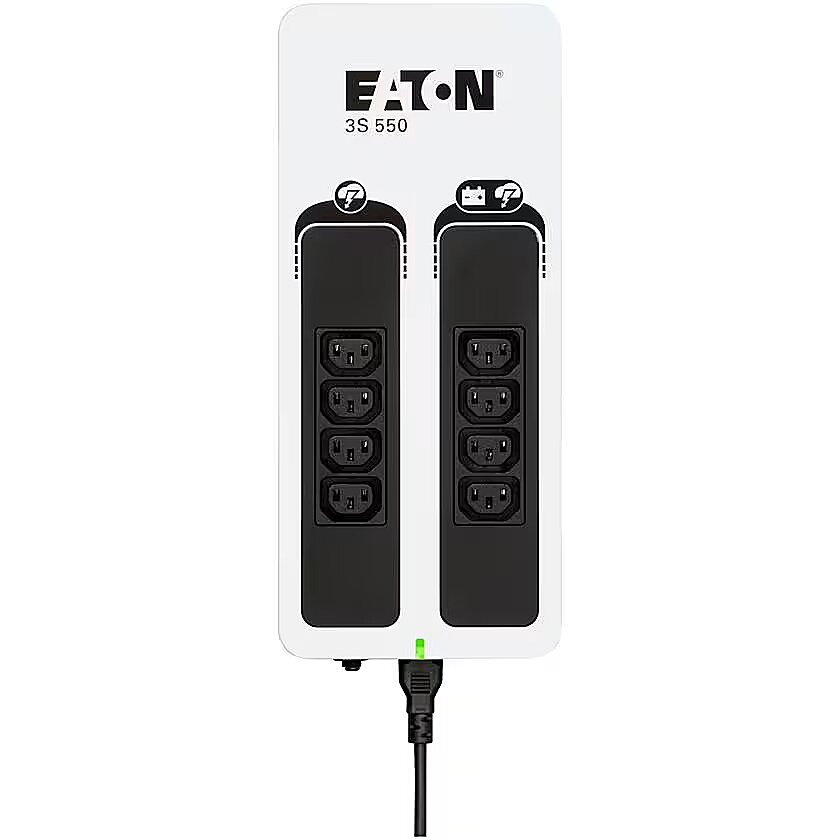

Eaton 3S550, 550VA 330W, IEC
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Battery capacity (VA): 550
- Output power (W): 330 W
Display characteristics
Display
: Nav
Basic information
Battery capacity (VA)
550
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: Not specified
Output power (W)
: 330 W
Ports and equipment
Number of nests (total)
: 8
Number of sockets (Battery Backup)
: 4
RJ-45
: 0
Socket type
: IEC320
USB
: 0
More detailed specification
Alarm - -
Battery - Automatic battery test - Yes
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - No
BatteryType - Sealed, lead-acid
Color - Black/White
ControlPanel - -
Depth - 83.5 mm
Design - Cable length - 1.5 m
Design - Certification - CE/EAC/Ukr/Cm/CB report
Design - LED indicators - Yes
Design - Product colour - Black
Design - Safety - IEC 62040-1; IEC 62040-2 C2; IEC 62040-3; IEC 62040-4; IEC 61643-11
dimensionalWeight - 3128
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 284 V
Features - Input operation voltage (min) - 161 V
Features - Maximum current - 10 A
Features - Output frequency - 50 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 330 W
Features - Output power capacity - 0.55 kVA
Features - Power protection features - Overdischarge
Features - Surge protection - Yes
Features - UPS topology - Standby (Offline)
FormFactor - Tower
GrossWeight - 4.000 kg
Height - 140 mm
InputConnections - C14
InputFrequency - 46-70 Hz
InputVoltage - 184-264 V (adjustable to 161-284 V)
InterfacePorts - USB (HID compliant)
Logistics data - Harmonized System (HS) code - 85078000
LongDesc -
MANUFDATASHEET - https://www.eaton.com/pt/en-gb/skuPage.3S550I.specifications.html
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Nominal input voltage - 230 V
OutputConnections -3x C13 3x C13 surge only
OutputFrequency - 50-60 Hz
OutputVoltage - 184-264 V (adjustable to 161-284 V)
PackageContents -2x IEC-IEC cables USB cable Quickstart guide Safety instructions
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - No
PowerVAW - 550 VA
PowerW - 330 W
ProdDesc - Eaton 3S 550 UPS IEC
producerCode - 3S550I
productName - Eaton 3S550I uninterruptible power supply (UPS) Standby (Offline) 0.55 kVA 330 W 8 AC outlet(s)
ProductPicture - http://www.tdbaltic.ee/images/ds4/3S550I-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
productSize - Normal
RechargeTime - -
RJ45 - -
Runtime - 9/3
sizeX - 240
sizeY - 395
sizeZ - 165
SmartSlot - -
Topology - Offline
USB - Yes
Warranty - -
warrantyLength - 24
warrantyType - F
WaveformType - -
Weight - 2.900 kg
weight - 3900
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 3.2 kg
Weight & dimensions - Width - 325 mm
Width - 325 mm
Battery - Automatic battery test - Yes
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - No
BatteryType - Sealed, lead-acid
Color - Black/White
ControlPanel - -
Depth - 83.5 mm
Design - Cable length - 1.5 m
Design - Certification - CE/EAC/Ukr/Cm/CB report
Design - LED indicators - Yes
Design - Product colour - Black
Design - Safety - IEC 62040-1; IEC 62040-2 C2; IEC 62040-3; IEC 62040-4; IEC 61643-11
dimensionalWeight - 3128
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 284 V
Features - Input operation voltage (min) - 161 V
Features - Maximum current - 10 A
Features - Output frequency - 50 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 330 W
Features - Output power capacity - 0.55 kVA
Features - Power protection features - Overdischarge
Features - Surge protection - Yes
Features - UPS topology - Standby (Offline)
FormFactor - Tower
GrossWeight - 4.000 kg
Height - 140 mm
InputConnections - C14
InputFrequency - 46-70 Hz
InputVoltage - 184-264 V (adjustable to 161-284 V)
InterfacePorts - USB (HID compliant)
Logistics data - Harmonized System (HS) code - 85078000
LongDesc -
MANUFDATASHEET - https://www.eaton.com/pt/en-gb/skuPage.3S550I.specifications.html
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Nominal input voltage - 230 V
OutputConnections -
OutputFrequency - 50-60 Hz
OutputVoltage - 184-264 V (adjustable to 161-284 V)
PackageContents -
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - No
PowerVAW - 550 VA
PowerW - 330 W
ProdDesc - Eaton 3S 550 UPS IEC
producerCode - 3S550I
productName - Eaton 3S550I uninterruptible power supply (UPS) Standby (Offline) 0.55 kVA 330 W 8 AC outlet(s)
ProductPicture - http://www.tdbaltic.ee/images/ds4/3S550I-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
productSize - Normal
RechargeTime - -
RJ45 - -
Runtime - 9/3
sizeX - 240
sizeY - 395
sizeZ - 165
SmartSlot - -
Topology - Offline
USB - Yes
Warranty - -
warrantyLength - 24
warrantyType - F
WaveformType - -
Weight - 2.900 kg
weight - 3900
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 3.2 kg
Weight & dimensions - Width - 325 mm
Width - 325 mm
