ID: 765646
Product code: VFI 1000 RMG PF1
Can be ordered 4 units Availability: 14 days after order approval
Warranty: 2 years

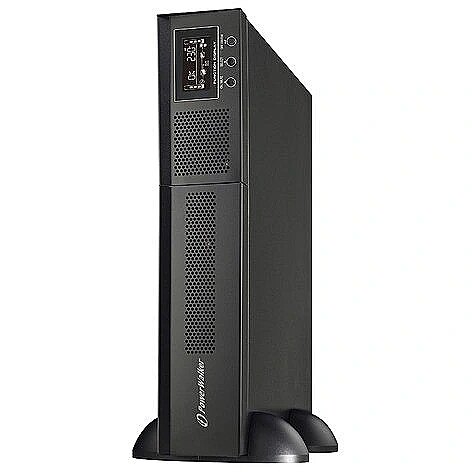

Power Walker VFI 1000 RMG PF1, 1000VA 1000W, IEC 2U
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Unisend parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Battery capacity (VA): 1000
- Output power (W): 1000
Description
The presence of a display on the UPS device allows real-time monitoring of operational parameters. This simplifies system control, allows timely detection of deviations and makes technically justified operational decisions.
A UPS with a IEC320 connection type is designed for flexible connection of multiple devices without the need for rigid installation. The use of a standard connector ensures convenient operation, reduces installation requirements, and allows the system to be quickly adapted to changes in equipment configuration.
Warranty
Power Walker provides a 2 year warranty for this model at all certified service centres.
*When purchasing the device for a legal entity, the manufacturer's warranty is 1 year.
Display characteristics
Display
: Is
Basic information
Battery capacity (VA)
1000
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Not specified
Charging time (hours)
: 3
Output power (W)
: 1000
Ports and equipment
Number of nests (total)
: 8
Number of sockets (Battery Backup)
: 8
RJ-45
: 2
Socket type
: IEC320
USB
: 0
More detailed specification
Accessories included -
Active power - 1000 W
Apparent power - 1000 VA
Backup time (100% load) - 4 min
Battery - Battery capacity - 7 Ah
Battery - Battery recharge time - 3 h
Battery - Battery voltage - 12 V
Battery - Number of batteries supported - 3
Battery - Typical backup time at full load - 4.5 min
Battery - Typical backup time at half load - 12.9 min
Battery capacity - 7 Ah
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Charging time - 3 h
Chassis type - Rack
Chassis type - Tower
Color - Black
Data Act - Link
Description - Zasilacze awaryjne PowerWalker VFI 1000 – 3000 z serii RMG PF1 są profesjonalnymi urządzeniami, służącymi do zastosowań komercyjnych, posiadający współczynnik mocy (Power Factor – PF = 1.0), oraz bardzo wydajną ładowarkę z regulowanym natężeniem.
Szerokie zakresy obsługiwanych napięć wejściowych jak i częstotliwości, umożliwiają urządzeniu działanie nawet w niestabilnych sieciach, oraz zapewniają wsparcie generatora prądu AC.
Dostępnych jest wiele akcesoriów, w tym moduły bateryjne, moduły komunikacyjne, które znacznie zwiększają funkcjonalność UPSa oraz zapewniają dłuższy czas podtrzymania. System może być monitorowany lokalnie, za pomocą panelu LCD, lub też zdalnie za pośrednictwem oprogramowania PowerWalker ViewPower. Dzięki niewielkiej konstrukcji UPS potrzebuje jedynie 2U cennej przestrzeni w szafie rack. UPS może być zamontowany w szafie rack 19 " lub po prostu leżeć na powierzchni płaskiej (jak modele Tower).
Design - Display type - LCD
Design - Form factor - Rackmount
Design - Product colour - Black
Design - Rack capacity - 2U
Designation - CE+WEEE
dimensionalWeight - 10080
dimension depth - 180 mm
dimension height - 560 mm
Dimensions - 438 x 88 x 410 mm
dimension weight - 18000 g
dimension width - 500 mm
ean - 4260074979954
Eans - 4260074979954
Environment requirements - - Zalecana temperatura otoczenia: 0 - 40 °C
- Zalecana wilgotność otoczenia: 20 - 90 %
Features - Crest factor - 3:1
Features - Emergency Power Off (EPO) - Yes
Features - Input current Total Harmonic Distortion (THD) - 1.6%
Features - Input frequency - 40/70 Hz
Features - Input operation voltage (max) - 300 V
Features - Input operation voltage (min) - 110 V
Features - Noise level - 50 dB
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 200 V
Features - Output power - 1000 W
Features - Output power capacity - 1 kVA
Features - Output voltage regulation - 1%
Features - Output voltage Total Harmonic Distortion (THD) - 2%
Features - Power factor - 0.99
Features - Surge protection - Yes
Features - Surge protection features - Fax
Features - Surge protection features - Modem
Features - Surge protection features - Network
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Filters / protection - Surge
guarantee - 24
guarantee_type - normal
Hold-up time (maks) - 0 ms
I/O connectors - 1 x RJ-11/RJ-45
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type B)
Important - Chcesz przedłużyć okres gwarancyjny zasilacza UPS i / lub jego akcesoriów? Żaden problem skontaktuj się z doradcą klienta lub napisz na e-mail ups@ab.pl i wykup odpowiednią usługę!
Input power ports - IEC-C14
Name - Power Walker VFI 1000 RMG PF1
name - UPS On-Line 1000VA 8x IEC RACK 19''/Tower
No. of batteries - 3
Number of phases input - 1 (230V)
Operational conditions - Operating relative humidity (H-H) - 20 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Obsługiwane systemy operacyjne: Win. 98, Win. 2000, Win. XP, Win. Vista, Win. 7, Linux, MAC, FreeBSD, Solaris, Win. 8

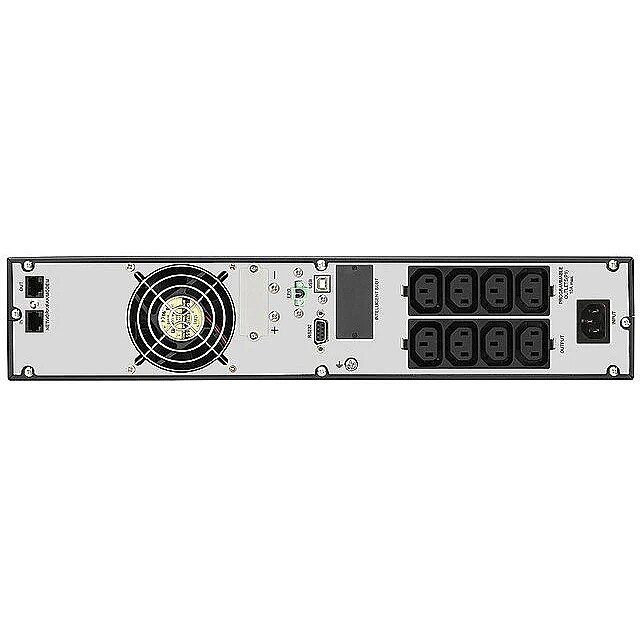

Output power ports - 8 x IEC-C13
Packaging data - Bundled software - ViewPower / ViewPowerMini
Packaging data - Cables included - Input power cable, Output power cable, USB cable
Packaging data - Manual - Yes
Packaging data - Resource CD - Yes
Packaging data - Warranty card - Yes
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Emergency Power Off (EPO) connector - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Modem (RJ-11) ports - 1
Ports & interfaces - Number of type F outputs - 8
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
producer - PowerWalker
Producer - Power Walker
producerCode - VFI 1000 RMG PF1
ProducerCode - VFI 1000 RMG PF1
productName - PowerWalker VFI 1000 RMG PF1 Double-conversion (Online) 1 kVA 1000 W
productSize - Normal
ShortDescription - ON-LINE 1000VA | 8X IEC C13 | USB/RS-232 | LCD | EPO | Rack 19"/Tower
sizeX - 560
sizeY - 500
sizeZ - 180
Software - ViewPower
Special functions - - Gniazdo rozszerzeń: Tak
- Awaryjne wyłączenie (EPO): Tak
Transfer time (max) - 0 ms
UPS Architecture - on-line
vendpn - VFI 1000 RMG PF1
Voltage - 12 V
warrantyLength - 24
warrantyType - G
Weight - 14.1 kg
weight - 1734
Weight & dimensions - Depth - 410 mm
Weight & dimensions - Height - 88 mm
Weight & dimensions - Package height - 180 mm
Weight & dimensions - Package type - Box
Weight & dimensions - Package width - 500 mm
Weight & dimensions - Weight - 14.1 kg
Weight & dimensions - Width - 438 mm
