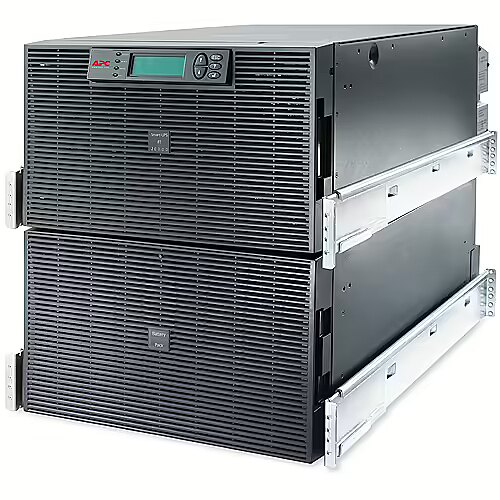

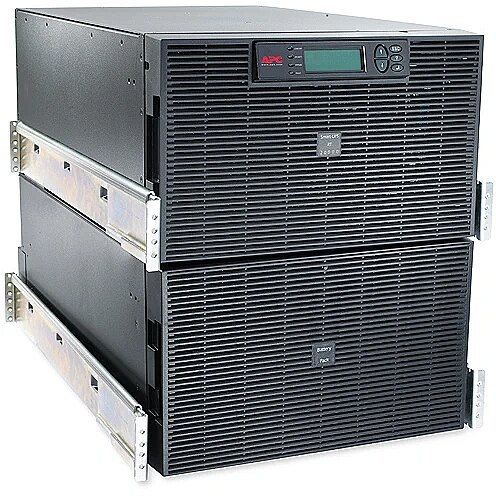

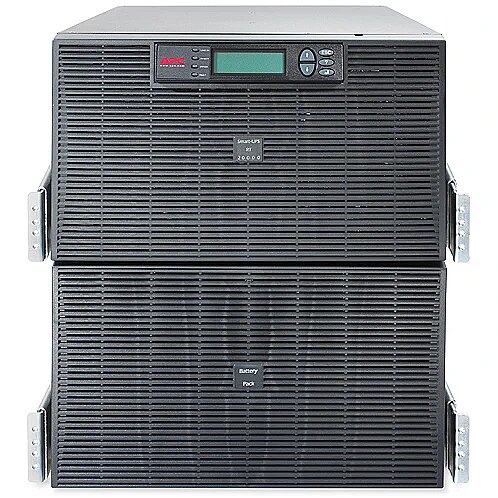

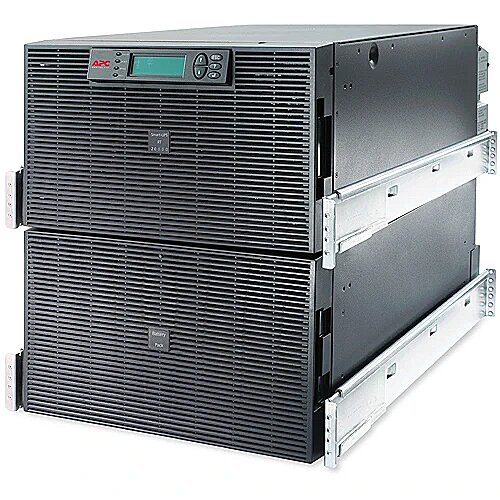

APC Smart-UPS SURT20KRMXLI 20000VA, 16000W, IEC, 12U

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 362221 Product code: SURT20KRMXLI
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years
Main product parameters All parameters
  • Battery capacity (VA): 20000
  • Output power (W): 16000
Similar Products
This product APC Smart-UPS SURT20KRMXLI 20000VA, 16000W, IEC, 12U
APC Smart-UPS SRT2200XLI 2200VA, 1980W, IEC
APC Smart-UPS SRT8KXLI 8000VA, 8000W, IEC
News APC SMART-UPS SRT 2200VA 230 V NO BATTERIES USED WITH LITHIUM I
APC Smart-UPS X SMX1000I 1000VA, 800W, IEC, 2U
Show similar specs. Hide similar specs.
16,394.32 €
2,183.82 €
7,929.66 €
2,213.04 €
1,066.01 €
Model SURT20KRMXLI SRT2200XLI SRT8KXLI SRT2200UXI-NCLI SMX1000I
Display characteristics
Display Ir Ir Ir Ir Ir
Basic information
Battery capacity (VA) 20000 2200 VA 8000 VA 2200 VA 1000 VA
Battery type Lead acid Lead acid Lead acid Lithium-Ion (Li-Ion) Lead acid
Charging time (hours) 2.5 3h 1.5 1.5 3h
Output power (W) 16000 1980 W 8000 W 1980 W 800 W
Ports and equipment
Number of nests (total) 8 10 10 8 8
Number of sockets (Battery Backup) Eight Core 10 10 Eight Core Eight Core
RJ-45 0 1 1 1 0
Socket type IEC320 IEC320 IEC320 IEC320 IEC320
USB 0 1 1 1 0
All parameters
Model : SURT20KRMXLI
Display characteristics
Display : Ir
Basic information
Battery capacity (VA) 20000
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type : Lead acid
Charging time (hours) : 2.5
Output power (W) : 16000
Ports and equipment
Number of nests (total) : 8
Number of sockets (Battery Backup) : Eight Core
RJ-45 : 0
Socket type : IEC320
USB : 0
More detailed specification
Additional information in manufacturers website APC Smart-UPS SURT20KRMXLI 20000VA, 16000W, IEC, 12U
ARTIKEL1 - APC SMART-UPS RT 20 KVA RM 230V
ARTIKEL2 - IN
Battery - Automatic battery test - Yes
Battery - Battery capacity - 3840 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 2.5 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes

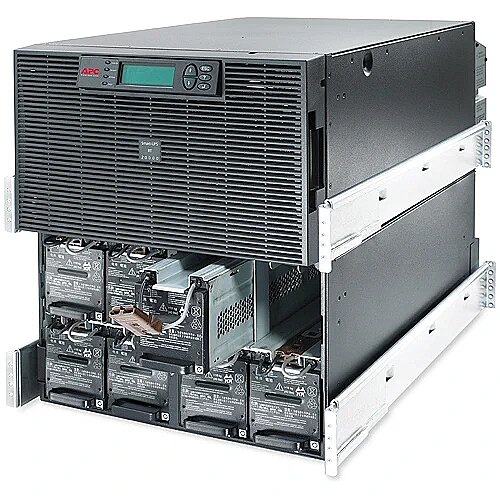

Battery - Hot-swap battery - Yes

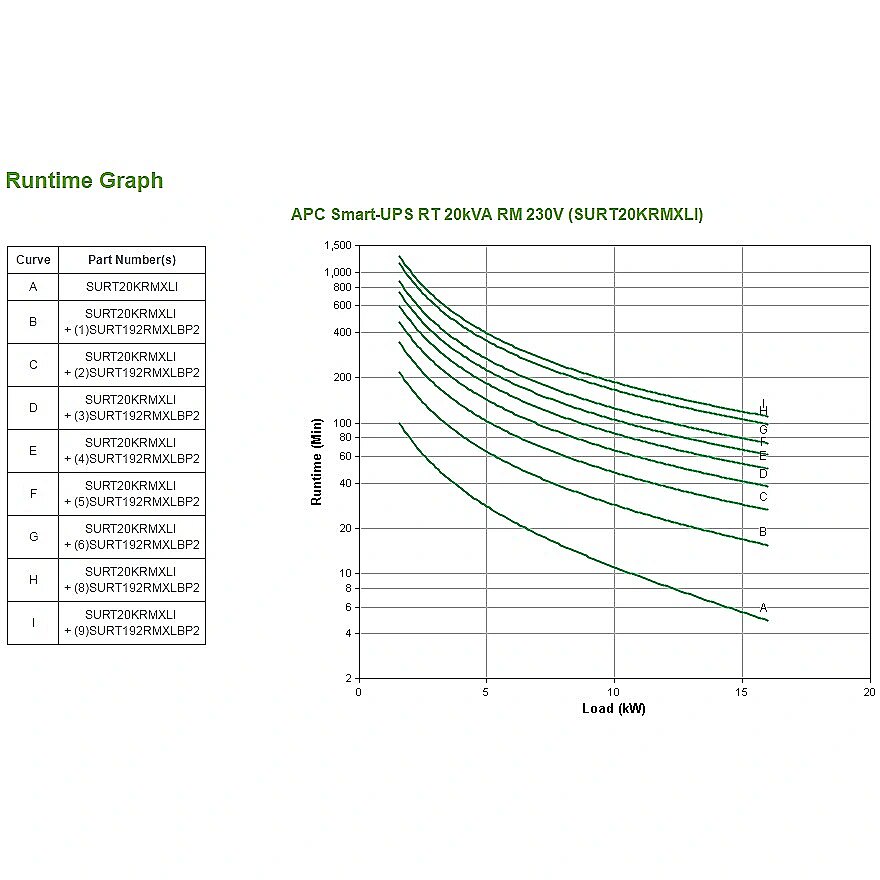

Battery - Typical backup time at full load - 4.9 min
Battery - Typical backup time at half load - 15.2 min
Brand - APC
BrandPartCode - SURT20KRMXLI
Breite - 0.97
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Certificates - Certification - BSMI, EN/IEC 62040-2, EN/IEC 62040-1-1, VDE, PEP, EOLI
Certificates - Compliance certificates - RoHS
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 12U
EAN - 0731304255710
EANCode - 0731304255710
Features - Audible alarm(s) - Yes
Features - Auto-restart - Yes
Features - Crest factor - 3:1
Features - Efficiency - 93.7%
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 40 - 70 Hz
Features - Maximum current - 115 A
Features - Noise level - 59 dB
Features - Number of output phases - 1
Features - Output frequency regulation - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 16000 W
Features - Output power capacity - 20 kVA
Features - Surge protection - Yes
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Gewicht - 257
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 0731304255710
GTIN - 731304255710
HERSTELLER - APC
Hoehe - 0.6
HSTNUMMER - SURT20KRMXLI
Laenge - 1
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 1 pc(s)
Logistics data - Total carbon footprint (kg of CO2e) - 37662.44
LongDesc - High density, double-conversion on-line power protection with scalable runtime.
LongProductName - Smart-UPS RT 20kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets
LongSummaryDescription - APC Smart-UPS RT 20kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets. UPS topology: Double-conversion (Online), Output power capacity: 20 kVA, Output power: 16000 W. AC outlet types: C19 coupler, Power plug: Terminal, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 3840 VAh, Typical backup time at full load: 4.9 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 12U. Compliance certificates: RoHS, Certification: BSMI, EN/IEC 62040-2, EN/IEC 62040-1-1, VDE, PEP, EOLI
Manufacturer - APC
MPN - SURT20KRMXLI
Name - APC Smart-UPS SURT20KRMXLI ( Rack-montierbar ) - Wechselstrom 220/230/240 V
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V
Other features - Packaging content - Web/SNMP Management Card
Packaging content - Cables included - RS-232
Packaging content - Manual - Yes
Packaging content - Rack mount kit - Yes
Packaging data - Package depth - 1003 mm
Packaging data - Package height - 990 mm
Packaging data - Package weight - 314.1 kg
Packaging data - Package width - 610 mm
Packaging data - Software CD - Yes

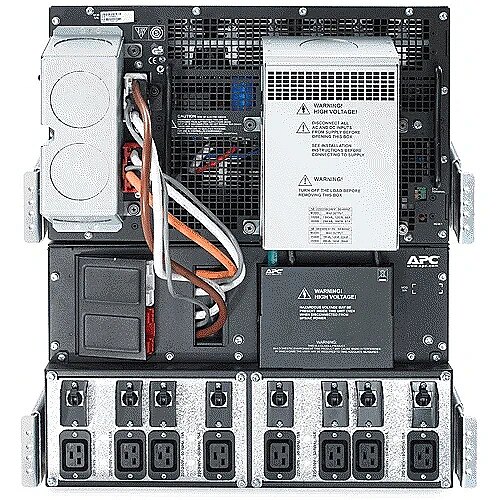

Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - C19 coupler
Ports & interfaces - Cabling technology - 10/100Base-T
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Number of output IEC jumpers - 2
Ports & interfaces - Power plug - Terminal
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - SmartSlot - Yes
ProductName - Smart-UPS RT 20kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets
ShortSummaryDescription - APC Smart-UPS RT 20kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets, Double-conversion (Online), 20 kVA, 16000 W, Sine, 40 - 70 Hz, 220 V
Stck_Kart - 1
Stck_Pal - 1
Storno - N
Title - APC Smart-UPS RT 20kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets
URL - https://www.apc.com/
WarrantyInfo - 2 years repair or replace
Weight & dimensions - Depth - 773 mm
Weight & dimensions - Height - 533 mm
Weight & dimensions - Weight - 247.7 kg
Weight & dimensions - Width - 432 mm
16,394.32 €
