ID: 315877
Product code: PR1500ELCD
Can be ordered 5 units Availability: 14 days after order approval
Warranty: 2 years

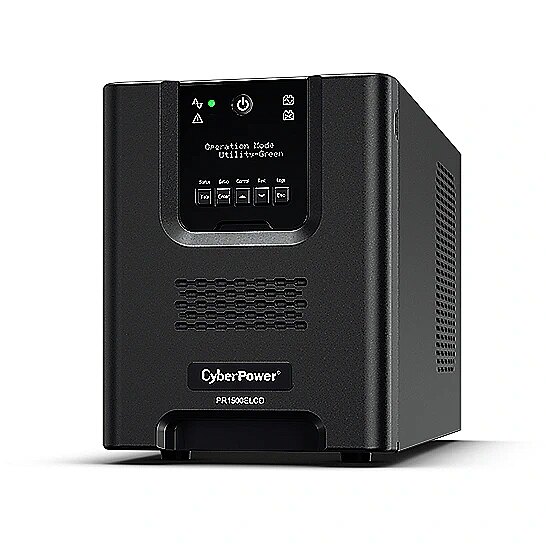

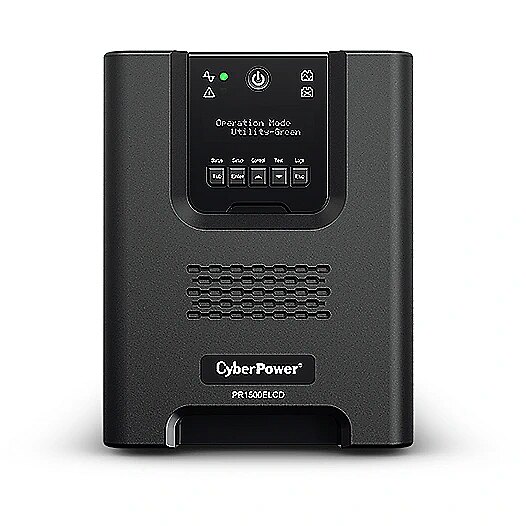

Cyberpower PR1500ELCD, 1500VA 1350W, IEC
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Unisend parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Battery capacity (VA): 1500
- Output power (W): 1350
Description
This UPS Cyberpower PR1500ELCD, 1500VA 1350W, IEC with an output power of 1350 W and battery capacity of 1500 VA is suitable for workstations and data storage solutions. It reduces the risk of operational downtime in case of power fluctuations.

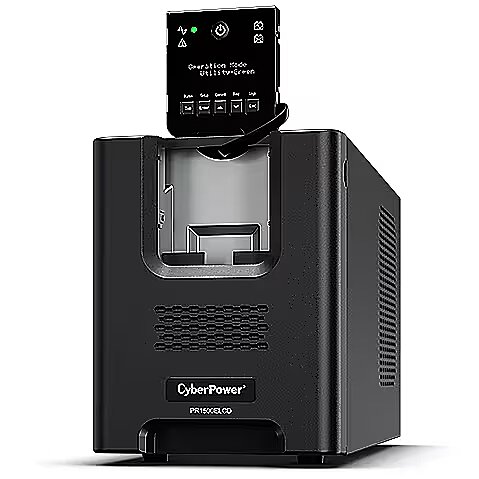

A UPS with a display provides direct access to the device's technical information. This reduces the need for external system solutions and facilitates monitoring during autonomous operation.
The use of a lead-acid battery in a UPS device ensures predictable operation during both short-term and prolonged power outages. This battery technology is characterized by stable output parameters, good compatibility with classic UPS schemes, and clear operating conditions in standard working environments.
The use of a IEC320 type connection in a UPS device ensures a universal and secure electrical connection of the device. This type of connection format reduces the mechanical load on the contacts, simplifies cable organization, and supports stable system operation under typical workload conditions.
Warranty
Cyberpower provides a 2 year warranty for this model at all certified service centres.
*When purchasing the device for a legal entity, the manufacturer's warranty is 1 year.
All parameters
Model
: PR1500ELCD
Display characteristics
Display
: Is
Basic information
Battery capacity (VA)
1500
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: 8
Output power (W)
: 1350
Ports and equipment
Number of nests (total)
: 8
Number of sockets (Battery Backup)
: 8
RJ-45
: 0
Socket type
: IEC320
USB
: 0
More detailed specification
Accessories included - PR1500ELCD UPS Power cord USB cable Serial cable EPO cable User manual
Active power - 1350 W
Apparent power - 1500 VA
Battery - Battery recharge time - 8 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Hot-swap battery - Yes
Battery - Number of batteries supported - 1
Battery - Typical backup time at full load - 5 min
Battery - Typical backup time at half load - 17 min
Battery > Battery recharge time - 8 (Typical); 3 (Quick) h
Battery > Typical backup time at full load - 4 min
Battery > Typical backup time at half load - 17 min
Brand - CyberPower
BrandPartCode - PR1500ELCD
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Certification - CE, EAC, RCM, RoHS
Charging time - 8 h
Chassis type - Tower
Code - PR1500ELCD
Color - Black
Data Act - Link and Link
Description - UPS PR1500ELCD uninterruptible power supply CyberPower PR1500ELCD line-interactive UPS with uninterrupted sinusoidal voltage provides the best protection for office system devices, including desktop computers, workstations, network devices and peripherals. It is usually located in a back office, server room or data center. The UPS can be managed locally via USB or serial ports or remotely via an SNMP card (optional remote management card), giving administrators and users unparalleled flexible access to each UPS over the network for real-time monitoring, configuration and scheduling shutdown the system using PowerPanel management software. UPS Line-interactive topology Active PFC compatible Automatic voltage regulation (AVR) Key/non-key workloads Protection against interference and surges LCD status display USB connectivity port PowerPanel management software Tower type Energy Saving Technology Pure sine wave output Overload protection Hot-swap batteries EMI and RFI filtering Detachable LCD panel Emergency Power Off (EPO) Port SNMP/HTTP remote management (optional)
Design - Display type - LCD
Design - Form factor - Tower
Design - Housing material - Metal
Design - LED indicators - Error, Operation
Design - Product colour - Black
Design > Form factor - Tower
Designation - CE+WEEE
dimension depth - 600 mm
dimension height - 360 mm
Dimensions - 170 x 221 x 432 mm
dimension weight - 28000 g
dimension width - 320 mm
EAN - 4712364143816
ean - 4712364143816
Eans - 4712364143816
Environment requirements - Operating Temperature: 32 ~ 104 (°F) Operating temperature: 0 ~ 40 (°C) Relative operating humidity (non-condensing): 0 ~ 95 (%) Operating altitude: 0-10,000 feet (0-3000 meters) (feet/meters) Storage Temperature: 5 ~ 113 (°F) Storage temperature: -15 ~ 45 (°C) Relative storage humidity (non-condensing): 0 ~ 95 (%) Storage altitude (feet/meters): 0-50,000 feet (0-15,000 meters) Online heat dissipation: 113 (BTU/hr)
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Fault, Low battery alarm, Overload alarm
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Emergency Power Off (EPO) - Yes
Features - EMI/RFI noise filtering - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 301 V
Features - Input operation voltage (min) - 151 V
Features - Maximum current - 10 A
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 230 V
Features - Output operation voltage (min) - 230 V
Features - Output power - 1350 W
Features - Output power capacity - 1.5 kVA
Features - Power factor - 0.9
Features - Power protection features - Overload
Features - Response time - 4 ms
Features - Surge energy rating - 405 J
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Pure sine
Filters / protection - Overload
Filters / protection - Suppression
Filters / protection - Surge
GTIN - 4712364143816
GTIN - 4712364144202
GTIN - 5050914923709
GTIN - 5054533207561
guarantee - 24
guarantee_type - external

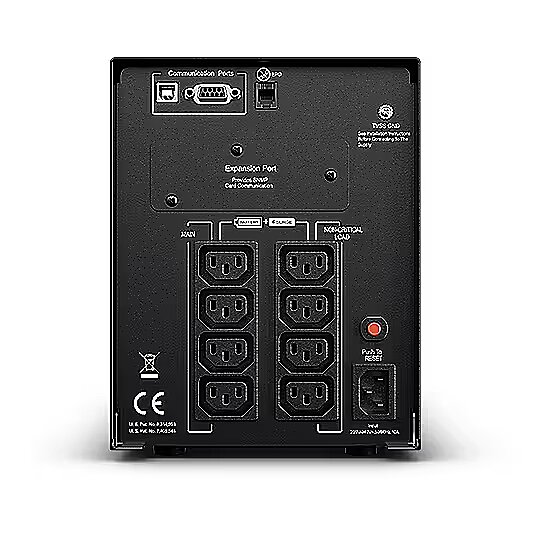

I/O connectors - 1 x EPO
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type B)
Input power ports - IEC-C14
Link - https://www.cyberpower.com/eu/en/product/sku/pr1500elcd
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 8504408590
LongDesc - The Professional Tower Series UPS provides advanced level of power protection to servers, telecom equipments, VOIP, internet working hardware and other mission-critical applications. Featuring Pure Sinewave output and Automatic Voltage Regulation (AVR) stabilizes the AC signal and maintains a safe voltage, it allows the UPS to maintain safe power levels for the connected equipment without resorting to battery power. Its detachable, remote-controllable Multifunction LCD Readout can be mounted on the wall or in the control center nearby to provide highest convenience and flexibility under different management scenarios.The optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. Together with the included PowerPanel® Business Edition management software, it could provide corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
LongProductName - Smart App UPS for Network and Server
LongSummaryDescription - CyberPower PR1500ELCD. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 1350 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 5 min, Typical backup time at half load: 17 min. Form factor: Tower, Product colour: Black, Housing material: Metal. Certification: CE, EAC, RCM, RoHS
Name - CyberPower PR1500ELCD
Name - CyberPower | Smart App UPS Systems | PR1500ELCD | 1500 VA | 1350 W
name - UPS PR1500ELCD
Number of phases input - 1 (230V)
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features -
Other features - Compatible operating systems - Windows 7 / Vista / XP / 2000, Server 2003 / 2008, Linux
Other features - Overload protection - Yes
Other features > Dimensions (WxDxH) - 170 x 432 x 221 mm
Output power ports - 8 x IEC-C13
Package features > Classification of battery - CL126:PE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 576 mm
Package features > Gross depth master carton - 595 mm
Package features > Gross height (mm) - 320 mm
Package features > Gross height master carton - 246 mm
Package features > Gross width (mm) - 352 mm
Package features > Gross width master carton - 360 mm
Package features > Net weight master carton - 20.8 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 27 pc(s)
Package features > Paper/Pasteboard - 1675 g
Package features > Plastic (No PET) - 225.00 g
Package features > Tare weight (kg) - 1.90 kg
Package features > Tare weight master carton - 0.896 kg
Package features > TI weight (kg) - 3.5 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.06488064 m³
Package features > WEE classification - CL109:4:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - USB cable
Packaging data - Package depth - 579 mm
Packaging data - Package height - 360 mm
Packaging data - Package weight - 27 kg
Packaging data - Package width - 316 mm
Performance > Capacity - 1500 VA
Performance > UPS topology - Line-Interactive
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Number of output IEC jumpers - 1
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - Serial ports quantity - 1
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
producer - CyberPower
Producer - CyberPower
ProducerCode - PR1500ELCD
Producer product family - Smart App UPS Systems
Producer product name - PR1500ELCD
ProductName - PR1500ELCD
ShortDescription - CyberPower UPS PR1500ELCD (1500VA/1350W)
ShortSummaryDescription - CyberPower PR1500ELCD, Line-Interactive, 1.5 kVA, 1350 W, Pure sine, 151 V, 301 V
Software - PowerPanel Business
Special functions -
Technical details > Capacity - 1350 W
Technical details > Gross weight - 27.50 kg
Technical details > Net weight - 25.60 kg
Technical details > Other features - Line-interactive UPS Topology; Active PFC Compatible; Automatic Voltage Regulation (AVR); Critical/Non-critical Load Outlets; Surge and Spike Protection; LCD Status Display; USB Connectivity Port; PowerPanel Management Software; Tower Form Factor; Energy Saving Technology; Pure Sine Wave Output; Overload Protection; Hot-swappable Batteries; EMI and RFI Filtration; Detachable LCD Panel; Emergency Power Off (EPO) Port; SNMP/HTTP Remote Management Capability (Optional)
Technical details > Producer - CyberPower
The shape of the output voltage - Full sine wave
Title - CyberPower PR1500ELCD uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 1350 W 8 AC outlet(s)
Transfer time (max) - 4 ms
UPS Architecture - line-interactive
URL - https://www.cyberpower.com/de/en/product/sku/pr1500elcd
vendpn - PR1500ELCD
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
Weight - 25.1 kg
Weight & dimensions - Depth - 432 mm
Weight & dimensions - Height - 221 mm
Weight & dimensions - Weight - 25.1 kg
Weight & dimensions - Width - 170 mm
