ID: 243488
Product code: 9PX1000IRT2U
Can be ordered 2 units Availability: 14 days after order approval
Warranty: 2 years

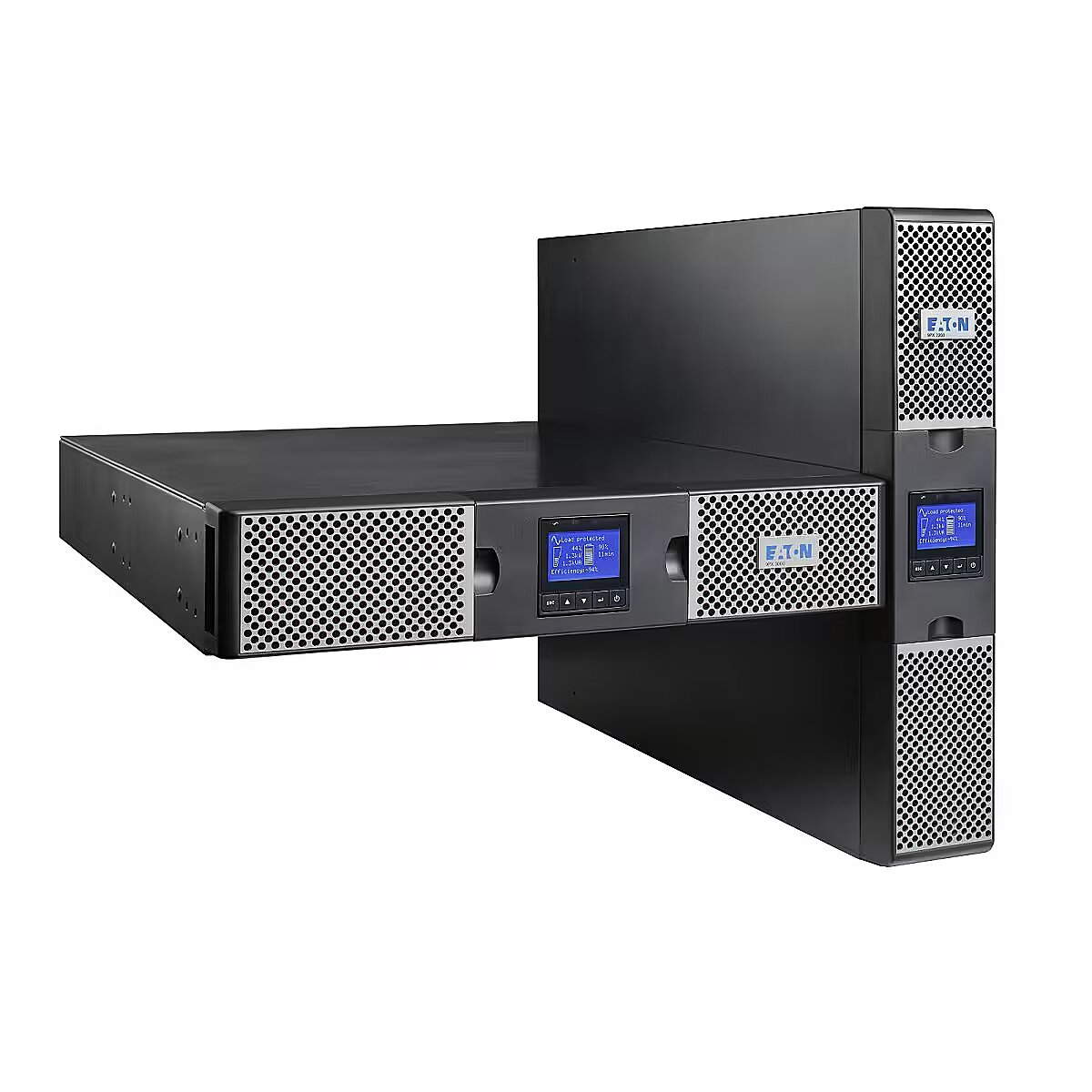

Eaton 9PX1000IRT2U, 1000VA 1000W, IEC 2U
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Unisend parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Battery capacity (VA): 1000
- Output power (W): 1000
Description
This UPS Eaton 9PX1000IRT2U, 1000VA 1000W, IEC 2U with an output capacity of 1000 W and a battery capacity of 1000 VA offers a balanced solution for daily use. The battery backup allows for temporary operation of multiple connected devices.
The presence of a display on the UPS device allows real-time monitoring of operational parameters. This simplifies system control, allows timely detection of deviations and makes technically justified operational decisions.
The use of a lead-acid battery in a UPS device ensures predictable operation during both short-term and prolonged power outages. This battery technology is characterized by stable output parameters, good compatibility with classic UPS schemes, and clear operating conditions in standard working environments.
A UPS with a IEC320 connection type is designed for flexible connection of multiple devices without the need for rigid installation. The use of a standard connector ensures convenient operation, reduces installation requirements, and allows the system to be quickly adapted to changes in equipment configuration.
Warranty
Eaton provides a 2 year warranty for this model at all certified service centres.
All parameters
Model
: 9PX1000IRT2U
Display characteristics
Display
: Is
Basic information
Battery capacity (VA)
1000
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: Not specified
Output power (W)
: 1000
Ports and equipment
Number of nests (total)
: 8
Number of sockets (Battery Backup)
: 8
RJ-45
: 0
Socket type
: IEC320
USB
: 0
More detailed specification
AC outlets quantity Ports & interfaces - 8 AC outlet(s)
AC outlet types Ports & interfaces - C13 coupler
ARTIKEL1 - EATON 9PX 1000I RT2U
ARTIKEL2 - IN
Automatic battery test Battery - Yes
Battery technology Battery - Sealed Lead Acid (VRLA)
Breite - 0.54
Bundled software Packaging data - Intelligent Power Software suite
Category Code - UPW
Certification Certificates - IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
Depth Weight & dimensions - 450 mm
Description - Reliable. Versatile. Powerful. Efficient. With double-conversion topology for constant power conditioning and up to 93 percent efficiency, the Eaton 9PX 700-3000 VA models support your overall goal of business continuity. It’s built for scalable deployment, features a graphical LCD for local status updates and integrates with virtualized environments.
Display type Design - LCD
EANCode - 0743172081407
Efficiency Features - 91.5%
Form factor Design - Rackmount/Tower
Gewicht - 22.4
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
Harmonized System (HS) code Logistics data - 85078000
Height Weight & dimensions - 86.5 mm
HERSTELLER - EATON
Hoehe - 0.23
Hot-swap battery Battery - Yes
HSTNUMMER - 9PX1000IRT2U
Input frequency Features - 40/70 Hz
Input operation voltage (max) Features - 276 V
Input operation voltage (min) Features - 176 V
Laenge - 0.58
LED indicators Design - Yes
Management card included Packaging data - No
Noise level Features - 35 dB
Nominal input voltage Other features - 230 V
Number of input phases Features - 1
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Output frequency Features - 50/60 Hz
Output operation voltage (max) Features - 240 V
Output operation voltage (min) Features - 200 V
Output power capacity Features - 1 kVA
Output power Features - 1000 W
Power factor Features - 1
Power plug Ports & interfaces - C14 coupler
Power protection features Features - Battery discharge
Product colour Design - Black
Rack capacity Design - 2U
Rack mount kit Packaging content - Yes
RS-232 ports Ports & interfaces - 1
Safety Safety regulation & standards - IEC/EN 62040-1, UL 1778, CSA 22.2
Serial interface Ports & interfaces - Yes
Serial interface type Ports & interfaces - RS-232
Stck_Kart - 1
Stck_Pal - 2
Storno - Y
Summary - Eaton 9PX 1kVA. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 1000 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 6 min, Typical backup time at half load: 16.5 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Certification: IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report...
Sustainability certificates Sustainability - ENERGY STAR
Typical backup time at full load Battery - 6 min
Typical backup time at half load Battery - 16.5 min
Unit Box Height - 0.23
Unit Box Length - 0.585
Unit Box Width - 0.55
Unit Calculated Volume - 0.0740025 cubm
Unit Calculated Weight - 23 kg
Units per Shipping Box - 1
UPS topology Features - Double-conversion (Online)
USB 2.0 ports quantity Ports & interfaces - 1
USB port Ports & interfaces - Yes
Vendor Homepage - https://powerquality.eaton.com/9PX1000IRT2U.aspx?CX=51
Warranty - 24 months
Waveform Features - Pure sine
Weight Weight & dimensions - 17.4 kg
Width Weight & dimensions - 440 mm
