ID: 215657
Product code: VI 1200 RLE
In stock 2 units
Warranty: 2 years

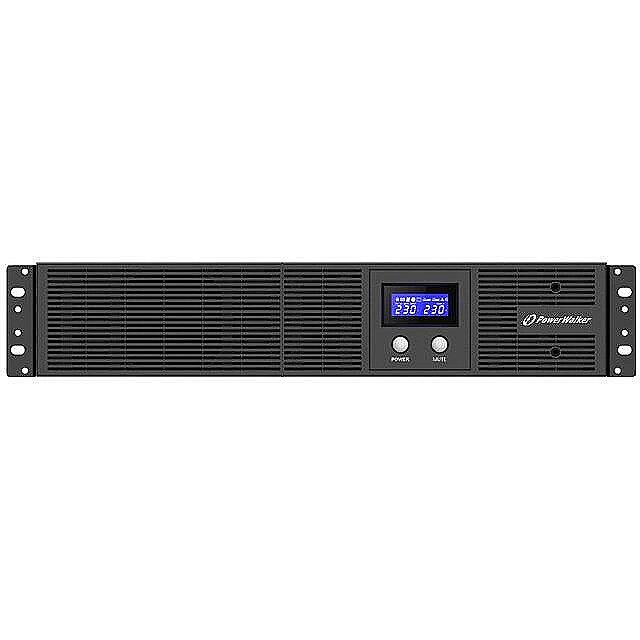

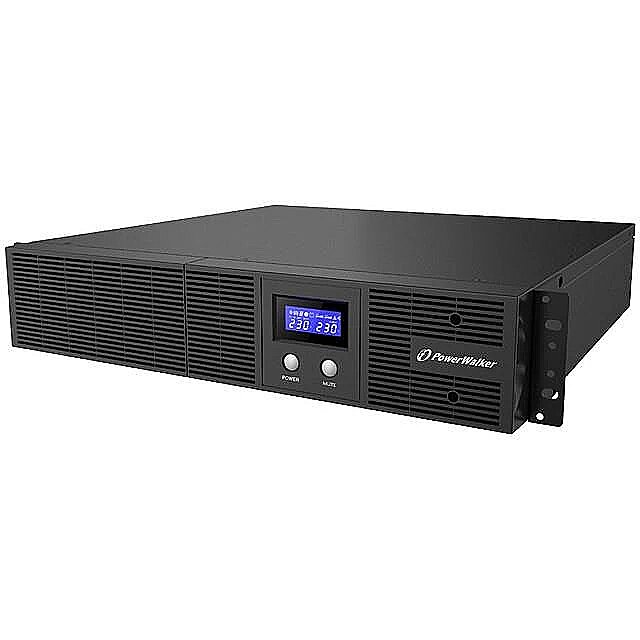

Power Walker VI 1200 RLE, 1200VA 720W, IEC 2U
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Unisend parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Battery capacity (VA): 1200
- Output power (W): 720
Description
This UPS Power Walker VI 1200 RLE, 1200VA 720W, IEC 2U with an output power of 720 W and a battery capacity of 1200 VA is designed for high load systems. It provides stable power supply for multiple devices at the same time and extends the autonomous operation time.
The presence of a display on the UPS device allows real-time monitoring of operational parameters. This simplifies system control, allows timely detection of deviations and makes technically justified operational decisions.
A UPS with a IEC320 connection type is designed for flexible connection of multiple devices without the need for rigid installation. The use of a standard connector ensures convenient operation, reduces installation requirements, and allows the system to be quickly adapted to changes in equipment configuration.
Warranty
Power Walker provides a 2 year warranty for this model at all certified service centres.
*When purchasing the device for a legal entity, the manufacturer's warranty is 1 year.
Display characteristics
Display
: Is
Basic information
Battery capacity (VA)
1200
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Not specified
Charging time (hours)
: 4
Output power (W)
: 720
Ports and equipment
Number of nests (total)
: 4
Number of sockets (Battery Backup)
: 4
RJ-45
: 2
Socket type
: IEC320
USB
: 0
More detailed specification
Accessories included -
Active power - 720 W
Apparent power - 1200 VA
Backup time (100% load) - 3.1 min
Battery - Battery capacity - 7.2 Ah
Battery - Battery recharge time (90%) - 4 h
Battery - Battery voltage - 12 V
Battery - Number of batteries supported - 2
Battery - Typical backup time at full load - 3.1 min
Battery - Typical backup time at half load - 11.5 min
Battery capacity - 7.2 Ah
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Charging time - 4 h
Chassis type - Rack
Color - Black
Data Act - Link
Description - PowerWalker VI 1200-3000 RLE is a compact LINE-INTERACTIVE series topology designed for rack 19 units. The device provides a full sine wave output, offering optimal protection for small motor loads and servers with APFC power supplies. The USB port has HID support, which allows native communication with almost all typical operating systems - eliminating the need to install additional software. Better internal heat dissipation makes the UPS run quietly during standard operation. The extensive LCD panel provides all the necessary information and automatically dims after a few seconds. These features make the UPS series an attractive solution for home use as well.
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 12320
dimension depth - 230 mm
dimension height - 560 mm
Dimensions - 88 x 430 x 438 mm
dimension weight - 17120 g
dimension width - 560 mm
ean - 4260074981179
Eans - 4260074981179
Environment requirements - 0 - 40 °C
Features - Input frequency - 45/55 Hz
Features - Input operation voltage (max) - 290 V
Features - Input operation voltage (min) - 165 V
Features - Noise level - 50 dB
Features - Output operation voltage (max) - 230 V
Features - Output operation voltage (min) - 230 V
Features - Output power - 720 W
Features - Output power capacity - 1.2 kVA
Features - Power protection features - Overload
Features - UPS topology - Line-Interactive
Filters / protection - Surge
guarantee - 24
guarantee_type - normal
Hold-up time (maks) - 8 ms
I/O connectors - 2 x RJ-45 LAN
Logistics data - Harmonized System (HS) code - 85078000
Name - Power Walker VI 1200 RLE
name - UPS Line-Interactive 1200VA Rack 19 4x IEC Out, RJ11 / RJ45 In / Out, USB, LCD, EPO
No. of batteries - 2
Number of phases input - 1 (120V)
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Waveform - modified sinusoid

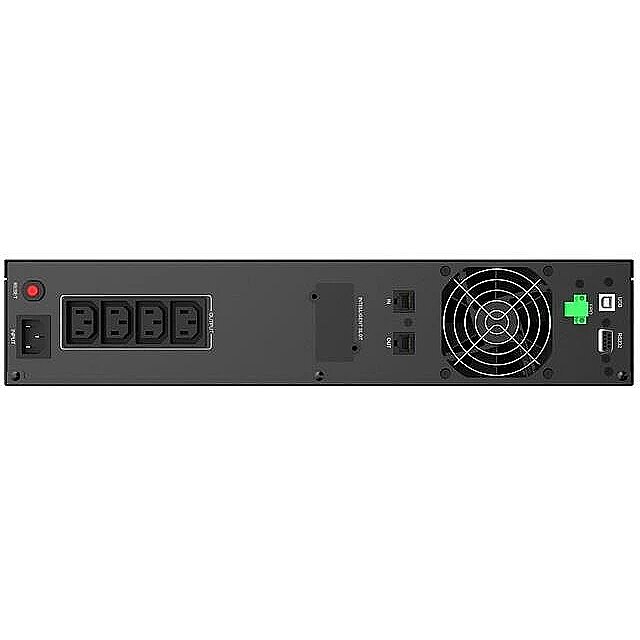

Output power ports - 4 x IEC-C13
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - USB port - Yes
producer - PowerWalker
Producer - Power Walker
producerCode - VI 1200 RLE
ProducerCode - VI 1200 RLE
productName - PowerWalker VI 1200 RLE Line-Interactive 1.2 kVA 720 W 4 AC outlet(s)
productSize - Normal
Safety warning - Warnings - Do not disassemble the unit housing, there may be a risk of electric shock.
Safety warning - Warnings - Keep away from sources of fire and water.
Safety warning - Warnings - Use the appliance in well-ventilated areas to avoid overheating.
ShortDescription - Line-Interactive 1200VA | Rack 19" | 4X IEC C13 | USB | RJ11/45 In/Out | LCD
sizeX - 200
sizeY - 550
sizeZ - 560
Software - PowerMaster
Special functions -
Transfer time (max) - 4 ms
UPS Architecture - line-interactive
vendpn - VI 1200 RLE
Voltage - 230 V
warrantyLength - 24
warrantyType - G
weight - 17000
Weight & dimensions - Depth - 430 mm
Weight & dimensions - Height - 88 mm
Weight & dimensions - Weight - 14.7 kg
Weight & dimensions - Width - 438 mm
