ID: 176984
Product code: 9SX2000IR
In stock 1 units
Warranty: 2 years

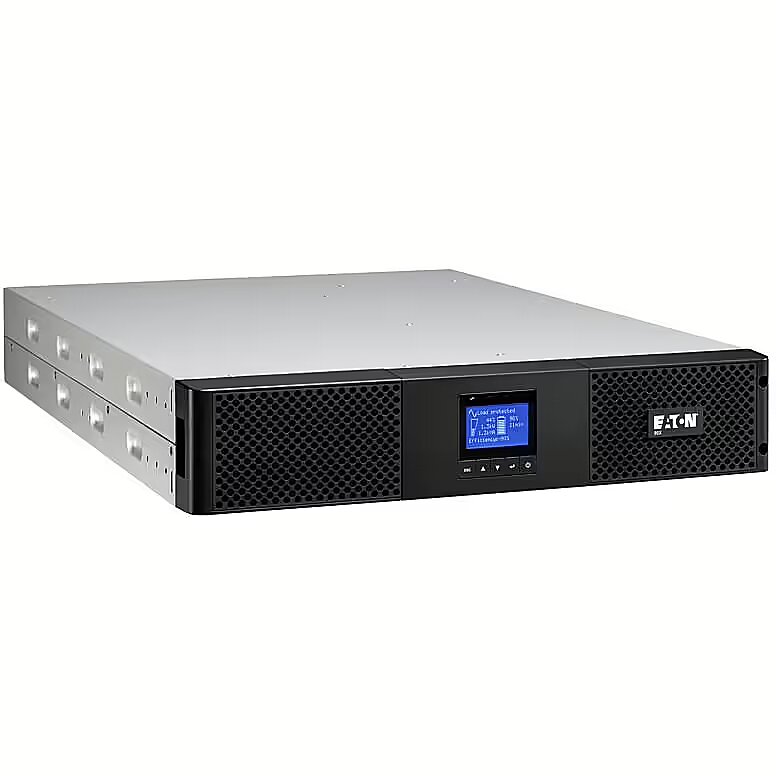

Eaton 9SX2000IR, 2000VA 1800W, IEC 2U
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Delivery by courier to the addressWithin 1-2 working days19.99 €
Main product parameters All parameters
- Battery capacity (VA): 2000
- Output power (W): 1800
Description
This UPS Eaton 9SX2000IR, 2000VA 1800W, IEC 2U with an output power of 1800 W and battery capacity 2000 VA is suitable for a professional environment, where high reliability and protection against power supply interruptions is required.
The presence of a display on the UPS device allows real-time monitoring of operational parameters. This simplifies system control, allows timely detection of deviations and makes technically justified operational decisions.
A UPS with a Lead-acid battery provides a time-tested technical solution for backup power. The battery ensures stable electrical parameters, resistance to cyclic loads, and a simple charging scheme, which reduces the overall complexity of the system and increases operational reliability.
The presence of a IEC320 connection type in a UPS device ensures standardized device connection using removable power cables. Such a connector facilitates the replacement and maintenance of connected devices, ensures a secure electrical contact and broad compatibility with server and office equipment.
Warranty
Eaton provides a 2 year warranty for this model at all certified service centres.
All parameters
Model
: 9SX2000IR
Display characteristics
Display
: Is
Basic information
Battery capacity (VA)
2000
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: Not specified
Output power (W)
: 1800
Ports and equipment
Number of nests (total)
: 8
Number of sockets (Battery Backup)
: 8
RJ-45
: 0
Socket type
: IEC320
USB
: 0
More detailed specification
Accessories included - 2 IEC10A output wires (1.8 m), Rack mounting kit, 1 USB cable (1.8 m), 1 serial cable (1.8 m), Short instruction manual, Safety instructions.
Active power - 1800 W
Apparent power - 2000 VA
ARTIKEL1 - EATON 9SX 2000I RACK2U
ARTIKEL2 - .
Breite - 0.59
Charging time - 45 min
Chassis type - Rack
Code - 9SX2000IR
Color - Black
Description - Double conversion online UPS, 2U Rackmount, 2000 VA / 1800 W, multilingual LCD display, energy meter, 6 IEC 10 A sockets (2 manageable groups), optional management board slot, USB and serial ports, potential-free contacts, RPO connector , power management software compatible with the virtual environment, batteries replaceable during operation, long emergency response time with four optional EBM modules, all accessories for mounting in the rack Rack in the set.
Designation - CE+WEEE
dimension depth - 245 mm
dimension height - 778 mm
Dimensions - 86,5 x 438 x 608 mm
dimension weight - 32800 g
dimension width - 575 mm
EAN - 743172090973
ean - 743172090973
EANCode - 0743172090973
Environment requirements - Temperature during operation: 0-40°C Noise level: 45 dB
Filters / protection - Overdischarge
Gewicht - 35.5
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 24
guarantee_type - external
HERSTELLER - EATON
Hoehe - 0.25
HSTNUMMER - 9SX2000IR
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB 2.0
Input power ports - IEC-C14
Laenge - 0.79
Link - https://www.eaton.com/gb/en-gb/skuPage.9SX2000IR.html
Name - Eaton | UPS | 9SX2000IR | 2000 VA | 1800 W
name - UPS 9SX 1000i Rack2U LCD/USB/RS232
Number of phases input - 1 (230V)
Other features - 1 mini-terminal block for remote power off (configurable) 1 block of mini-terminals to the output relay 1 socket for the optional communication module

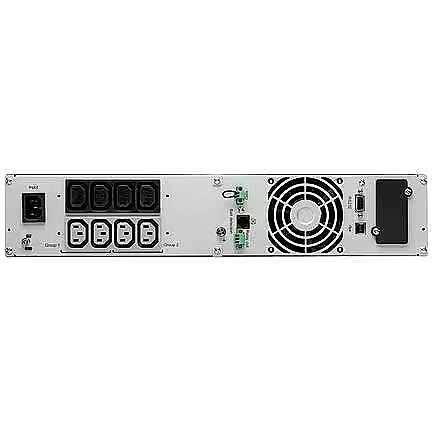

Output power ports - 8 x IEC-C13
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 780.00 mm
Package features > Gross height (mm) - 240.00 mm
Package features > Gross width (mm) - 580.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 16 pc(s)
Package features > Paper/Pasteboard - 5800.00 g
Package features > Plastic (No PET) - 500.00 g
Package features > Tare weight (kg) - 6.30 kg
Package features > TI weight (kg) - 0.50 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.11 m³
Package features > WEE classification - CL109:4:2017-04-01
Package features > WEEE tax - Yes
Performance > Capacity - 2000 VA
Performance > UPS topology - On line
producer - Eaton
Producer product family - UPS
Producer product name - 9SX2000IR
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 1
Storno - Y
Technical details > Capacity - 1800 W
Technical details > Functions - Auto shutdown function
Technical details > Gross weight - 32.80 kg
Technical details > Net weight - 26.50 kg
Technical details > Producer - Eaton
UPS Architecture - on-line double conversion
vendpn - 9SX2000IR
Video -
Voltage - 230 V
Warranty - 24
Warranty - 24 month(s)
Weight - 26.5 kg
Active power - 1800 W
Apparent power - 2000 VA
ARTIKEL1 - EATON 9SX 2000I RACK2U
ARTIKEL2 - .
Breite - 0.59
Charging time - 45 min
Chassis type - Rack
Code - 9SX2000IR
Color - Black
Description - Double conversion online UPS, 2U Rackmount, 2000 VA / 1800 W, multilingual LCD display, energy meter, 6 IEC 10 A sockets (2 manageable groups), optional management board slot, USB and serial ports, potential-free contacts, RPO connector , power management software compatible with the virtual environment, batteries replaceable during operation, long emergency response time with four optional EBM modules, all accessories for mounting in the rack Rack in the set.
Designation - CE+WEEE
dimension depth - 245 mm
dimension height - 778 mm
Dimensions - 86,5 x 438 x 608 mm
dimension weight - 32800 g
dimension width - 575 mm
EAN - 743172090973
ean - 743172090973
EANCode - 0743172090973
Environment requirements - Temperature during operation: 0-40°C Noise level: 45 dB
Filters / protection - Overdischarge
Gewicht - 35.5
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 24
guarantee_type - external
HERSTELLER - EATON
Hoehe - 0.25
HSTNUMMER - 9SX2000IR
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB 2.0
Input power ports - IEC-C14
Laenge - 0.79
Link - https://www.eaton.com/gb/en-gb/skuPage.9SX2000IR.html
Name - Eaton | UPS | 9SX2000IR | 2000 VA | 1800 W
name - UPS 9SX 1000i Rack2U LCD/USB/RS232
Number of phases input - 1 (230V)
Other features - 1 mini-terminal block for remote power off (configurable) 1 block of mini-terminals to the output relay 1 socket for the optional communication module
Output power ports - 8 x IEC-C13
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 780.00 mm
Package features > Gross height (mm) - 240.00 mm
Package features > Gross width (mm) - 580.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 16 pc(s)
Package features > Paper/Pasteboard - 5800.00 g
Package features > Plastic (No PET) - 500.00 g
Package features > Tare weight (kg) - 6.30 kg
Package features > TI weight (kg) - 0.50 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.11 m³
Package features > WEE classification - CL109:4:2017-04-01
Package features > WEEE tax - Yes
Performance > Capacity - 2000 VA
Performance > UPS topology - On line
producer - Eaton
Producer product family - UPS
Producer product name - 9SX2000IR
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 1
Storno - Y
Technical details > Capacity - 1800 W
Technical details > Functions - Auto shutdown function
Technical details > Gross weight - 32.80 kg
Technical details > Net weight - 26.50 kg
Technical details > Producer - Eaton
UPS Architecture - on-line double conversion
vendpn - 9SX2000IR
Video -
Voltage - 230 V
Warranty - 24
Warranty - 24 month(s)
Weight - 26.5 kg
