ID: 135548
Product code: 9PX2200IRT3U
In stock 2 units
Warranty: 2 years

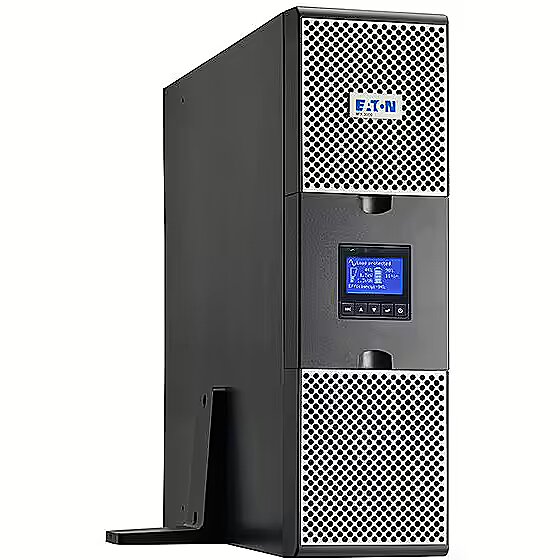

Eaton 9PX2200IRT3U, 2200VA, 2200W, IEC 3U
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Delivery by courier to the addressWithin 1-2 working days19.99 €
Main product parameters All parameters
- Battery capacity (VA): 2200
- Output power (W): 2200
Description
This UPS Eaton 9PX2200IRT3U, 2200VA, 2200W, IEC 3U with an output power of 2200 W and battery capacity 2200 VA is suitable for a professional environment, where high reliability and protection against power supply interruptions is required.
The presence of a display on the UPS device allows real-time monitoring of operational parameters. This simplifies system control, allows timely detection of deviations and makes technically justified operational decisions.
The use of a lead-acid battery in a UPS device ensures predictable operation during both short-term and prolonged power outages. This battery technology is characterized by stable output parameters, good compatibility with classic UPS schemes, and clear operating conditions in standard working environments.
The presence of a IEC320 connection type in a UPS device ensures standardized device connection using removable power cables. Such a connector facilitates the replacement and maintenance of connected devices, ensures a secure electrical contact and broad compatibility with server and office equipment.
Warranty
Eaton provides a 2 year warranty for this model at all certified service centres.
All parameters
Model
: 9PX2200IRT3U
Display characteristics
Display
: Is
Basic information
Battery capacity (VA)
2200
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: Not specified
Output power (W)
: 2200
Ports and equipment
Number of nests (total)
: 8
Number of sockets (Battery Backup)
: 8
RJ-45
: 0
Socket type
: IEC320
USB
: 0
More detailed specification
AC outlets quantity Ports & interfaces - 10 AC outlet(s)
AC outlet types Ports & interfaces - C13 coupler, C19 coupler
ARTIKEL1 - EATON 9PX 2200I RT3U
ARTIKEL2 - IN
Automatic battery test Battery - Yes
Battery technology Battery - Sealed Lead Acid (VRLA)
Bundled software Packaging data - Intelligent Power Software suite
Category Code - UPW
Certification Certificates - IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
CnCode - 85044095
Depth Weight & dimensions - 485 mm
Display type Design - LCD
EANCode - 0743172081377
Efficiency Features - 93.5%
Form factor Design - Rackmount/Tower
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
Harmonized System (HS) code Logistics data - 85078000
Height Weight & dimensions - 130 mm
HERSTELLER - EATON
Hot-swap battery Battery - Yes
HSTNUMMER - 9PX2200IRT3U
Input frequency Features - 40/70 Hz
Input operation voltage (max) Features - 276 V
Input operation voltage (min) Features - 176 V
LED indicators Design - Yes
Management card included Packaging data - No
Noise level Features - 40 dB
Nominal input voltage Other features - 230 V
Nominal output voltage Other features - 230 V
Number of input phases Features - 1
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Output frequency Features - 50/60 Hz
Output operation voltage (max) Features - 240 V
Output operation voltage (min) Features - 200 V
Output power capacity Features - 2.2 kVA
Output power Features - 2200 W
Power factor Features - 1
Power plug Ports & interfaces - C20 coupler
Product colour Design - Black
Rack capacity Design - 3U
Rack mount kit Packaging content - Yes
RS-232 ports Ports & interfaces - 1
Safety Safety regulation & standards - IEC/EN 62040-1, UL 1778, CSA 22.2
Stck_Kart - 1
Stck_Pal - 1
Storno - Y
Summary - Eaton 9PX2200IRT3U. UPS topology: Double-conversion (Online), Output power capacity: 2.2 kVA, Output power: 2200 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 10 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 3U. Certification: IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report...
Sustainability certificates Sustainability - ENERGY STAR
Typical backup time at half load Battery - 10 min
Unit Box Height - 0.295
Unit Box Length - 0.758
Unit Box Width - 0.581
Unit Calculated Volume - 0.1299 cubm
Unit Calculated Weight - 32.5 kg
Units per Shipping Box - 1
UPS topology Features - Double-conversion (Online)
USB 2.0 ports quantity Ports & interfaces - 1
USB port Ports & interfaces - Yes
Vendor Homepage - https://www.eaton.com/gb/en-gb/skuPage.9PX2200IRT3U.html
Warranty - 24 months
Waveform Features - Pure sine
Weight Weight & dimensions - 24.5 kg
Width Weight & dimensions - 440 mm
