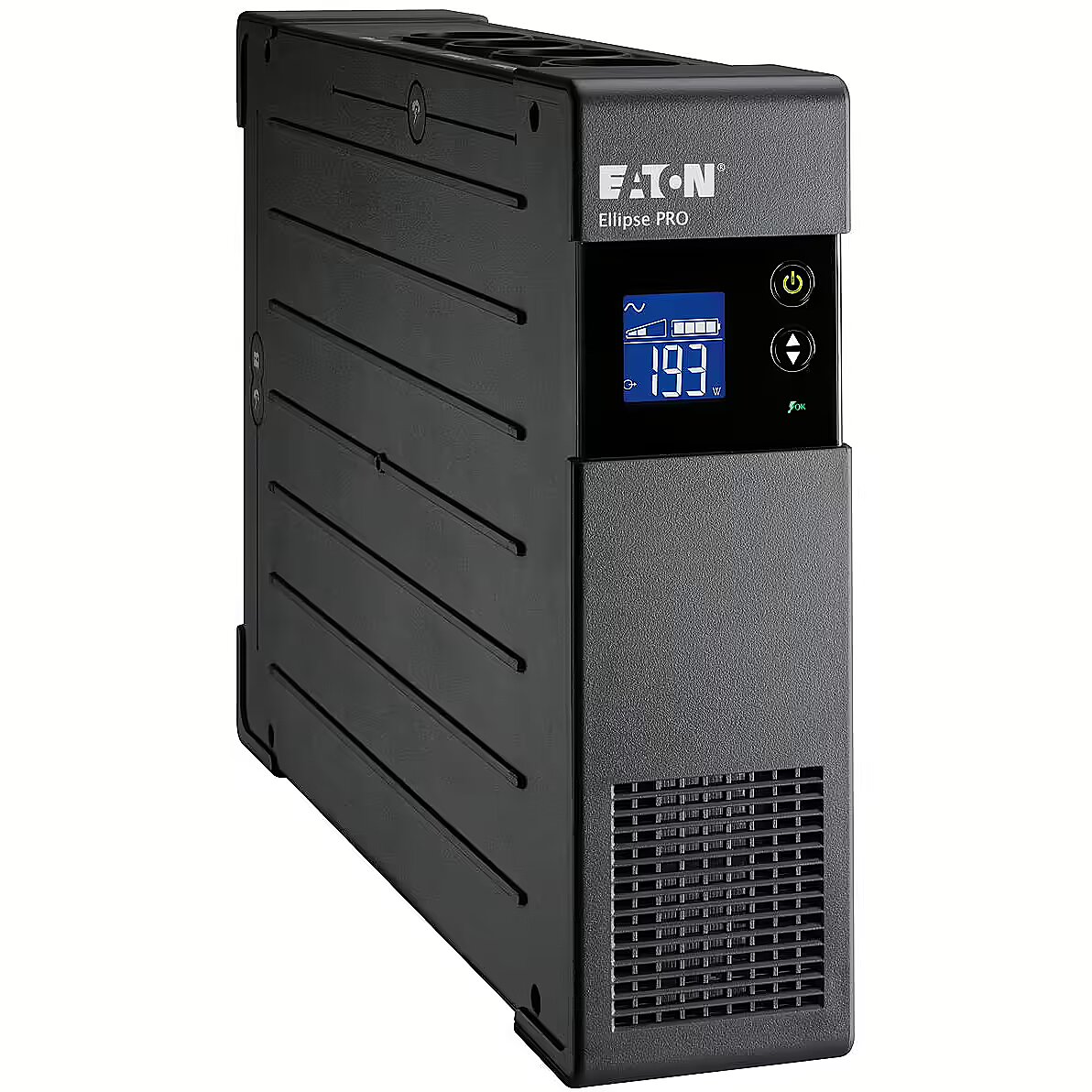

Eaton ELP1600DIN, 1600W 1000W

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 128382 Product code: ELP1600DIN
In stock 2 units
Warranty: 2 years
407.57 €
Ready for dispatch
on Thuesday, 04.11.2025
starting from 1.99 €
Delivery options
  • Omniva parcel machine
    Within 1-2 working days
    1.99 €
  • SmartPosti parcel terminal
    Within 1-2 working days
    1.99 €
  • Delivery by courier to the address
    Within 1-2 working days
    5.99 €
Main product parameters All parameters
  • Battery capacity (VA): 1600 VA
  • Output power (W): 1000 W
Display characteristics
Display : Ir
Basic information
Battery capacity (VA) 1600 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type : Lead acid
Charging time (hours) : 6h
Output power (W) : 1000 W
Ports and equipment
Number of nests (total) : 8
Number of sockets (Battery Backup) : 4
RJ-45 : 2
Socket type : Schuko
USB : 0
More detailed specification
Additional information in manufacturers website Eaton ELP1600DIN, 1600W 1000W
ACoutletsquantity - 8 AC outlet(s)
ACoutlettypes - Type F
ARTIKEL1 - EATON ELLIPSE PRO 1600 DIN
ARTIKEL2 - IN
AutomaticVoltageRegulationAVR -
Battery -
Batterycapacity -
Batterytechnology - Sealed Lead Acid (VRLA)
Batteryvoltage -
Cablesincluded -
Code - ELP1600DIN
Depth - 390 mm
Design -
Displaytype - LCD
EAN - 743172438188
EANCode - 0743172438188
Efficiency -
Features -
Formfactor - Tower
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
Heatdissipation -
Height - 275 mm
HERSTELLER - EATON
HighLights -
Hotswapbattery - No
HSTNUMMER - ELP1600DIN
Inputfrequency - 50/60 Hz
Inputoperationvoltagemax - 285 V
Inputoperationvoltagemin - 150 V
Link - https://www.eaton.com/lt/lt-lt/skuPage.ELP1600DIN.html
LongDesc - The Eaton Ellipse PRO 650–1600VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements. It also features EcoControl power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard.
ManufDatasheet -
Name - Eaton | Ellipse PRO UPS DIN | ELP1600DIN | 1600 VA | 1000 W
Networkcardslot -
Noiselevel -
Numberofbatterycells -
Numberofinputphases -
Numberofoutputphases -
Operatingaltitude -
OperatingrelativehumidityHH -
OperatingtemperatureTT -
Operationalconditions -
Outputfrequency - 50 Hz
Outputoperationvoltagemax - 240 V
Outputoperationvoltagemin - 220 V
Outputpower - 1000 W
Outputpowercapacity - 1.6 kVA
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 280.00 mm
Package features > Gross height (mm) - 400.00 mm
Package features > Gross width (mm) - 90.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 85 pc(s)
Package features > Paper/Pasteboard - 400.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > TI weight (kg) - 9.00 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packagingcontent -
Performance > Capacity - 1600 VA
Performance > UPS topology - Line-Interactive
Portsinterfaces -
Powerfactor -
Powerplug - C14 coupler
ProdDesc - 1600VA/1000W UPS, line-interactive, DIN 4+4
Productcolour - Black
Productcondition - Original
ProductHighLights -
  • Line-Interactive
  • 1.6 kVA 1000 W
  • 8 AC outlet(s)
  • Sealed Lead Acid (VRLA)
  • Tower Black

ProductPicture - https://www.tdbaltic.ee/images/products/EATON/ELP1600DIN_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/EATON/ELP1600DIN_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/EATON/ELP1600DIN_3.jpg
ProductPicture3 -
ProductPicture4 -
ProductPicture5 -
Quickinstallationguide -
Rackmountkit -
RS232ports -
Serialinterface -
Serialinterfacetype -
Serialportsquantity -
Stck_Kart - 1
Stck_Pal - 3
Storno - Y
Technical details > Capacity - 1000 W
Technical details > Gross weight - 11.80 kg
Technical details > Net weight - 11.30 kg
Technical details > Producer - Eaton
Technical details > Producer product family - Ellipse PRO UPS DIN
Technical details > Producer product name - ELP1600DIN
Typicalbackuptimeathalfload - 9 min
UPStopology - Line-Interactive
USBport -
USBporttype -
Warranty - 24 months
Warranty - 36
Warranty - 36 month(s)
Warrantyandmisc -
Waveform -
Weight - 11.3 kg
Weightdimensions -
Width - 82 mm
