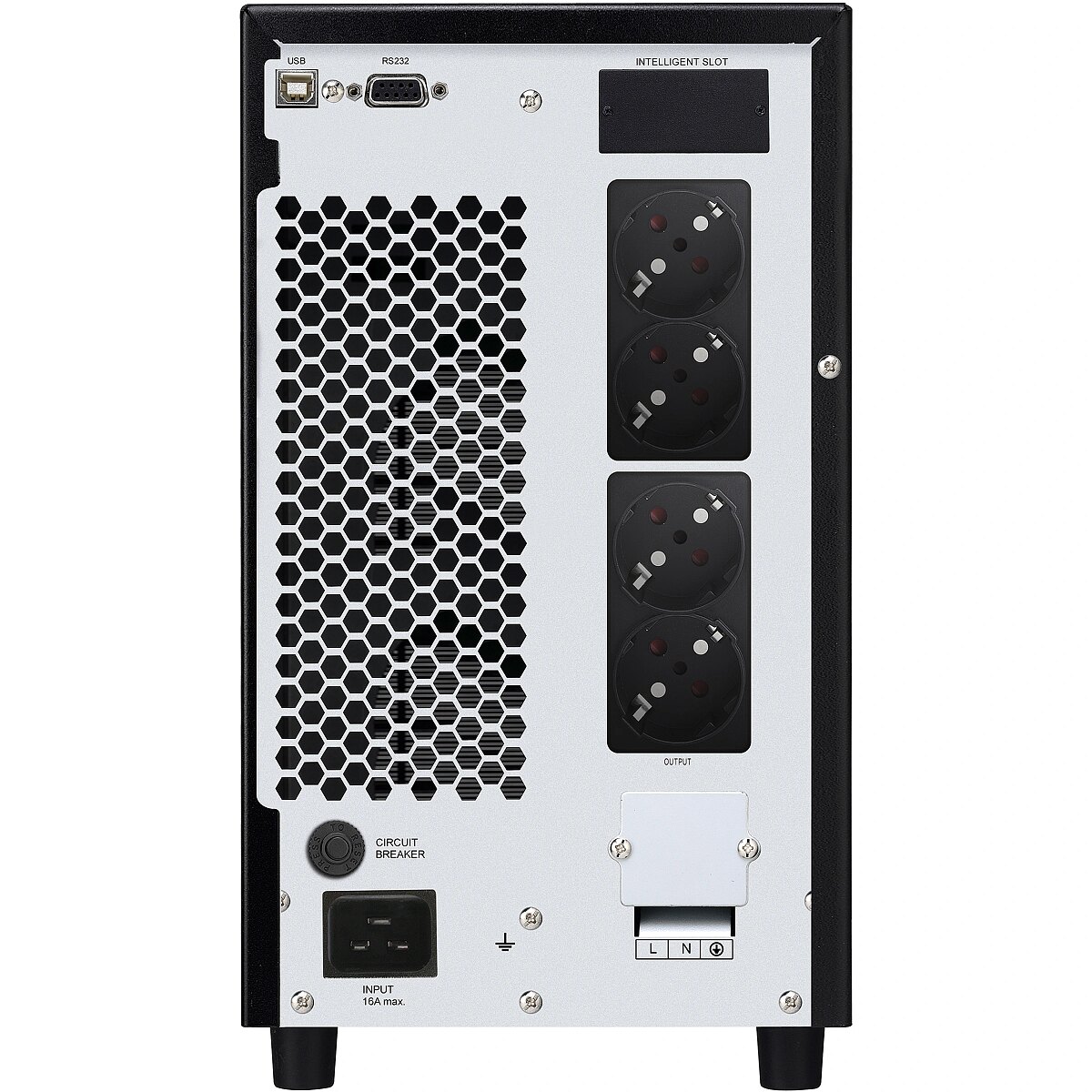

FSP Champ 3K Tower Online UPS 3000VA 2700W USB RS-232 4xSchuko

Name: FSP Champ 3K Tower Online UPS 3000VA 2700W USB RS-232 4xSchuko
Brand: FSP
SKU: 1167952
Price: 470.09 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1167952 Product code: PPF24A1823

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)

Compare

Similar Products

Display characteristics
	This product FSP Champ 3K Tower Online UPS 3000VA 2700W USB RS-232 4xSchuko	Green Cell UPS08, 1000VA 700W	APC Easy UPS BVX900LI 900VA, 480W, IEC	FSP Champ Rack 3K, 3000VA 2700W	Gembird EG-UPSO-3000, 3000VA 2700W
Show similar specs. Hide similar specs.	470.09 €	172.60 €	120.13 €	615.48 €	474.29 €
Display		Ir	Nav	Ir	Ir
Basic information
Battery capacity (VA)		1000 VA	900 VA	3000 VA	3000 VA
Battery type		Nav norādīts	Lead acid	Nav norādīts	Lead acid
Charging time (hours)		8h	8h	4h	3h
Output power (W)		700 W	480 W	2700 W	2700 W
Ports and equipment
Number of nests (total)		4	4	3	5
Number of sockets (Battery Backup)		4	4	3	5
RJ-45		0	0	0	0
Socket type		Schuko & IEC	IEC320	Schuko	Schuko & IEC
USB		0	0	0	0

More detailed specification

Battery - Battery capacity - 9 Ah
Battery - Battery voltage - 12 V
Battery - Number of battery cells - 6
Battery - Typical backup time at full load - 3.5 min
Battery - Typical backup time at half load - 9.8 min
Brand - FSP
BrandPartCode - PPF24A1823
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Design - Control type - Buttons
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - LED indicators - Yes
Design - Product colour - Black
EAN - 4713224529856
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Fault, Low battery alarm, Overload alarm
Features - Crest factor - 3:1
Features - Input frequency - 40 - 70 Hz
Features - Input operation voltage (max) - 300 V
Features - Input operation voltage (min) - 120 V
Features - Noise level - 50 dB
Features - Output frequency - 47/63 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 200 V
Features - Output power - 2700 W
Features - Output power capacity - 3 kVA
Features - Output voltage regulation - 1%
Features - Power factor - 0.99
Features - Response time - 0 ms
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Pure sine
GTIN - 4713224529856
LongDesc - FSP Champ is the high density version of double-conversion online UPS with a output power factor 0.9. It’s designed in small cabinet with microprocessor controller.Champ also have USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relate contact cards.
LongProductName - 3000 VA, 2700 W, 200 - 240 V, 3:1, 190 x 421 x 318 mm, 27.6 kg
LongSummaryDescription - FSP Champ Tower 3K. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2700 W. USB port type: USB Type-B, Serial interface type: RS-232. Battery capacity: 9 Ah, Battery voltage: 12 V, Typical backup time at full load: 3.5 min. Form factor: Rackmount/Tower, Product colour: Black, Control type: Buttons. Width: 190 mm, Depth: 421 mm, Height: 318 mm
Manufacturer - FSP
MPN - PPF24A1823
Name - FSP Champ 3K Tower Online UPS 3000VA 2700W USB RS-232 4xSchuko
Operational conditions - Operating relative humidity (H-H) - 20 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Packaging content - Batteries included - Yes
Packaging data - Cables included - Input power cable, USB cable
Packaging data - Manual - Yes
Ports & interfaces - Number of output IEC jumpers - 4
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type-B
ProductName - Champ Tower 3K
ShortSummaryDescription - FSP Champ Tower 3K, Double-conversion (Online), 3 kVA, 2700 W, Pure sine, 120 V, 300 V
Title - FSP Champ Tower 3K uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W
URL - https://www.fsplifestyle.com/PROP161000117/
WarrantyInfo -
Weight - 28
Weight & dimensions - Depth - 421 mm
Weight & dimensions - Height - 318 mm
Weight & dimensions - Weight - 27.6 kg
Weight & dimensions - Width - 190 mm
