ARTIKEL1 - EASY UPS3S 30KVA 400V 3:3 UPS
ARTIKEL2 - HIGH TOWER IN
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Battery voltage - 240 V
Brand - APC
BrandPartCode - E3SUPS30KHB
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Certification - CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE
REACH
Certificates - Compliance certificates - RoHS
Design - Cooling type - Active
Design - Form factor - Tower
Design - International Protection (IP) code - IP20
Design - LED indicators - Yes
Design - Product colour - White
EANCode - 0731304340812
Features - ECO mode - Yes
Features - Efficiency - 95%
Features - Emergency Power Off (EPO) - Yes
Features - Input current Total Harmonic Distortion (THD) - 3%
Features - Input frequency - 45/65 Hz
Features - Input operation voltage (max) - 477 V
Features - Input operation voltage (min) - 304 V
Features - Input power factor - 0.99
Features - Maximum current - 55 A
Features - Noise level - 63 dB
Features - Number of input phases - 3
Features - Number of output phases - 3
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 415 V
Features - Output operation voltage (min) - 380 V
Features - Output power - 30000 W
Features - Output power capacity - 30 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 3%
Features - UPS topology - Double-conversion (Online)
Gewicht - 188
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 0731304340812
GTIN - 731304340812
HERSTELLER - APC
HSTNUMMER - E3SUPS30KHB
Logistics data - Harmonized System (HS) code - 85078000

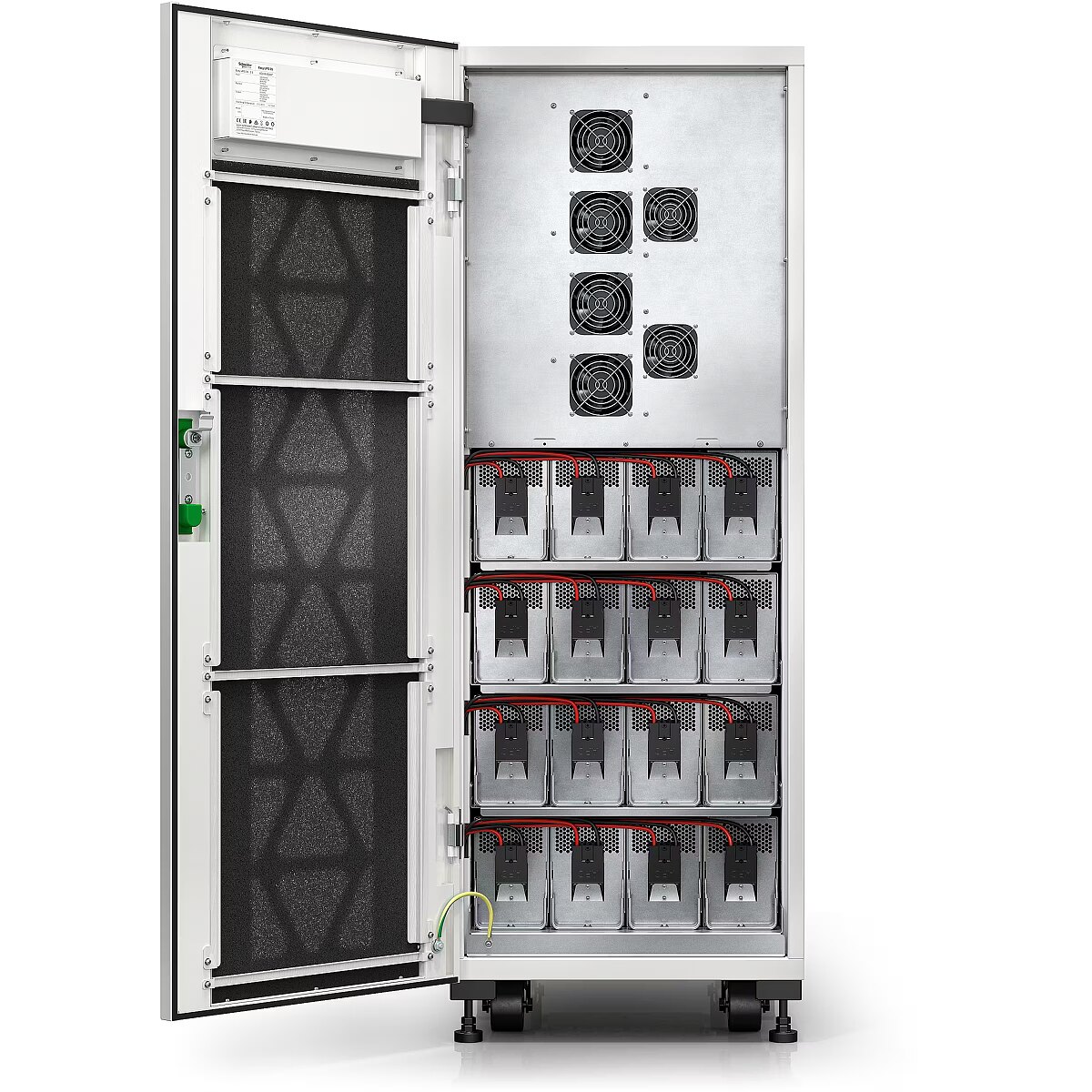

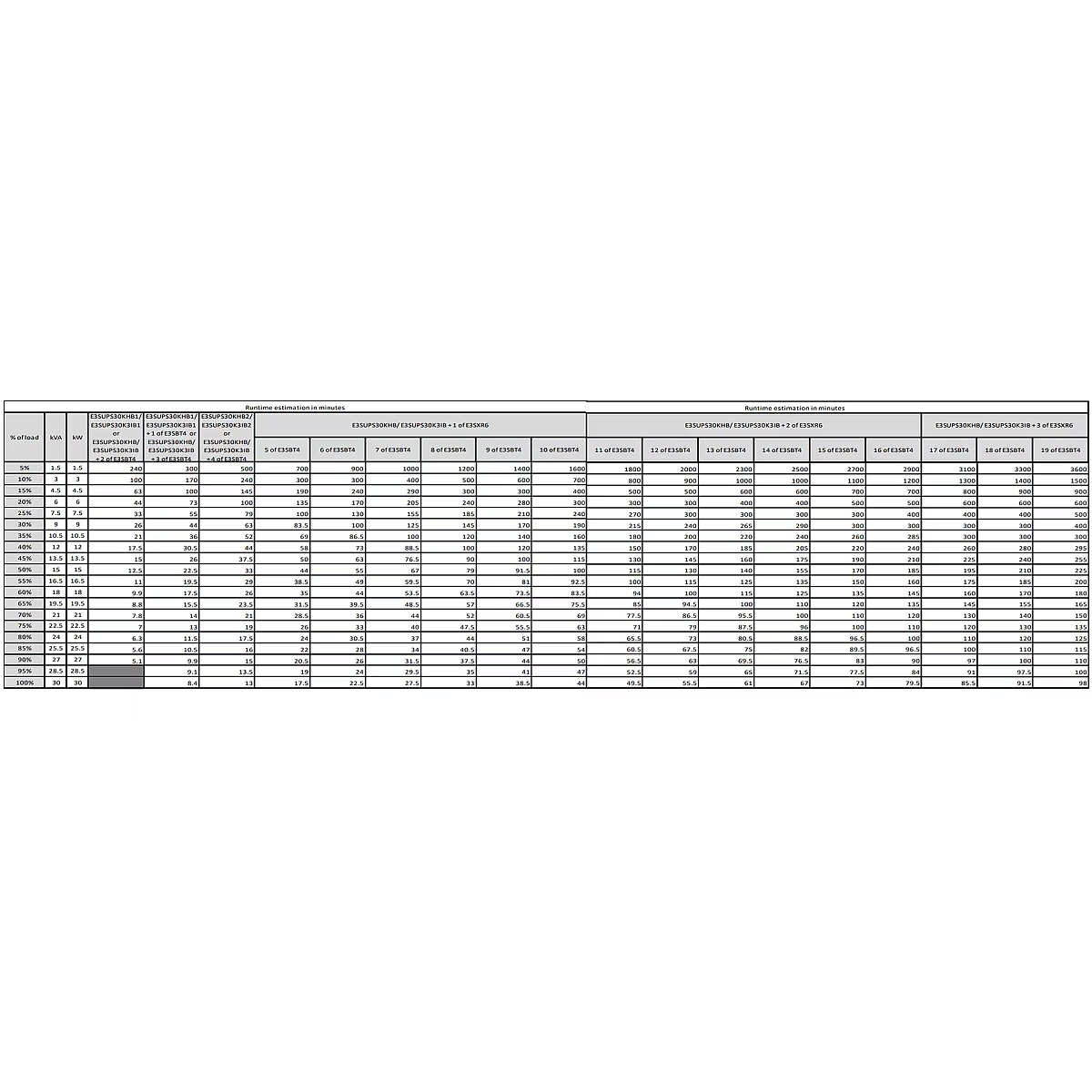

LongDesc - Easy UPS 3S 30 kVA 400 V 3:3 UPS for internal batteriesHigh-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab.
LongProductName - Easy UPS 3S 30 kVA 400 V 3:3 UPS for internal batteries
LongSummaryDescription - APC Easy 3S. UPS topology: Double-conversion (Online), Output power capacity: 30 kVA, Output power: 30000 W. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 240 V. Form factor: Tower, Product colour: White, Cooling type: Active. Compliance certificates: RoHS, Certification: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE REACH. Width: 500 mm, Depth: 969 mm, Height: 1400 mm
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 999.9 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 40 °C
ProductName - Easy 3S
ShortSummaryDescription - APC Easy 3S, Double-conversion (Online), 30 kVA, 30000 W, 304 V, 477 V, 45/65 Hz
Stck_Kart - 1
Stck_Pal - 1
Storno - N
Title - APC Easy 3S uninterruptible power supply (UPS) Double-conversion (Online) 30 kVA 30000 W
URL - https://www.apc.com/shop/my/en/products/Easy-UPS-3S-30-kVA-400-V-3-3-UPS-for-internal-batteries/P-E3SUPS30KHB
WarrantyInfo - 1 year on-site repair or replace with factory authorized Start-Up
Weight & dimensions - Battery depth - 111.4 cm
Weight & dimensions - Battery height - 164 cm
Weight & dimensions - Battery weight - 190 kg
Weight & dimensions - Battery width - 68.3 cm
Weight & dimensions - Depth - 969 mm
Weight & dimensions - Height - 1400 mm
Weight & dimensions - Weight - 152 kg
Weight & dimensions - Width - 500 mm
