ID: 1063483
Product code: 9E1000IR
In stock 6 units
Warranty: 2 years

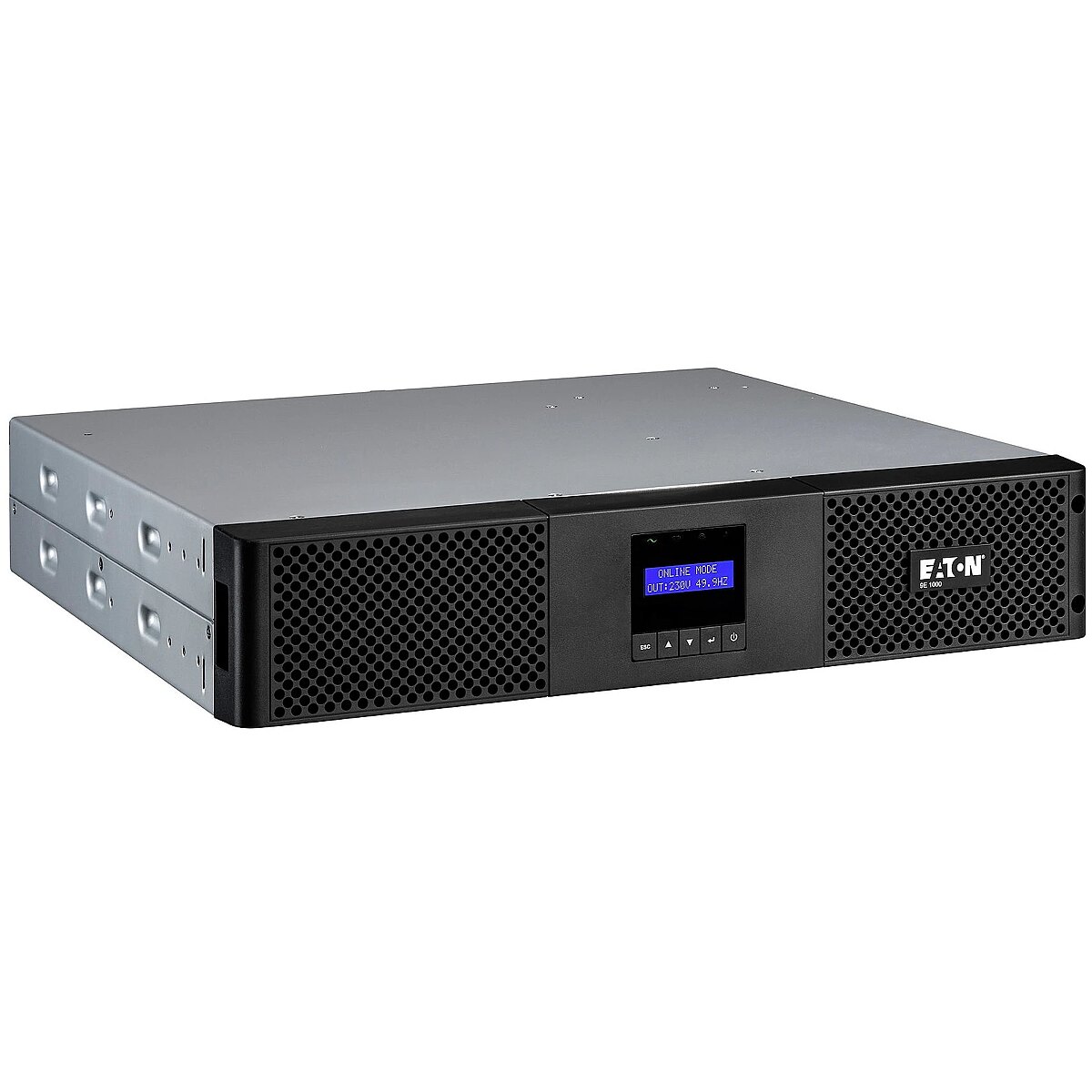

Eaton 9E1000IR, 1000VA 900W, IEC 2U
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Unisend parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Battery capacity (VA): 1000
- Output power (W): 900
Description
This UPS Eaton 9E1000IR, 1000VA 900W, IEC 2U with an output capacity of 900 W and a battery capacity of 1000 VA offers a balanced solution for daily use. The battery backup allows for temporary operation of multiple connected devices.

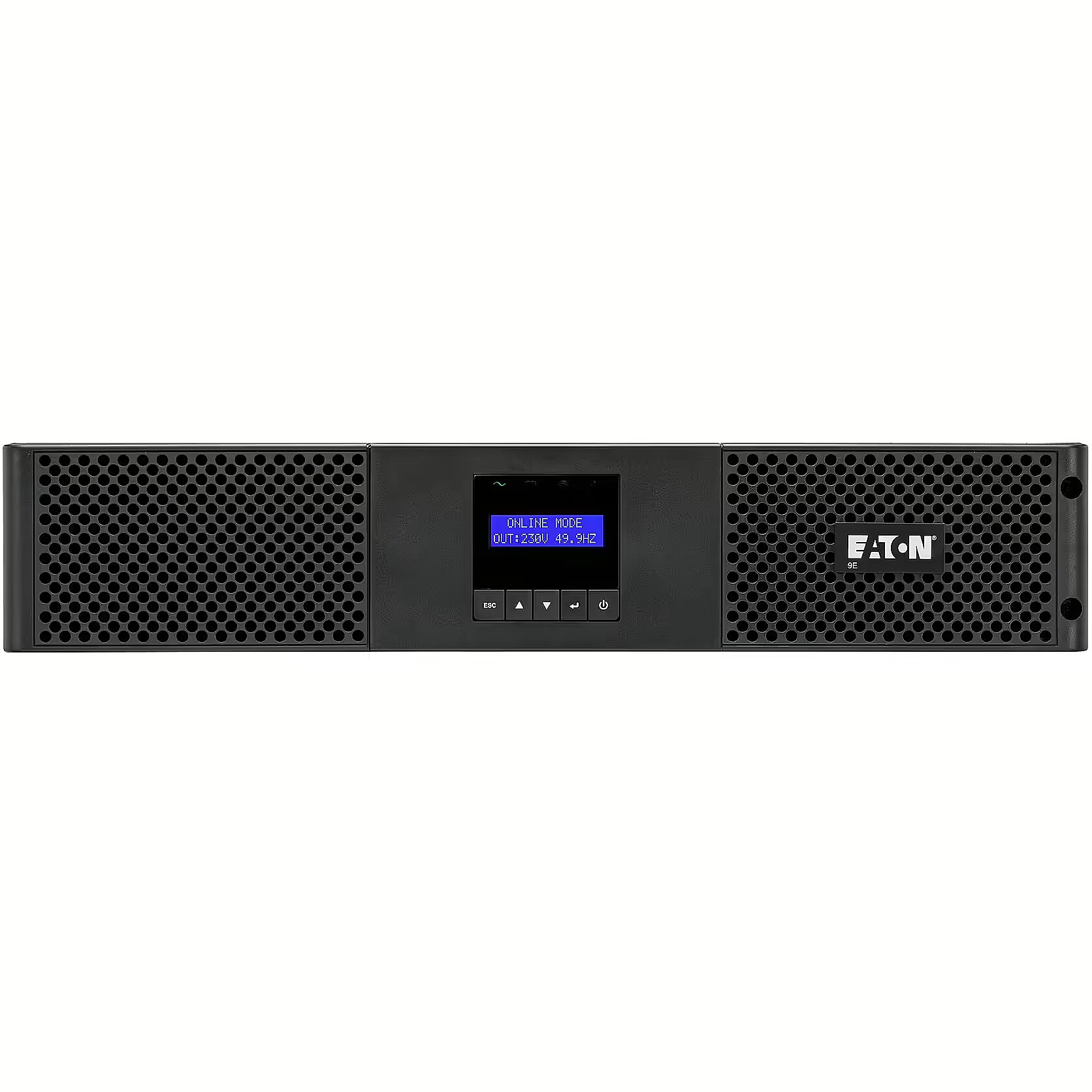

A UPS with a display provides direct access to the device's technical information. This reduces the need for external system solutions and facilitates monitoring during autonomous operation.
A UPS with a Lead-acid battery provides a time-tested technical solution for backup power. The battery ensures stable electrical parameters, resistance to cyclic loads, and a simple charging scheme, which reduces the overall complexity of the system and increases operational reliability.
A UPS with a IEC320 connection type is designed for flexible connection of multiple devices without the need for rigid installation. The use of a standard connector ensures convenient operation, reduces installation requirements, and allows the system to be quickly adapted to changes in equipment configuration.
Warranty
Eaton provides a 2 year warranty for this model at all certified service centres.
Display characteristics
Display
: Is
Basic information
Battery capacity (VA)
1000
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: Not specified
Output power (W)
: 900
Ports and equipment
Number of nests (total)
: 4
Number of sockets (Battery Backup)
: 4
RJ-45
: 0
Socket type
: IEC320
USB
: 0
More detailed specification
Accessories included - UPS power supply (2) IEC-IEC output cables USB cable Rack mounting kit (rails and brackets) Safety instructions Quick start

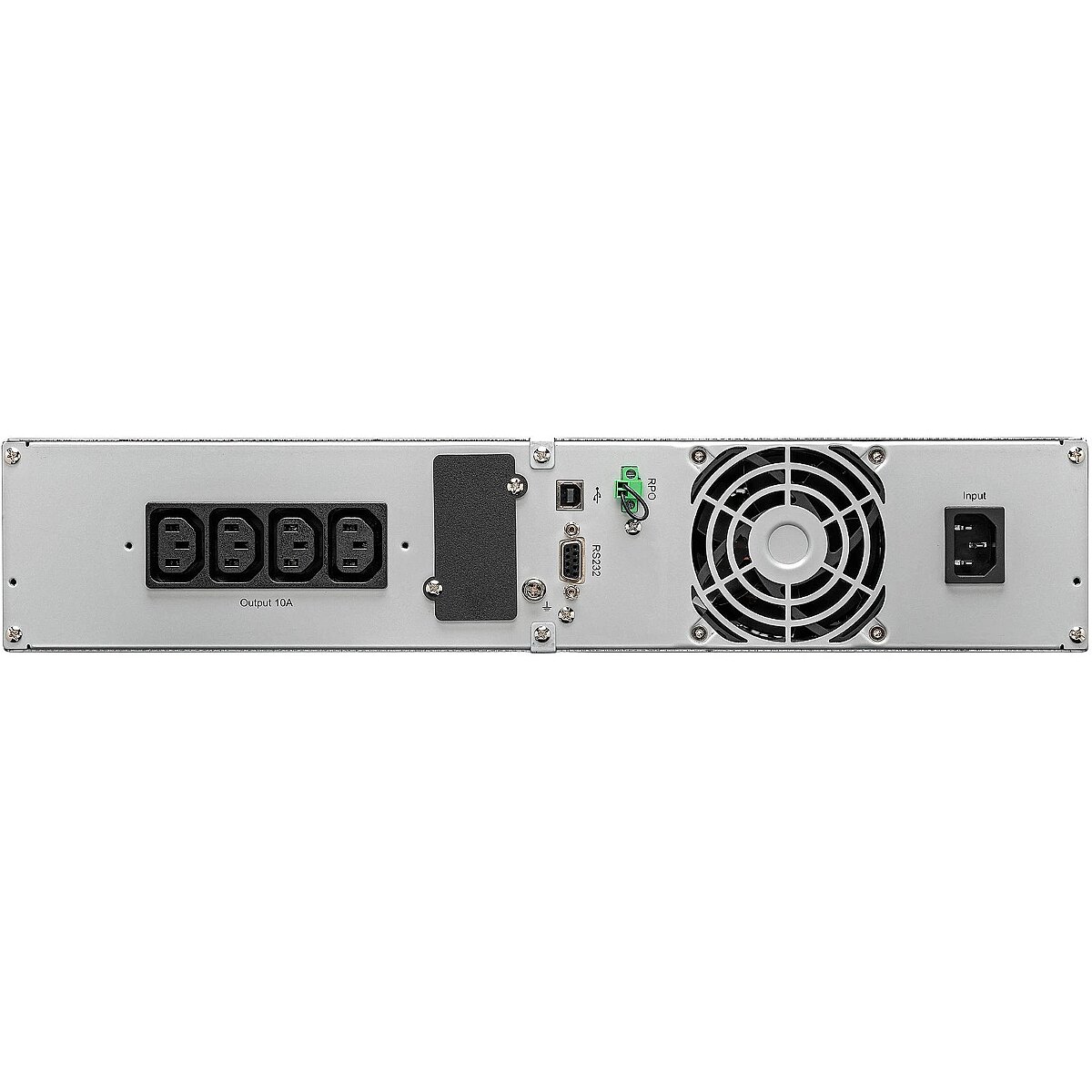

AC outlets quantity Ports & interfaces - 4 AC outlet(s)
AC outlet types Ports & interfaces - C13 coupler, C14 coupler
Active power - 900 W
Apparent power - 1000 VA
Audible alarm(s) Features - Yes
Battery capacity - 7 Ah
Battery capacity Battery - 7 Ah
Battery technology Battery - Lead-Acid
Battery voltage Battery - 12 V
Cables included Packaging content - Output power cable, USB cable
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category Code - UPW
Certification Certificates - IEC/EN 62040-1
IEC/EN 62040-2
CE
Chassis type - Rack
Code - 9E1000IR
Color - Black
Compliance certificates Certificates - CE
Control type Design - Buttons
Data Act - Link
Depth Weight & dimensions - 438 mm
Description - 9E1000IR UPS Online 1000 VA / 900W 2U Basic online rack UPS Reliability Eaton 9E Rack constantly monitors power parameters and regulates voltage and frequency accordingly thanks to its online double conversion topology. Internal bypass ensures continued operation in the event of an internal fault. Optionally, a service bypass is also available, allowing for easy replacement of the UPS without turning off key loads. Trust a leading manufacturer with decades of experience and high quality standards: compliance with CE standards confirmed by a third party (CB report). Flexibility With a power factor of 0.9, 9E Rack is able to power more servers and follows the latest industry trends. The backup time can be extended with up to 4 external battery modules (2 and 3 kVA models), providing power for up to many hours. Access to the batteries from the front panel means there is no need to remove the UPS from the rack during service. Management Available in 6 languages (including Polish), the menu on the 9E Rack's LCD display provides an easy view of its status, measurements and configuration options. Easy communication with the UPS via USB port, RS232 port or over the network via an optional network card (Network-M3). All models are also equipped with an RPO connector. The Eaton 9E Rack UPS is compatible with Eaton Brightlayer software for integration with all major operating systems, leading virtual environments and cloud orchestration tools.
Description - Double conversion topologyConstantly monitors power conditions and regulates voltage and frequencyProvides more real power (watts) to protect more equipment with a 0.9 power factorInternal bypass allows service continuity in case of UPS faultLCD display
Designation - CE+WEEE
dimension depth - 570 mm
dimension height - 230 mm
Dimensions - 438 x 438 x 86.5 mm
dimension weight - 20000 g
dimension width - 550 mm
Display type Design - LCD
EAN - 3553340710339
ean - 3553340710339
Eans - 3553340710339
Efficiency (ECO mode) Features - 95.5%
Efficiency Features - 90%
Environment requirements - 0°C to 40°C Relative humidity 0-96%, non-condensing
Filters / protection - Overdischarge
Form factor Design - Tower
guarantee - 24
guarantee_type - external
Heat dissipation Features - 375 BTU/h
Height Weight & dimensions - 86.5 mm
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type B)
Important - The power supply has a menu in Polish.
Input frequency Features - 40/70 Hz
Input operation voltage (max) Features - 276 V
Input operation voltage (min) Features - 120 V
Input power factor Features - 99
Input power ports - IEC-C14
LED indicators Design - Yes
Link - https://www.eaton.com/de/en-gb/skuPage.9E1000IR.html
name - 9E1000IR UPS Online 1000 VA / 900W 2U
Name - Eaton 9E1000IR
Name - Eaton | 9E UPS | 9E1000IR | 1000 VA | 900 W | 230 V
Name - UPS RACK 9E 1000VA 900W/9E1000IR EATON
No. of batteries - 3
Noise level Features - 41 dB
Number of batteries supported Battery - 3
Number of input phases Features - 1
Number of output phases Features - 1
Number of phases input - 1 (230V)
Operating relative humidity (H-H) Operational conditions - 0 - 96%
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Other features -
Output frequency Features - 50/60 Hz
Output operation voltage (max) Features - 240 V
Output operation voltage (min) Features - 220 V
Output power capacity Features - 1 kVA
Output power factor Features - 0.9
Output power Features - 900 W
Output power ports - 4 x IEC-C13
Package features > Classification of battery - CL126:PEN:2025-08-18
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 440 mm
Package features > Gross height (mm) - 89 mm
Package features > Gross width (mm) - 440 mm
Package features > Packing quantity - 1 pc(s)
Package features > Palette Qty - 54 pc(s)
Package features > Paper/Pasteboard - 800 g
Package features > Plastic (No PET) - 200 g
Package features > Tare weight (kg) - 1 kg
Package features > TI weight (kg) - 8 kg
Package features > Type of battery - Battery
Package features > Volume (m3) - 0.0172304 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PDF - https://www.blobs.lt/products/3/5/3/7/2/4/e9d6c7a16523b9cde0f5978ecdda3f67/original.pdf
Performance > Capacity - 1000 VA
Performance > UPS topology - On line
Power > AC input frequency - 40-70 Hz
Power > AC input voltage - 230 V
Power plug Ports & interfaces - C13 coupler
Power source type Features - AC
producer - Eaton
Producer - Eaton
ProducerCode - 9E1000IR
Product colour Design - Black
Product Net Weight ELKO Logistics Data - 17.6 kg
Quick installation guide Packaging content - Yes
Rack capacity Design - 2U
Rack mount kit Packaging content - Yes
RS-232 ports Ports & interfaces - 1
Serial interface Ports & interfaces - Yes
Serial interface type Ports & interfaces - RS-232
Serial ports quantity Ports & interfaces - 1
Shipping Box Depth ELKO Internal Logistics Data - 56.5 cm
Shipping Box Height ELKO Internal Logistics Data - 23 cm
Shipping Box Weight ELKO Internal Logistics Data - 19.8 kg
Shipping Box Width ELKO Internal Logistics Data - 55.5 cm
ShortDescription - Zasilacz awaryjny 9E1000IR UPS Online 1000 VA / 900W 2U
Software -
Special functions -
Summary - Eaton 9E1000IR. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 900 W. AC outlet types: C13 coupler, C14 coupler, Power plug: C13 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Lead-Acid, Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: CE, Certification: IEC/EN 62040-1 IEC/EN 62040-2 CE
Sustainability compliance Sustainability - Yes
Technical details > Capacity - 900 W
Technical details > Gross weight - 18.6 kg
Technical details > Net weight - 17.6 kg
Technical details > Producer - Eaton
Technical details > Producer product family - 9E UPS
Technical details > Producer product name - 9E1000IR
The shape of the output voltage - Full sine wave
Typical backup time at full load Battery - 6 min
Typical backup time at half load Battery - 15 min
Unit Box Height - 0.23
Unit Box Length - 0.565
Unit Box Width - 0.555
Unit Calculated Volume ELKO Internal Logistics Data - 0.07212 cubm
Unit Calculated Weight ELKO Logistics Data - 19.8 kg
Unit Depth ELKO Logistics Data - 56.5 cm
Unit Height ELKO Logistics Data - 23 cm
Units per Shipping Box ELKO Logistics Data - 1
Unit Width ELKO Logistics Data - 55.5 cm
UPS Architecture - on-line double conversion
UPS topology Features - Double-conversion (Online)
USB port Ports & interfaces - Yes
Vendor Homepage - https://www.eaton.com/gb/en-gb/skuPage.9E1000IR.html
vendpn - 9E1000IR
Voltage - 12 V
Warranty - 24 months
Warranty - 36
Warranty - 36 month(s)
Waveform Features - Sine
Weight - 17.6 kg
Weight Weight & dimensions - 17.6 kg
Width Weight & dimensions - 438 mm
