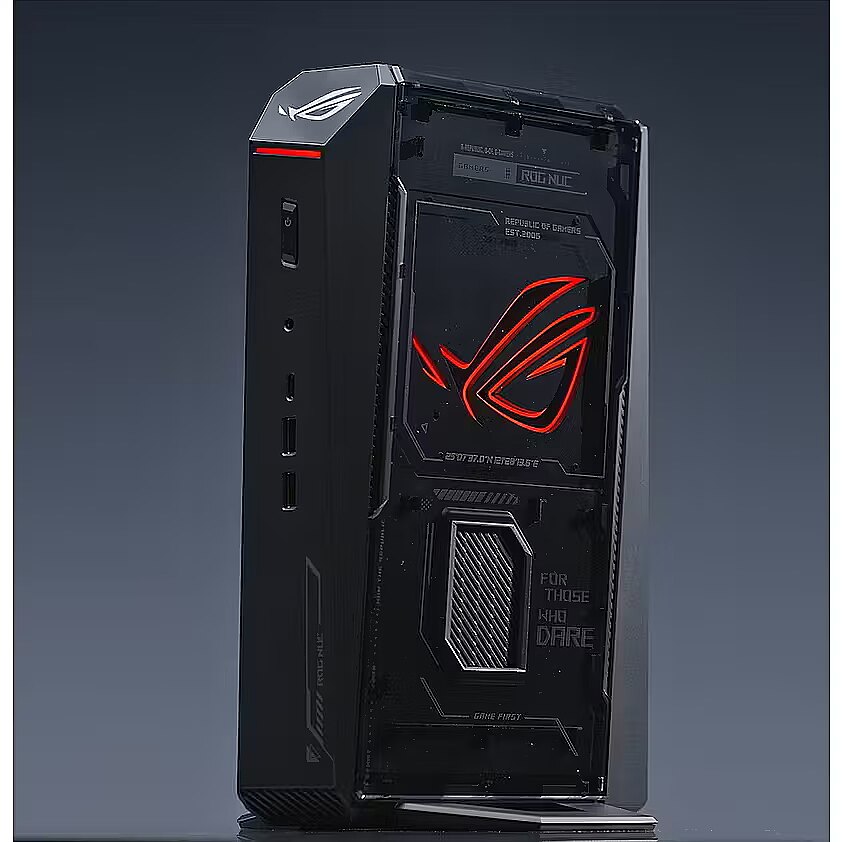

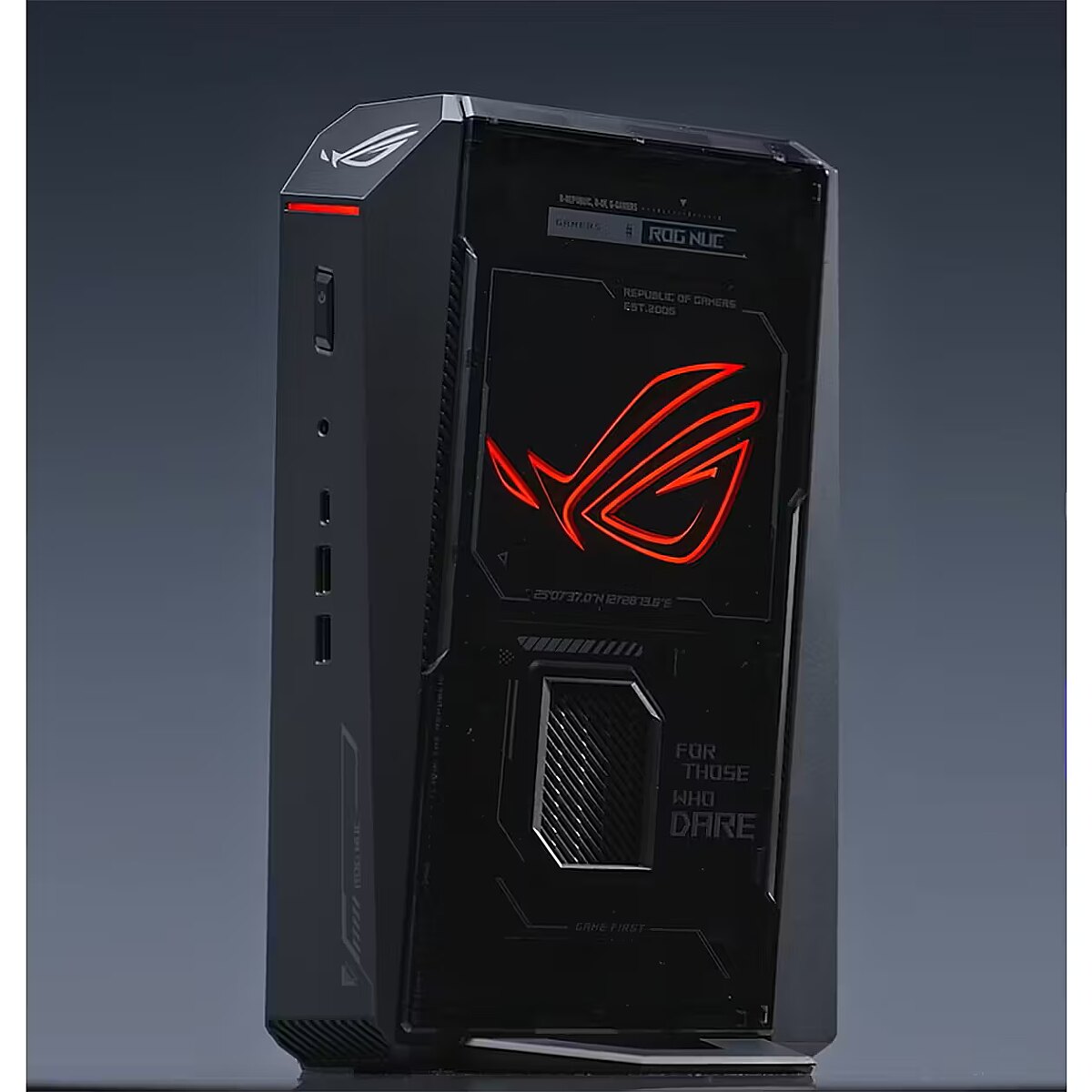

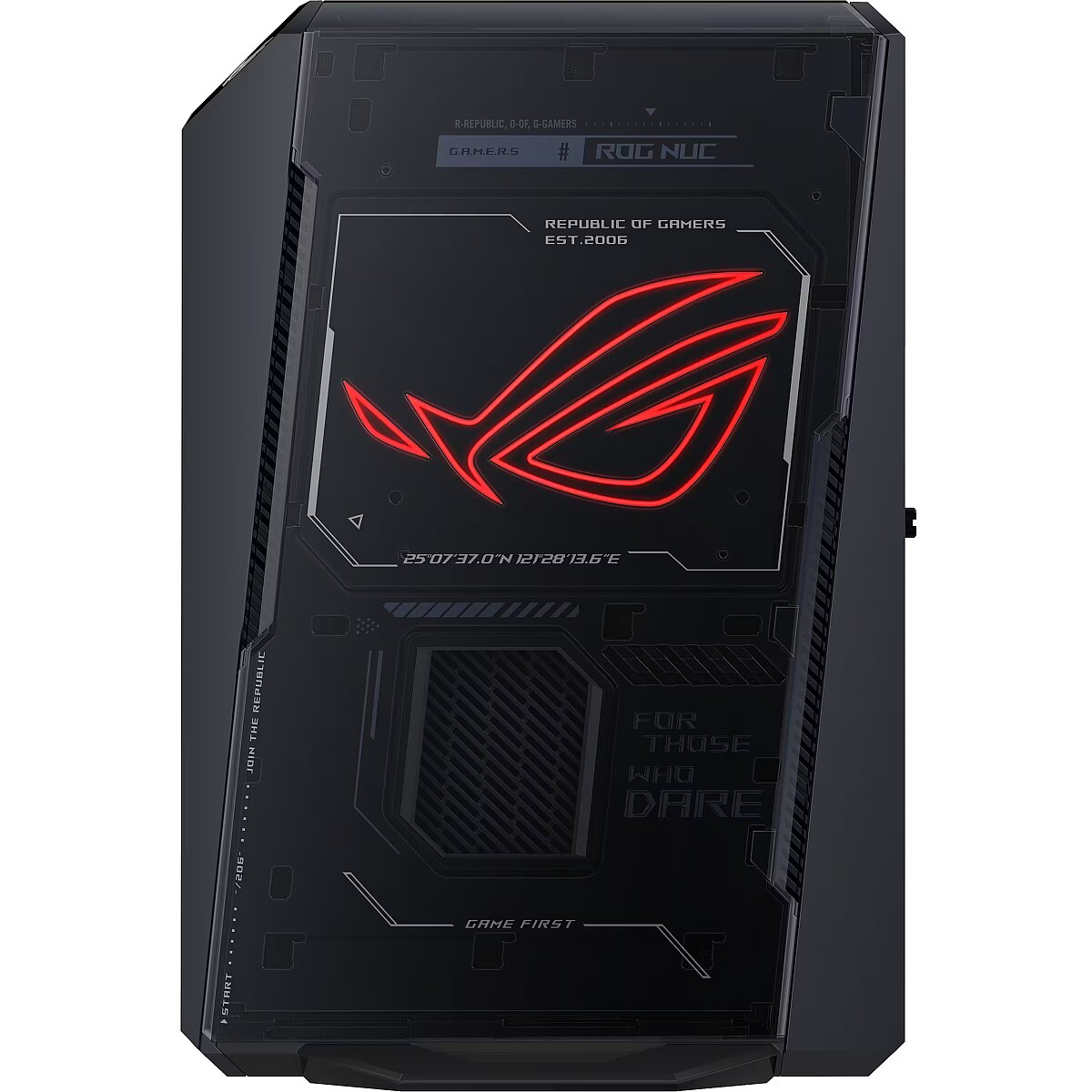

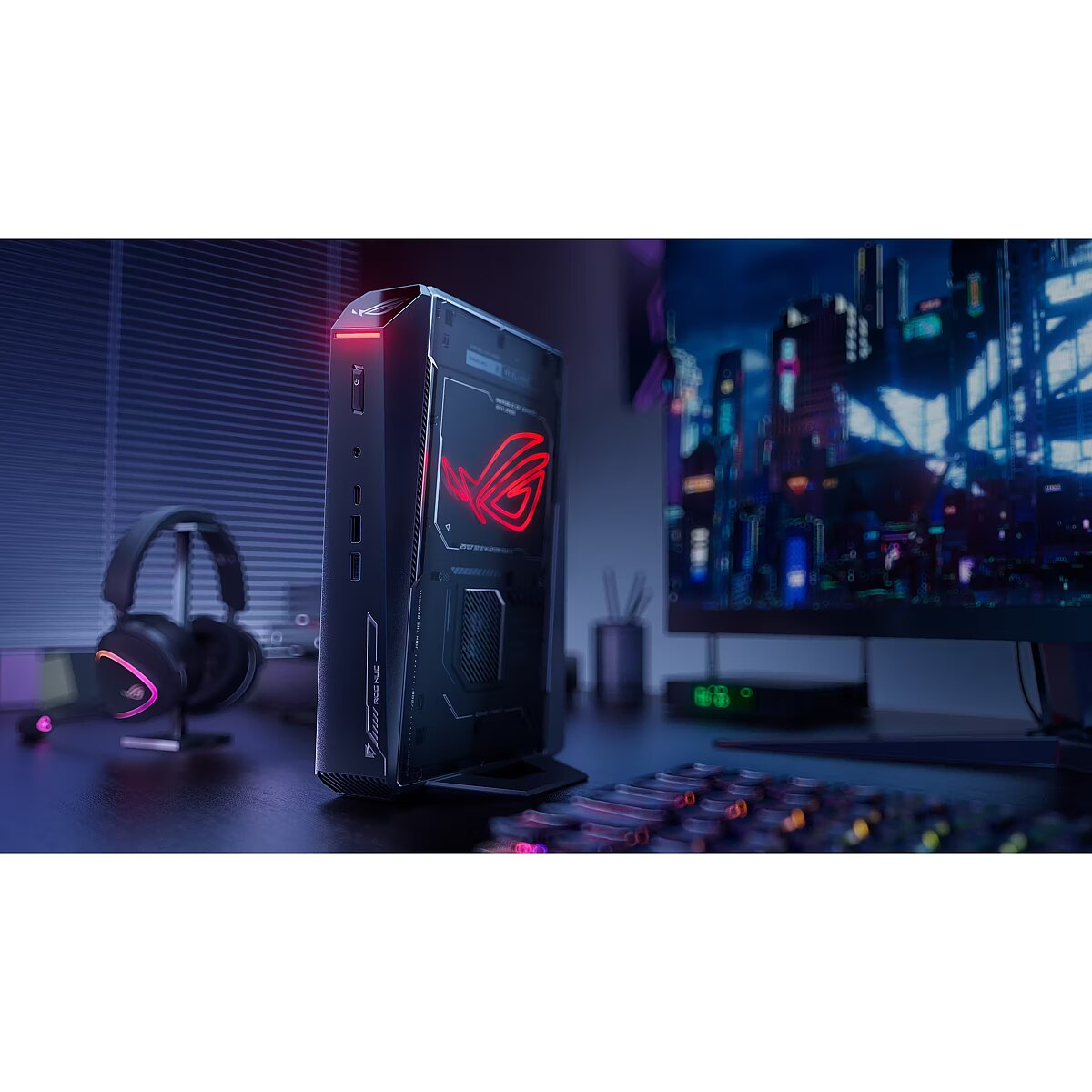

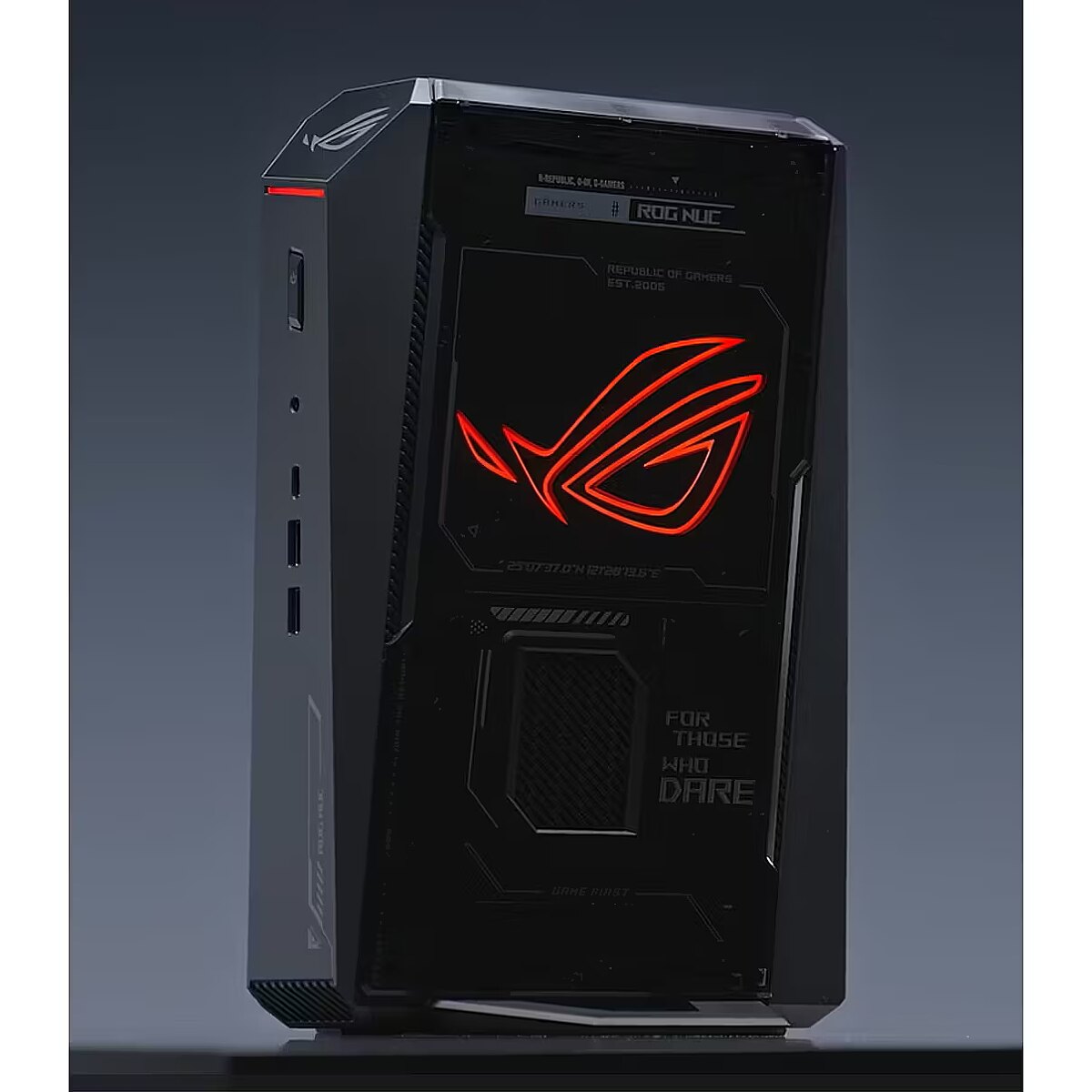

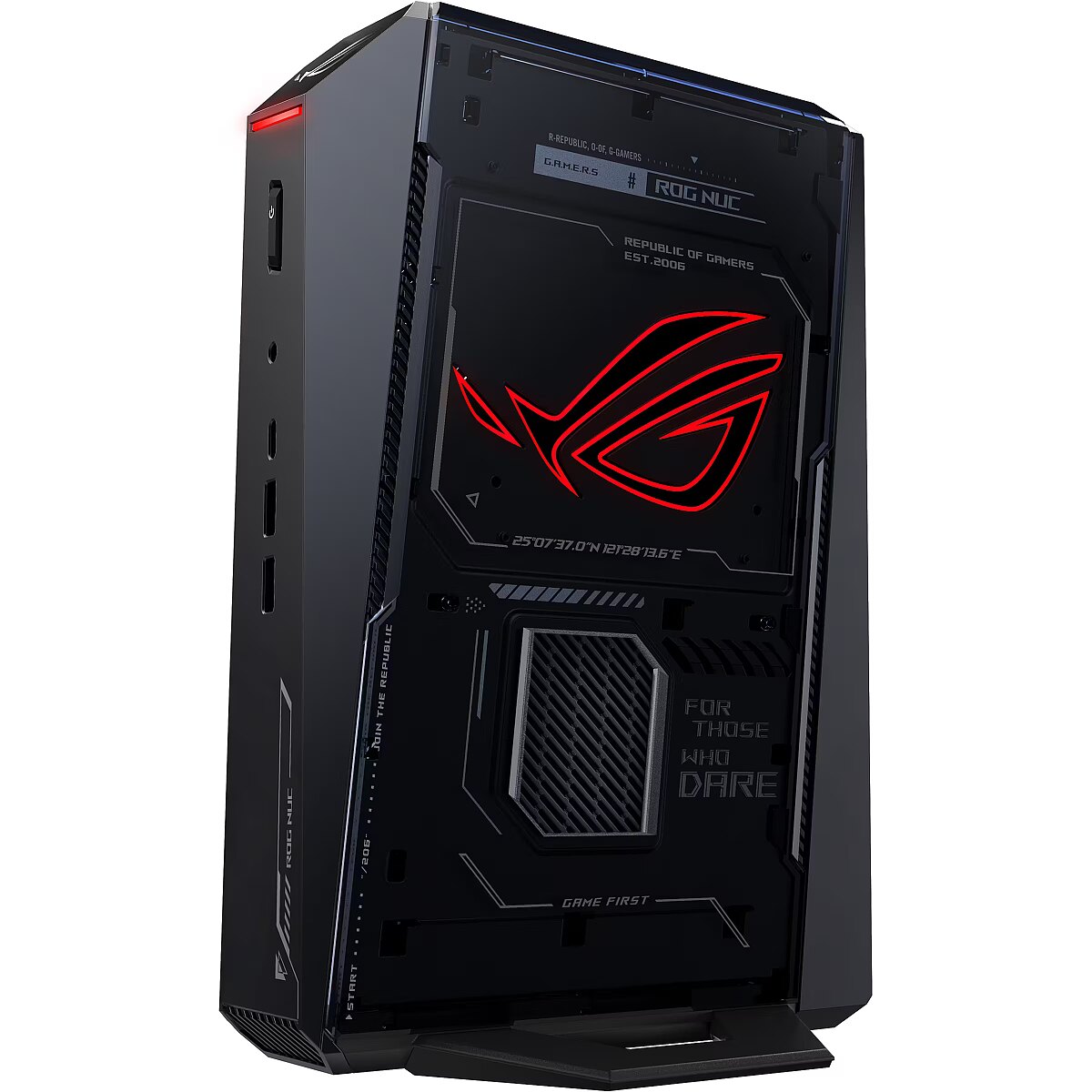

Asus COMPUTING KIT CU9-275HX/RNUC15JNK9X28AA2

Brand - ASUS
BrandPartCode - 90AS00I1-M00090
Category - PCs/Workstations
Category Code - COK
CnCode - 84714900
CPU Family name - Core Ultra
CPU Model Number - U9-275HX
Description - ROG NUC (2025) NUC15JNK Gaming Redefined: Power Meets Precision With Intel® Core™ Ultra 9/7 processor deliver superior performance. Ultra-small form factor delivers superior performance and seamless multitasking. Gamers can chat, browse, stream, edit, record and play without skipping a beat. NVIDIA® GeForce RTX™ 4070/4060-series graphics make immersive gaming experiences possible. Arrange systems vertically or horizontally (vertical stand included). Connect fast with 2.5Gb Ethernet, Intel® Killer® Wi-Fi 6E, and Bluetooth® 5.3. Customize the addressable backlit ROG panel with your own lighting experience and the option to DIY your own logo. Take your RGB game to the next level with ASUS AURA Sync’s 12 ROG synchronization modes for ROG peripherals. Tool less 2.5-liter chassis design makes integration and cleaning a breeze. Freedom to play from your living room or desk with this ROG Raikiri Pro compatible PC.
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Chassis type - USFF

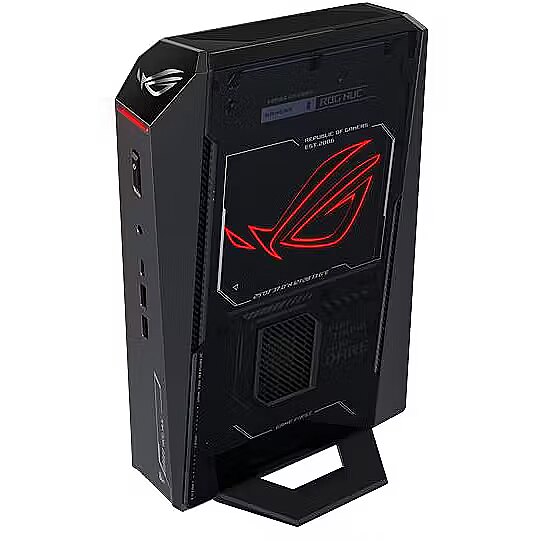

Design - Placement supported - Horizontal/Vertical
Design - Product colour - Black
Design - Volume - 2.5 L
Dimensions - 282.4mm x 187.7mm x 56.5mm
Display - Display included - No
DisplayPort Input/Output connectors - 2
Graphics - Discrete GPU manufacturer - NVIDIA
Graphics - Discrete graphics card - Yes
Graphics - Discrete graphics card memory - 16 GB
Graphics - Discrete graphics card model - NVIDIA GeForce RTX 5080
Graphics - Discrete graphics memory type - GDDR7
Graphics - Number of discrete graphics cards - 1
Graphics - On-board GPU manufacturer - Intel
Graphics - On-board graphics card - Yes
Graphics - On-board graphics card family - Intel Graphics
Graphics - On-board graphics card model - Intel Graphics
GTIN - 0199291005259
GTIN - 199291005259
GTIN - 4711636005258
HDMI Input/Output connectors - 2
Integrated LAN - 2.5 Gigabit
Integrated video - Yes

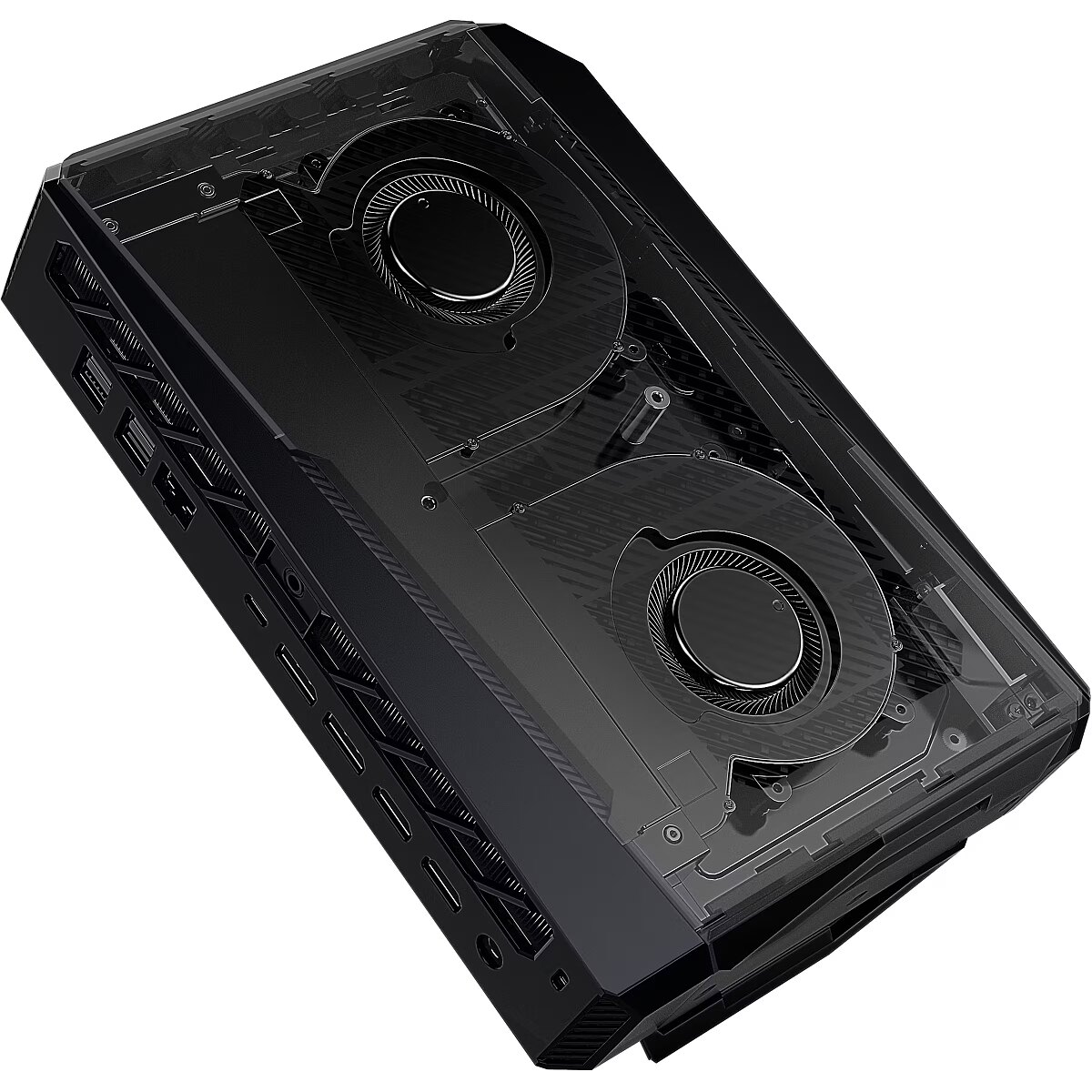

LongDesc - Gaming RedefinedPower Meets PrecisionUnlock new gaming horizons with ROG NUC (2025), powered by the Intel® Core™ Ultra processors (Series 2) ARL-HX and up to NVIDIA® GeForce RTX™ 5080 Laptop GPU. Equipped with triple fan cooling and support for four 4K displays, this compact powerhouse delivers unprecedented performance.
LongProductName - Intel Core Ultra 9 275HX (36MB Cache), 32GB DDR5-SDRAM, 2000GB SSD, Intel Graphics, NVIDIA GeForce RTX 5080 (16GB GDDR7), LAN, WLAN, Bluetooth, Windows 11 Home 64-bit
LongSummaryDescription - ASUS ROG NUC RNUC15JNK9X28AA2. Processor family: Intel Core Ultra 9, Processor model: 275HX. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 6400 MHz. Total storage capacity: 2 TB, Storage media: SSD. On-board graphics card model: Intel Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5080. Operating system installed: Windows 11 Home, Operating system architecture: 64-bit. Chassis type: USFF. Product type: Mini PC. Weight: 3.12 kg. Product colour: Black
Memory - Internal memory - 32 GB
Memory - Internal memory type - DDR5-SDRAM
Memory - Maximum internal memory - 96 GB
Memory - Memory clock speed - 6400 MHz
Memory - Memory layout (slots x size) - 2 x 16 GB
Model - NUC 14 Pro Slim
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Cabling technology - 10/100/1000Base-T(X)
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100,1000,2500 Mbit/s
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Neural processor unit (NPU) - AI software frameworks supported by NPU - DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Neural processor unit (NPU) - GPU performance up to - 8 TOPs
Neural processor unit (NPU) - Neural processor unit (NPU) - Intel AI Boost
Neural processor unit (NPU) - NPU performance up to - 13 TOPs
Neural processor unit (NPU) - Sparsity support - Yes
Neural processor unit (NPU) - Total processor performance up to - 36 TOPs
Neural processor unit (NPU) - Windows Studio effects support - Yes
NUC series - Kits
Operating System - Windows 11 Home
Performance - Audio chip - Realtek ALC3251
Performance - Market positioning - Gaming
Performance - Product type - Mini PC
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 2.1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Intel® Thunderbolt 4 - Yes
Ports & interfaces - Thunderbolt 4 ports quantity - 1
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 6
Ports & interfaces - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Processor - Efficient-core base frequency - 2.1 GHz
Processor - Efficient-core Max Turbo Frequency - 4.6 GHz
Processor - Efficient cores - 16
Processor - Maximum turbo power - 160 W
Processor - Performance-core base frequency - 2.7 GHz
Processor - Performance-core Max Turbo Frequency - 5.4 GHz
Processor - Performance cores - 8
Processor - Processor base power - 55 W
Processor - Processor boost frequency - 5.4 GHz
Processor - Processor cache - 36 MB
Processor - Processor cores - 24
Processor - Processor family - Intel Core Ultra 9
Processor - Processor generation - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor model - 275HX
Processor - Processor threads - 24
Product model code - RNUC15JNK9X28AA2
ProductName - RNUC15JNK9X28AA2
Product Net Weight - 3.12 kg
ShortSummaryDescription - ASUS ROG NUC RNUC15JNK9X28AA2, Intel Core Ultra 9, 275HX, 32 GB, 2 TB, Windows 11 Home, 64-bit
Software - Operating system architecture - 64-bit
Software - Operating system installed - Windows 11 Home
Storage - Optical drive type - No
Storage - SSD form factor - M.2
Storage - SSD interface - PCI Express 4.0
Storage - Storage media - SSD
Storage - Total SSDs capacity - 2 TB
Storage - Total storage capacity - 2 TB
Thunderbolt Input/Output connectors - 1
Title - ASUS ROG NUC RNUC15JNK9X28AA2 Intel Core Ultra 9 275HX 32 GB DDR5-SDRAM 2 TB SSD NVIDIA GeForce RTX 5080 Windows 11 Home USFF Mini PC Black
Unit Box Height - 0.2
Unit Box Length - 0.37
Unit Box Width - 0.265
Unit Calculated Volume - 0.040368 cubm
Unit Calculated Weight - 6.96 kg
Units per Shipping Box - 1
URL - https://rog.asus.com/desktops/mini-pc/rog-nuc-2025/
USB-C Input/Output connectors - 1
USB 3.2 Input/Output connectors - 4
Vendor Homepage - rog.asus.com/in/desktops/mini-pc/rog-nuc-2025/spec/
VGA card - Intel Graphics GPU
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 187.7 mm
Weight & dimensions - Height - 56.5 mm
Weight & dimensions - Weight - 3.12 kg
Weight & dimensions - Width - 282.4 mm
Wireless LAN Wireless connections - 802.11ax
