Digitus HDBASET HDMI EXT SET 150M 4K

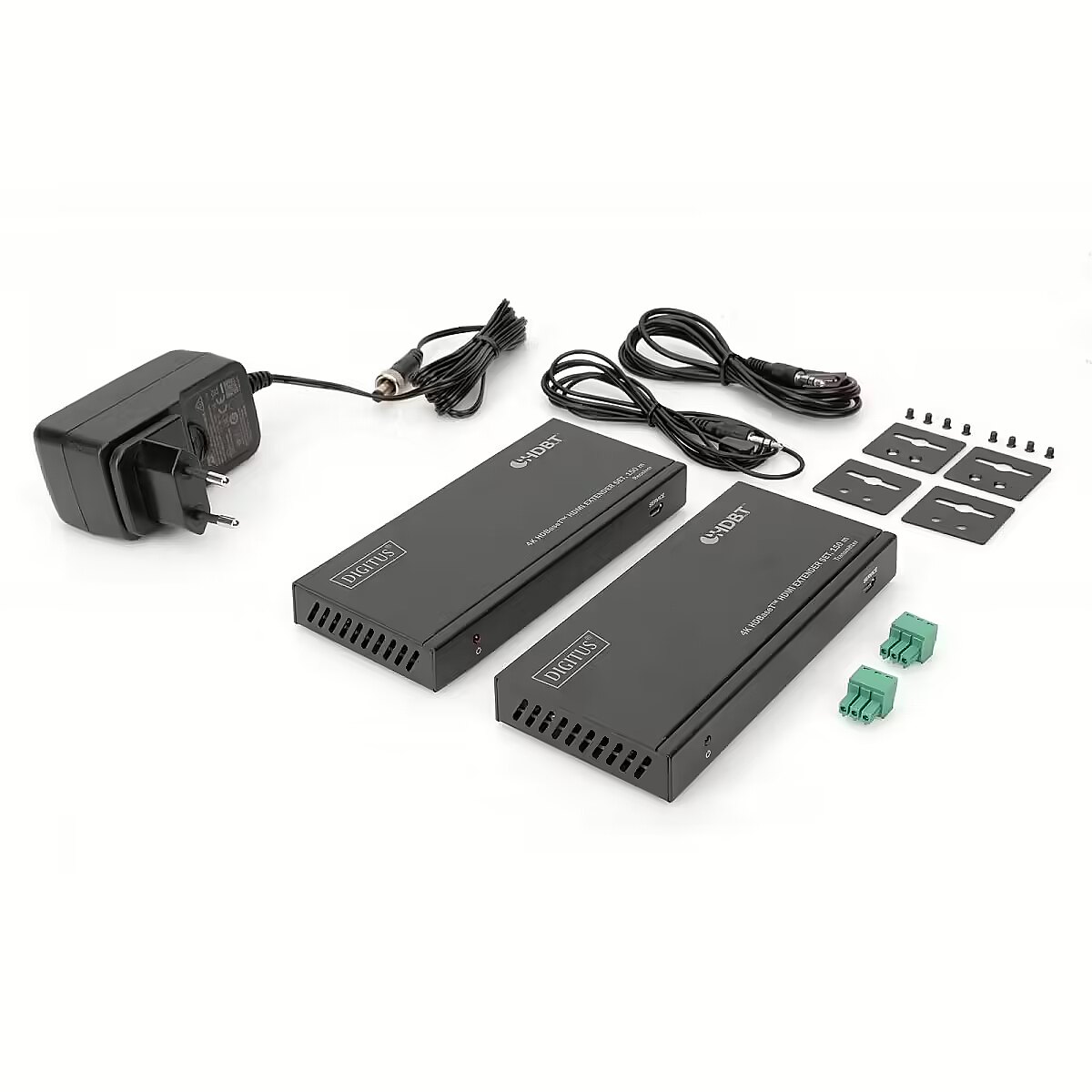

Accessories included - Transmitter Unit Receiver Unit Infrared Transmitter Cable (1.5 m) Infrared Receiver Cable (1.5 m) Power Supply (DC 24 V/1 A, 1.45 m) 2 x 3-pin Phoenix Connectors 4 x Mounting Plates User Manual
ARTIKEL1 - HDBASET HDMI EXT SET 150M 4K
ARTIKEL2 -
Breite - 0
Category 1 - Kabel & Adapter
Category 2 - Display
Category 3 - HDMI
Color - Black
Connectors #1 - HDMI Type A Female
Connectors #1 - RJ45 Female
Connectors #1 - USB Micro-B Female
Connectors #2 - 3,5mm minijack Female
Connectors #2 - HDMI Type A Female
Connectors #2 - RJ45 Female
Connectors #2 - USB Micro-B Female
Description - The HDBaseT HDMI Extender Kit enables the transmission of uncompressed, high-definition signals over long distances using standard copper data cables. The maximum transmission range is 150 m (Full HD). 4K signals can be extended up to 120 m. Thanks to PoC technology, only one unit needs to be connected to a power source via an external power supply. RS232 and bidirectional infrared signal transmission are also included. HDMI Loop-Out outputs on the extender unit allow you to connect a local monitor to monitor the receiver's output signal. HDBaseT 1.0 support over CAT6A/7/8 cable at distances up to 100 m 4K 2K / 60 Hz (4:4:4) support Maximum transmission range (UHD 4K 2K): 120 m Maximum transmission range (Full HD 1080p): 150 m Video bandwidth: 18 Gbps HDMI Loop-Out in the relay unit PoC (Power over Cable) - only one unit requires an external power supply HDCP 2.2 / 1.4 HDR, HDR10+, Dolby Vision, HLG RS232 signal transmission Suitable for wall mounting Housing: metal
Designation - CE+WEEE
dimensionalWeight - 697
dimension depth - 60 mm
dimension height - 250 mm
Dimensions - 1 unit: 14 x 6.5 x 1.8 cm
dimension weight - 890 g
dimension width - 190 mm
ean - 4016032478942
EAN - 4016032478942
EANCode - 4016032478942
Features - Bandwidth - 18 Gbit/s
Features - Bidirectional - Yes
Features - Cable types supported - Cat5e
Features - Cable types supported - Cat6
Features - Cable types supported - Cat7
Features - Cable types supported - Cat8
Features - Consumer Electronics Control (CEC) support - Yes
Features - Electrostatic Discharge (ESD) protection - Yes
Features - HDCP - Yes
Features - HDCP version - 1.4/2.2
Features - Material - Metal
Features - Maximum resolution - 3840 x 2160 pixels
Features - Maximum transfer distance - 150 m
Features - Plug and Play - Yes
Features - Product colour - Black
Features - Type - AV transmitter & receiver
Features - Wall mountable - Yes
Gewicht - 0.96
GRUPPE1 - Network
GRUPPE2 - KVM Switch Entry Level
guarantee - 24
guarantee_type - external
HERSTELLER - DIGITUS
Hoehe - 0
HSTNUMMER - DS-55508
Laenge - 0
Logistics data - UK Trade Tariff code - 85176200
Manufacturer - Digitus
MPN - DS-55508
Name - DIGITUS 4K HDBaseT HDMI Extender Set, 150m
name - HDBaseT HDMI Extender DS-55508
Operational conditions - Operating temperature (T-T) - 0 - 40 °C

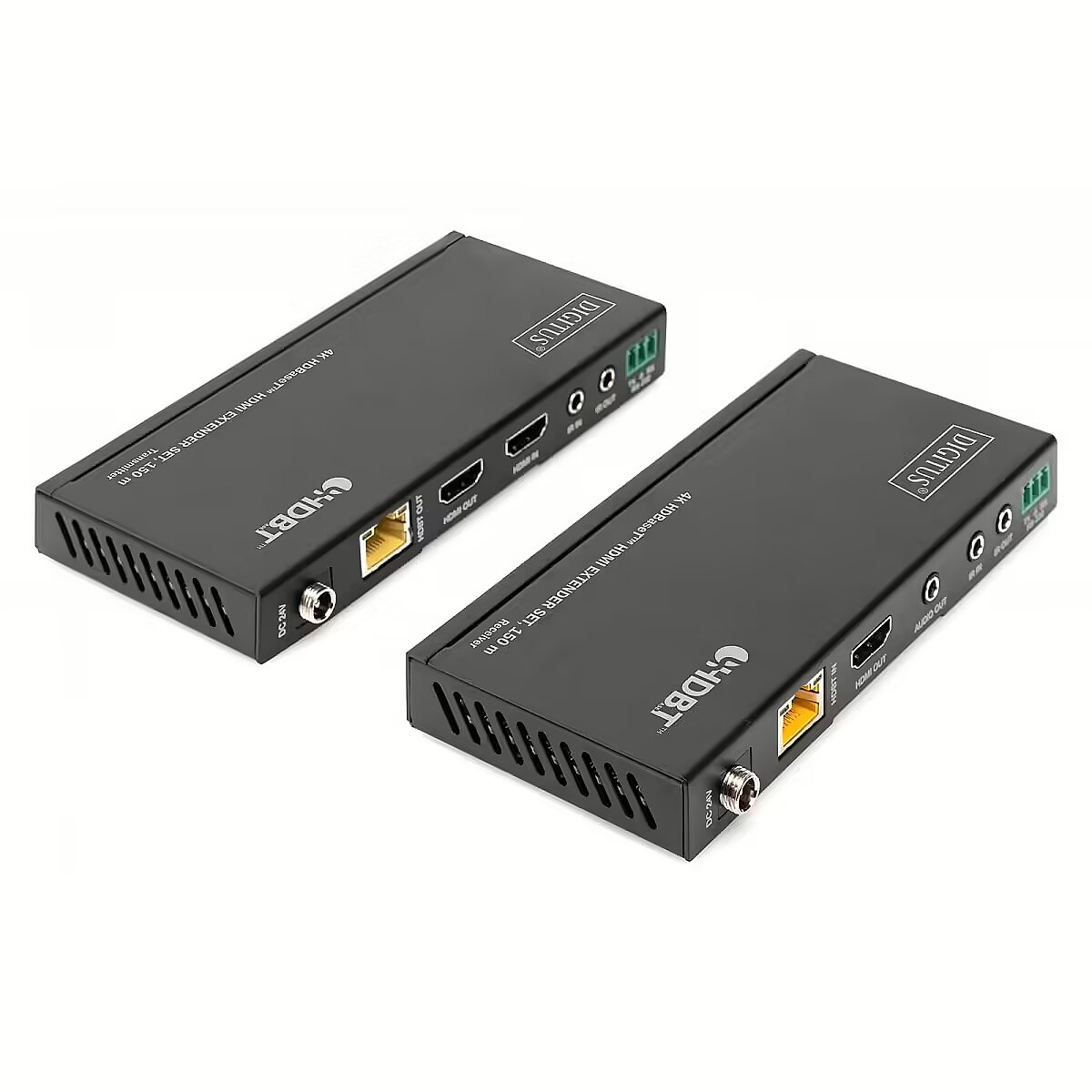

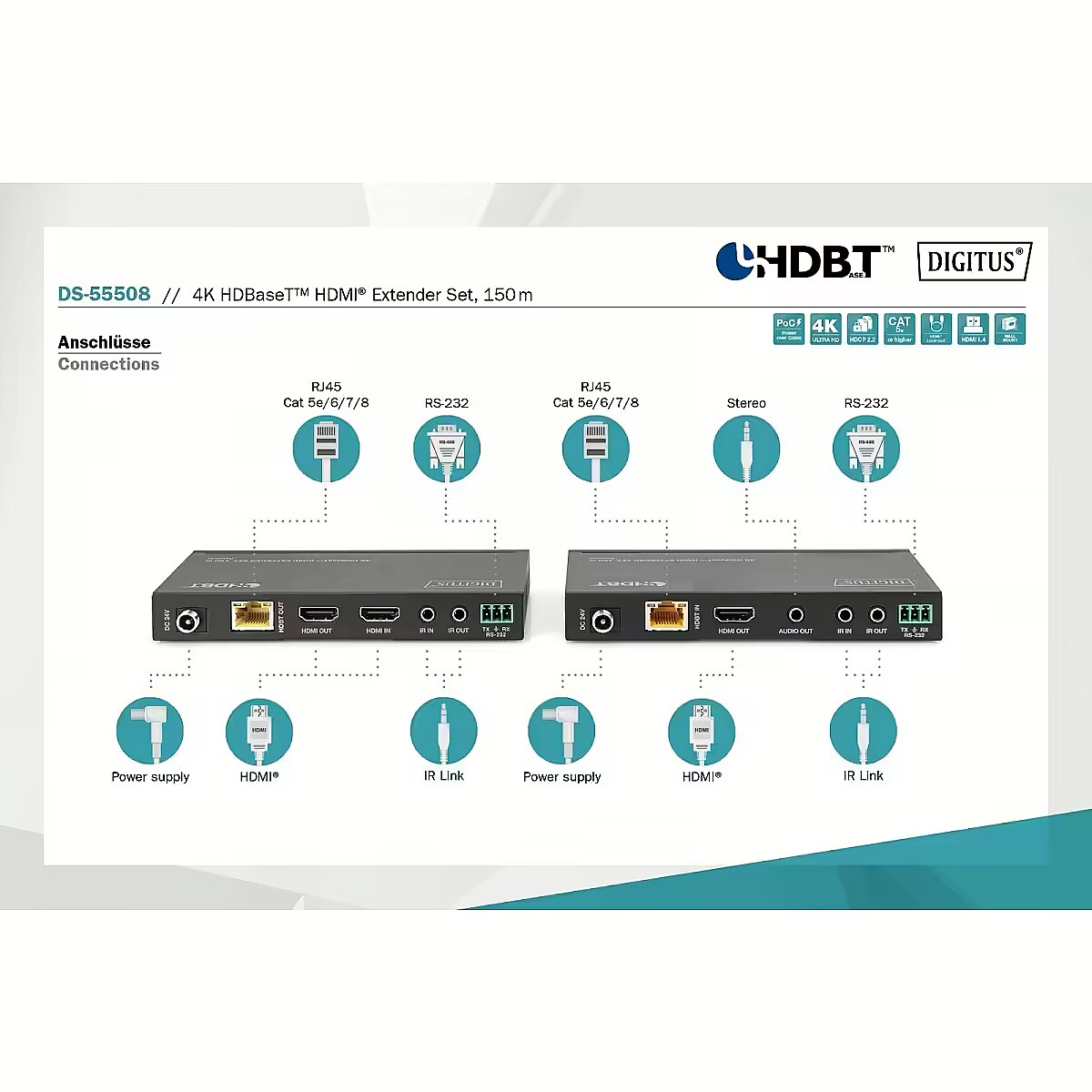

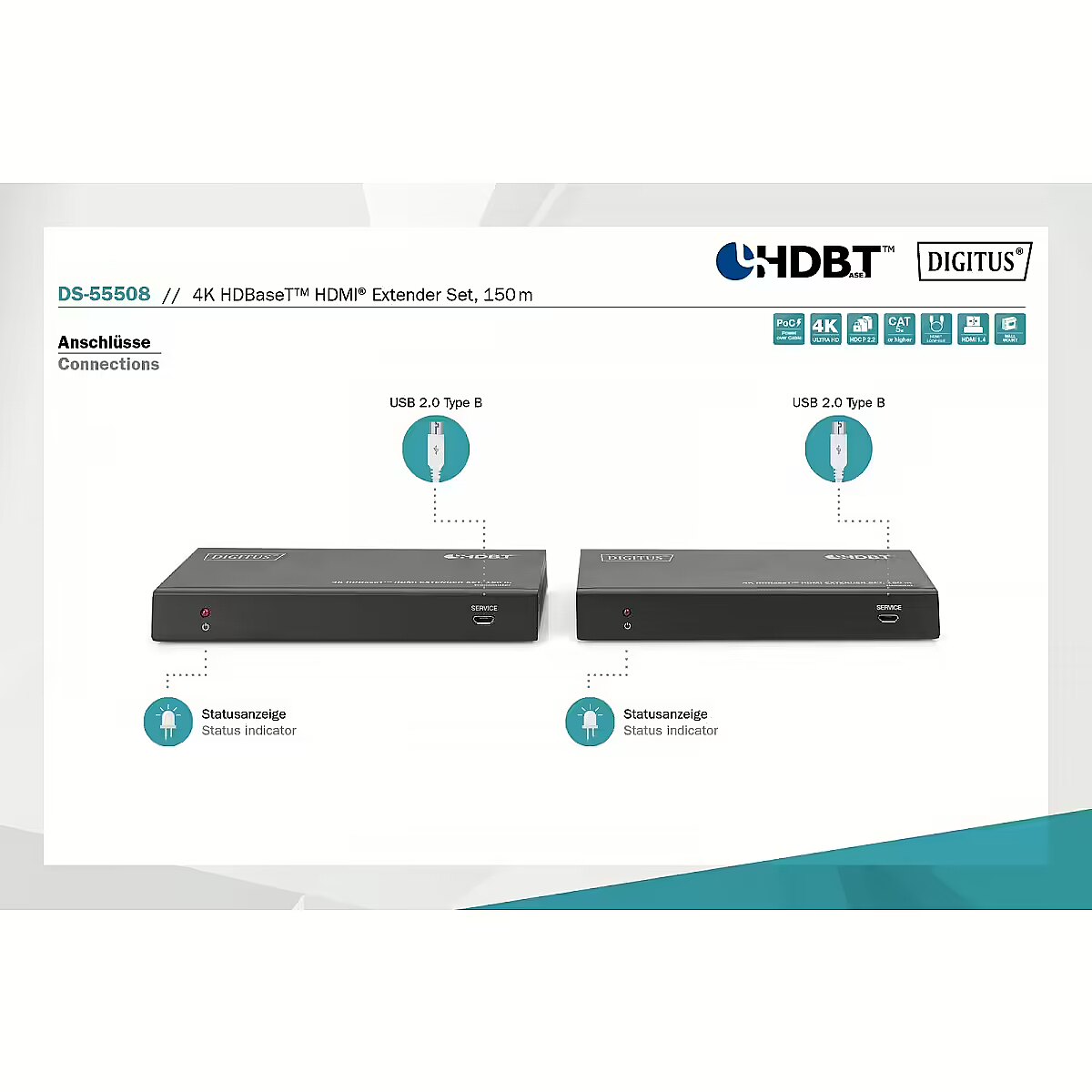

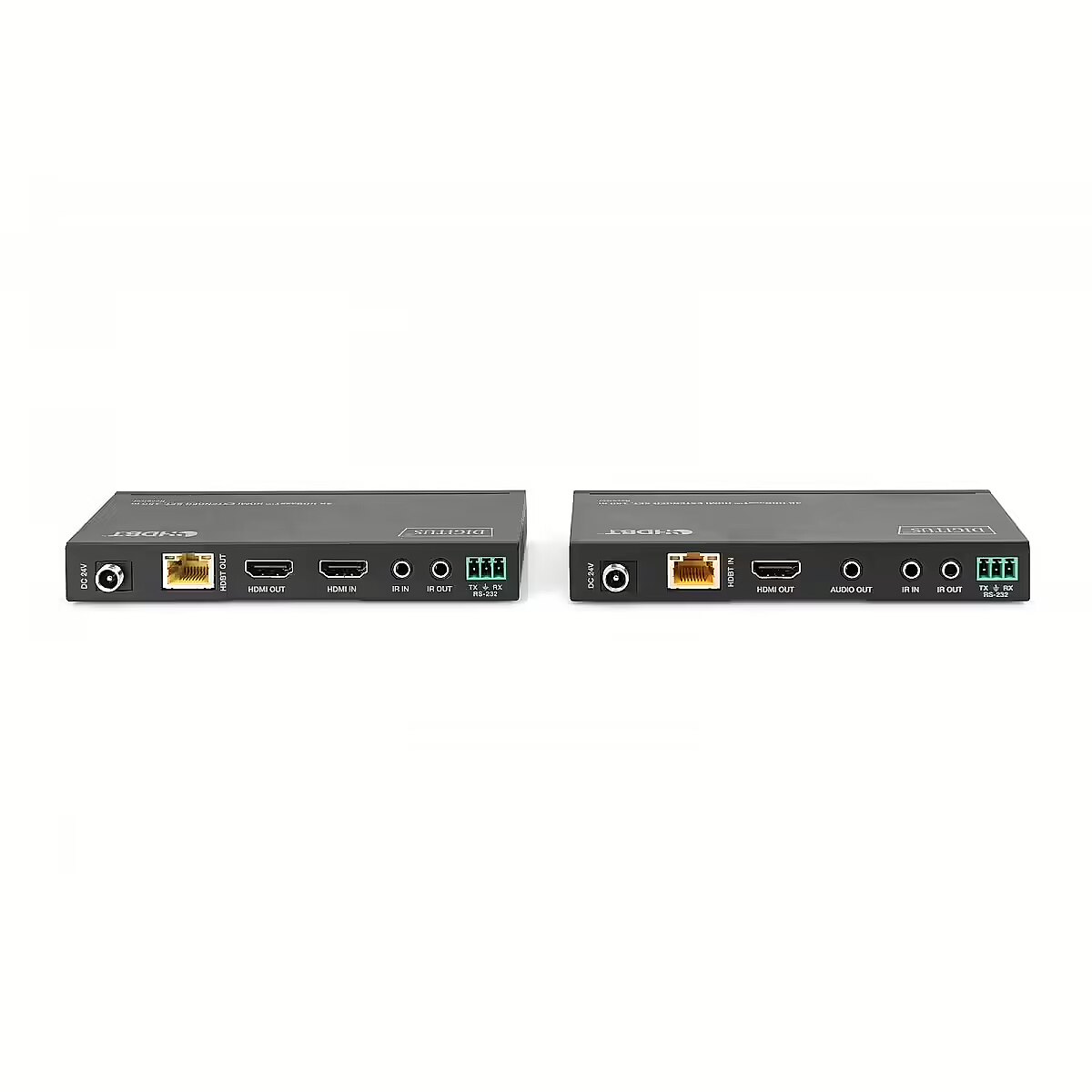

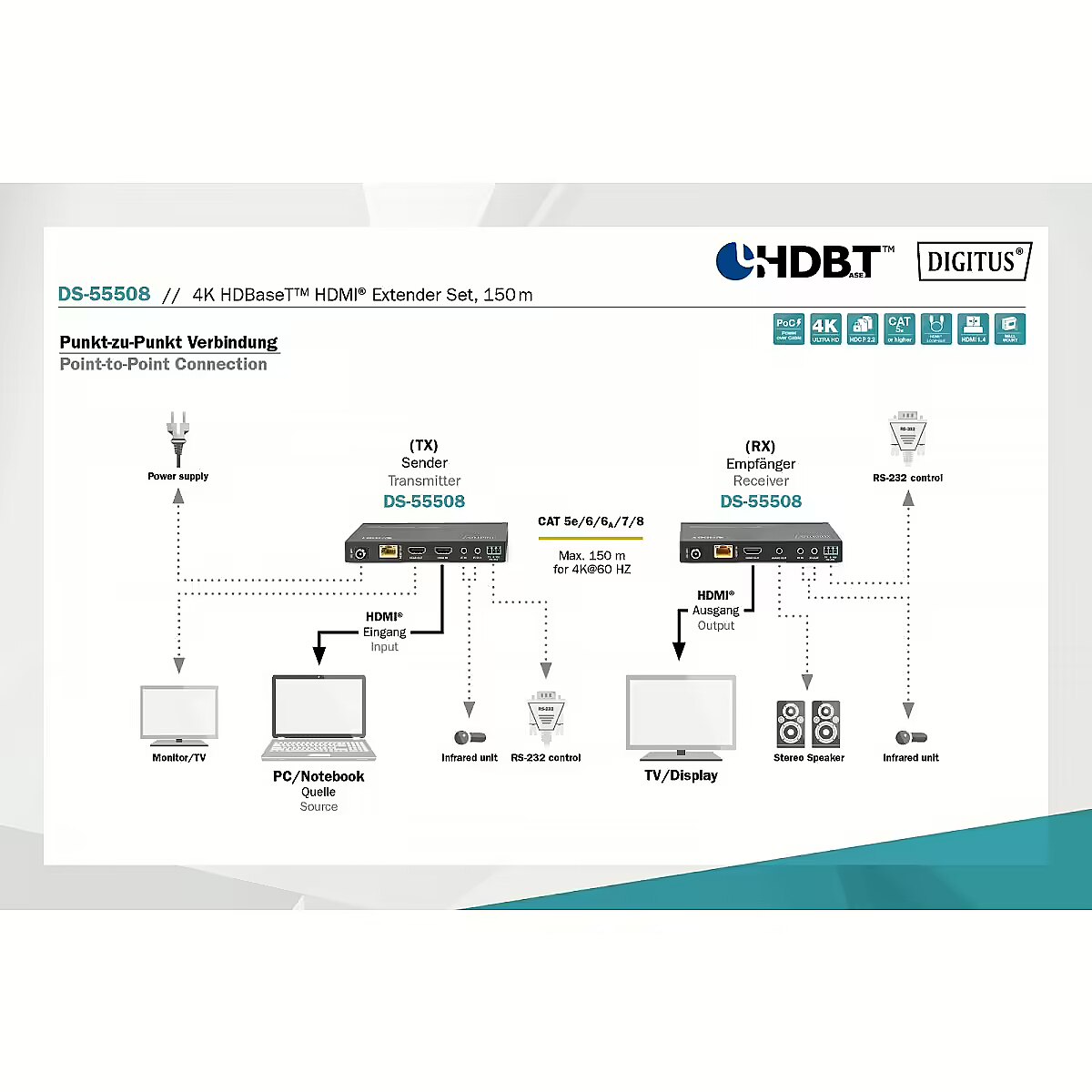

Other features - Weight: Transmitter 160 g, Receiver 155 g Bidirectional IR signal transmission CEC Pass-Through Relay unit connectors: 1 x HDMI input (4K / 60 Hz) for signal source connection 1 x RJ45 output (HDBaseT) for CAT cable transmission 1 x Loop-Out/HDMI output for local monitor connection (source device) 1 x IR input for receiving signals from the remote control 1 x IR output for controlling the source device 1 x RS232 (3-pin Phoenix) for transmitting RS232 commands 1 x power supply input (DC 24 V / 1 A), screw-type connection for external power supply 1 x micro USB input for service/firmware updates Receiver unit connectors: 1 x HDMI output (4K / 60 Hz) for output device connection 1 x RJ45 input (HDBaseT) for CAT cable transmission 1 x RS232 (3-pin Phoenix) for transmitting RS232 commands 1 x 3.5 mm stereo audio output 1 x IR input for receiving signals from the remote control 1 x IR output for controlling the output screen 1 x power supply input (DC 24 V / 1 A), screw-type connection for connecting an external power supply 1 x micro USB input for service/firmware updates Surge protection (ESD) Operating temperature: 0-40°C Power consumption: approx. 9.36 W
Packaging data - Package depth - 185 mm
Packaging data - Package height - 75 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1 kg
Packaging data - Package width - 245 mm
Packaging data - Quantity per pack - 1 pc(s)
Ports & interfaces - 3.5 mm (1/8-inch) in - Yes
Ports & interfaces - 3.5 mm (1/8-inch) out - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - HDMI in - 1
Ports & interfaces - Number of HDMI outputs - 1
Ports & interfaces - Remote (IR) input - 2
Ports & interfaces - Remote (IR) output - 2
Ports & interfaces - RJ-45 input ports - 1
Ports & interfaces - RJ-45 output ports - 1
Ports & interfaces - RS-232 input ports - 1
Ports & interfaces - RS-232 output ports - 1
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - Serial ports quantity - 2
Ports & interfaces - USB connector type - Micro-USB
Ports & interfaces - USB ports quantity - 2
Power - Input current - 1 A
Power - Operating voltage - 24 V
Power - Power consumption (typical) - 9.36 W
Power - Power over Ethernet (PoE) - No
producer - Digitus
producerCode - DS-55508
productName - 4K HDBaseT HDMI Extender Set, 150 m
productSize - Normal
sizeX - 250
sizeY - 75
sizeZ - 186
Standard - HDMI Ultra HD 4K
Stck_Kart - 9998
Stck_Pal - 0
Storno - N
Technical details - Package volume - 3399.38 cm³
Type - Extension cord
Usage - Audio
Usage - Video
vendpn - DS-55508
warrantyLength - 24
warrantyType - F
weight - 930
Weight & dimensions - Receiver dimensions (WxDxH) - 65 x 140 x 18 mm
Weight & dimensions - Receiver weight - 155 g
Weight & dimensions - Transmitter dimensions (WxDxH) - 65 x 140 x 18 mm
Weight & dimensions - Transmitter weight - 160 g
