Startech VGA DP + HDMI OVER CAT5 SWITCH HDBASET EXTENDER SWITCH-4K

ARTIKEL1 - VGA DP + HDMI OVER CAT5 SWITCH
ARTIKEL2 - HDBASET EXTENDER SWITCH-4K
Brand - StarTech.com
BrandPartCode - STDHVHDBT
Category - AV Extenders
EANCode - 0065030864572
Features - Audio output channels - 7.1 channels
Features - Audio system - Multichannel
Features - Cable types supported - Cat5e, Cat6
Features - Certification - CE, FCC, REACH, TAA
Features - Daisy chain - No
Features - HDBaseT certified - Yes
Features - LED indicators - Yes
Features - Maximum refresh rate - 60 Hz
Features - Maximum resolution - 4096 x 2160 pixels
Features - Maximum transfer distance - 70 m
Features - Plug and Play - Yes
Features - Product colour - Black
Features - Rack mounting - Yes
Features - Remote control type - IrDA
Features - Rubber feet - Yes
Features - Supported video modes - 720p, 1080p, 2160p
Features - Type - AV transmitter & receiver
GRUPPE1 - Cables
GRUPPE2 - Hdmi Cable
GTIN - 0065030864572
GTIN - 065030864572
HERSTELLER - STARTECH
HSTNUMMER - STDHVHDBT
Logistics data - Master (outer) case height - 262 mm
Logistics data - Master (outer) case length - 406 mm
Logistics data - Master (outer) case width - 322 mm
Logistics data - Products per master (outer) case - 6 pc(s)
LongDesc - Connect your laptop to a remote display over standard CAT5e or CAT6 cabling, and easily swap between HDMI, DP or VGA video sourcesThis multi-input video extender kit uses HDBaseT™ technology to extend your video signals up to 230 feet (70 meters) over a single CAT5e or CAT6 cable. It features a built-in video switch that enables you to choose which video source is outputted from four independent video sources (2 x HDMI, 1 x VGA and 1 x DisplayPort).The video extender supports Ultra HD 4K and Full HD 1080p video resolutions, with support for the accompanying digital 7.1 audio.Seamless multi-interface operation, with a switch and extender in oneThis HDBaseT extender features a built-in converter switch, so you can connect two HDMI sources as well as a VGA and a DisplayPort video source to the same remote HDMI display, without having to use additional adapters or scalers or a separate video switch.With support for multiple video sources and HDBaseT, this extender is the perfect solution for adding a large display to your boardroom or classroom, enabling BYOD laptops with HDMI, DisplayPort or VGA outputs to share their display with the room.Effortless control with automatic or priority switchingThe extender switch ensures hassle-free operation, with two different auto-switching modes: auto-detect switching, which detects and selects a newly connected device, or priority selection, which lets you choose which port should be activated by default for automatic switching.The multi-input video extender kit is perfect for digital signage applications, where an automatic switch can replace a failed source with a secondary input to avoid embarrassing video outages. Plus, the combined built-in HDBaseT functionality means you can connect a remote digital signage display with one kit that reduces failure points.Hassle-free integration with your existing infrastructureThe kit extends your video signal over a single cable, unlike some video extender systems that require two cables and only offer minimal audio support. Extending your video with one cable reduces potential failure points and also lowers your cabling costs.Using standard CAT5e, CAT6 or CAT7 cables, the HDBaseT extender works with existing Ethernet infrastructure that's already built into large commercial buildings such as shopping centers, stadiums, schools, and hospitals, making it the perfect solution for deploying digital signage.Astonishing 4K picture quality from an impressive distanceWith high-quality HDMI cables beginning signal degradation at 30 feet, it can be difficult to maintain the brilliance of 4K video even at shorter distances. But with HDBaseT, you’ll be amazed at how your Ultra HD picture -- four times the resolution of high-definition 1080p, is just as brilliant even at distances up to 130 feet from your video source.Even if you're not running 4K, HDBaseT supports High-Definition 1080p and lower resolutions at even greater distances, up to 230 feet from your source, giving you peace of mind knowing that this extender will comfortably work with any HDMI video source and display.What is HDBaseT?HDBaseT is a zero-latency connectivity standard that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video, along with additional signals, over a single Ethernet cable. Offering greater versatility than traditional HDMI extenders and longer distances than HDMI cables alone, HDBaseT is the clear choice for every integrator and system designer, because it can do so much, with just a single cable.The STDHVHDBT is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.The StarTech.com Advantage
LongProductName - StarTech.com Multi-Input HDBaseT Extender with Built-in Switch - DisplayPort VGA and HDMI Over CAT5e or CAT6 - Up to 4K - up to 230 ft (STDHVHDBT)
LongSummaryDescription - StarTech.com Multi-Input HDBaseT Extender with Built-in Switch - DisplayPort, VGA and HDMI Over CAT5e or CAT6 - Up to 4K. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6. AC input voltage: 100 - 240 V, Operating voltage: 12 V, Input current: 0.6 A. Width: 160 mm, Depth: 100 mm, Height: 40 mm. Package width: 205 mm, Package depth: 298 mm, Package height: 62 mm. Cables included: LAN (RJ-45), Phone (RJ-11), Included power plug types: ANZ, EU, NA, UK
Operational conditions - Operating relative humidity (H-H) - 0 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -10 - 60 °C

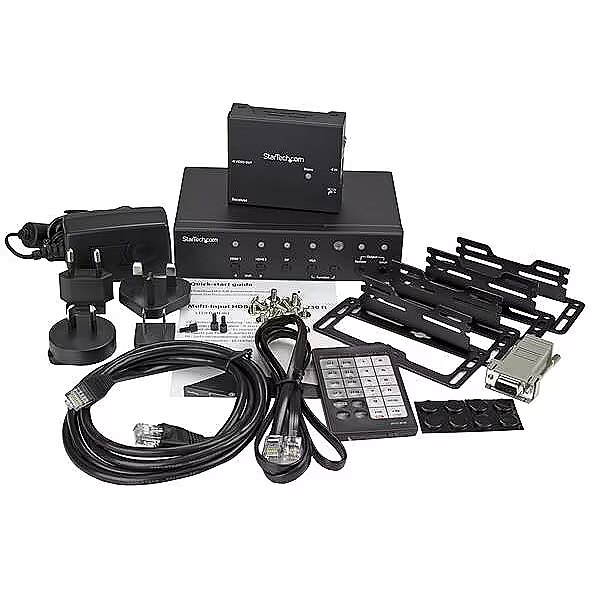

Packaging content - AC adapter included - Yes
Packaging content - Cables included - LAN (RJ-45), Phone (RJ-11)
Packaging content - Included power plug types - ANZ, EU, NA, UK
Packaging content - Mounting brackets included - Yes
Packaging content - Mounting kit - Yes
Packaging content - Quick start guide - Yes
Packaging content - Remote control included - Yes
Packaging data - Package depth - 298 mm
Packaging data - Package height - 62 mm
Packaging data - Package weight - 1.68 kg
Packaging data - Package width - 205 mm

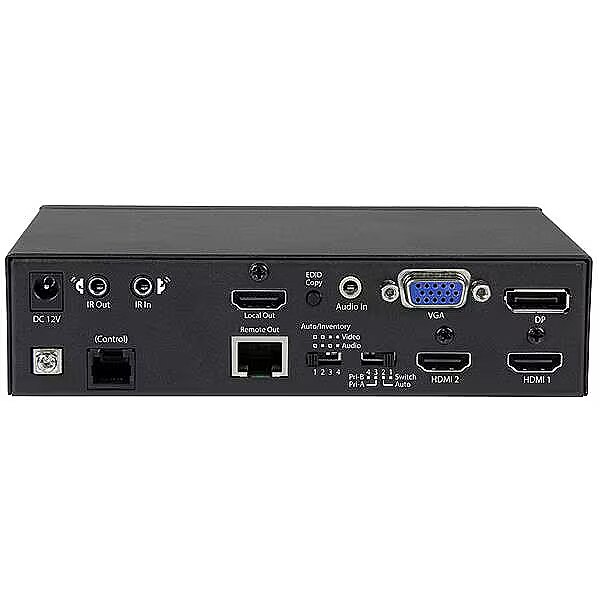

Ports & interfaces - 3.5 mm (1/8-inch) in - Yes
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - DisplayPorts in - 1
Ports & interfaces - HDMI in - 2
Ports & interfaces - Number of HDMI outputs - 2
Ports & interfaces - Remote (IR) input - 1
Ports & interfaces - Remote (IR) output - 1
Ports & interfaces - RJ-45 input ports - 1
Ports & interfaces - RJ-45 output ports - 1
Ports & interfaces - VGA (D-Sub) input ports - 1
Power - AC input voltage - 100 - 240 V
Power - External power adapter - Yes
Power - Input current - 0.6 A
Power - Operating voltage - 12 V
Power - Output current - 1.5 A
Power - Power consumption (typical) - 18 W
Power - Power plug type - Type M
ProductName - Multi-Input HDBaseT Extender with Built-in Switch - DisplayPort, VGA and HDMI Over CAT5e or CAT6 - Up to 4K
ShortSummaryDescription - StarTech.com Multi-Input HDBaseT Extender with Built-in Switch - DisplayPort, VGA and HDMI Over CAT5e or CAT6 - Up to 4K, 4096 x 2160 pixels, AV transmitter & receiver, 70 m, Black
Stck_Kart - 6
Stck_Pal - 0
Storno - Y
Technical details - Audio support - Yes
Technical details - Compliance certificates - RoHS
Title - StarTech.com Multi-Input HDBaseT Extender with Built-in Switch - DisplayPort, VGA and HDMI Over CAT5e or CAT6 - Up to 4K
URL - https://www.startech.com/en-us/STDHVHDBT
WarrantyInfo - 2 Years
Weight & dimensions - Depth - 100 mm
Weight & dimensions - Height - 40 mm
Weight & dimensions - Weight - 918 g
Weight & dimensions - Width - 160 mm
