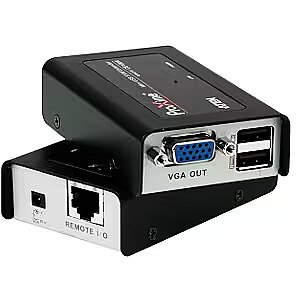

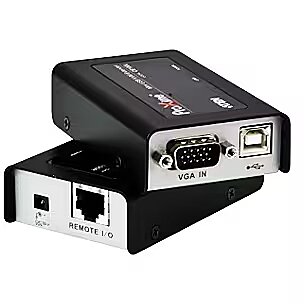

Aten Mini CE 100 USB Console Extender

Accessories included - - 1x przedłużacz sygnału KVM USB Mini CE100L (moduł lokalny)
- 1x przedłużacz sygnału wideo KVM USB Mini CE100R (moduł zdalny)
- 1x przewód USB/VGA
- 1x zasilacz (do modułu zdalnego)
- 1x zestaw do montażu
- 1x instrukcja obsługi
Brand - ATEN
BrandPartCode - CE100-AT-G
Category - KVM Extenders
Category - Root/Electronics/Networks and communication/KVM switch
Category_1 - Network and Servers
Category_2 - Network - KVM Accessories
Code - CE100-AT-G
Color - Black
Connectors #1 - D-sub 15pin Male
Connectors #1 - RJ45 Female
Connectors #1 - USB Type B Female
Connectors #2 - D-sub 15pin Female
Connectors #2 - RJ45 Female
Connectors #2 - USB Type A Female x2
Description -
Designation - CE+WEEE
dimension depth - 60 mm
dimension height - 160 mm
Dimensions - 9.10 x 5.74 x 2.40 cm
dimension weight - 720 g
dimension width - 240 mm
EAN - 4710423773462
ean - 4710423773462
Eans - 4710423773462
EAN_code - 4710423773462

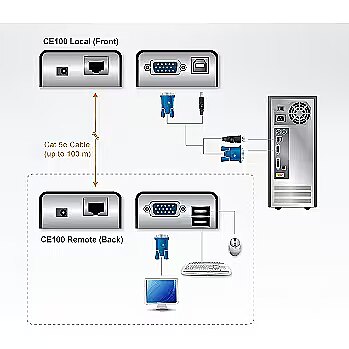

Features - Extends local PC VGA/keyboard/Mouse to Remote side. Uses Cat 5e cable to connect the local and remote units. Easily add or remove computers connected to the installation. Supports real time DDC communication. Superior video quality – up to 1920 x 1200. Allow access to a computer from the remote console up to 100 m distance. Support manual compensation adjustment for better video quality. No external power supply needed for local unit. Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV). Wall mountable.
Features - Cable types supported - Cat5
Features - Connectivity technology - Wired
Features - LED indicators - Link, Power
Features - Material - Metal
Features - Maximum digital resolution - 1920 x 1200 pixels
Features - Maximum transfer distance - 100 m
Features - Product colour - Black
Features - Type - Transmitter & receiver
Gross weight - 0.745 kg
GTIN - 4710423773462
guarantee - 24
guarantee_type - external
Logistics data - Harmonized System (HS) code - 84733080
Logistics data - Master (outer) case gross weight - 15 kg
Logistics data - Master (outer) case height - 338 mm
Logistics data - Master (outer) case length - 490 mm
Logistics data - Master (outer) case net weight - 12.1 kg
Logistics data - Master (outer) case width - 315 mm
Logistics data - Products per master (outer) case - 20 pc(s)
LongDesc - The CE100 USB KVM Extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console (USB keyboard, USB mouse, and monitor).1x CE100L Mini USB KVM Extender (Local Unit)1x CE100R Mini USB KVM Extender (Remote Unit)1x LIN5-21X1-X27G USB/VGA Cable (1.8m)1x 0AD6-1705-10EG Power Adapter (for Remote Unit)1x Mounting Kit1x User Instructions
LongProductName - MINI USB VGA KVM Extender (100m)
LongSummaryDescription - ATEN MINI USB VGA KVM Extender (100m). Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 100 m. USB port type: USB Type-B/ USB Type-A. Transmitter width: 5.74 cm, Transmitter depth: 9.1 cm, Transmitter height: 2.4 cm. Package width: 59 mm, Package depth: 239 mm, Package height: 160 mm. Cables included: USB, VGA
Manufacturer - Aten
Manufacturer_code - CE100-AT-G
Name - ATEN Mini CE 100 USB Console Extender
Name - ATEN MINI USB VGA KVM Extender (100m)
Name - Aten USB VGA Cat 5 Mini KVM Extender (1280 x 1024@100m) | Aten | Extender | USB VGA Cat 5 Mini KVM Extender
name - CONSOLE EXTENDER VGA USB 100M CE100
Operating temperature - 0–50°C
Operational conditions - Operating relative humidity (H-H) - 0 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Operational conditions > Storage temperature (T-T) - -20–60 °C
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 240 mm
Package features > Gross height (mm) - 160 mm
Package features > Gross width (mm) - 60 mm
Package features > Packing quantity - 1 pc(s)
Package features > Palette Qty - 750 pc(s)
Package features > Paper/Pasteboard - 120 g
Package features > Tare weight (kg) - 0.12 kg
Package features > Volume (m3) - 0.002304 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - USB, VGA
Packaging data - Package depth - 239 mm
Packaging data - Package height - 160 mm
Packaging data - Package weight - 745 g
Packaging data - Package width - 59 mm
Ports & interfaces - RJ-45 ports quantity - 2
Ports & interfaces - USB 2.0 ports quantity - 3
Ports & interfaces - USB port type - USB Type-B/ USB Type-A
Ports & interfaces > DC-in jack - Yes

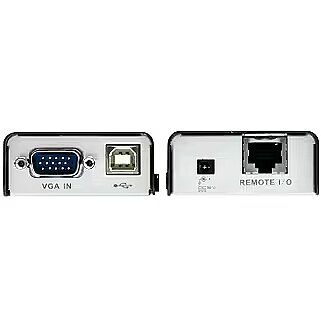

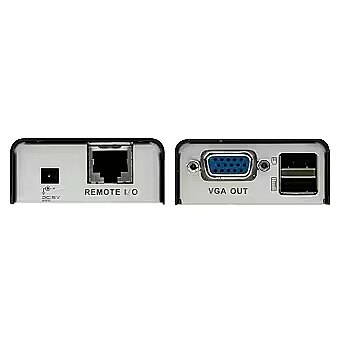

Ports & interfaces > KVM Ports - 1 x USB Type B Female (White) 1 x HDB-15 Male (Blue)
producer - ATEN
Producer - Aten
ProducerCode - CE100-A7-G
Producer product family - Extender
Producer product name - USB VGA Cat 5 Mini KVM Extender
ProductName - MINI USB VGA KVM Extender (100m)
ShortDescription -
ShortSummaryDescription - ATEN MINI USB VGA KVM Extender (100m), Transmitter & receiver, Wired, 100 m, Cat5, 1920 x 1200 pixels, Black
Technical details - Weight - 603 g
Technical details > Net weight - 0.625 kg
Technical details > Producer - Aten
Technical_details - Featuress
- Extends local PC VGA/keyboard/Mouse to Remote side
- Uses Cat 5e cable to connect the local and remote units
- Easily add or remove computers connected to the installation
- Supports real time DDC communication
- Superior video quality – up to 1920 x 1200
- Allow access to a computer from the remote console up to 100 m distance
- Support manual compensation adjustment for better video quality
- No external power supply needed for local unit
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Wall mountable Package Contents
- 1x CE100L Mini USB KVM Extender (Local Unit)
- 1x CE100R Mini USB KVM Extender (Remote Unit)
- 1x USB/VGA Cable
- 1x 0AD6-1705-10EG Power Adapter (for Remote Unit)
- 1x Mounting Kit
- 1x User Instructions Technical details 100 m Ports & interfaces VGA (D-Sub) ports quantity 2 USB 2.0 ports quantity 3 Microphone in No Colour Black Packaging content Cables included USB, VGA Quick start guide Yes Mounting kit Yes
Title - ATEN MINI USB VGA KVM Extender (100m)
Type - Extension cord
URL - https://www.aten.com/global/en/products/kvm/kvm-extenders/ce100/
Usage - KVM
vendpn - CE100
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
Weight - 0,77
Weight - 0.17 kg
Weight & dimensions - Receiver depth - 9.1 cm
Weight & dimensions - Receiver height - 2.4 cm
Weight & dimensions - Receiver weight - 170 g
Weight & dimensions - Receiver width - 5.74 cm
Weight & dimensions - Transmitter depth - 9.1 cm
Weight & dimensions - Transmitter height - 2.4 cm
Weight & dimensions - Transmitter weight - 170 g
Weight & dimensions - Transmitter width - 5.74 cm
